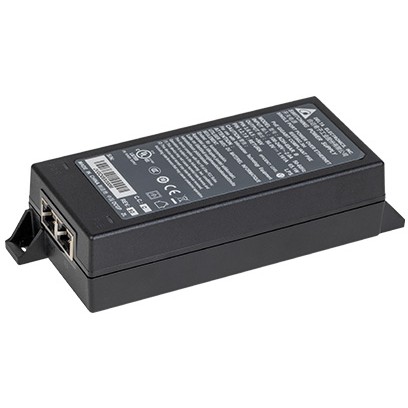

10G PoE++ Injector (EU)

Description

LANCOM 10G PoE++ Injector (EU). Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data transfer rates: 10, 100, 1000, 2500, 5000, 10000 Mbps, Network standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Product color: Black, Power protection features: Overcurrent, overvoltage, overheating, overload protection, and short circuit protection. Power over Ethernet (PoE) voltage: 56 V, Output power: 65 W, Power supply input voltage: 100-240 V. Certifications: UL, CE, CCC, EN 62368, DoE VI, CoC tier II. Package weight: 500 g

Power supply of access points via PoE including 10G support
With the LANCOM PoE++ 10G Injector, you can take advantage of the benefits of a PoE-enabled infrastructure, such as high flexibility and cost-efficiency, without sacrificing 10G transmission speeds. Thanks to support for the IEEE 802.3bt (PoE++) and 10 Gbps PoE standards, even powerful Wi-Fi 7 access points can be reliably supplied with power even without a PoE-enabled switch. Backward compatibility with IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) as well as multi-gigabit support (1G / 2.5G / 5G / 10G) ensure flexible use in all network infrastructures. The LANCOM PoE++ 10G Injector can be placed up to 100 m from the access point, providing ideal coverage even in hard-to-reach wireless areas.

Advantages
10 Gigabit Ethernet especially for Wi-Fi 7 access points
With Multi-Gigabit Ethernet and speeds of up to 10 Gbps, the LANCOM PoE++ 10G Injector reliably supplies access points with power, even when connected to a switch without PoE capability. This allows end devices to utilize the full network performance without any performance degradation, even in locations without a direct power connection.

Full power thanks to PoE, PoE+ and PoE++
Thanks to support for the IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (PoE++) PoE standards, the injector is the optimal choice for powering all LANCOM access points via Power over Ethernet. Even network components with higher power requirements do not suffer any performance losses.

High output power
With a power supply according to IEEE 802.3af/at/bt with guaranteed output power of 65W up to 100m, the LANCOM PoE++ 10G Injector enables the flexible positioning of access points for perfect radio field coverage.

Integrated power supply
The LANCOM PoE++ 10G Injector has an integrated power supply, so no additional components are required apart from the included power plug – a space-saving solution.

Plug & Play
The injector's practical plug-and-play installation allows for quick and easy integration into the network. Simply connect the LANCOM PoE++ 10G Injector between the switch and the access point to be networked and connect it to the power supply using the power cable.
