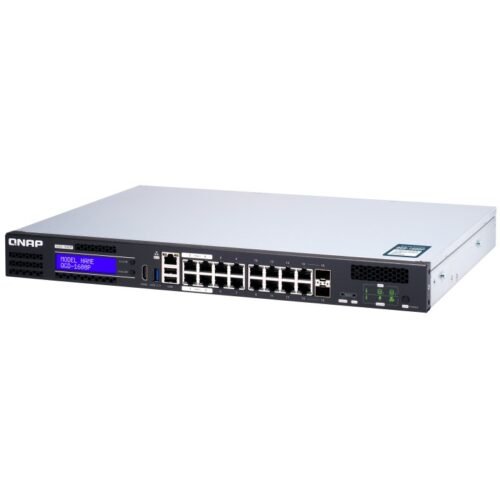

16+4 QNAP QGD-1600P-4G PoE M RM

Description

QNAP QGD-1600P. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 14. Number of USB 2.0 ports: 2. Full duplex. MAC address table: 8000 entries. Routing/switching capacity: 32 Gbps. Network standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE…. Power over Ethernet (PoE). Rack-mountable, form factor: 1U.

The QNAP QGD-1600P is the world's first PoE-managed switch that supports virtual machines (VMs). It offers 4-port 60-watt Gigabit PoE and 12-port 30-watt Gigabit PoE (with two PoE/SFP combo ports) for highly flexible network deployment. With a dual-CPU design, the QGD-1600P provides Layer 2 management capabilities for both VM and QTS applications. The QGD-1600P also features Software-Defined Networking (SDN), allowing it to be deployed as a NAS, NVR, router, firewall, and AP controller for IP surveillance, network security, storage expansion, and wireless LAN management applications. The Guardian Series provides SMBs with a cost-optimized and centrally managed LAN deployment solution.

The QGD-1600P is a hybrid PoE switch/NAS that enables NVR, router, and AP controller functions and comes with pre-installed software to meet all SMB networking needs. The PoE switch can help your business embark on digital transformation by making edge devices intelligent.

High PoE capability – up to 60W
The QGD-1600P complies with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capabilities. The QGD-1600P can provide a total power budget of 370 watts to meet the demands of many high-power devices (PDs) such as IP cameras, wireless access points, IP phones, LED lights, and digital signage.

Intelligent PoE functions for efficient, centralized PD management
The QGD-1600P supports intelligent PoE management features, including scheduling, power prioritization, and power enable/disable. You can view the network connection status and power consumption of PDs in real time and configure PDs simultaneously to promote an energy-efficient PoE network.

Extensive Layer 2 management functions
The QGD-1600P offers comprehensive Layer 2 management features such as VLAN, LACP, and LLDP, allowing you to efficiently control the network through IP grouping and bandwidth management. The QGD-1600P also features powerful security features such as IGMP snooping, static MAC address (MAC), QoS, and Wake-on-LAN, making it suitable for simple network environments and easy deployment.

Dual system of Switch & NAS for optimal performance
The QGD-1600P features dual-system design, multi-port capability, and expandable architecture, enabling optimal transmission and flexibility to meet business requirements for performance and application diversification.

4x Gigabit 802.3bt PoE++ ports
Delivers up to 60 watts per port to meet the demands of high-power devices (PDs) such as LED lights, digital signage, and PTZ IP cameras.

The first PoE switch with VM support
The QGD-1600P is the world's first PoE switch with the integrated QTS operating system for VMs, containers, and other cloud applications, enabling a wide range of network and storage solutions. In addition to QVR Pro, VJBOD, and other diverse storage applications, the QTS App Center also supports VMs running many open-source software applications, including MikroTik® RouterOS, OpenWrt, pfSense®, and Ubiquiti® UniFi®. The QGD-1600P is integrated with public cloud services and meets the needs of various applications in the areas of IP monitoring, storage expansion, network security, and Wi-Fi management. The dual-CPU design of the QGD-1600P allows you to run the network management interfaces of QSS (QNAP Switch System) and QTS independently. The #QGD-1600P## offers a user-friendly web interface, QuNetSwitch, that helps SMEs easily deploy a flexible and secure IT infrastructure.
QTS and QSS can operate independently of each other without interfering with each other, ensuring continuous operation. For example, restarting the QTS does not interrupt the QSS PoE power supply; restarting the QSS allows the VMs on the QTS to continue running.

The QGD-1600P and QVR Pro
Create a one-stop IP surveillance system
The QGD-1600P works seamlessly with QVR Pro, QNAP's new surveillance software service, to build the most cost-effective one-stop IP surveillance system. By integrating PoE, NVR, and NAS storage capabilities, the QGD-1600P greatly simplifies surveillance network infrastructure while meeting surveillance deployment, centralized management, video recording, and computing needs. The QGD-1600P provides 4-port 60W and 12-port 30W Gigabit PoE for various brands of high-performance IP cameras with the ONVIF standard. With the QVR Pro Surveillance Suite, IT administrators can easily manage cameras, record and playback videos, perform failover recording tasks, and monitor mobile apps. The QGD-1600P is equipped with an HDMI output for connecting an external monitor for real-time video surveillance.

QGD-1600P + VJBOD: A highly scalable storage solution
The QGD-1600P supports up to two SATA drives and other hardware-based storage expansion accessories such as PCIe, USB, SAS expansion cards, and RAID expansion enclosures (TR-004U) to ensure reliable performance. Additionally, you can expand the storage space of the QGD-1600P via QNAP VJBOD. With VJBOD, you can instantly allocate storage space from a remote QNAP NAS as an iSCSI LUN and create storage pools, create snapshots, create clones from snapshots, or index multimedia files in the media library on the QGD-1600P. With the availability of physical units and VJBOD, you can achieve the highest possible storage utilization to meet your data storage and backup needs.

QGD-1600P: Increase security with an integrated virtual router and virtual firewall
The QGD-1600P can be easily converted into a security router with a firewall by installing MikroTik RouterOS and OpenWrt via a virtual router and virtual firewall software. You can flexibly configure Layer 3 routing functions and create site-to-site VPN tunnels between the headquarters and branch offices, while securing data transmission within the corporate network. The pfSense virtual firewall software helps companies separate or protect local networks and apply multiple security policies.

The QGD-1600P creates a wireless AP controller with UniFi® AP
The QGD-1600P provides 4-port 60-watt and 12-port 30-watt Gigabit PoE for various types of high-performance PoE wireless APs. By leveraging PoE and VM technology to support PoE wireless APs and Ubiquiti UniFi wireless management software, the QGD-1600P becomes a hardware-based and software-based wireless AP controller. The QGD-1600P not only enables data transmission and PoE management over wireless APs, but also centralized management over wired and wireless network devices in offices, hotels, retail stores, or other small to medium-sized networks, promoting network management effectiveness and reducing costs.

QuNetSwitch: User-friendly switch management software
In addition to QNAP Switch System (QSS), the QGD-1600P also offers QuNetSwitch (via QTS), a user-friendly web interface management software that allows IT administrators to efficiently manage Layer 2 and PoE networks. The overview dashboard and graphical statistics analysis panel display all information about the switch and PDs at a glance, allowing administrators to intuitively and easily manage overloaded devices centrally.
