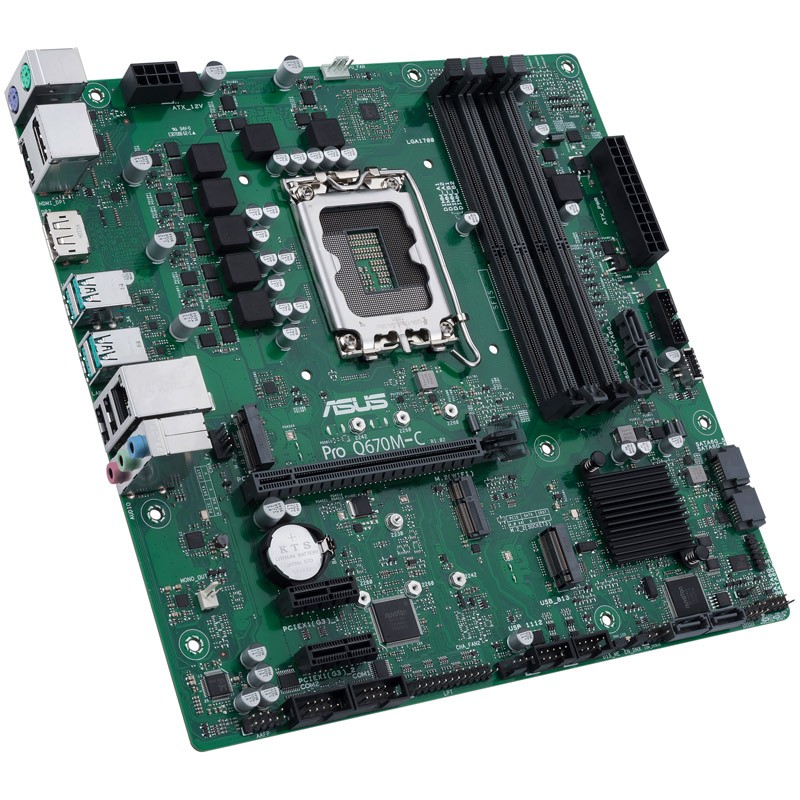

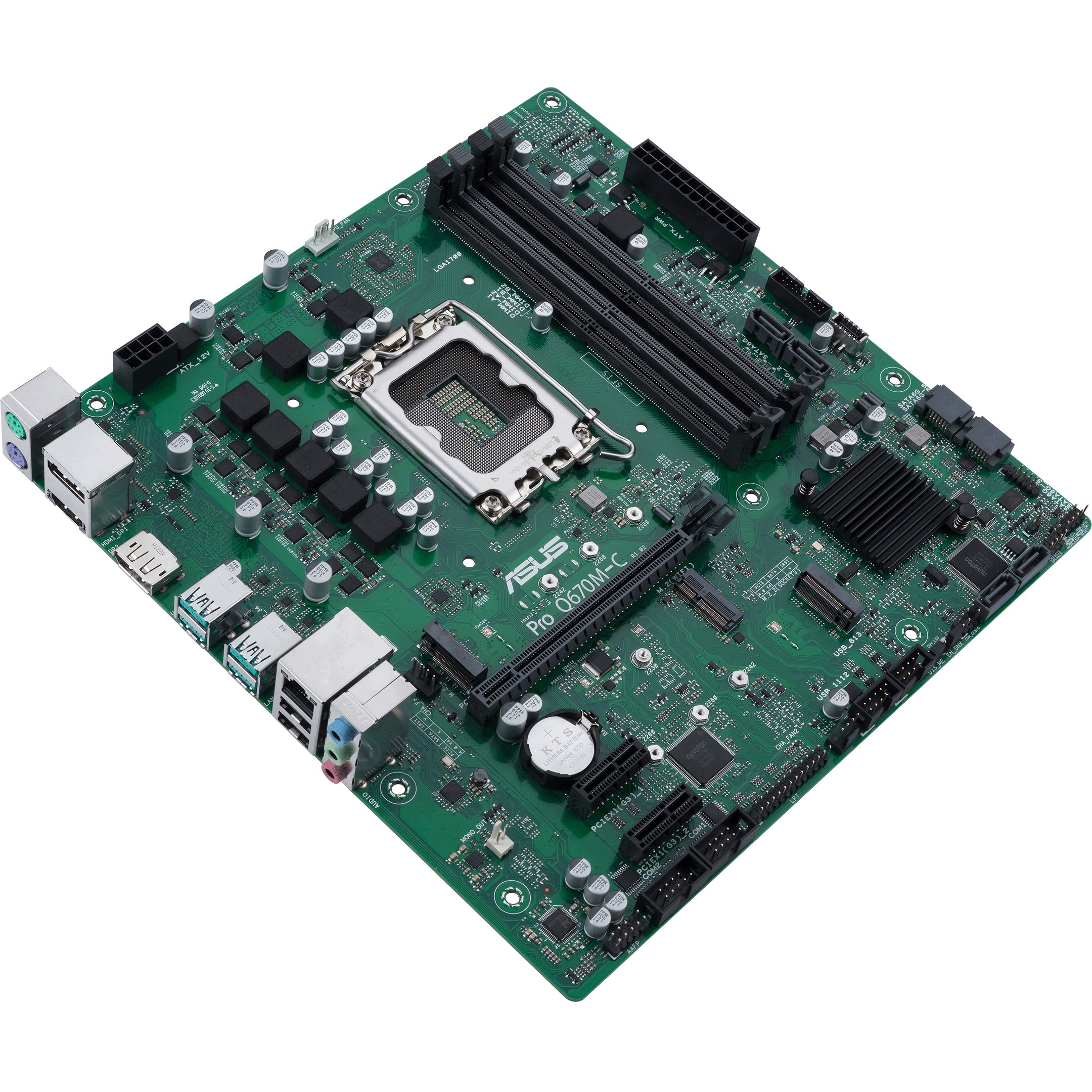

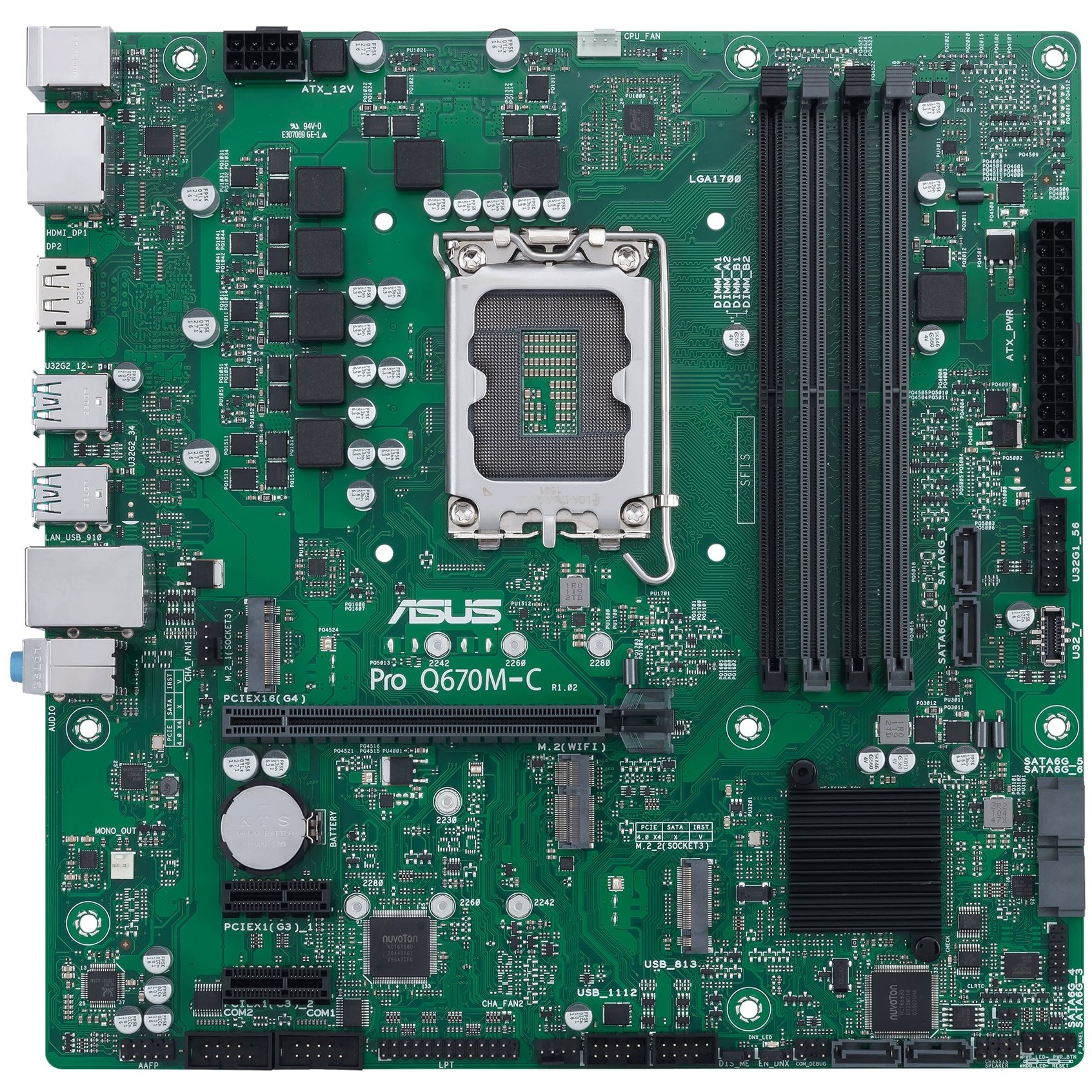

1700 ASUS PRO Q670M-C-CSM

Name: 1700 ASUS PRO Q670M-C-CSM
SKU: 166367
Price: 168.48 EUR
Availability: InStock

€207.23

ASUS PRO Q670M-C-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…, LGA 1700, 128 GB, DDR5-SDRAM

30 in stock

Categories: Mainboards & accessories, Motherboards - Intel

Description
Additional information

Description

ASUS PRO Q670M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory: DDR5-SDRAM, Maximum RAM: 128 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Additional information

Weight	0.96 kg
Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processors	Intel® Celeron®, Intel® Core ™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®G
Supported processor slots	LGA 1700
Maximum internal memory supported by the processor	128 GB
Supported RAM	DDR5 SDRAM
Number of memory slots	4
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	Non-ECC
Supported memory speed	4800 MHz
RAM memory maximum	128 GB
Supported memory module capacities	16 GB, 32GB, 4GB, 8GB
Supported storage drives	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Maximum number of HDDs supported	6
Number of storage drives supported	8
Characteristic	ATX power connector (24-pin), Audio connection, CPU fan connector, Drivers included, EPS power connector (8-pin), Ethernet/LAN, Front panel audio connector, Microphone input, RAID support
RAID level	1, 10, 5
Number of USB 2.0 interfaces	2
USB 3.2 Gen 1 (3.1 Gen 1) ports	2
SATA III connectors	6
Number of chassis fan plugs	2
Number of COM plugs	2
Number of USB 2.0 ports	2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	4
Number of Ethernet LAN connections (RJ-45)	1
Number of PS / 2 connections	2
Number of HDMI connections	1
HDMI version	2.1
Number of DisplayPort connections	2
DisplayPorts version	1.4
Headphone outputs	2
Ethernet interface type	Gigabit Ethernet
Motherboard chipset	IntelQ670
Audio channels	7.1 channels
Component for	Pc
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Cooling	Active
Energy source	ATX
Number of mounting holes	8
Supports Windows operating systems	Windows 10, Windows 11
Compatible operating systems	Windows® 10 64-bit, Windows® 11 64-bit
PCI-Express x1 (Gen 3.x) connectors	2
PCI Express x16 slots (Gen 4.x)	1
Number of M.2 (M) slots	2
BIOS memory size	256 Mbit
Goods tariff number (HS)	84733020
Broad	244 mm
Depth	244 mm
Height	51 mm
Supplied cables	SATA
Weight	634 g
Manufacturer	ASUS
