1700 ASUS TUF B760M-PLUS GAMING BTF mATX D4

Description

ASUS TUF GAMING B760M-BTF WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory: DDR4-SDRAM, Maximum RAM memory: 128 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 6 (802.11ax), WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

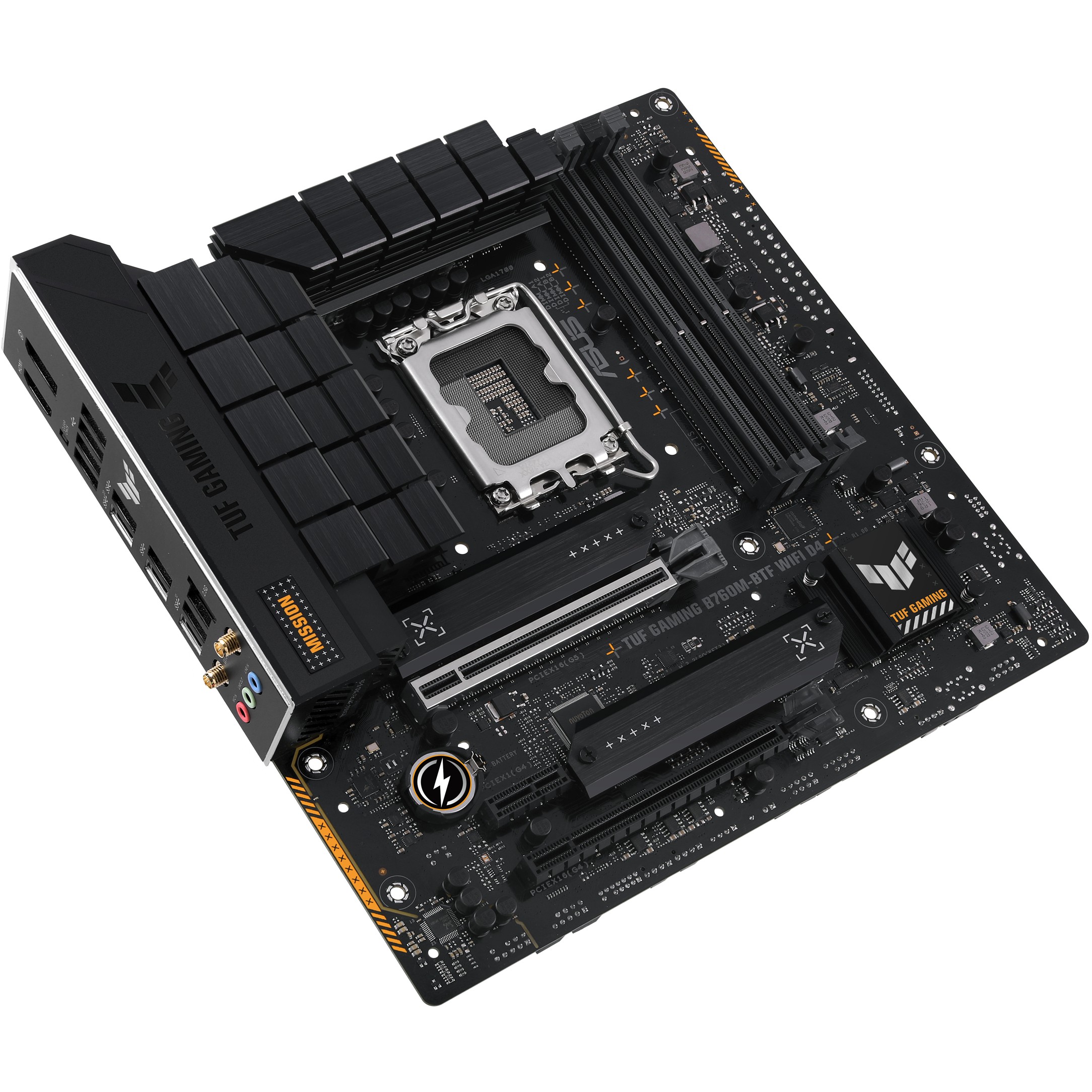

The TUF GAMING B760M-BTF WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with gaming-ready features and proven durability. “BTF” stands for “Back To (the) Future” and represents a new era for all DIY PC gamers. The BTF series hides all ports on the back of the motherboard for clean cable management and a minimalist appearance.
This motherboard is equipped with military-grade components, an enhanced power delivery solution, and a comprehensive cooling system to exceed expectations with rock-solid performance and marathon gaming.

INTELLIGENT CONTROL
TUF GAMING B760M motherboards offer flexible tools to optimize every aspect of your system and boost performance to suit your gaming style.

All-round energy efficiency
The Power Saver feature includes several settings that allow you to easily optimize power consumption and maximize energy savings. You can enable CPU power limiting, dim the Aura lighting, and set the fan profile to a power-saving mode. You can also switch the power plan built into Microsoft Windows.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, optimize, and tune your system. It offers intelligently simplified options for novice PC builders and comprehensive features for seasoned veterans.

Armoury Crate
The ASUS-exclusive Armoury Crate software centralizes control across all supported gaming products. From a single intuitive interface, you can customize RGB lighting across all compatible devices and connect them with Aura Sync for consistent lighting. It also displays and provides control over information from a growing hardware ecosystem. Armoury Crate also enables easy product registration and offers a news section to keep you up to date with the gaming community.

UNSHAKABLE PERFORMANCE
With improved power delivery and comprehensive cooling options for the latest Intel CPUs, as well as support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING B760M-BTF WIFI D4 is the perfect foundation for your next Intel battle rig.

DrMOS Power Stages
12+1 power stages that combine high-side and low-side MOSFETs and drivers in a single package to deliver power, efficiency, and stable performance for all compatible Intel processors.

Six-layer board design
The multi-layer board design quickly dissipates heat around the voltage regulators to improve overall system stability and give the CPU more overclocking headroom.

8+4 pin ProCool power connectors
Compared to most power connectors, ASUS ProCool connectors are built to strict specifications to ensure full contact with the power supply's power cables. The resulting lower impedance helps prevent hot spots and connection issues.

TUF components

TUF coils
Certified military-grade TUF coils deliver rock-solid performance to the CPU and improve system stability.

TUF capacitors
The black TUF 5K metal capacitors offer 52% greater temperature tolerance and 2.5 times longer lifespan than standard motherboard capacitors.

Digi+ VRM
The integrated Digi+ voltage regulator module (VRM) is one of the best in the industry, optimized to deliver extremely smooth and clean power to the CPU at all times.

DRAM Overclocking Performance
Improvements to the trace routing design enable the latest Intel processors to access memory bandwidth more effectively. ASUS OptiMem II technology carefully maps memory signal paths across multiple PCB layers to reduce path distance and adds shielding zones that significantly reduce crosstalk.

PCIe 4.0 support
The two PCIe 4.0 M.2 slots on the front and one PCIe 4.0 M.2 slot on the back support up to three 2280 devices and data transfer speeds are up to 64 Gbps over PCIe® 4.0, enabling faster boot and loading times of operating systems or applications.

Cooler by design
Enlarged VRM heatsink
The large surface area of this heatsink covers the VRMs and coils to improve heat dissipation.

Optimized M.2 heatsink design
The two M.2 slots on the front have their own heatsinks that keep the M.2 SSDs at optimal operating temperatures, ensuring consistent performance and reliability.

Comprehensive fan control
TUF GAMING B760M motherboards feature comprehensive fan control that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.

Each header can be configured to monitor and respond to three user-configurable temperature sensors to ensure load-dependent cooling. All settings can be easily managed with Fan Xpert 2+ or via the UEFI.

Connectivity
The TUF GAMING B760M-BTF WIFI D4 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes four Type-C connections and Thunderbolt 4 increases compatibility and bandwidth even further.

EASY PC DIY
The TUF GAMING line offers easy setup for all PC builders. The TUF GAMING Alliance ecosystem ensures compatibility, while Armoury Crate offers Fan Xpert 2+, hardware info, two-way AI noise cancellation, RGB options, and peripheral settings. This platform features intuitive tools to help you build and optimize your dream rigs.

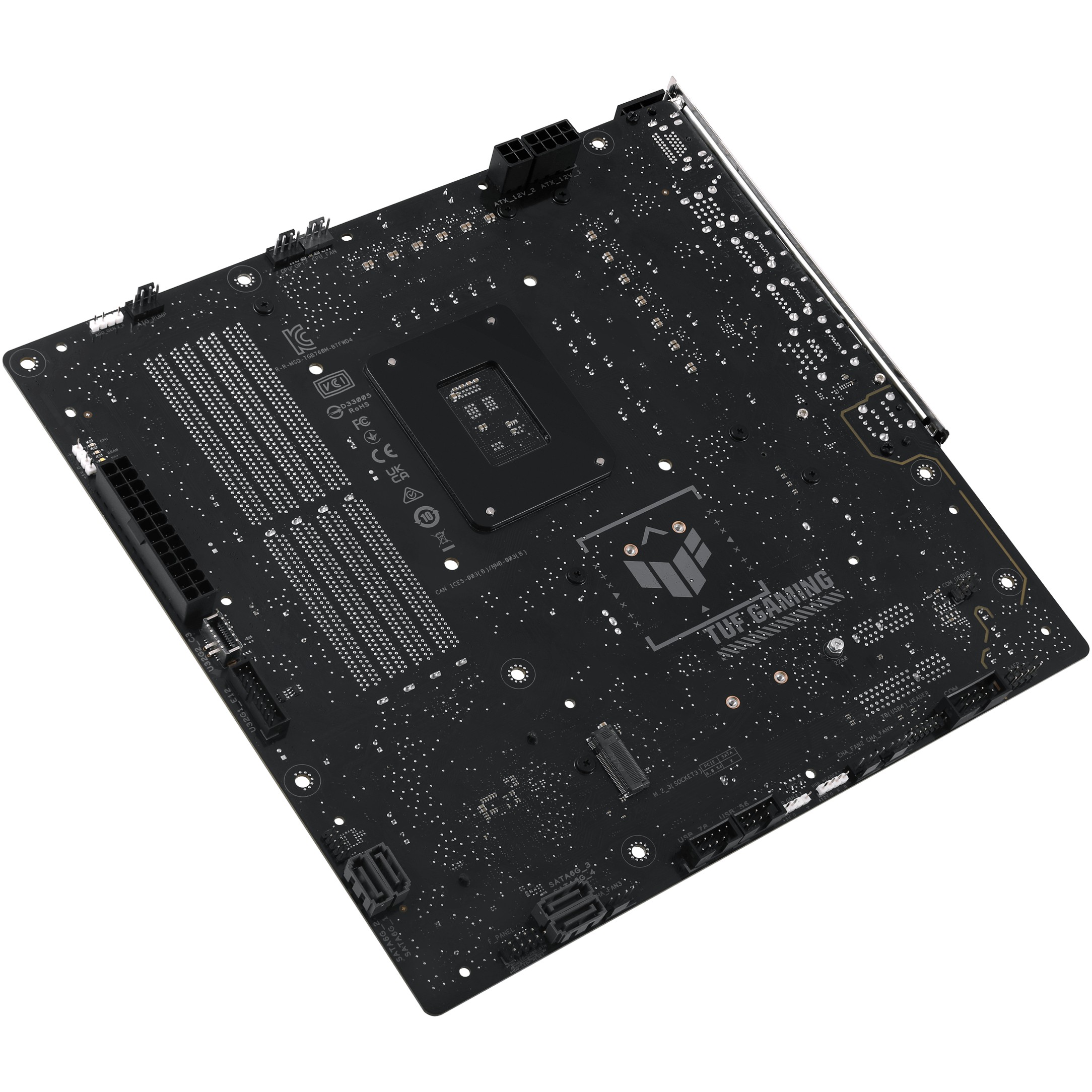

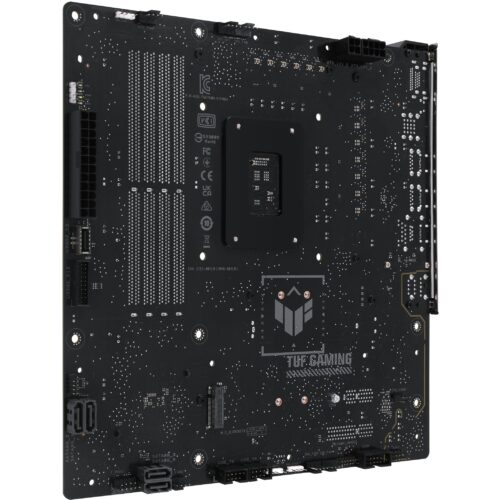

Optimized cable management
The hidden port design is ideal for beginners as it facilitates cable management and improves the appearance of a building by providing a clean and tidy interior.
*This motherboard is only compatible with certain case models.

Build with trust
The TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, including PC cases, power supplies, CPU coolers, memory kits, and more. With new partnerships and components added regularly, the TUF Gaming Alliance will only grow stronger.

SafeSlot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal shroud that attaches to a PCIe slot to securely install a card. Additionally, the ASUS SafeDIMM shroud supports and protects memory modules on select ASUS motherboards, allowing you to install modules quickly, precisely, and securely.

ESD protection devices
ESD protection devices extend component lifespan and prevent damage caused by electrostatic discharge. They provide protection against air discharges up to +/- 10 kV and contact discharges up to +/- 6 kV, exceeding the corresponding industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual inline package protect your PC from voltage spikes.

TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal coupling technology and high-quality surface-mount capacitors to improve throughput and protect the motherboard from lightning strikes and static discharge.

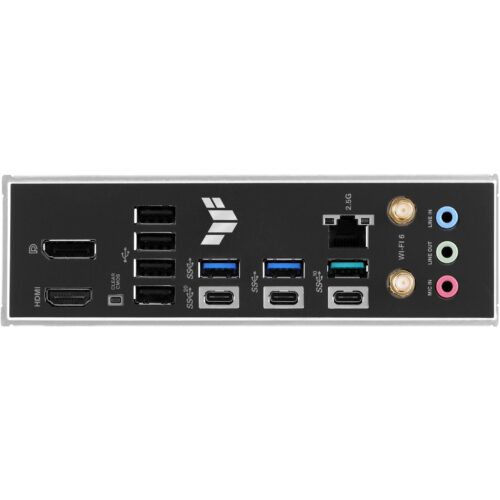

Rear connection panel made of stainless steel
TUF GAMING motherboards feature a corrosion-resistant stainless steel rear port cover coated with chromium oxide, which lasts three times longer than conventional covers. This protective feature allows TUF GAMING motherboards to pass a 72-hour salt spray test, while other brands only pass a 24-hour test.

M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without special tools. The design uses a simple locking mechanism to secure the M.2 SSD, eliminating the need for screws.

Removable captive screws
Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case when removing the M.2 heatsink.

Q-LED
With the integrated Q-LED troubleshooting lights, PC builders can quickly determine whether the most important components – CPU, memory, graphics card, drives – are functioning normally during startup.

CLEAR CMOS
The Clear CMOS key quickly resets BIOS settings to factory defaults. It can also be used to restart the PC if incorrect BIOS settings have been selected.

IMMERSIVE GAMING
TUF GAMING B760M motherboards offer a feature-rich, high-performance gaming package with ultra-fast networking for smooth online gameplay, premium positional audio for FPS gaming, and integrated RGB lighting that syncs with connected devices to personalize your gaming experience.

WiFi 6

2.5 Gb Ethernet
The integrated 2.5 Gb Ethernet boosts your LAN connection with up to 2.5x bandwidth improvement. Using your existing LAN cable, you can take advantage of this network upgrade to experience smoother, lag-free gaming, instantly stream high-resolution videos, and enjoy faster file transfers.

Two-Way AI Noise Cancellation
This powerful, ASUS-exclusive utility leverages an extensive deep learning database to reduce background microphone noise* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks, and other ambient noises are muffled, allowing you to hear and be heard with excellent clarity while gaming or making phone calls.
*If you use a 3.5 mm headset, an audio splitter (3.5 mm audio jack Y-cable) is required

Realtek 7.1 Surround Sound
The unique audio codec, developed in close collaboration with Realtek for the TUF GAMING B760M motherboards, offers an unprecedented signal-to-noise ratio for the stereo line out and ensures pristine audio quality.

DTS Audio Processing
DTS® Audio Processing enhances the audio experience of gaming headsets and speakers by reducing distortion and delivering deeper bass, so games, movies, and music sound better. It also lets you customize audio settings.

Addressable Gen 2 RGB header
Three addressable Gen 2 RGB headers support up to 500 LEDs on Gen 2 RGB devices and allow Aura Sync to automatically adjust lighting effects throughout your system. The new headers also offer full backward compatibility with existing Aura Sync devices.
