1803VAW-5G (EU)

Description

LANCOM 1803VAW-5G (EU). Product color: Black, Mounting type: Table/wall mount, Number of fans: 1 fan. Antenna type: External. VoIP protocols: RTP, SIPS, SRTP. Ethernet LAN data transfer rates: 10, 100, 1000 Mbps. Network standard: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Mobile network generation: 5G. Supported security algorithms: AES-CCMP, AES-GCMP, EAP-TLS, EAP-TTLS, SNMP, SNMPv2, SNMPv3, TKIP.

SD-WAN VoIP Gateway with VDSL, 5G and Wi-Fi 6
As a complete package for fast and highly available SD-WAN site connectivity and integrated dual-band concurrent Wi-Fi 6, the LANCOM 1803VAW-5G utilizes any internet technology available at the site—be it VDSL, 5G, or fiber optic. The wide variety of interfaces and the ability to use multiple access points simultaneously ensure maximum flexibility and reliability, even with higher data volumes and business-critical applications. Combined with the LANCOM Management Cloud (LMC), the LANCOM 1803VAW-5G enables automated network management, saving valuable resources such as costs and time. Fast Wi-Fi 6 and the ability to connect telephony components round out the package.

LANCOM SD-WAN – Next-level networking
With LANCOM SD-WAN, you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway opens up all the possibilities for automated setup of secure VPN connections (Auto-VPN) between locations, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you significant scalability and efficiency gains for multiple branch offices and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the total available bandwidth. Dynamic Path Selection and Dynamic Traffic Steering also dynamically route applications via the currently best connection.

WAN connectivity with VDSL supervectoring & 5G
The LANCOM 1803VAW-5G offers full VDSL supervectoring support and is also backward compatible with VDSL2 and ADSL2+. Data rates of up to 300 Mbps are possible on existing copper lines. Thanks to high-performance 5G technology, the LANCOM 1803VAW-5G is also ideal for intelligent backup scenarios, primary operation, or parallel operation in active/active mode with other access types. Maximum availability and optimal bandwidth for real-time applications such as video streaming or augmented reality (AR), combined with lowest latency, make the branch router the ideal hub in high-data-volume environments.

Professional integration of wireless clients via Wi-Fi 6
The LANCOM 1803VAW-5G offers Wi-Fi in the Wi-Fi 6 standard (IEEE 802.11ax) and can simultaneously connect both clients in the 2.4 GHz frequency band and modern end devices in the 5 GHz band to the network and provide them with fast Wi-Fi. Dual-band concurrent Wi-Fi 6 technology enables transmission rates of up to 1,200 Mbps in the 5 GHz band and up to 575 Mbps in the 2.4 GHz band.

Modern housing with a focus on sustainability

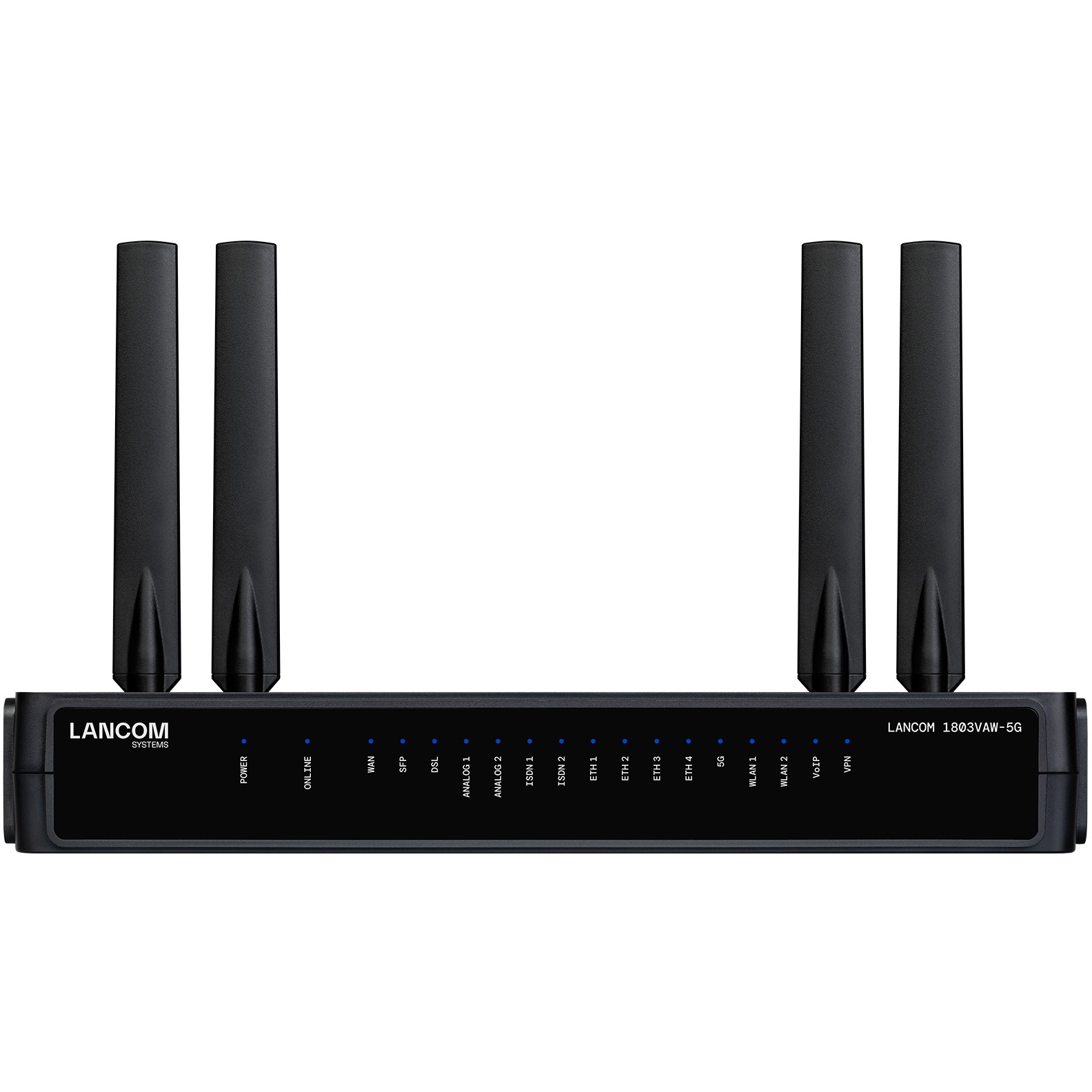

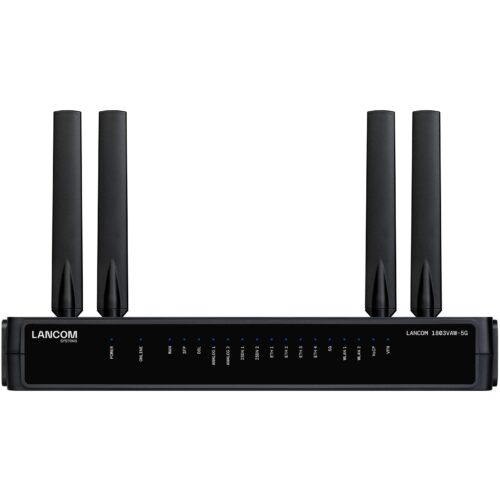

Innovative technology meets a future-oriented look: The interplay of matte black plastic and a mirror-smooth Plexiglas front panel for interface information conveys a tangible sense of security, reliability, and high quality. The housing of the SD-WAN branch router offers high installation flexibility thanks to table, rack, and wall mounting options. Local production ensures short procurement routes with low CO2 emissions, thus scoring particularly highly in terms of sustainability.

Security thanks to ARF, VLAN and Stateful Inspection Firewall
Equipped with a stateful inspection firewall, the LANCOM SD-WAN gateway protects the entire network with features such as intrusion prevention and denial of service protection. Logical network segmentation allows you to define individual security settings and access rights based on user requirements, as well as divide your infrastructure and applications into different areas. This network segmentation, using ARF (Advanced Routing and Forwarding) and VLAN (Virtual Local Area Network), ensures that your corporate network remains protected as a whole, even if a network segment is compromised.

Secure communication via VPN
With virtual private networks (VPNs), you use the public internet as a communication channel and secure the connection so that it remains completely inaccessible to outsiders. This SD-WAN gateway offers five integrated IPSec VPN channels for secure encryption, ensuring the protection of internal company data when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, allowing the infrastructure to easily grow as needed, even without additional hardware.

Professional, comprehensive telephony functions
Equipped with the LANCOM VCM (Voice Call Manager), the LANCOM SD-WAN VoIP Gateway handles traditional telephony management tasks and integrates all types of telephony components such as SIP, ISDN, or analog. The LANCOM VCM also offers common functions of a Session Border Controller (SBC): This enables the secure separation of external (insecure) and internal (secure) networks. Bandwidth reservation ensures preferential treatment of voice packets (quality of service) for high call quality. Furthermore, as a SIP proxy, the VCM enables professional management of signaling and voice data for high security when establishing, conducting, and terminating telephone calls, including the necessary protocol conversion via transcoding. The VoIP Gateway conveniently handles the translation between ISDN, analog, and VoIP.

Maximum future security and digital sovereignty
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and expertise. Software and hardware development and manufacturing take place primarily in Germany, as does network management hosting. Particular attention is paid to GDPR-compliant trustworthiness and data security. The company is committed to ensuring its products are free of backdoors and is a holder of the “IT Security Made in Germany” quality seal initiated by the German Federal Ministry for Economic Affairs and Energy. All devices are equipped with future-proof hardware dimensions. Updates to the LANCOM operating system family are available free of charge several times a year, even across product generations. This guarantees long-term use with the latest technology and offers true investment protection. Furthermore, LANCOM infrastructures are easily scalable thanks to maximum compatibility.
