1803VAW (EU)

Description

LANCOM 1803VAW (EU). Product color: Black, Number of fans: 1 fan. Antenna type: External, Antenna connector type: SMA, Antenna gain level (max): 2 dBi. Management protocols: SNMPv1, v2c, v3, Supported network protocols: Ethernet over GRE Tunnel (EoGRE), L2TPv3, ARP Lookup, LLDP, DHCP option 82,…, VoIP protocols: SIP ALG. Ethernet LAN data transfer rates: 10, 100, 1000 Mbps, Network standard: IEEE 802.1Q, IEEE 802.3az, Frequency band: 2.4/5 GHz. Supported security algorithms: 3DES, AES, FIPS 140, SHA-1, SHA-256, SHA-384, SHA-512, Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2

SD-WAN VoIP Gateway with VDSL and Wi-Fi 6
The LANCOM 1803VAW SD-WAN gateway integrates mobile devices into the corporate network thanks to dual-band concurrent Wi-Fi 6 technology, operating in both the 5 GHz and 2.4 GHz bands. The integrated VDSL modem and optional fiber optic connection provide the necessary, high-performance basis for fast internet access, even with high data volumes. Secure LANCOM IPSec VPN and SD-WAN connect corporate locations and mobile employees, transforming the LANCOM 1803VAW into a high-performance hub for small and medium-sized enterprise and branch office infrastructures. Combined with the LANCOM Management Cloud (LMC), you can automate and centralize your network management to save valuable resources such as time and money.

LANCOM SD-WAN – Next-level networking
With LANCOM SD-WAN, you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway opens up all the possibilities for automated setup of secure VPN connections (Auto-VPN) between locations, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you significant scalability and efficiency gains for multiple branch offices and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the total available bandwidth. Dynamic Path Selection and Dynamic Traffic Steering also dynamically route applications via the currently best connection.

Professional integration of wireless clients via Wi-Fi 6
The LANCOM 18003VAW offers Wi-Fi in the Wi-Fi 6 standard (IEEE 802.11ax) and can simultaneously connect both clients in the 2.4 GHz frequency band and modern end devices in the 5 GHz band to the network and provide them with fast Wi-Fi. Dual-band concurrent Wi-Fi 6 technology enables transfer rates of up to 1,200 Mbps in the 5 GHz band and up to 575 Mbps in the 2.4 GHz band.

WAN connectivity with VDSL supervectoring
The LANCOM 1803VAW offers full VDSL supervectoring support and is also backward compatible with VDSL2 and ADSL2+. Data rates of up to 300 Mbps are possible on existing copper lines.

Modern housing with a focus on sustainability

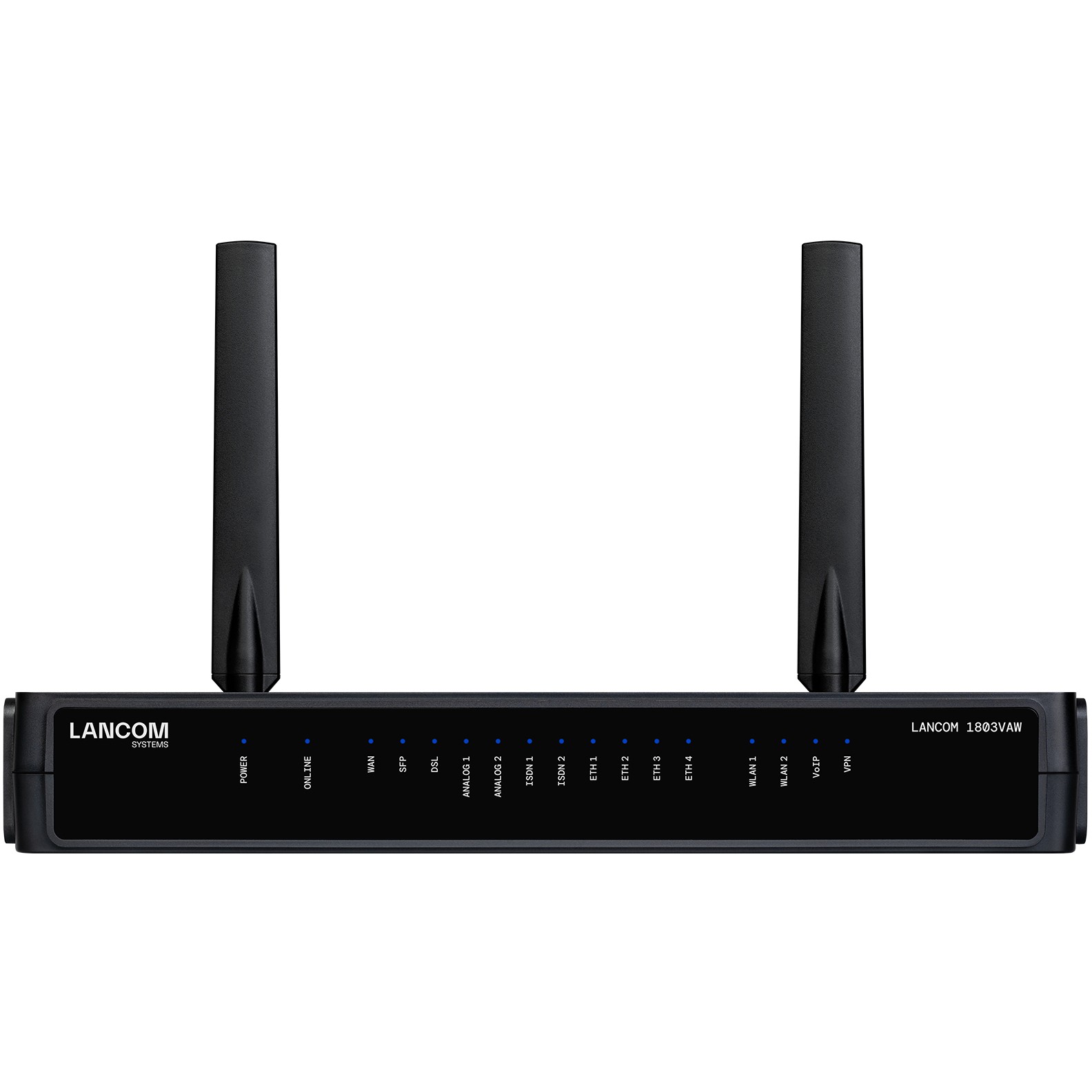

Innovative technology meets a future-oriented look: The interplay of matte black plastic and a mirror-smooth Plexiglas front panel for interface information conveys a tangible sense of security, reliability, and high quality. The housing of the SD-WAN branch router offers high installation flexibility thanks to table, rack, and wall mounting options. Local production ensures short procurement routes with low CO2 emissions, thus scoring particularly highly in terms of sustainability.

Security thanks to ARF, VLAN and Stateful Inspection Firewall
Equipped with a stateful inspection firewall, the LANCOM SD-WAN gateway protects the entire network with features such as intrusion prevention and denial of service protection. Logical network segmentation allows you to define individual security settings and access rights based on user requirements, as well as divide your infrastructure and applications into different areas. This network segmentation, using ARF (Advanced Routing and Forwarding) and VLAN (Virtual Local Area Network), ensures that your corporate network remains protected as a whole, even if a network segment is compromised.

Secure communication via VPN
With virtual private networks (VPNs), you use the public internet as a communication channel and secure the connection so that it remains completely inaccessible to outsiders. This SD-WAN gateway offers five integrated IPSec VPN channels for secure encryption, ensuring the protection of internal company data when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, allowing the infrastructure to easily grow as needed, even without additional hardware.

Professional, comprehensive telephony functions
Equipped with the LANCOM VCM (Voice Call Manager), the LANCOM SD-WAN VoIP Gateway handles traditional telephony management tasks and integrates all types of telephony components such as SIP, ISDN, or analog. The LANCOM VCM also offers common functions of a Session Border Controller (SBC): This enables the secure separation of external (insecure) and internal (secure) networks. Bandwidth reservation ensures preferential treatment of voice packets (quality of service) for high call quality. Furthermore, as a SIP proxy, the VCM enables professional management of signaling and voice data for high security when establishing, conducting, and terminating telephone calls, including the necessary protocol conversion via transcoding. The VoIP Gateway conveniently handles the translation between ISDN, analog, and VoIP.

Maximum future security and digital sovereignty
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and expertise. Software and hardware development and manufacturing take place primarily in Germany, as does network management hosting. Particular attention is paid to GDPR-compliant trustworthiness and data security. The company is committed to ensuring its products are free of backdoors and is a holder of the “IT Security Made in Germany” quality seal initiated by the German Federal Ministry for Economic Affairs and Energy. All devices are equipped with future-proof hardware dimensions. Updates to the LANCOM operating system family are available free of charge several times a year, even across product generations. This guarantees long-term use with the latest technology and offers true investment protection. Furthermore, LANCOM infrastructures are easily scalable thanks to maximum compatibility.
