1930EF-5G (EU)

Description

LANCOM 1930EF-5G (EU). Product color: Black, Mounting type: Table/wall mount, Number of fans: 1 fan. Antenna type: External. Ethernet LAN data transfer rates: 10, 100, 1000 Mbps, Mobile network generation: 5G, Data network: 5G, HSPA, LTE, UMTS. Supported security algorithms: SNMP, SNMPv2, SNMPv3. SIM card type: MiniSIM, Console port: RJ-45, WAN port: Ethernet (RJ-45)

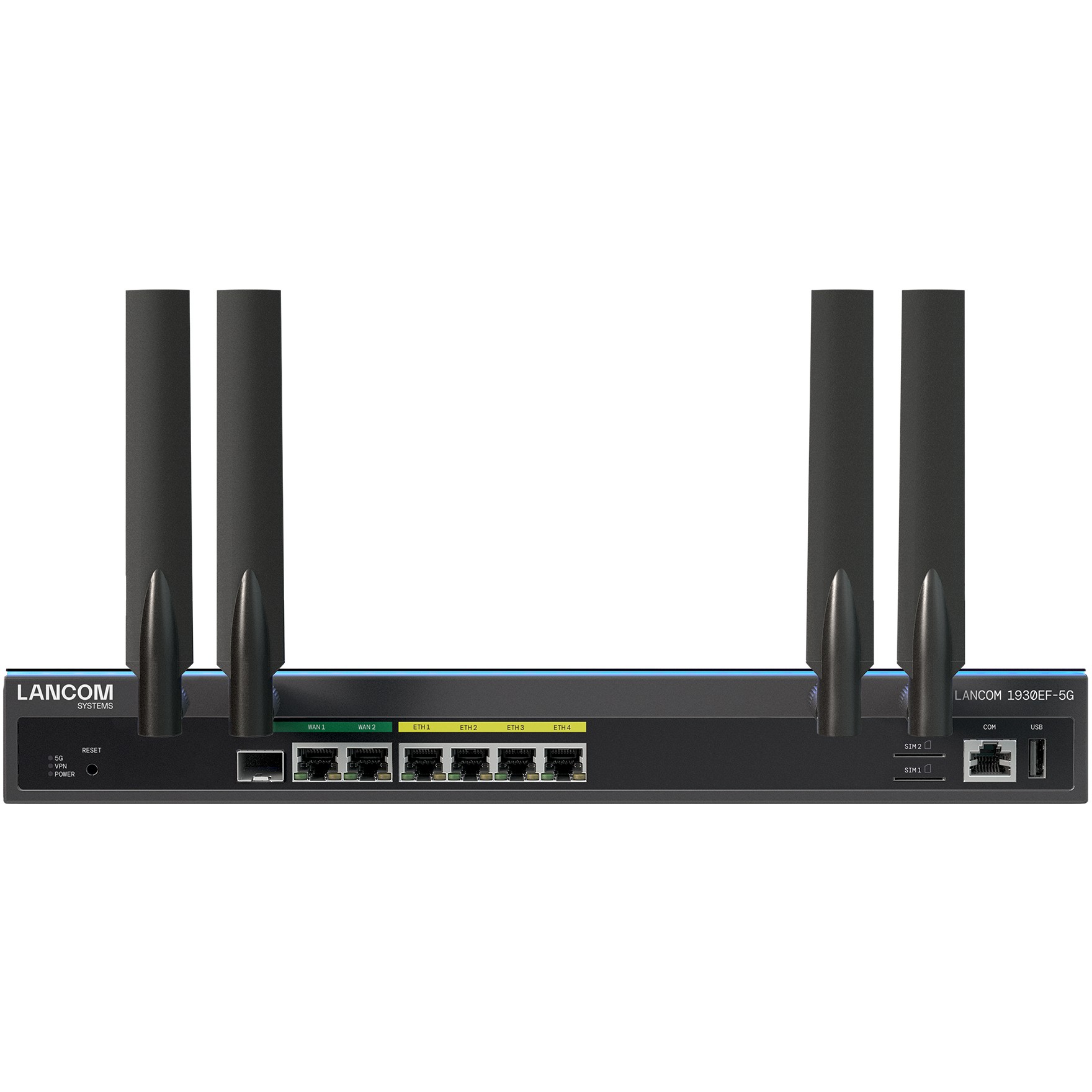

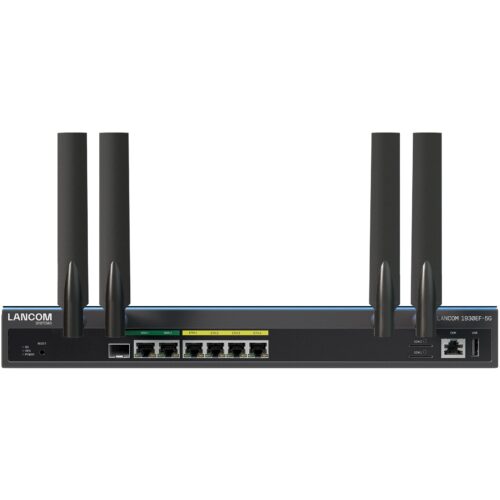

Multi-WAN SD-WAN Gateway with fiber, Gigabit Ethernet and 5G
When high performance demands are placed on the branch side, the LANCOM 1930EF-5G is the first choice for implementing flexible and fail-safe site networking. Equipped with dual-SIM 5G cellular connectivity, primary operation is possible for data-intensive and latency-critical real-time applications, as well as intelligent backup scenarios. In addition, connection to fiber optic lines via optional modules ensures high-speed internet for business-critical data traffic. The LANCOM 1930EF-5G can be centrally configured and managed along with other network components via the LANCOM Management Cloud (LMC).

LANCOM SD-WAN – Next-level networking
With LANCOM SD-WAN, you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway opens up all the possibilities for automated setup of secure VPN connections (Auto-VPN) between locations, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you significant scalability and efficiency gains for multiple branch offices and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the total available bandwidth. Dynamic Path Selection and Dynamic Traffic Steering also dynamically route applications via the currently best connection.

High-performance Gigabit Multi-WAN & Load Balancing
The LANCOM 1930EF-5G allows you to flexibly use a wide variety of internet connections on a single device: The gateway can be connected directly to a fiber optic line (FTTH) via the SFP/TP combo port and a separately available SFP module (GPON/AON). Furthermore, the SD-WAN gateway offers high flexibility via Gigabit Ethernet for connecting to external modems. With the parallel use of multiple internet connections (load balancing: active/active), the LANCOM 1930EF-5G also ensures ideal data load distribution and further increases the available bandwidth.

Full future-proofing with 5G
Thanks to its two included SIM card slots and high-performance 5G technology, the LANCOM 1930EF-5G is ideal for intelligent backup scenarios, primary operation, or parallel operation in active/active mode with other access types. Maximum availability and optimal bandwidth for real-time applications such as video streaming or augmented reality (AR), combined with lowest latency, make the SD-WAN gateway the ideal hub in high-data-volume environments.

High Scalability VPN (HSVPN)
Constantly growing digitalization, increasing application diversity, and larger data volumes require powerful and modern networks. High Scalability VPN significantly improves the scalability and efficiency of your architecture. Where previously a separate VPN tunnel was required for each application, HSVPN bundles any number of networks into a single VPN tunnel and transports them collectively to the remote site – each network remaining secure and strictly separated from each other. The advantage for your business: significantly fewer VPN tunnels are required and faster recovery times in the event of failover. And if you still need more VPN tunnels, the LANCOM VPN 100 option is available, allowing you to securely integrate up to 100 locations or remote employees into the corporate network simultaneously.

Security thanks to ARF, VLAN and Stateful Inspection Firewall
Equipped with a stateful inspection firewall, the LANCOM SD-WAN gateway protects the entire network with features such as intrusion prevention and denial of service protection. Logical network segmentation allows you to define individual security settings and access rights based on user requirements, as well as divide your infrastructure and applications into different areas. This network segmentation, using ARF (Advanced Routing and Forwarding) and VLAN (Virtual Local Area Network), ensures that your corporate network remains protected as a whole, even if a network segment is compromised.

Secure communication via VPN
With virtual private networks (VPNs), you use the public internet as a communication channel and secure the connection so that it remains completely inaccessible to outsiders. This SD-WAN gateway already offers 25 integrated IPSec VPN channels for secure encryption, ensuring the protection of internal company data when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 100 VPN channels, allowing the infrastructure to easily grow as needed, even without additional hardware.

Maximum future security and digital sovereignty
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and expertise. Software and hardware development and manufacturing take place primarily in Germany, as does network management hosting. Particular attention is paid to GDPR-compliant trustworthiness and data security. The company is committed to ensuring its products are free of backdoors and is a holder of the “IT Security Made in Germany” quality seal initiated by the German Federal Ministry for Economic Affairs and Energy. All devices are equipped with future-proof hardware dimensions. Updates to the LANCOM operating system family are available free of charge several times a year, even across product generations. This guarantees long-term use with the latest technology and offers true investment protection. Furthermore, LANCOM infrastructures are easily scalable thanks to maximum compatibility.
