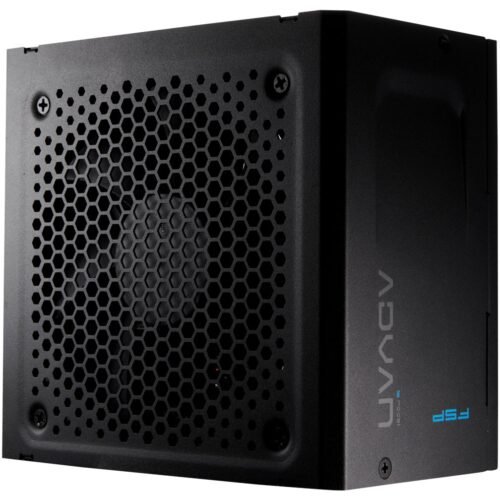

750W FSP ADVAN-750GM 80+ Gold ATX 3.1

Description

FSP ADVAN-750GM. Total power: 750 W, AC input voltage: 100–240 V, input current: 5 A. Motherboard connector: 20+4 pin ATX, motherboard power cable length: 60 cm, PCI Express power cable length: 70 cm. Intended use: PC, power supply unit (PSU). Form factor: ATX, 80 Plus certification: 80 PLUS Gold. Product color: Black, cooling: Active, fan diameter: 12 cm. Width: 150 mm, depth: 140 mm, height: 86 mm

Complies with Intel® Power Design Guide ATX 3.1
The ADVAN GM series is compatible with the latest ATX 3.1 regulation to support up to 200% power expansion, as well as with the new interface of the PCIe 12V-2×6 connector, ensuring peak performance even with future hardware upgrades.

LLC resonant converter topology with synchronous rectifier
Reduction of switching losses, increase in efficiency and regulation of the output voltage under load conditions.

High efficiency with gold certification
Certified by the world's leading organizations 80 PLUS® and Cybenetics Gold certifications for lower power consumption, less heat generation and quieter operation.

Silent operation with ECO semi-fanless switch
When the power supply is operating at less than 40% capacity, activating the environmentally friendly, semi-fanless fan control switch ensures that the fan does not run, resulting in silent operation.

120 mm hydraulic fan (HYB)
The high-quality bearing reduces fan noise to a minimum while offering maximum cooling performance.

Fully modular cabling design
For easy installation of the power supply and the use of only the necessary cables, which improves airflow and reduces clutter in the system.

Optimized performance for your NVIDIA and AMD graphics cards
Dual PCIe 6+2Pin cables and a versatile 12V 2×6 cable offer flexible configuration even for the most power-hungry NVIDIA or AMD graphics cards.

+5V & 3.3V DC-to-DC circuit design
Increase efficiency and stabilize the output voltage to ensure system stability.

Powerhouse Single +12 V-Rail
This heavy-duty +12V rail is ideal for intensive workloads of high-performance CPUs and graphics cards.

105 °C Japanese bulk capacitor
Maximum reliability and performance thanks to high-quality Japanese electrolytic capacitors for an extra long service life.

Premium-class black embossed cables
With the improved black, embossed cables that are soft and easily bendable, users can handle them more easily, saving time and creating more space for optimal cooling performance in your PC.
