8-port extender kit. 20 km

Description

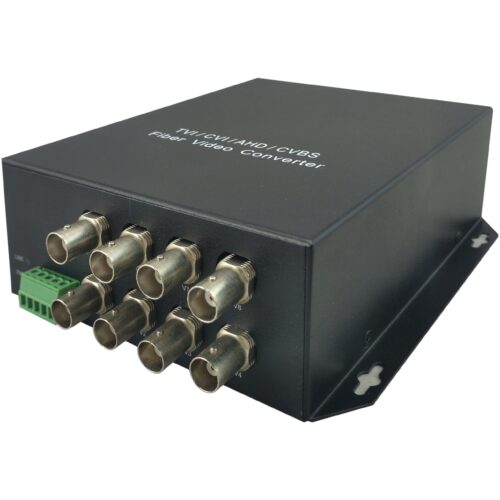

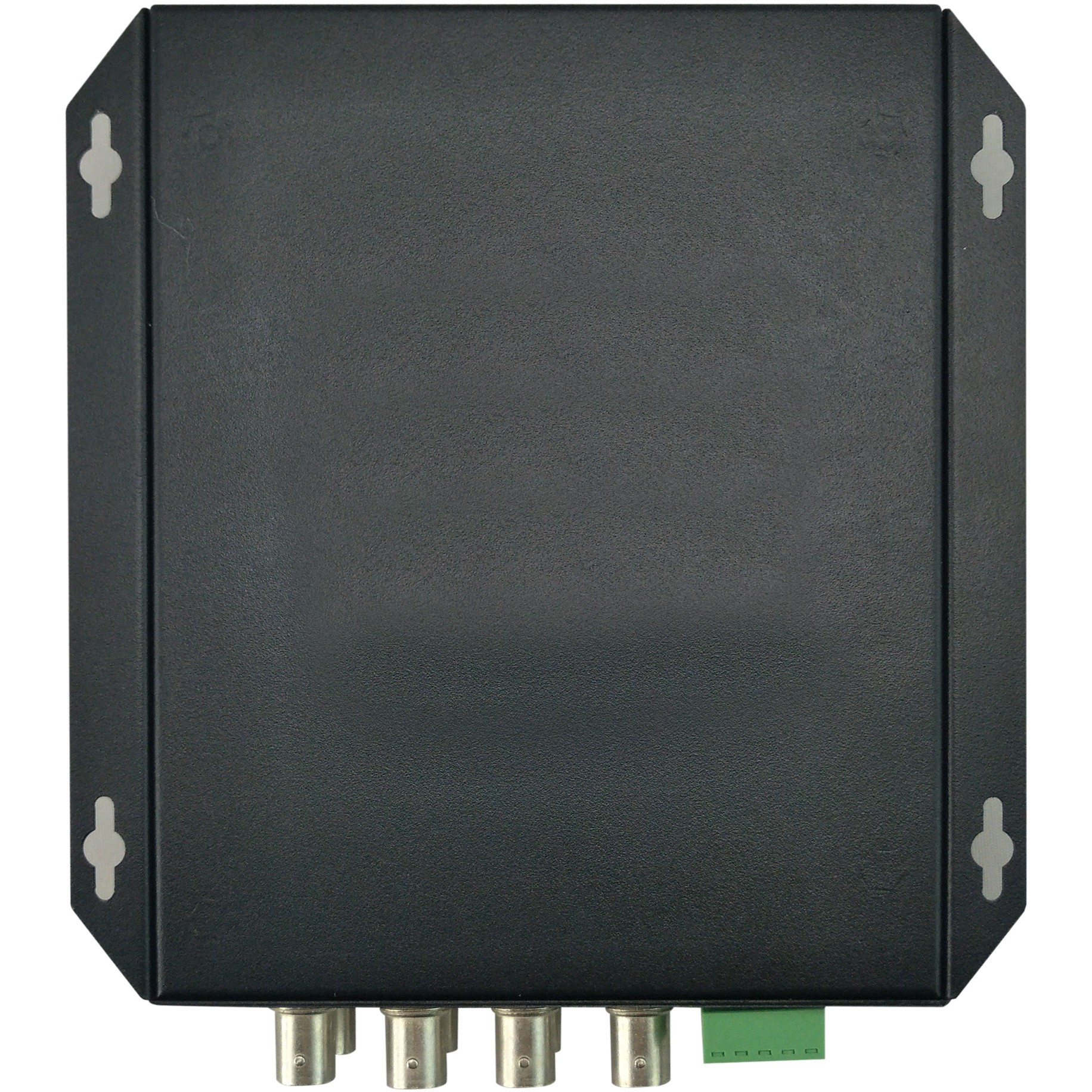

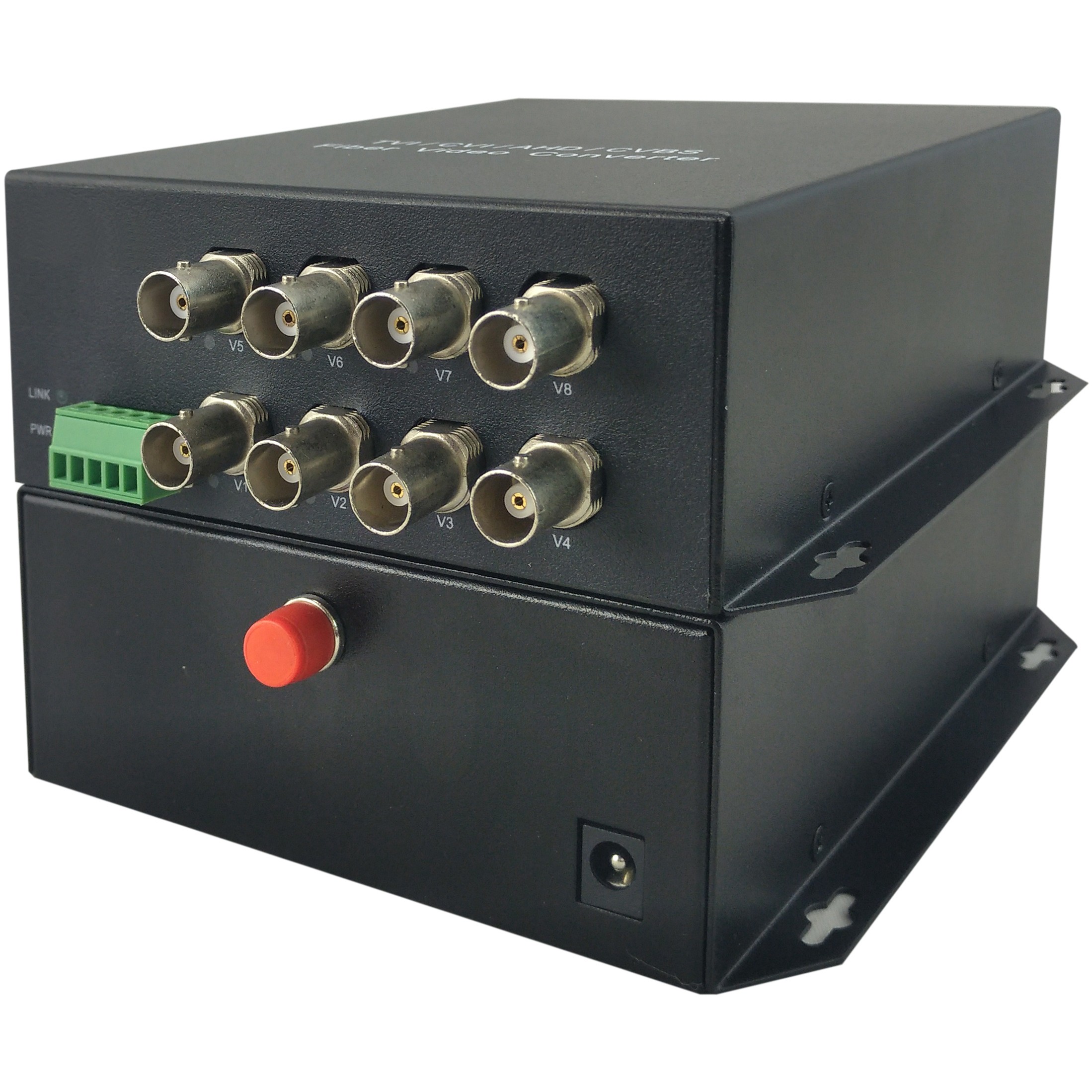

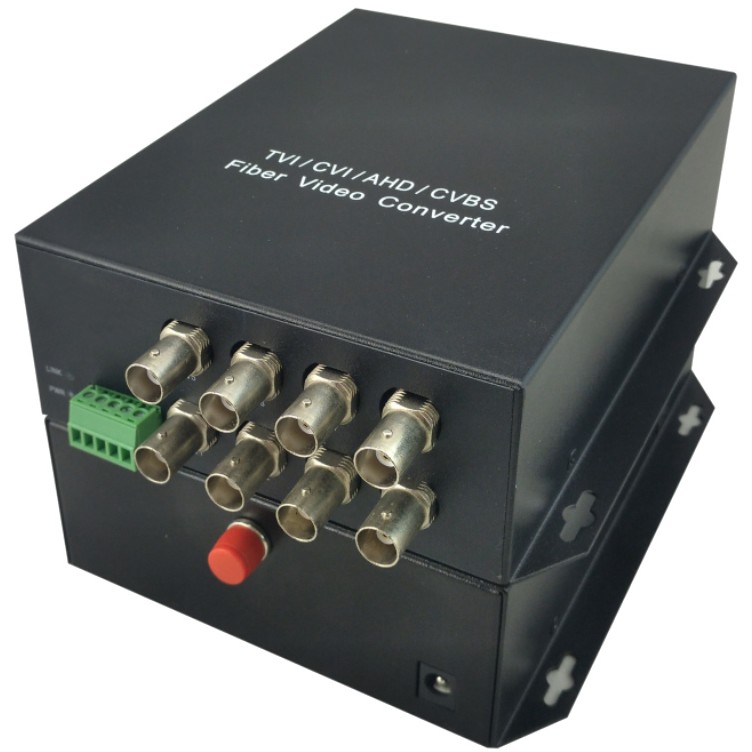

LevelOne 8-Channel BNC over Fiber Extender Kit, 20 km. Type: AV Transmitter, Maximum possible transmission distance: 20,000 m, Supported fiber optic wavelengths: 1470-1610, 1310 nm. Transmission technology: Wired, Optical cable connector: FC. Operating voltage: 5 V, Input current: 3 A, Power consumption (standard operation): 13 W. Width: 116.5 mm, Depth: 48 mm, Height: 157.1 mm. Packaging width: 250 mm, Packaging depth: 115 mm, Packaging height: 405 mm.

The LevelOne AVF video-over-fiber converter series is designed to transmit composite video signals over long distances via fiber optic cables. At the transmitter end, video signals are digitized and converted to optical signals, which are then transmitted to the receiver via the fiber connection. The receiver then converts the optical signal back to analog and displays the transmitted images on a monitor. LevelOne AVF solutions provide analog surveillance and signage systems with high-quality images and long-distance transmission over fiber optic cables, enhancing the capabilities of a traditional or legacy system. They are an ideal solution for analog surveillance and video wall system applications.
