8+4P Cambium TX1012-P-DC POE M

Name: 8+4P Cambium TX1012-P-DC POE M
SKU: 119703
Price: 966.73 EUR
Availability: InStock

€1,189.08

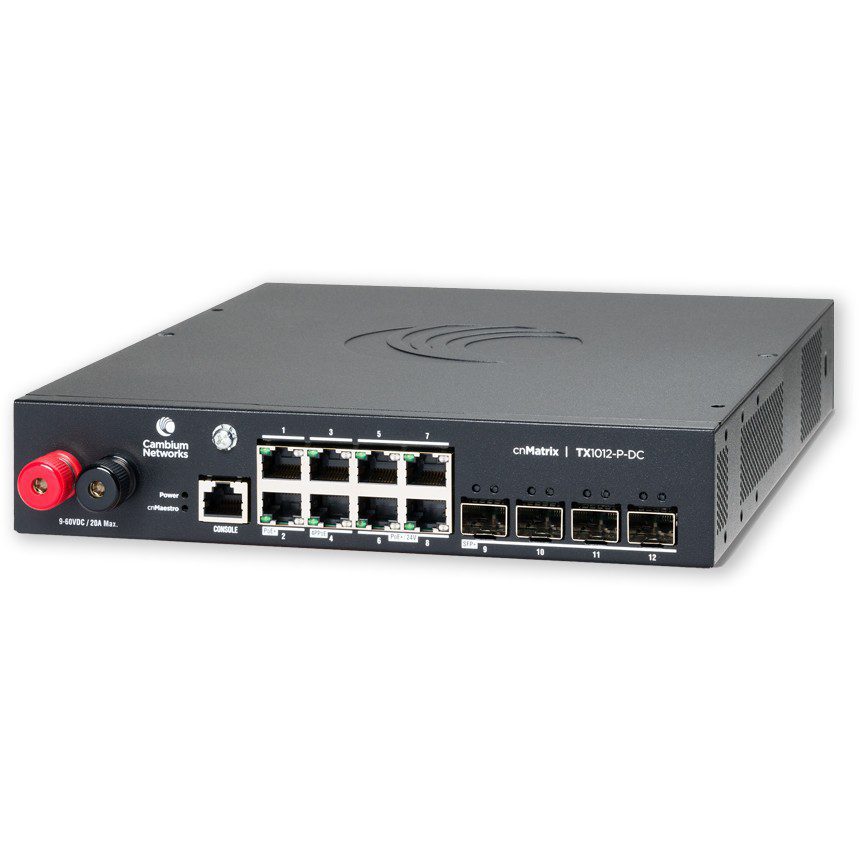

Cambium Networks cnMatrix Switch TX1012-P-DC, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), rack installation

2 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cambium Networks cnMatrix Switch TX1012-P-DC. Switch type: Managed, Switch level: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic switching RJ-45 Ethernet ports: 8, Console port: RS-232. MAC address table: 16000 entries, Routing/switching capacity: 1000 Gbit/s. DC input voltage: 24 – 56 V. Power connector: DC connector. Power over Ethernet (PoE). Rack installation

Additional information

Switch type	Managed
Switch level	L2 / L3
Characteristic	Access control list, ARP inspection, Auto MDI/MDI-X, BPDU filtering/protection, Broadcast storm control, Built-in processor, Cloud managed, DoS attack prevention, Filter MAC addresses, IGMP proxy, IGMP snooping, IP-MAC port binding, Jumbo frames support, LED indicators, Link aggregation, Multicast support, Password protection, Policy-based routing, Port mirroring, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Rack installation, Rate Limiting, Reset button, Spanning tree protocol, SSH/SSL support, Static route, Support data flow control, System event log, Traffic classification, Traffic shaping, Web-based management
Number of basic switching RJ-45 Ethernet ports	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Number of Gigabit Ethernet (copper) connections	8
Quantity of SFP + module slots	4
Number of fiber connections	4
Optical cable connector	SFP +
Console port	RS-232
Power plug	DC connection
Address resolution protocol (ARP) entries (max.)	512
Number of VLANs	4000
Routing / switching capacity	1000 Gbps
Throughput	96 Gbit / s
Transfer rate	120 Mpps
MAC address table	16,000 entries
Number of static routes	64
Jumbo frames	9000
DHCP functions	DHCP client, DHCP relay, DHCP snooping
Access Control List (ACL) output	128
Access Control List (ACL) inbox	128
IGMP entries	256
Authentication	MAC based authentication
Authentication type	AAA, IEEE 802.1x, RADIUS, TACACS +
MAC address entries	Static MAC address entries
Management logs	SNMP v1 / v2 / v3, SSH / SSHv2
Product color	Black
Housing material	Metal
Number of fans	1 fan
Processor clock frequency	800 MHz
Storage capacity	512 MB
Flash memory	128 MB
Energy source	Direct current
DC input voltage	24 – 56V
Power consumption (standard operation)	200 W
Power over Ethernet (PoE) type supported	Passive PoE
Number of Power over Ethernet plus (PoE +) connections	8
Power over Ethernet (PoE) voltage	24 V
Power over Ethernet (PoE) power per connection	90 W
Total power over Ethernet (PoE)	170 W
Operating temperatur	30 – 60 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	20-90%
Storage humidity	20-90%
Broad	230 mm
Depth	280 mm
Height	44 mm
Weight	2.1 kg
Packaging width	330 mm
Packaging depth	351mm
Packing height	101 mm
Package weight	2.65 kg
Manufacturer	Cambium Networks
