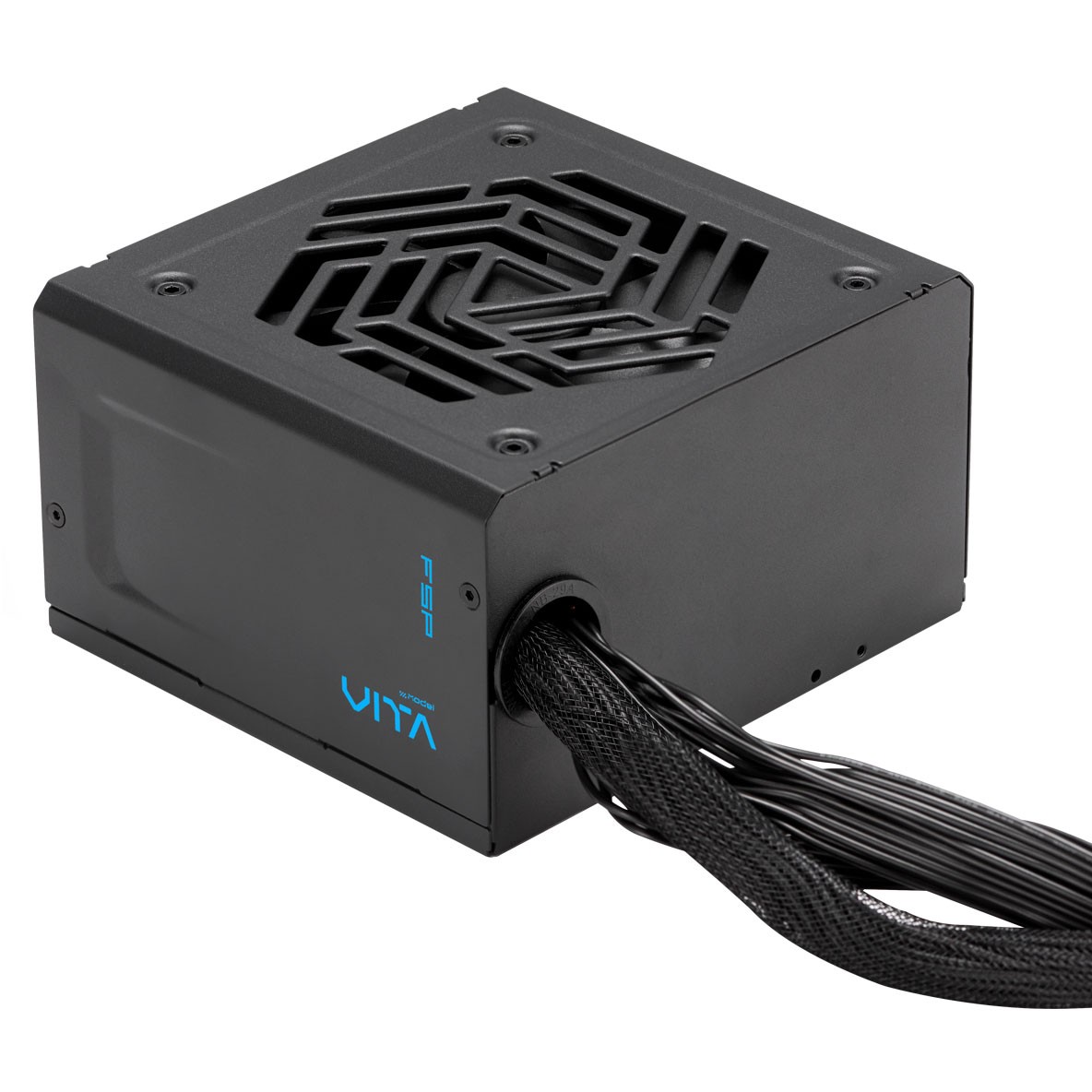

850W FSP VITA-850BD 80+ Bronze ATX 3.1 Gen 5.1

Name: 850W FSP VITA-850BD 80+ Bronze ATX 3.1 Gen 5.1
SKU: 251078
Price: 98.25 EUR
Availability: InStock

€120.85

FSP Vita, 850 W, 200 – 240 V, 50/60 Hz, 5.5 A, Active, 100 W

2 in stock

Category: Power supplies

Description
Additional information

Description

FSP Vita. Total power: 850 W, AC input voltage: 200-240 V, AC input frequency: 50/60 Hz. Motherboard connector: 20+4 pin ATX, motherboard power cable length: 60 cm, SATA power cable length: 500 mm. Purpose: PC, Power Supply Unit (PSU) Form factor: ATX, 80 Plus Certification: 80 PLUS Bronze. Product color: Black, Cooling: Active, Fan diameter: 12 cm. Included cables: CPU, Peripheral (Molex), SATA

Additional information

Weight	2.26 kg
Overall performance	850 W
AC input voltage	200-240V
AC input frequency	50/60 Hz
Input current	5.5A
Power factor correction filter (PFC)	Active
Combined current (+ 3.3V)	100 W
Combined electricity (+ 12V)	850 W
Combined current (+ 5V)	100 W
Combined current (-12V)	3.6 W
Combined current (+ 5Vsb)	15 W
Max. Output current (+ 3.3V)	20 A
Max. Output current (+ 12V)	70.83 A
Max output current (+ 5V)	20 A
Max. Output current (-12V)	0.3 A
Max. Output current (+ 5Vsb)	3 A
Efficiency	90%
Energy protection properties	Overcurrent, Overheating, Overload, Overload, Short circuit, Undervoltage
Motherboard connector	20 + 4 pin ATX
Power cable length motherboard	60 cm
Number of SATA power connectors	8
SATA power cord length	500 mm
Number of Molex connections 4pin	4
Number of PCI Express power connectors 6 + 2pin	4
Characteristic	CPU connector (4+4 pin)
CPU power cable length	70 cm
Cable type	Non-modular
80 plus certification	80 PLUS bronze
Purpose	Pc
Power Supply Unit (PSU) form factor	ATX
ATX version	3.1
EPS version	2.92
Storage type	HYB
Product color	Black
Cooling	Active
Fan diameter	12 cm
Number of fans	1 fan
Fan placement	Above
Supplied cables	CPU, Peripheral (Molex), SATA
Broad	150 mm
Depth	140 mm
Height	86 mm
Manufacturer	FSP
