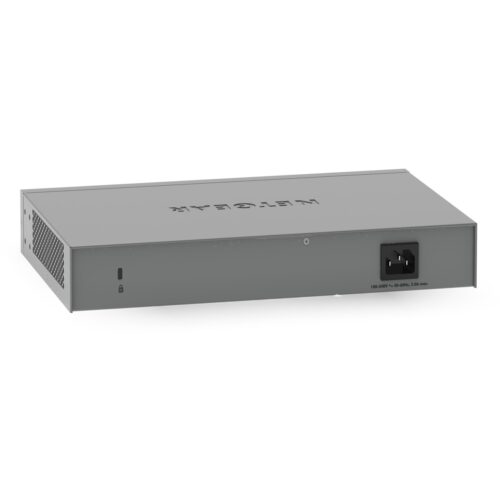

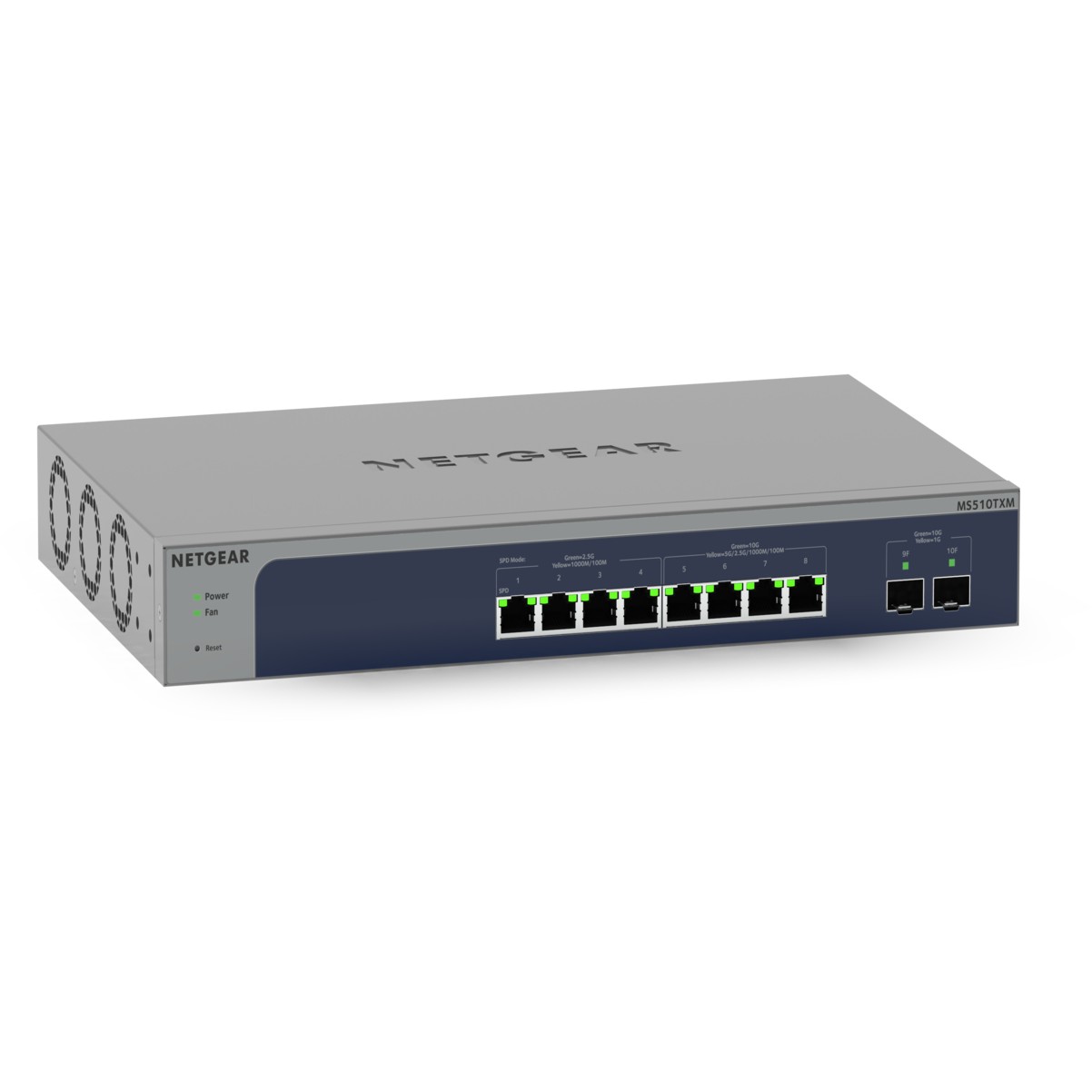

8P Netgear MS510TXM

Name: 8P Netgear MS510TXM
SKU: 130171
Price: 531.32 EUR
Availability: InStock

€653.52

NETGEAR MS510TXM, Managed, L2/L3/L4, 10G Ethernet (100/1000/10000), Full Duplex, Rack Mount

1 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

NETGEAR MS510TXM. Switch type: Managed, Switch level: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Number of basic switching RJ-45 Ethernet ports: 8. Full duplex. MAC address table: 32000 entries, Routing/switching capacity: 140 Gbit/s. Network standard: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Rack installation

Additional information

Weight	3.35 kg
Switch type	Managed
Switch level	L2/L3/L4
Characteristic	10G support, Access control list, Broadcast storm control, Built-in processor, Cloud managed, Full duplex, IGMP snooping, Jumbo frames support, Link aggregation, Loop protection, Multicast support, Port mirroring, Power supply included, Quality of Service (QoS) Support, Rack installation, Spanning tree protocol, Support data flow control, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Quantity of SFP + module slots	2
Network standard	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T
Ethernet LAN data transfer rates	100,1000,2500,5000,10000 Mbit / s
Number of VLANs	256
Routing / switching capacity	140 Gbit / s
MAC address table	32,000 entries
Jumbo frames	10000
DHCP functions	DHCP client, DHCP server
Access Control List (ACL) inbox	100
Supported security algorithms	HTTPS, SSL / TLS
Management logs	SNMP v1/v2c, SNMP v3
Product color	Blue, Gray
LED indicators	Activity, Perfomance, Speed
Processor clock frequency	1000 MHz
Storage capacity	256 MB
Flash memory	64 MB
Operating temperatur	0 – 50 ° C
Storage temperature range	20 – 70 ° C
Relative humidity in operation	0 – 95%
Storage humidity	0 – 95%
Height during operation	0 – 3000 m
Storage height	0 – 3000 m
Broad	330 mm
Depth	206 mm
Height	43 mm
Manufacturer	NETGEAR
