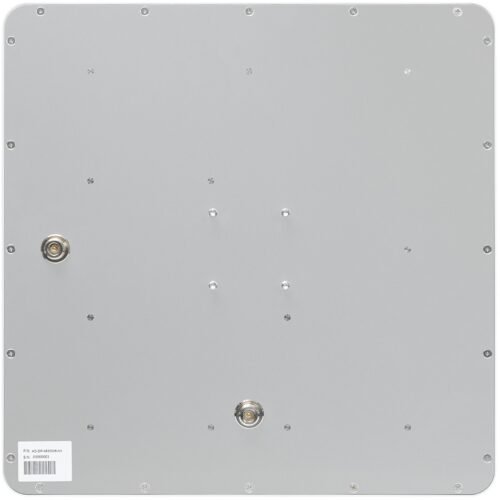

AirLancer ON-D8a

Description

AirLancer ON-D8a. Antenna gain (max): 21 dBi, Frequency band: 4.9 – 5.9 GHz, Impedance: 50 ohms. Antenna type: directional antenna, Antenna connector type: N-type, Polarization: Dual linear polarization. Width: 370 mm, Depth: 30 mm, Height: 370 mm. Packaging width: 385 mm, Packaging depth: 385 mm, Packaging height: 105 mm. Quantity per package: 1 piece(s)

8° outdoor WiFi directional antenna with 2×2 MIMO
The weatherproof LANCOM outdoor directional antenna AirLancer ON-D8a is ideal for establishing high-speed point-to-point connections and thus for bridging long distances via Wi-Fi in outdoor areas. Thanks to 2×2 MIMO technology, wireless links with reliably high performance can be established, especially in combination with the LANCOM Outdoor Access Point OW-602. Cables and adapters for mounting on walls or masts are included in the mounting kit.

Application scenario

High-speed point-to-point connections (P2P)
P2P connections can be used to bridge large outdoor areas over long distances, securely connecting buildings located far apart via Wi-Fi. By setting up a wireless network with directional antennas, neither complex cabling nor expensive leased lines for network expansion are required.

Comparison of LANCOM WLAN outdoor antennas
In which application scenarios and with which LANCOM access points is the LANCOM WLAN accessory best suited? What is the most secure way to connect access points and antennas outdoors?

Get to know the different antenna types in the AirLancer portfolio and compare features such as frequency bands, antenna gain, connectors and cables.
