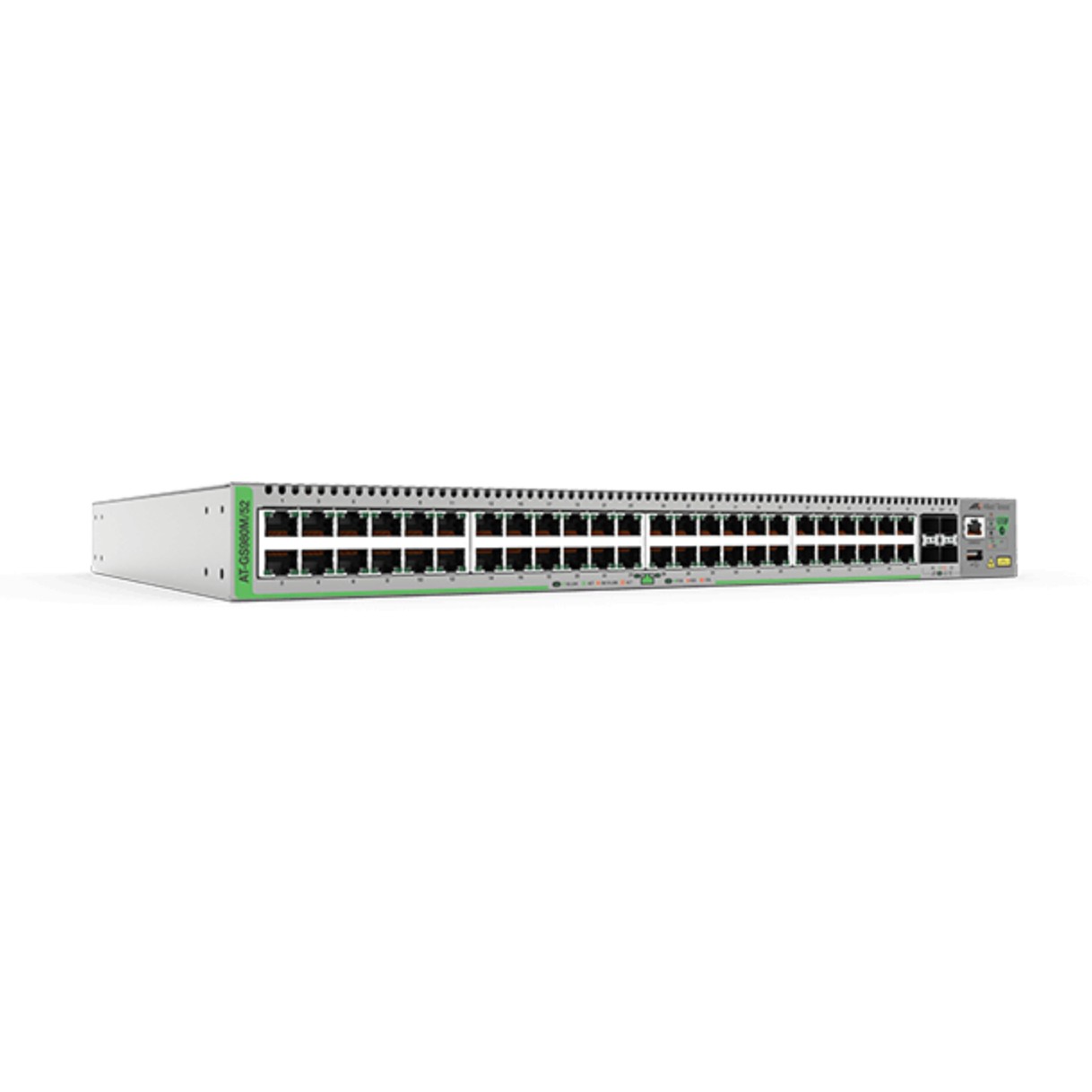

ALLIED 48-port 10/100/1000T 4-port 100/1000X SFP Gigabit Ethernet Managed switch 1 Fixed AC power supply EU Power Cord

Name: ALLIED 48-port 10/100/1000T 4-port 100/1000X SFP Gigabit Ethernet Managed switch 1 Fixed AC power supply EU Power Cord
SKU: 206118
Price: 1184.54 EUR
Availability: InStock

€1,456.98

Allied Telesis AT-GS980M/52-50, Managed, Gigabit Ethernet (10/100/1000), 100 Gigabit Ethernet, Full Duplex, Rack Mount, Wall Mount

3 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Allied Telesis AT-GS980M/52-50. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 48. Optical module switching type: 100 Gigabit Ethernet. Number of installed SFP modules: 4. Full duplex. MAC address table: 16,000 entries. Routing/switching capacity: 104 Gbps. Network standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE…. Wall mounting, rack mounting.

Additional information

Switch type	Managed
Characteristic	10G support, Access control list, BPDU filtering/protection, Broadcast storm control, Configuring Site Settings (CLI), Filter MAC addresses, Full duplex, IGMP snooping, IP routing, Jumbo frames support, LED indicators, Link aggregation, Loop protection, Multicast support, Password protection, Port mirroring, Quality of Service (QoS) Support, Rack installation, Spanning tree protocol, SSH/SSL support, Static route, Support data flow control, System event log, VLAN support, Wall mounting, Web-based management
MIB support	SNMP MIB
Number of basic switching RJ-45 Ethernet ports	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Number of installed SFP modules	4
Optical cable connector	SFP
Network standard	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
Virtual LAN functions	Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094
Ethernet cable cabling technology	1000BASE-X, 100Base-X
Switching type optical module	100 Gigabit Ethernet
Routing / switching capacity	104 Gbit / s
Transfer rate	77.4 Mpps
MAC address table	16,000 entries
Waiting time (10-100 Mbps)	5.5 µs
Waiting time (1 Gbps)	2.6 µs
Jumbo frames	10000
Data packet buffer memory	1.5 MB
DHCP functions	DHCP client, DHCP snooping
Supported security algorithms	3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL / TLS, TTLS
Authentication	MAC based authentication, Port based authentication, Web based authentication
Authentication type	AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
Management logs	SNMP
Router protocol	RIP, RIP-2
Product color	Gray
Electromagnetic compatibility	EN55024
Storage type	DDR SDRAM
Storage capacity	256 MB
Flash memory	64 MB
Noise level	39 dB
AC input voltage	100-240V
AC input frequency	50-60 Hz
Input current	1.0 A
Power consumption (standard operation)	47 W.
Operating temperatur	0 – 50 ° C
Storage temperature range	25 – 70 ° C
Relative humidity in operation	5 – 90%
Storage humidity	5 – 95%
Height during operation	0 – 3000 m
Storage height	0 – 4000 m
Heat dissipation	160 BTU/h
Broad	441 mm
Depth	323 mm
Height	44 mm
Weight	4.5 kg
Packaging width	575 mm
Packaging depth	445 mm
Packing height	150 mm
Package weight	6.4 kg
Certification	AS/NZS60950.1UL, CAN/CSA-C22.2 No. 60950-1-03, CUL, EN60825-1, EN60950-1, UL-EURoHS, UL60950-1
Goods tariff number (HS)	8517.62.0050
Manufacturer	Allied Telesis
