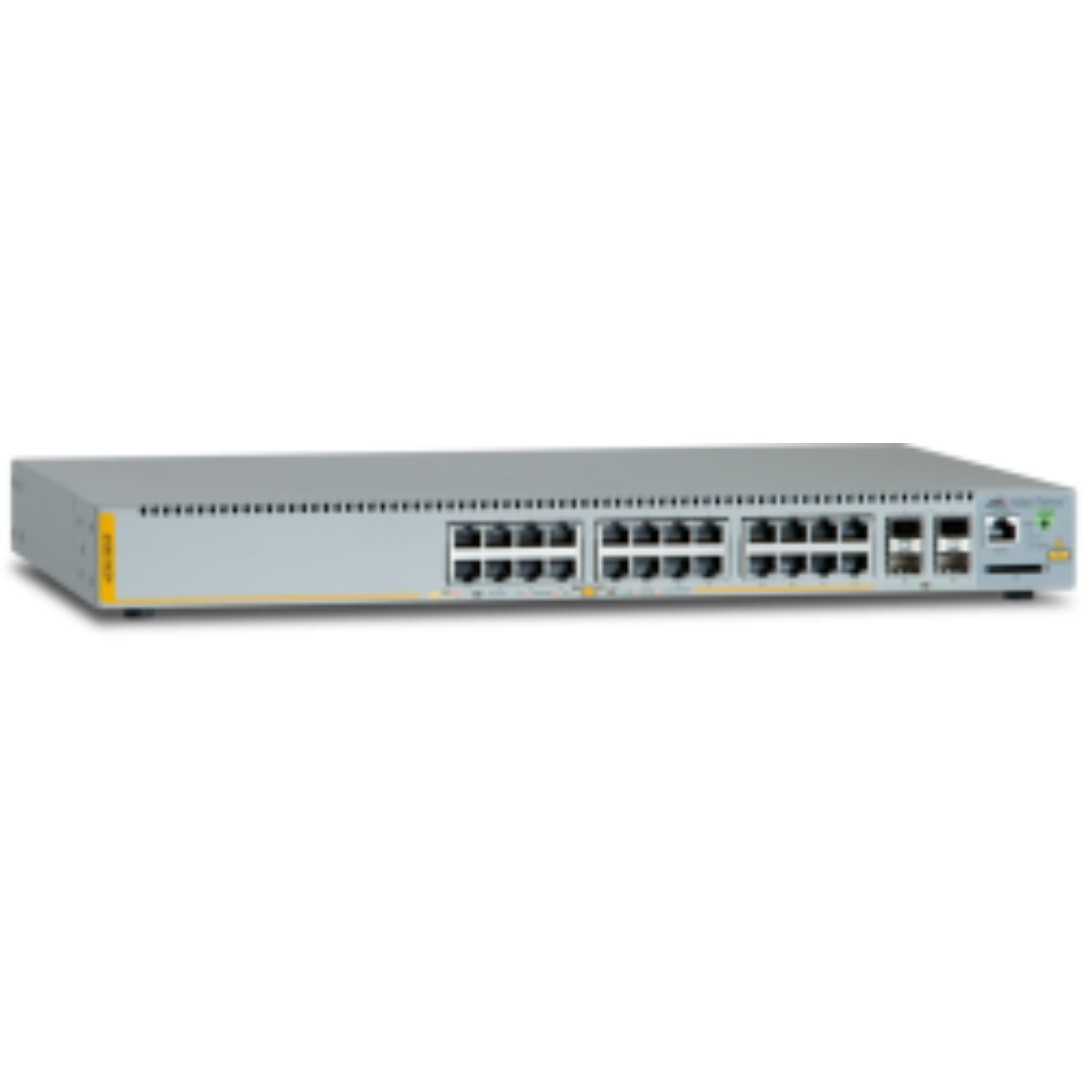

ALLIED L2+ managed switch 24 x 10/100/1000Mbps POE+ ports 4 x SFP uplink slots

Name: ALLIED L2+ managed switch 24 x 10/100/1000Mbps POE+ ports 4 x SFP uplink slots
SKU: 290679
Price: 1003.10 EUR
Availability: InStock

€1,233.81

Allied Telesis AT-x230-28GP-50, Managed, L3, Gigabit Ethernet (10/100/1000), full duplex, Power over Ethernet (PoE), rack installation

2 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Allied Telesis AT-x230-28GP-50. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 24. Full duplex. MAC address table: 16,000 entries. Routing/switching capacity: 56 Gbps. Network standards: IEEE 802.11ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE…. Power over Ethernet (PoE). Rack-mountable.

Additional information

Switch type	Managed
Switch level	L3
Characteristic	10G support, Access control list, ARP inspection, Full duplex, IGMP snooping, LED indicators, Link aggregation, MIB support, Multicast support, Policy-based routing, Port mirroring, Power over Ethernet (PoE), Quality of Service (QoS) Support, Rack installation, Spanning tree protocol, Stackable, Support data flow control, System event log, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Quantity of SFP module slots	4
Routing / switching capacity	56 Gbit / s
Passage	41.7 Mpps
MAC address table	16,000 entries
Data packet buffer memory	1.5 MB
DHCP functions	DHCP client, DHCP server, DHCPv6 relay, DHCPv6 server
Supported security algorithms	802.1x RADIUS
Product color	Gray
Storage type	DDR SDRAM
Storage capacity	256 MB
Flash memory	64 MB
Noise level	42 dB
AC input voltage	100-240V
AC input frequency	50-60 Hz
Power consumption (max.)	520 W
Number of Power over Ethernet (PoE) connections	24
Total power over Ethernet (PoE)	370 W
Operating temperatur	0 – 50 ° C
Storage temperature range	25 – 70 ° C
Relative humidity in operation	5 – 90%
Storage humidity	5 – 95%
Height during operation	0 – 3048 m
Heat dissipation	303 BTU/h
Broad	440 mm
Depth	290 mm
Height	44 mm
Weight	4.7 kg
Goods tariff number (HS)	85176990
Manufacturer	Allied Telesis
