ALLIED L3 Stackable Switch 20x 10/100/1000-T PoE+ 4x 100M/1G/2.5G/5G-T PoE+ 4x SFP+ Ports single fixed PSU EU Power Cord

Name: ALLIED L3 Stackable Switch 20x 10/100/1000-T PoE+ 4x 100M/1G/2.5G/5G-T PoE+ 4x SFP+ Ports single fixed PSU EU Power Cord
SKU: 206124
Price: 2105.03 EUR
Availability: InStock

€2,589.19

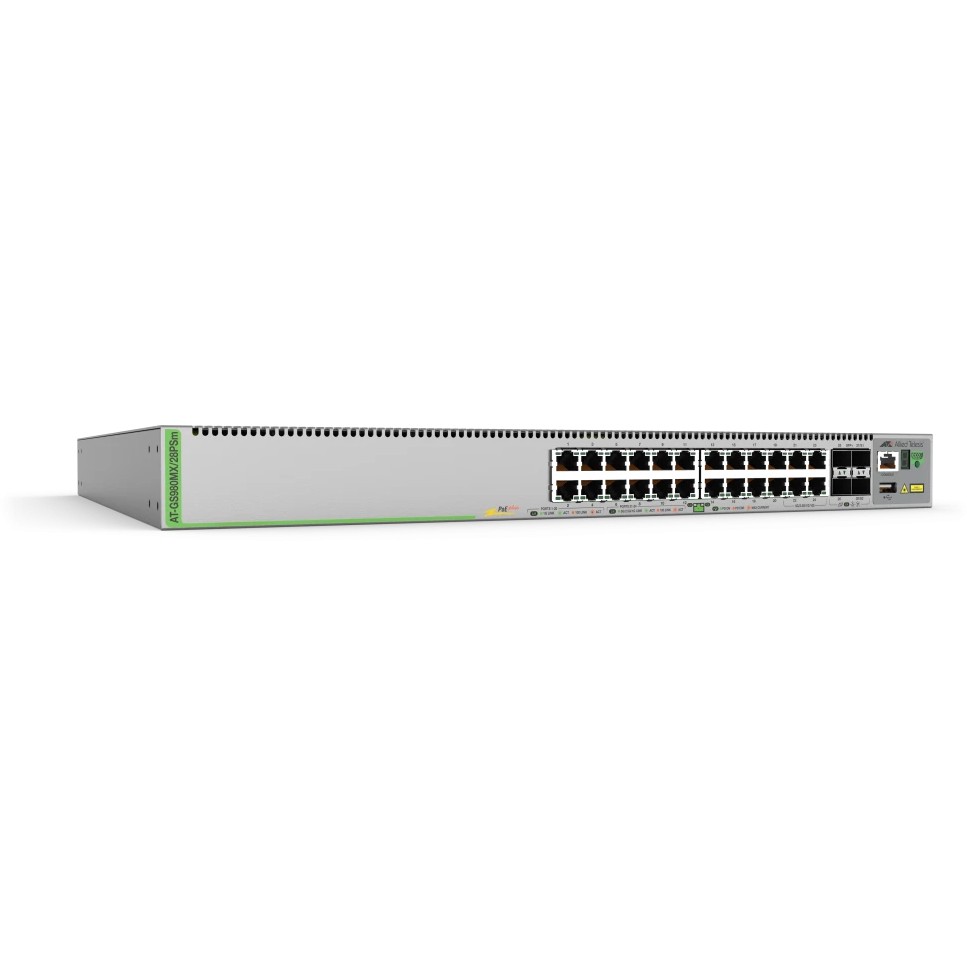

Allied Telesis AT-GS980MX/28PSM-50, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), rack installation, 1U

1 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Allied Telesis AT-GS980MX/28PSM-50. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic switching RJ-45 Ethernet ports: 20, Number of installed SFP modules: 4, Console port: USB. MAC address table: 16000 entries, Routing/switching capacity: 160 Gbps. Network standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE…. Power over Ethernet (PoE). Rack-mountable, form factor: 1U

Additional information

Switch type	Managed
Switch level	L3
Characteristic	10G support, Access control list, ARP inspection, BPDU filtering/protection, Configuring Site Settings (CLI), Filter MAC addresses, IGMP snooping, Jumbo frames support, LED indicators, Link aggregation, Loop protection, Multicast support, Port mirroring, Power over Ethernet (PoE), Quality of Service (QoS) Support, Rack installation, Spanning tree protocol, Stackable, Static route, Sustainability compliance, System event log, Traffic classification, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Number of Gigabit Ethernet (copper) connections	24
Number of installed SFP modules	4
Console port	USB
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Ethernet LAN data transfer rates	10,100,1000,2500,5000 Mbps
Virtual LAN functions	Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4094
Routing / switching capacity	160 Gbit / s
Transfer rate	119 MPps
MAC address table	16,000 entries
Number of queues	8
Jumbo frames	10000
Data packet buffer memory	1.5 MB
DHCP functions	DHCP option 82, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Supported security algorithms	3DES, AES, MD5, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512, SSH, SSH-2, SSL / TLS
Authentication	MAC based authentication, Port based authentication, Web based authentication
Queue planning algorithms	SP, Weighted Round Robin (WRR), WRR + SP
Management logs	SNMPv1, V2c, V3
Router protocol	RIP, RIP-2, RIPng
Form factor	1U
Product color	Gray
Physical stacking (units)	2
Storage type	DDR3 SDRAM
Storage capacity	1000 MB
Flash memory	256 MB
Noise level	42 dB
Power consumption (standard operation)	70 W
Power consumption (max.)	510 W
Number of Power over Ethernet plus (PoE +) connections	24
Power over Ethernet (PoE) power per connection	30 W
Total power over Ethernet (PoE)	370 W
Operating temperatur	0 – 50 ° C
Storage temperature range	25 – 70 ° C
Relative humidity in operation	5 – 90%
Storage humidity	5 – 95%
Height during operation	0 – 3000 m
Heat dissipation	1741 BTU/h
Broad	441 mm
Depth	421 mm
Height	44 mm
Weight	5.6 kg
Packaging width	3.86 kg
Packaging depth	534 mm
Packing height	128 mm
Package weight	7.6 kg
Certificates of conformity	CTUVus, RoHS
Manufacturer	Allied Telesis
