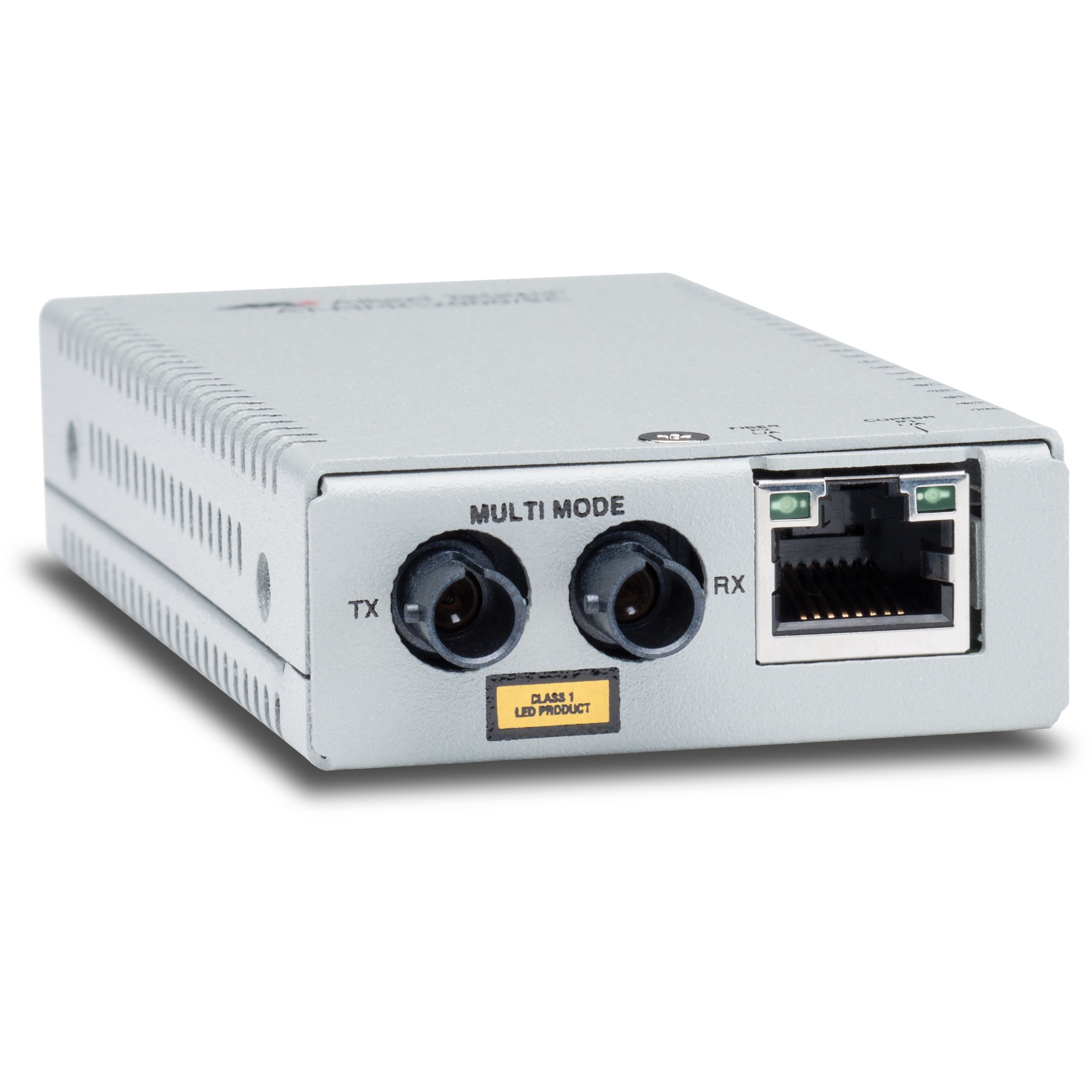

ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM ST Connector

Name: ALLIED Mini Media Converter 10/100/1000T to 1000BASE-SX MM ST Connector
SKU: 223718
Price: 145.84 EUR
Availability: InStock

€179.38

Allied Telesis AT-MMC2000/ST-960, 1000 Mbit/s, 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s

2 in stock

Categories: network, Network article

Description
Additional information

Description

Allied Telesis AT-MMC2000/ST-960. Maximum data transfer rate: 1000 Mbps. Converter input interface: 10Base-T, 100Base-TX, 1000Base-T. Converter output interface: 1000Base-SX. Maximum possible transmission distance: 500 m. Wavelength: 850 nm. Cable mode structure: Multi-mode. LED indicators: LAN, Power, System. Product color: Gray. Optical cable connector: ST. Transmission technology: Wired. Input voltage: 12 V. Input current: 0.14 A. Output voltage: 0.14 V.

Additional information

Maximum data transfer rate	1000 Mbit / s
Converter input interface	1000BASE-T, 100BASE-TX, 10BASE-T
Converter output interface	1000BASE-SX
Network standard	IEEE 802.1Q
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data transfer rates	10,100,1000 Mbit / s
Ethernet cable cabling technology	1000BASE-SX
Characteristic	Auto MDI/MDI-X, Direct current connection (DC), Jumbo frames support, Operating manual, Power over Ethernet (PoE), Quick installation guide, Store and forward, User Guide, VLAN support
Jumbo frames	10000
Duplex system	Fully
Maximum possible transmission distance	500 m
Wavelength	850 nm
Cable fashion structure	Multi mode
Supported fiber cable diameters (core / cladding)	50 / 125,62.5 / 125 µm
Tx power (min)	9.5 dBmW
Tx power (max)	4dBmW
Rx power (max)	17 dBmW
Rx power (min)	3 dBmW
LED indicators	LAN, Perfomance, System
Product color	Gray
Transmission technology	Wired
Number of Ethernet LAN connections (RJ-45)	1
Number of fiber connections	2
Optical cable connector	ST
Input voltage	12 V
Input current	0.14 A
Output voltage	0.14 V
Power consumption (standard operation)	1.7 W
Broad	549 mm
Depth	101.6 mm
Height	21.8 mm
Weight	170 g
Operating temperatur	0 – 50 ° C
Storage temperature range	30 – 70 ° C
Relative humidity in operation	5 – 95%
Storage humidity	5 – 95%
Height during operation	0 – 3048 m
Security	C-tick, CISPR 22 Class A, EN55022 Class A, FCC Class A., VCCI
Certification	CE, EN55024, EN61000-3-2, EN61000-3-3
Goods tariff number (HS)	85176990
Manufacturer	Allied Telesis
