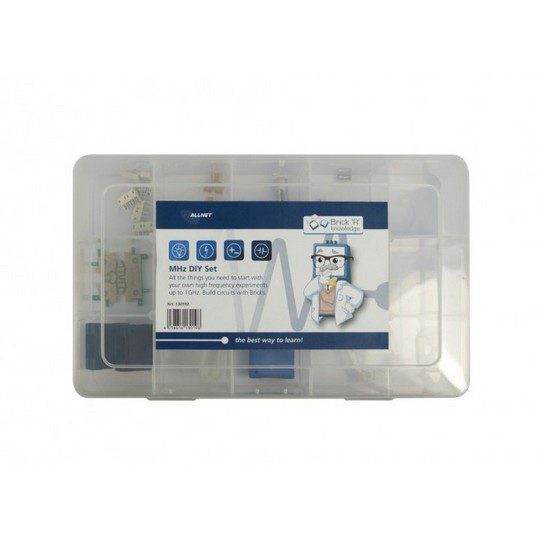

ALLNET BrickRknowledge MHz DIY Set (International)

Description

ALLNET 130192. Brand compatibility: ALLNET. Package weight: 500 g

The MHZ DIY set contains everything you need for ambitious construction of circuits in the MHZ range. The set consists of four boards, one of which has a high-quality Roger Ro4350. The FR4 boards are suitable for up to 2.4GHz. The various boards are suitable for building splitters, combiners, filters, mixers, adapters, attenuators, bias feeds or as a passive connection element. The tracks are designed according to microstrip for 50 ohms. All boards have the grid to be combined with ready-made components of the brick system. On the underside of most boards there is the option of fitting a voltage regulator. The set includes BNC sockets and P-SMP sockets with connectors. Various plastic housings round off the contents of the kit.

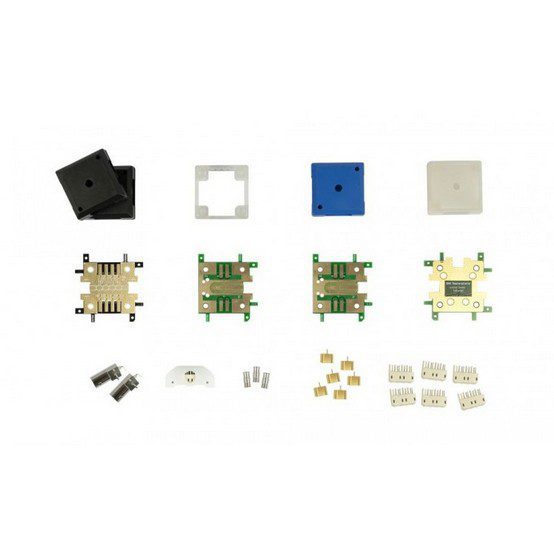

Parts list:
1x EMODGRAST
1x EMODGRST2
2x EMODGBNC1
2x BNC socket
3x P-SMP connectors
6x P-SMP
6x Hermaphrodite connectors
1x housing blue
2x housing black
1x transparent case
2x transparent intermediate bar
1x Empty
1x supplementary sheet
