ALLNET MSR central unit ALL3419 including 3 sensor ports & WLAN & temperature sensor ALL3006 for IP building automation

Description

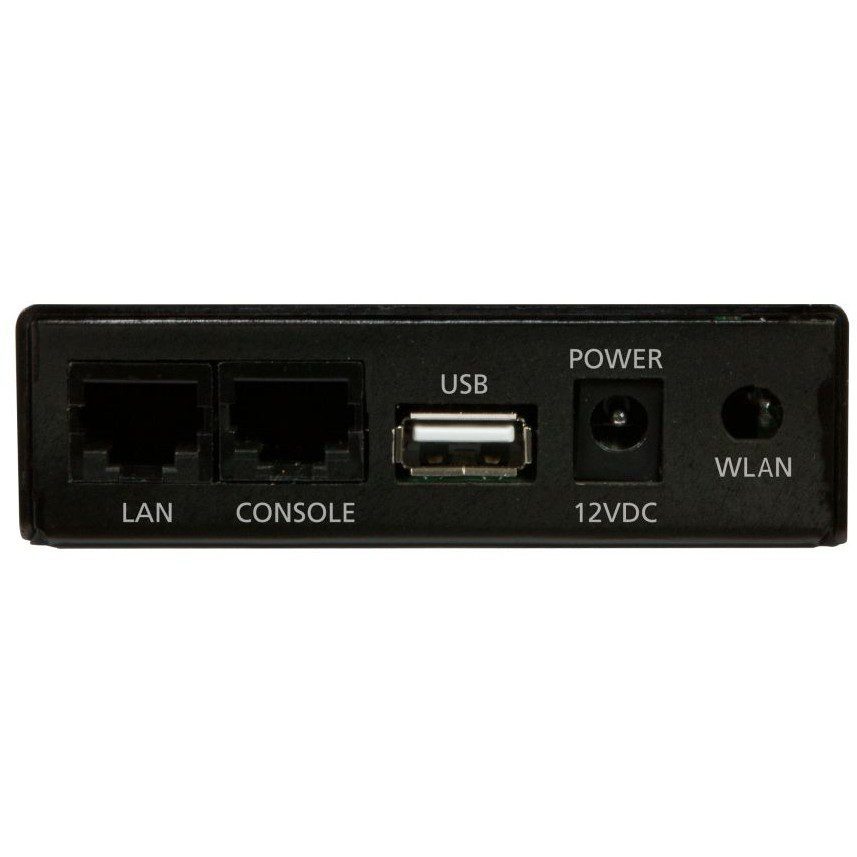

ALLNET ALL3419. Transmission technology: Wired & wireless, Ethernet interface type: Fast Ethernet, WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Product color: Black, Housing material: Metal, Certification: CE. Input voltage: 100-240 V, Input frequency: 50/60 Hz. Width: 85 mm, Depth: 92 mm, Height: 24 mm. Temperature sensor delta temperature (min.): -55 °C, Temperature sensor delta temperature (max.): 80 °C

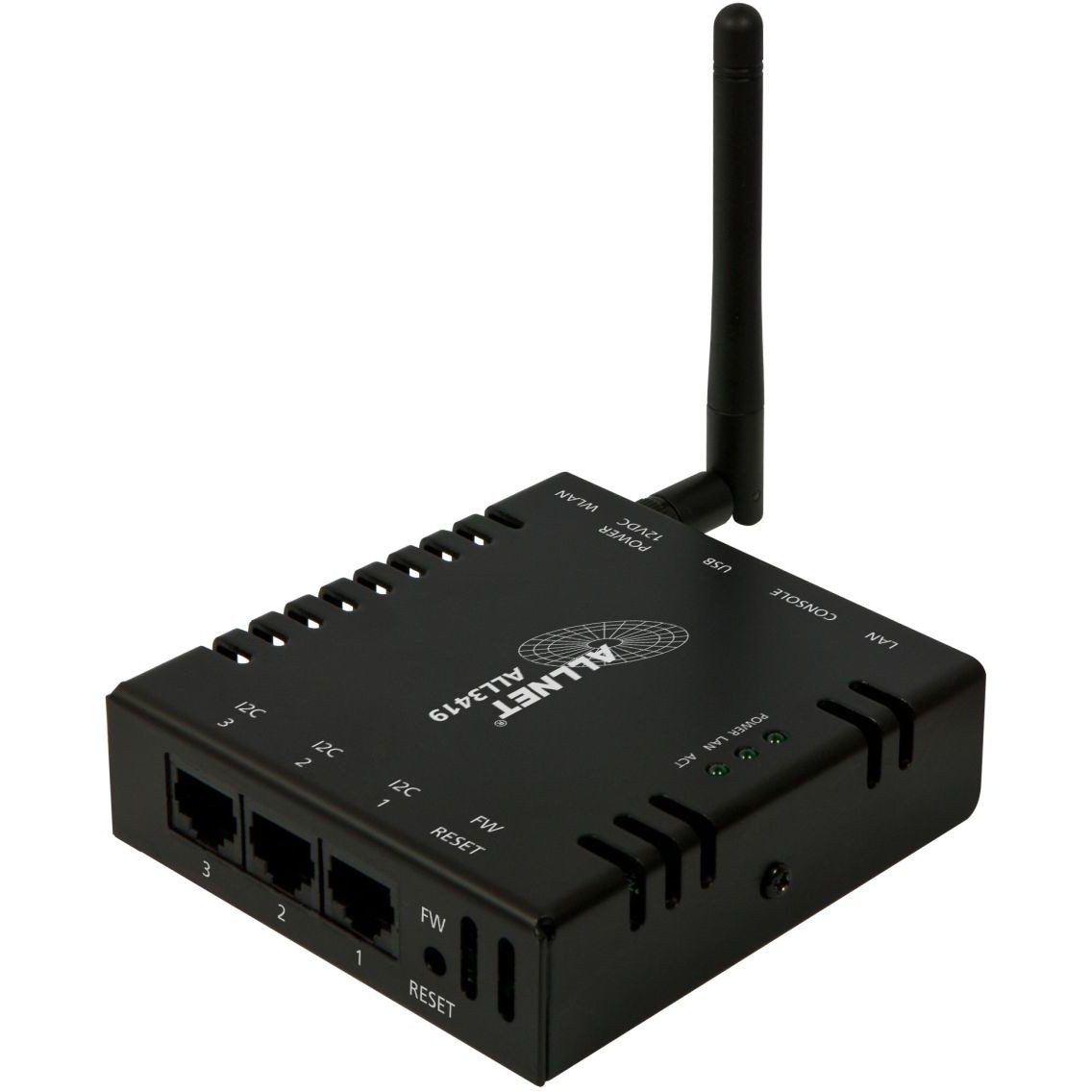

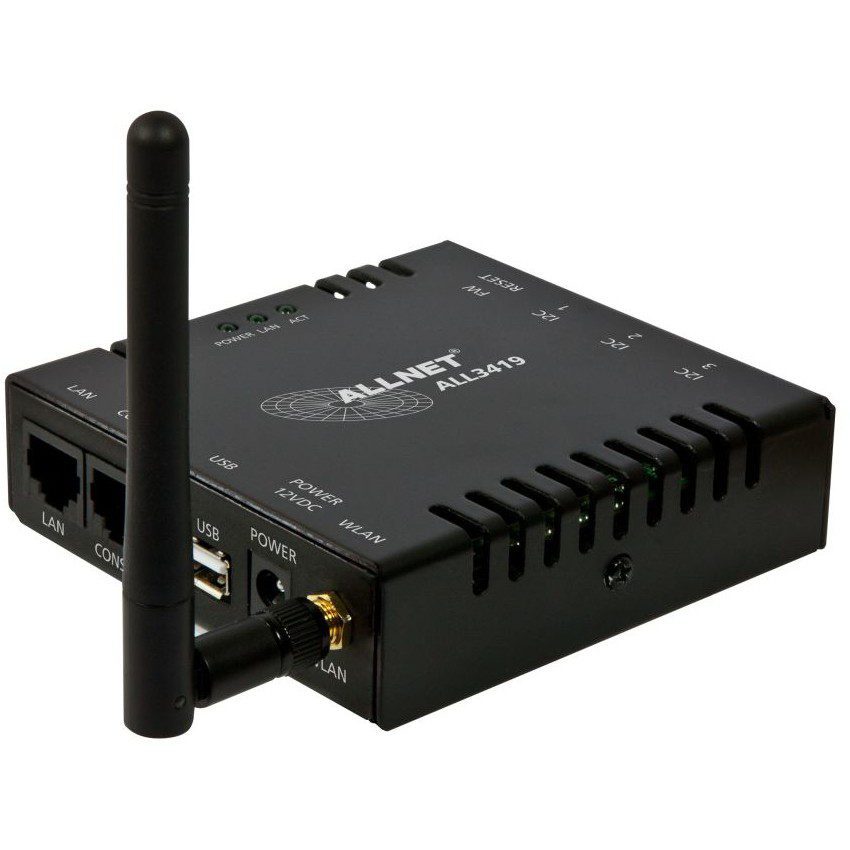

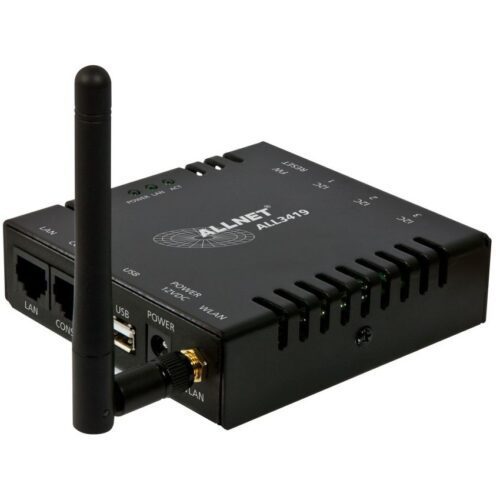

The ALLNET ALL3419 IP thermometer/sensor center is a flexible and cost-effective solution for temperature measurement via network. Its extremely compact design means it can also be used in hard-to-reach places. The robust metal housing has tabs for mounting on walls and ceilings and protects against mechanical damage.

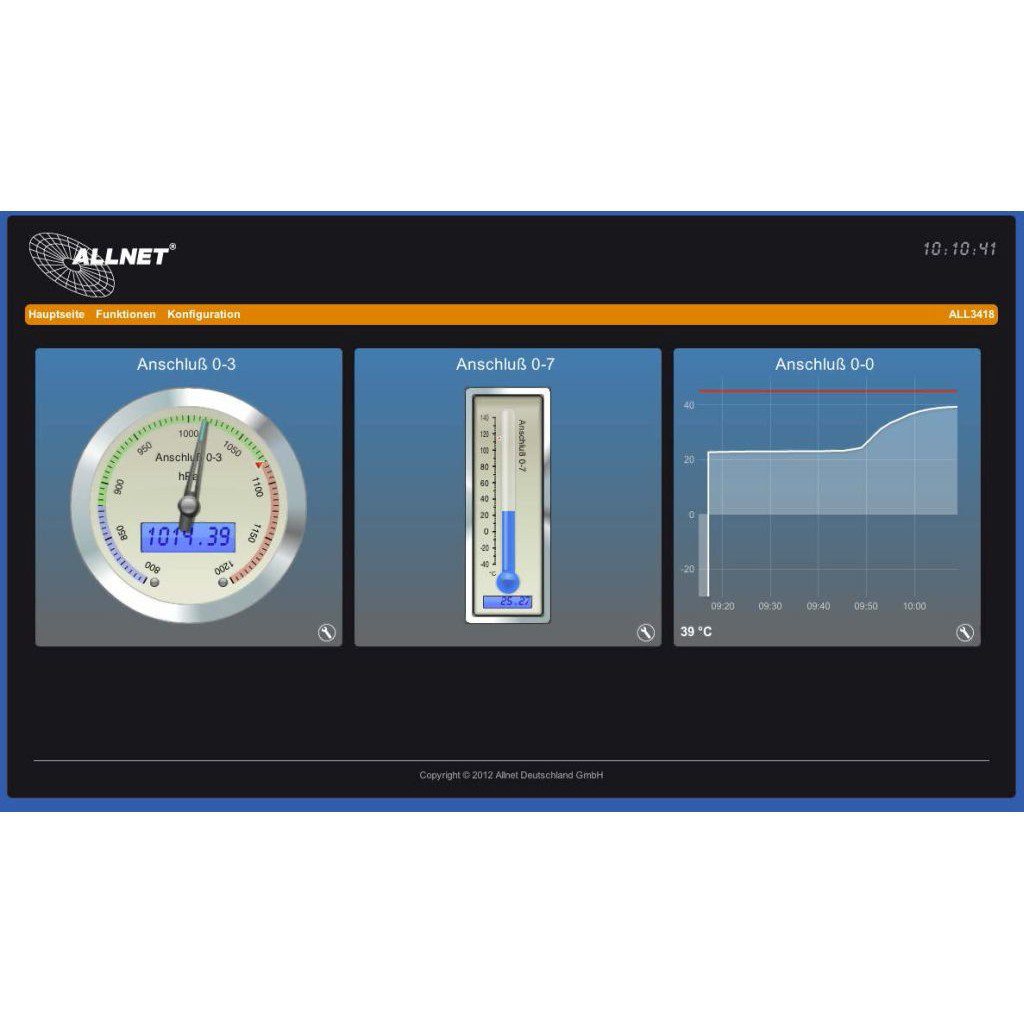

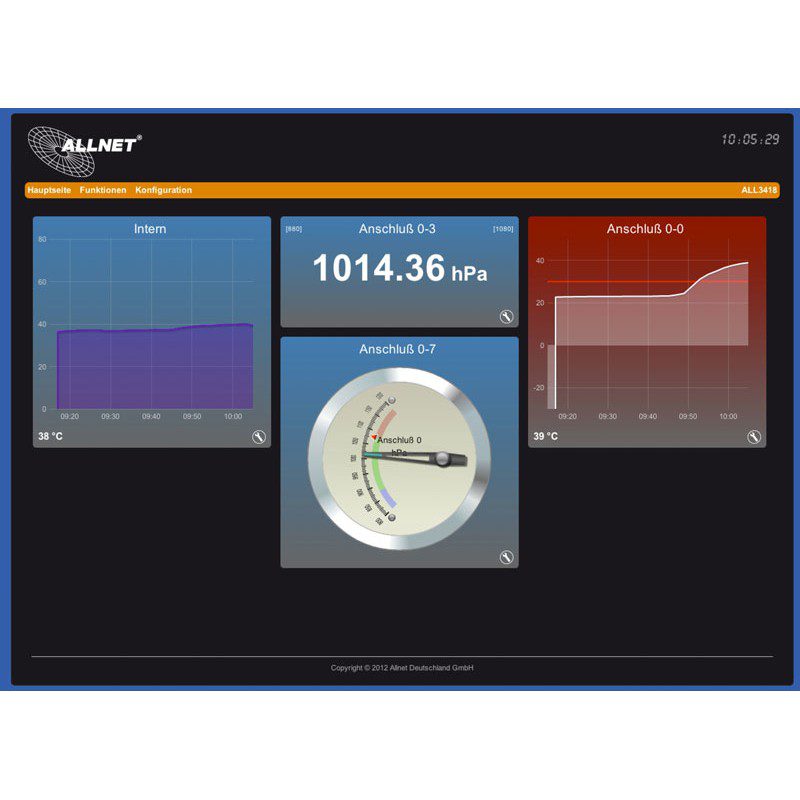

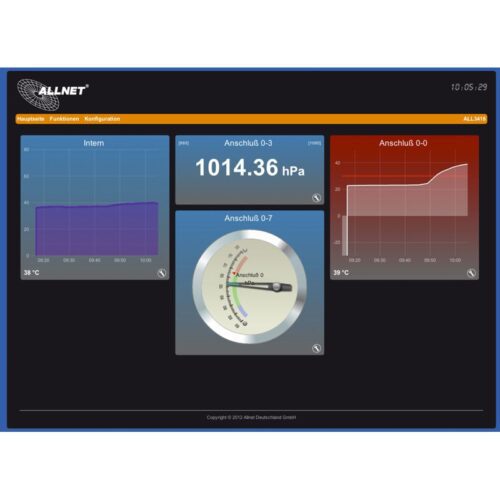

The ALL3419 IP thermometer/sensor center is integrated into a computer network via cable or wireless LAN and can be accessed via an IP address. The measured values can be viewed directly in the device via a web browser. No additional software is required for operation. This makes the ALL3419 suitable for all operating systems.

Optionally, the ALL3419 can be expanded using software modules available free of charge from ALLNET. These include, for example:

The sensor measurements are carried out using the external ALL3006 temperature sensor included in the scope of delivery. Another internal temperature sensor on the device's circuit board shows the system temperature. With the optionally available ALL3018 temperature & humidity sensor, the humidity can be measured in addition to the temperature. The measurement intervals can be set to the second. The last 512 measured values can also be displayed directly in the device as a trend graph if desired.

Intelligent functions and programming via switching matrix

Depending on the values determined, certain actions can be programmed via the software-based switching matrix. For example, if set limits are exceeded or not met, the measured values can be sent by email. This can be done once, several times and/or at specific time intervals, as long as the matrix condition exists.

Another possibility is the targeted switching of external, IP-capable switching devices, such as the ALL307x series network sockets or the ALL4075/4175 network relay, as well as the switching of directly connected actuators, e.g. the ALL4427/3527 relay module, etc.

Flexible installation options

The external sensors are either plugged directly into the ALL3419 or can be connected remotely via a control cable. Optionally, the ports can be expanded by 8x sensors each using the ALL4404 “8-way multiplexing hub”, i.e. a maximum of 24x sensors per ALL3419. All ALLNET home automation products use a simple network cable (RJ45 connector, Cat. 5) to remotely connect the sensors to the central unit. An existing cable network such as your own network or telephone cabling can be used for this. The maximum cable length between the central unit and the module can be up to 100 meters. The modules are supplied with power by the central unit. A separate power source for the individual modules is not necessary.

Cross-site temperature recording without limits

In conjunction with the other control and measurement computers ALLNET ALL3500/3505/4500 and ALL5000, several ALL3419 can be operated in a network that is distributed across different locations. Each individual ALL3419 is queried via its individual IP address and displayed and saved centrally in the web interface. We use the open standard “JSON” for this.
