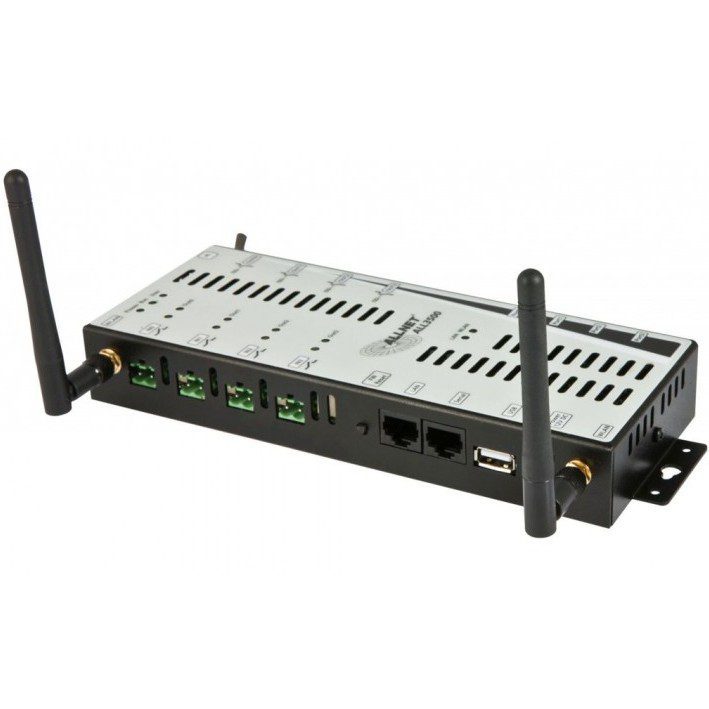

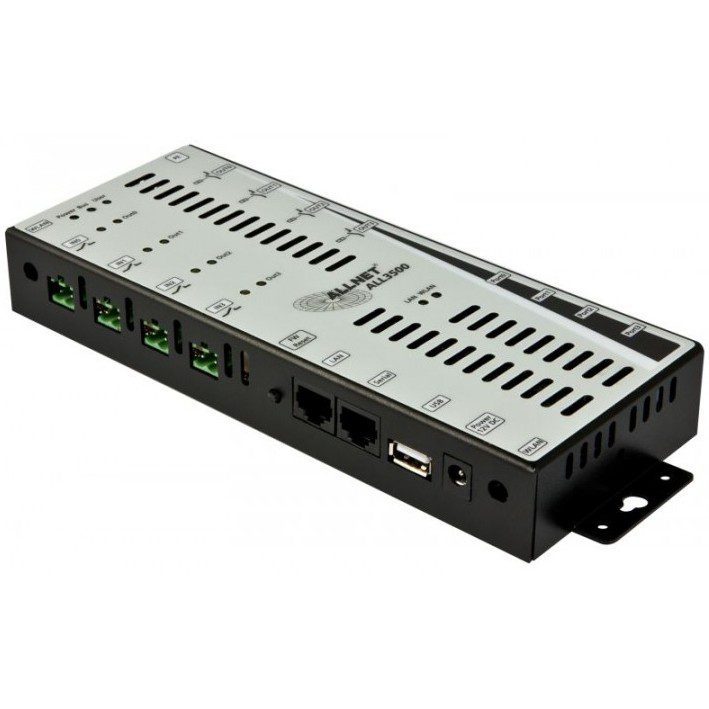

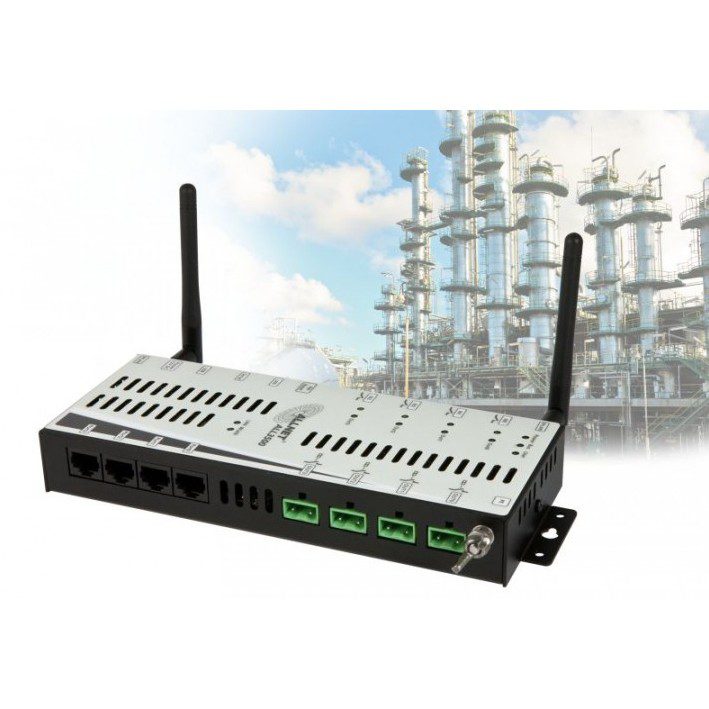

ALLNET MSR central unit ALL3500 including 4 sensor ports & WLAN for IP building automation

Description

ALLNET ALL3500. Processor clock frequency: 2.4 GHz. Transmission technology: Wired & wireless, Ethernet interface type: Fast Ethernet, WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Product color: Black, Gray, Housing material: Metal, Certification: CE. Input voltage: 100 – 240 V, Input frequency: 50 – 60 Hz, Power consumption (max.): 5 W. Width: 220.4 mm, Depth: 80 mm, Height: 30 mm

– Cost-effective platform
– Can be conveniently read, configured and operated from anywhere via web interface
– Record environmental conditions such as temperature, humidity, air pressure and much more
– Integrated XML interface
– 4x RJ45 for sensor modules
– SNMP module to install

The ALLNET ALL3500 home automation appliance offers a solid and cost-effective platform for implementing control solutions based on measurement data.

Like the ALL3418V2 model, the ALL3500 is based on the new ALL5002 CPU board and a GNU/Linux firmware.

This makes it open for your own applications and all additional modules of the ALL3000/4000/5000 series can be operated with the ALL3500 central unit. The ALL3500 can be conveniently read, configured and operated from anywhere via a web interface. The integrated XML interface enables easy integration into complex installations or your own software products for control and monitoring.

Control, measure, regulate via network, internet and smartphone
Application examples:
– Temperature detection in HACCP or alarm scenarios, as well as the switching of alarm devices depending on this.
– Climate control of a room by monitoring temperature and humidity, as well as switching on heating and humidification as needed.
– Crisis detection in mission-critical rooms and activation of alarms in the event of gas smell, water ingress, smoke development, etc.
– Time and humidity controlled garden irrigation
– Consumption-dependent switching via external sensors such as ALL4950 power meter module

Compact, Powerful, Cost-Effective
The right platform for your home automation application
With the ALL3500, we have managed to pack a lot of functionality into a compact and cost-saving design. This saves space and costs, but still delivers impressive functionality. Four relays, sensor ports and contact interfaces are available. This makes the ALL3500 extremely versatile.

Sensors, actuators and switches
A wide range enables complex applications

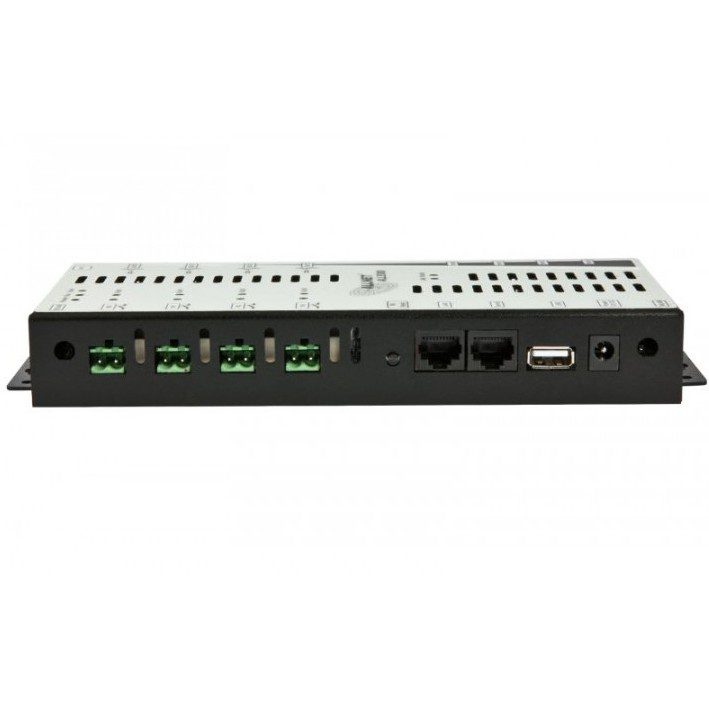

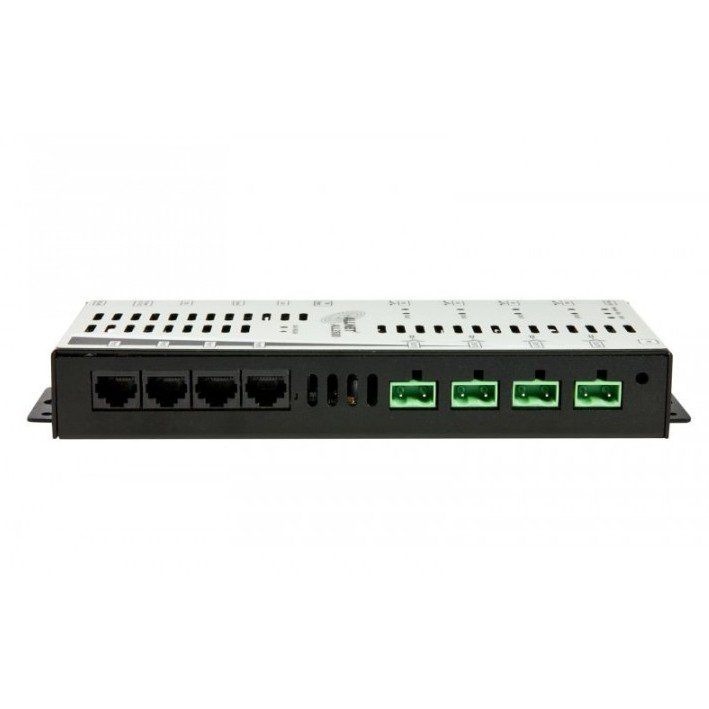

The ALL3500 central unit has four ports for connecting external sensors and actuators, as well as four relay outputs for switching any load. The device also has four contact inputs that can be used to connect buttons and switches, for example.

This means that environmental conditions such as temperature, humidity, air pressure and much more can be recorded, communicated and processed, and switching processes can be triggered via actuators or relays. This can be done manually, time-controlled or depending on the recorded values.

Connectivity
Easily accessible with Ethernet and built-in WiFi

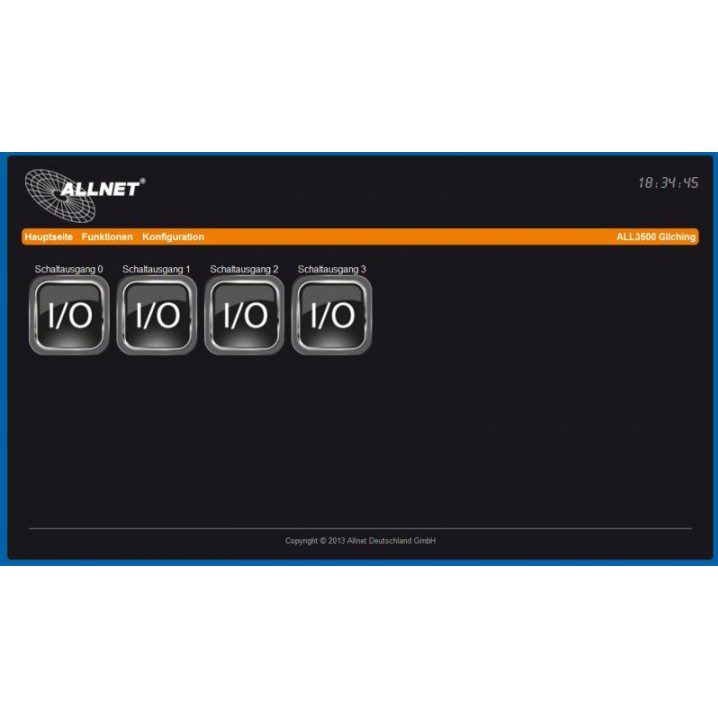

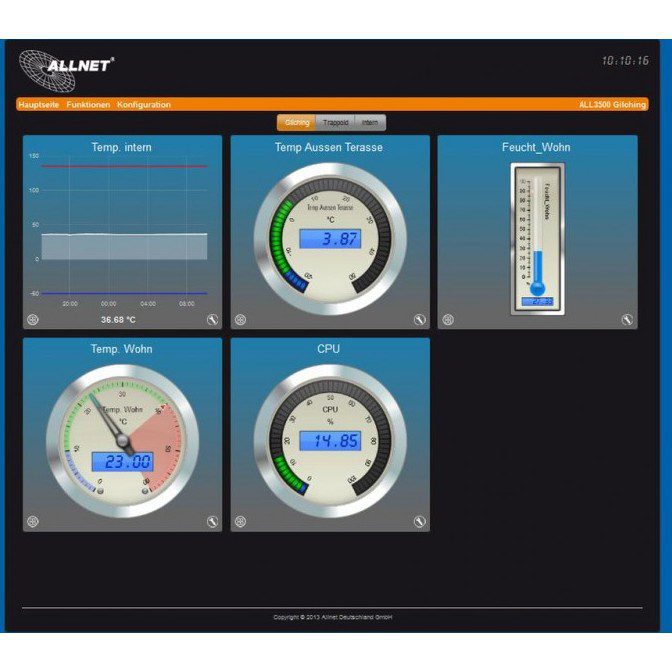

The ALL3500 central unit can be reached via an IP address in the TCP/IP network. The determined values can be called up directly from the device via the web browser, processed or sent periodically by email. An integrated XML interface is used for data query and control via the Internet, which allows the ALL3500 to be integrated into a higher-level control solution.

USB-Port
Integrating external wireless technologies
External sensors/actuators can be connected to the ALL3500, for example, using a separate wireless USB stick. The ALL3500 can recognize and process these sensors. The following technologies/manufacturers are already integrated in the ALL3500:
– Plugwise
– EnOcean
