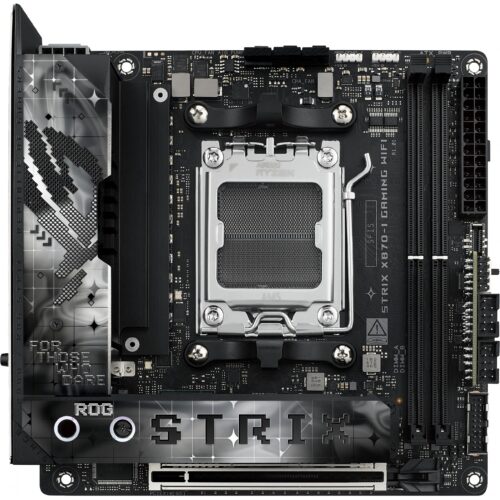

AM5 ASUS ROG STRIX X870-I Gaming WIFI ITX

Description

ASUS ROG STRIX X870-I GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory: DDR5-SDRAM, Maximum RAM: 96 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 10. USB connectors: USB Type-A, USB Type-C. Ethernet interface types: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top WLAN standard: Wi-Fi 7 (802.11be), WLAN standards: Wi-Fi 7 (802.11be)

AMD X870 Mini-ITX motherboard with 10+2+1 Power Stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, Wi-Fi 7 with ASUS Wi-Fi Q-Antenna, two M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe® Slot Q-Release Slim, two USB4® ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting

ROG STRIX X870-I gaming wifi
The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek Mini-ITX form factor and is complemented by the ROG Strix Hive II for optimized control. It features PCIe® 5.0 slots for graphics and memory, dual-channel DDR5 slots, and a robust power delivery for top-of-the-line gaming and heavy workloads. Advanced cooling solutions ensure peak performance, and Wi-Fi 7 provides ultrafast connectivity. This platform delivers the power and connectivity demanded by advanced AI PC applications.

PERFORMANCE
EXTREME POWER & PERFORMANCE

COOLING
COMPREHENSIVE COOLING

DIVE INTO THE GAME
TOTAL GAMING IMMERSION

CONNECTIVITY
FULL CONNECTIVITY

ASUS AI INTELLIGENCE

AI OVERCLOCKING
ASUS AI Overclocking creates profiles for the CPU and cooling to determine the optimal configuration and push the system to its limits.

ASUS AI Overclocking profiles your CPU and cooling to determine the optimal configuration and push your system to its limits. The predicted values ​​can be automatically applied or used as a starting point for further experiments.

AI COOLING II
Tune the temperatures and noise levels of any build with a single click.

Tune the temperatures and noise levels of any build with a single click. An ASUS-branded algorithm suppresses unnecessary noise while performing a quick stress test, then monitors CPU temperatures to dynamically adjust the fans to optimal speeds.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, enable a trusted and seamless connection, and unleash the full speed of Wi-Fi 7*.

*Features may vary depending on the model.

performance
OVERCLOCKING

DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by setting power and temperature thresholds to automatically switch between manual overclocking for heavy multi-threaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard features an improved instantaneous protection mechanism that prevents system crashes during overclocking.

EXAMPLES:
If a user sets the current and temperature thresholds as shown, manual overclocking will be enabled once the CPU current exceeds 35A until the temperature reaches 80°C. Precision Boost Overdrive will be used at all other times.

CORE FLEX
Core Flex allows you to push your limits further than ever before by giving you creative control over clock speed, power, and temperature. In its simplest form, you can maximize the base clock speed during lighter loads and set thresholds to gradually reduce the CPU core frequency as temperature or power increases. But the system is extremely customizable, supporting several user-controlled features that can independently adjust power, power, and temperature limits, allowing you to shape CPU performance to your liking.

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) increases the CPU's power and voltage budget to opportunistically boost performance. By aggressively tuning PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to further boost performance.

performance
MEMORY

DDR5 DOMINANCE
The Strix X870-I is ideally suited for enthusiast kits thanks to its extensive EXPO (AMD EXtended Profiles for Overclocking) support.

DDR5 STRENGTH
For those looking to push the boundaries of standard DDR5 speeds, the Strix X870-I is ready for high-end kits thanks to extensive AMD EXPO (Extended Profiles for Overclocking) support. Seasoned veterans can further optimize performance using the extensive UEFI settings.

RUMP
The ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips in your kit and then presents optimized frequency, timing, and voltage profiles that you can easily apply to boost performance.

POWER SOLUTION

Performance
COOLING

M.2
M.2 AND CHIPSET HEATSINK
To save space, the two onboard M.2 slots and heatsinks are stacked above the chipset. And to keep the heat generated by the installed high-performance drives in check, the entire array is cooled by an integrated fan.

VRM

VRM HEATSINK
The VRM heatsink and L-shaped backplate extend over the rear I/O to maximize surface area and incorporate a VRM fan for active cooling to cleverly handle the power thermals of the latest AMD processors while leaving room for large CPU coolers.

HIGHLY CONDUCTIVE THERMAL PADS
High-quality thermal pads are used between the power stages and heatsinks to improve heat transfer and reduce VRM operating temperatures.

CPU

CPU FAN CONNECTORS
A dedicated pair of PWM/DC fan headers provides easy access to the CPU coolers.

AIO PUMP FAN CONNECTION
A special PWM/DC header connects standalone water cooling systems.

HOUSING

4-pin fan connectors
The Strix X870-I is equipped with five case fan connectors, each supporting automatic detection of PWM or DC fans.

LEADING CONNECTIVITY

ROG STRIX HIVE II
The ROG Hive II is an exclusive accessory that provides user-friendly access to hardware and software features such as USB ports, audio jacks, volume control, and other useful functions.

ROG FPS CARD
The ROG FPS card consolidates its connectors into a vertically mounted card, saving valuable board space and simplifying cable management. Connections can be made before installing the card, making installation in tight spaces much easier. Onboard features include two SATA connectors, front-panel headers, two USB 2.0 headers (allowing up to three USB 2.0 ports), a CPU_OV jumper for extreme overclocking, and an Alteration Mode switch.

Wi-Fi 7
The revolutionary Wi-Fi 7 is up to 4.8 times faster than standard Wi-Fi 6*, thanks to technologies like 320 MHz channels** in the 6 GHz band and 4K QAM*. Multi-Link Operation (MLO) ensures a more stable Wi-Fi connection and lower latency, opening up new possibilities for gaming, streaming, and industrial IoT.

* Wi-Fi 7 features require an integrated Wi-Fi chipset, a Wi-Fi access point, and Wi-Fi 7-enabled operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may not be available in some regions/countries due to regulatory restrictions.
** Specifications vary by model.

ASUS WI-FI Q-ANTENNA
Two transceivers support the 2.4, 5, and 6 GHz bands to enable faster data throughput, with directional sensitivity to improve signal quality and bridge longer distances.

Improving wireless signal reception
Compared to the previous antenna generation

Intel® 2.5 Gb Ethernet
Integrated Intel® 2.5Gb Ethernet provides a speed boost for your wired connection. 2.5x the speed of standard Ethernet connections enables fast file transfers, low-latency gaming, and high-resolution video streaming.

PCIE® 5.0
The Strix X870-I is fully aligned with the new standard and offers full PCIe® 5.0 support. The top x16 expansion slot is Gen 5-capable and protected by a SafeSlot retention bracket to support the weight of the latest graphics cards. One of the integrated M.2 slots is rated for blazing read and write speeds of 16 GB/s thanks to its PCIe® 5.0 interface, while all other slots can still transfer an impressive 8 GB/s. Each M.2 slot is equipped with massive heatsinks to dissipate the heat from next-gen drives.

USB ports

TWO USB4® PORTS
Each USB 4® port provides up to 40 Gbps of bidirectional bandwidth for the latest superfast devices and drives. External display support extends to 8K output when either port is used, or both can be used for two 4K displays.*

*Support for VGA resolutions depends on the capabilities of the CPU or graphics card.

PLAY WITH STYLE

UNDENIABLE ROG STRIX
The I/O shield and M.2 heatsink feature a perforated metal grille that either reflects the glow of the internal RGB components or blends seamlessly into the shadows of a discreet build. The cyber-style text and sharp, angular details clearly identify this motherboard as a member of the ROG Strix family.

BUILD THE MOST ADVANCED PC FOR GAMING AND CREATION
When only the fastest will do, the Strix X870E/X870 motherboard is the answer. With onboard USB 4.0 and robust overclocking capabilities1, fast dual-channel DDR5 memory support, AMD EXPO™ technology, and PCIe® 5.0 support for graphics and NVMe™, you can play the most demanding games and power your biggest projects with the revolutionary performance of an AMD X800 Series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
1. Overclocking and/or underclocking AMD processors and memory, including, but not limited to, changing clock frequencies/multipliers or memory timings/voltages to operate outside of AMD's published specifications, will void any AMD product warranty, even if enabled by AMD hardware and/or software. This may also void any system manufacturer's or retailer's warranties. Users assume all risks and liabilities that may result from overclocking and/or underclocking AMD processors, including, but not limited to, hardware failure or damage, reduced system performance, and/or data loss, corruption, or vulnerability. GD-106
