APC Smart-UPS

Description

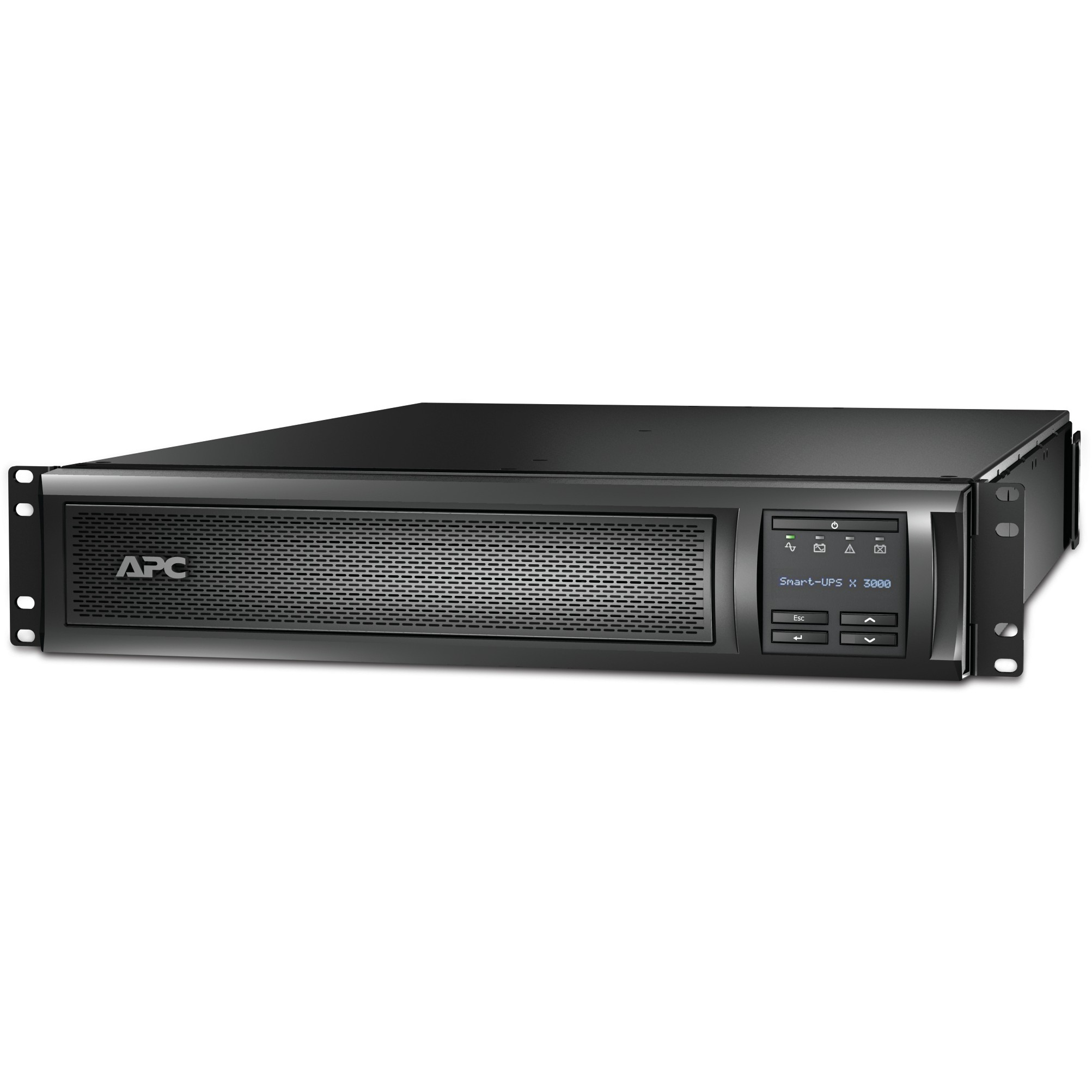

APC Smart-UPS X SMX3000RMHV2UNC UPS – 3000VA, 8x C13, 1x C19 output, USB, NMC. UPS topology: Line-Interactive, Output capacity: 3 kVA, Output power: 2700 W. AC plug types: C13 coupler, C19 coupler, Plug: C20 coupler, Number of AC outlets: 9 AC outlets. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 738 VAh, Typical backup time at full load: 6.25 min. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Width: 432 mm, Depth: 667 mm, Height: 85 mm

Always stay online and prevent data loss
As soon as the power goes out, an APC Smart-UPS immediately supplies emergency power to all connected devices. Since this happens automatically with an APC UPS, you can prevent unwanted failures of a PC, server or switch, for example. With the APC PowerChute Network Shutdown software, you can even shut down critical IT hardware automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to the hardware.

extend the term

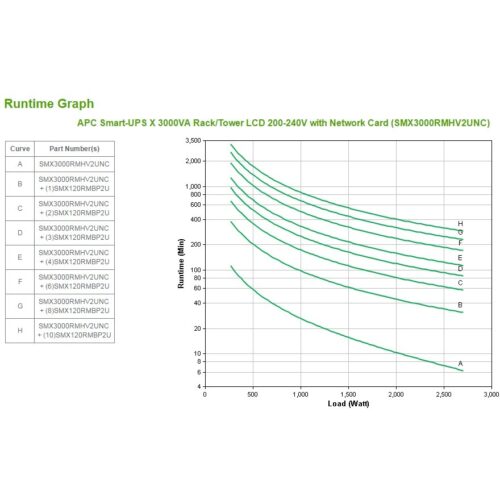

By connecting external battery packs (SMX120RMBP2U) you can easily increase the number of minutes the APC SMX UPS can provide autonomous emergency power. Even several hours of runtime are possible.

Security
In addition, a Smart-UPS protects connected devices from voltage spikes caused by lightning, among other things. This APC emergency power supply is ideal for use in (small) companies.

Manage your Smart-UPS
Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to remotely monitor and manage the UPS (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using the PowerChute Network Shutdown software.

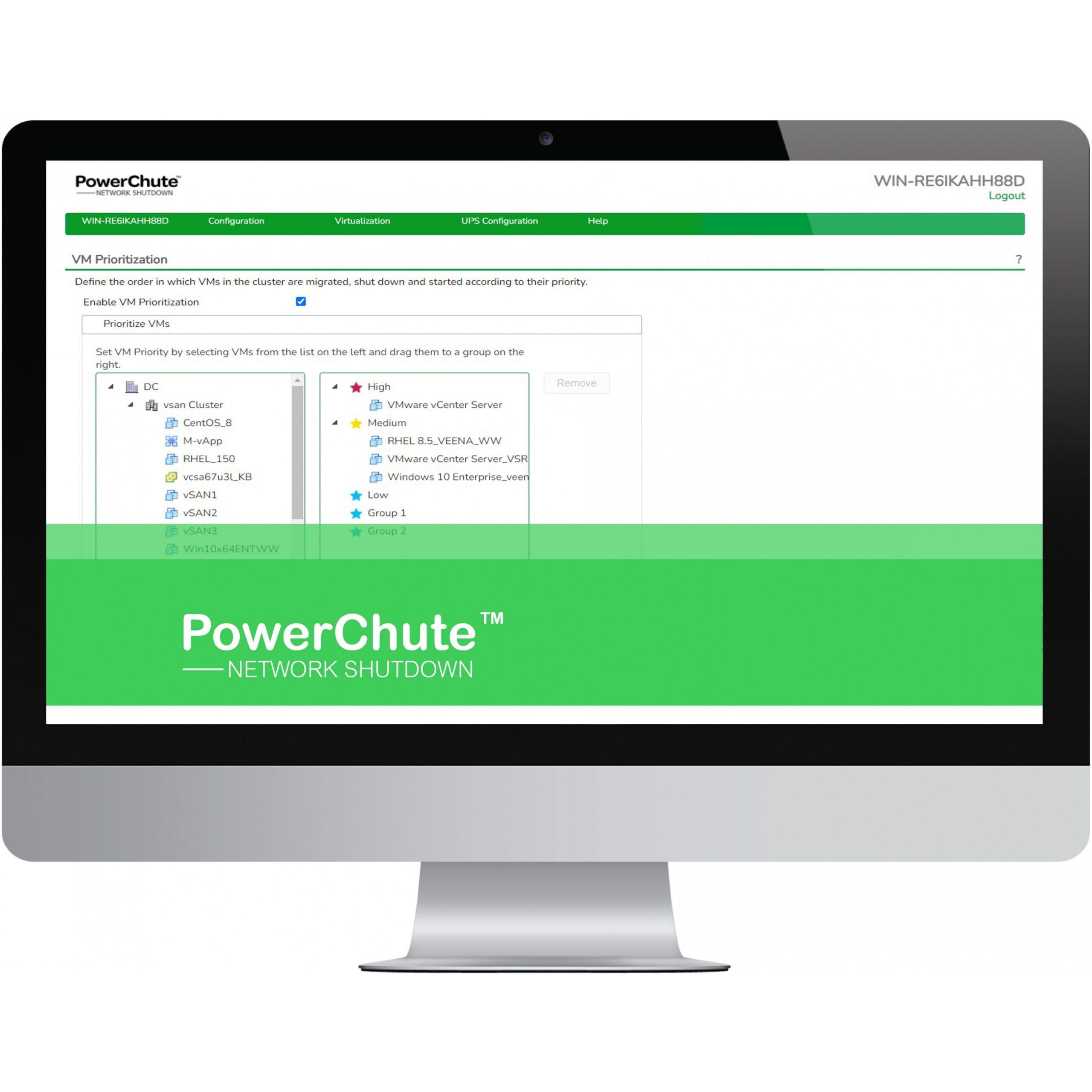

PowerChute network shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and host ESXi, as well as hyper-converged and virtual infrastructure*. In the event of a power outage, PowerChute can gracefully shut down your virtual machines and the pre-configured boot sequence ensures they are powered back on.

*HCI and virtual machine support requires an additional license:
1 year: SWPCNS 1 Y-DIGI
Up to (Replace the bold number in the article number for the desired variant)
6 years: SWPCNS 6 Y-DIGI

remote management and monitoring of your network
The network card can be remotely managed through the user-friendly web browser interface, the EcoStruxure™ IT remote management software (SFTWES1-DIGI), or any other SNMP-compatible system. Tip: EcoStruxure™ IT also includes the functionality of the support contract below.

support contract
The optional Network Card Support Contract License* ensures you are always up to date and secure and includes additional benefits such as frequent updates with:
• New and improved features
• Security updates
• Extended support
(Support contract functionality is included free of charge in the first year of the UPS)

*The above license and available in the variants:
1 year: SWNMC3SU- 1 Y-DIGI
Up to (Replace the bold number in the article number for the desired variant)
6 years: SWNMC3SU- 6 Y-DIGI

user-friendliness
Physical buttons and an LCD screen allow you to set and read the basic functions.

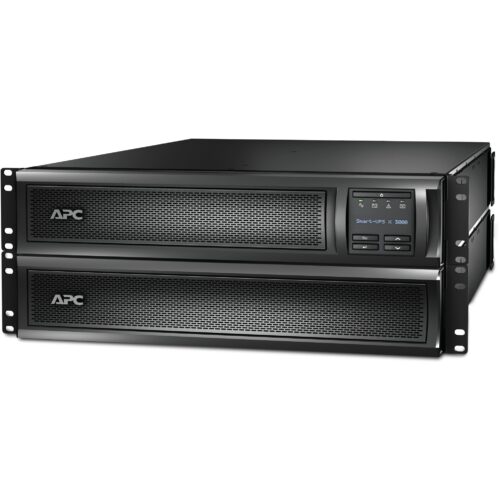

Rack/Tower convertible

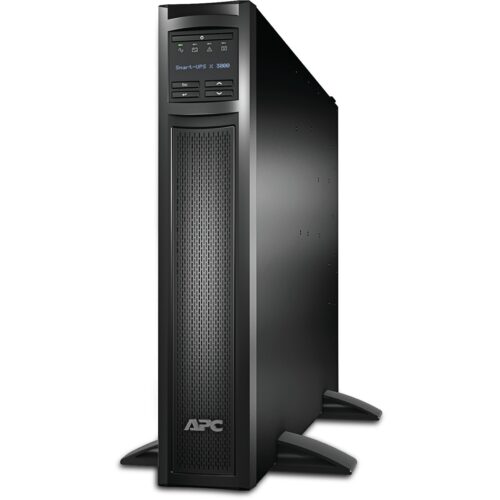

The APC Smart-UPS SMX is rack/tower convertible. Since both feet and 4-post rack mounting brackets are included, you can mount it in a rack or stand it upright.

Extend the lifespan
The internal battery cartridge (APCRBC117) can be easily, safely and independently replaced by the user without having to turn off the APC SMX3000RMHV2UNC or connected devices. This is an easy and cost-effective way to extend the life of the APC Smart-UPS and keep your devices online at all times.

warranty extension
The SMX3000RMHV2UNC comes with a 3-year manufacturer's warranty, except for the battery, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC Service Pack (WBEXTWAR3YR-SP-04).

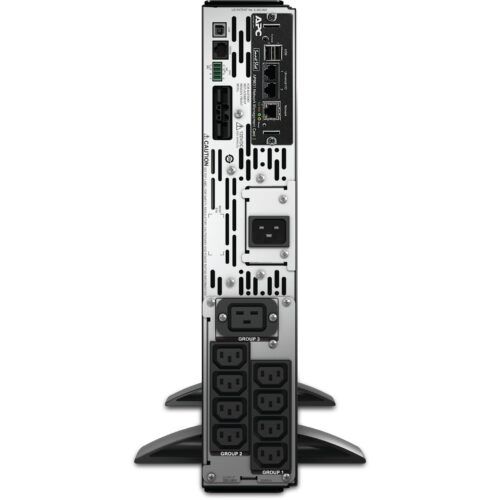

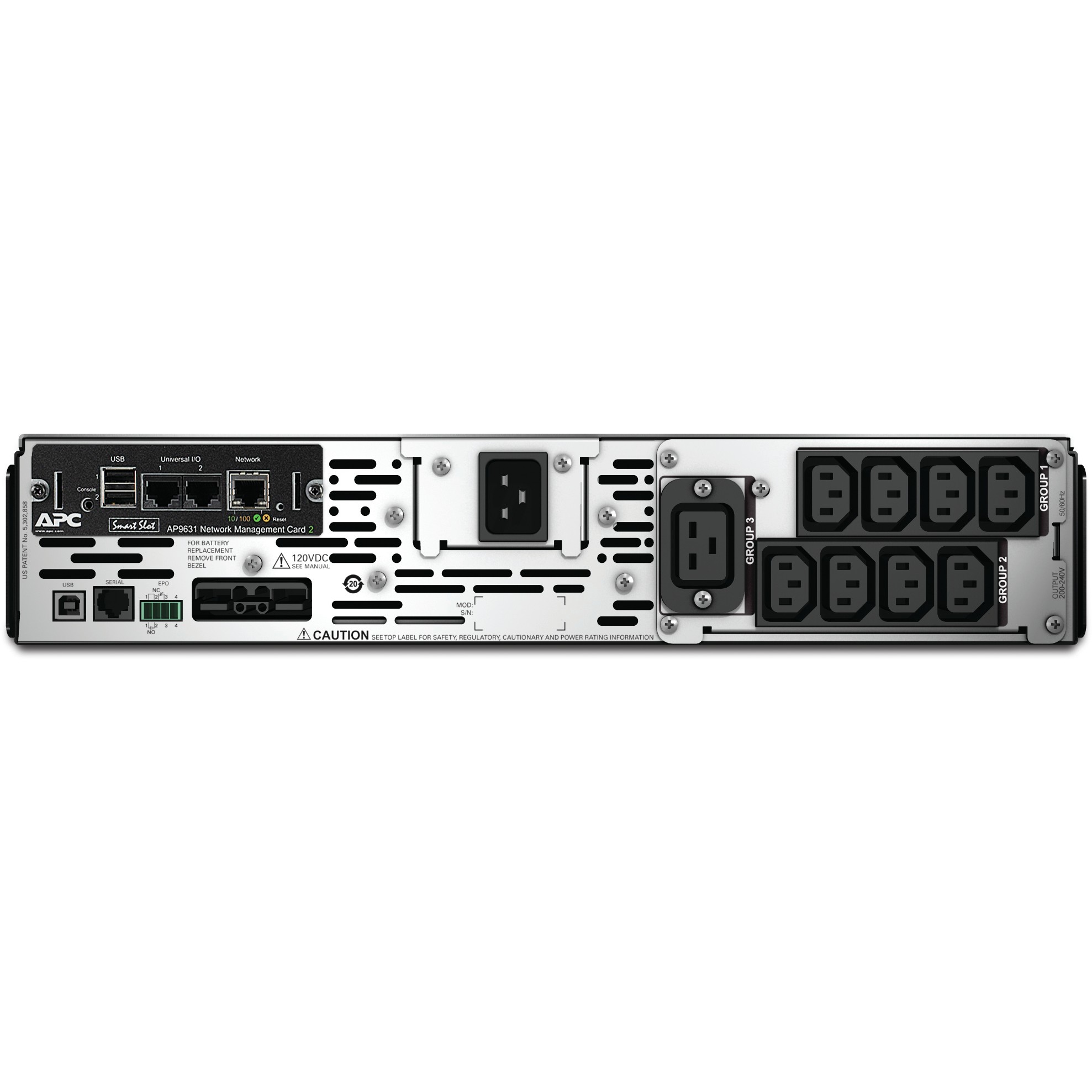

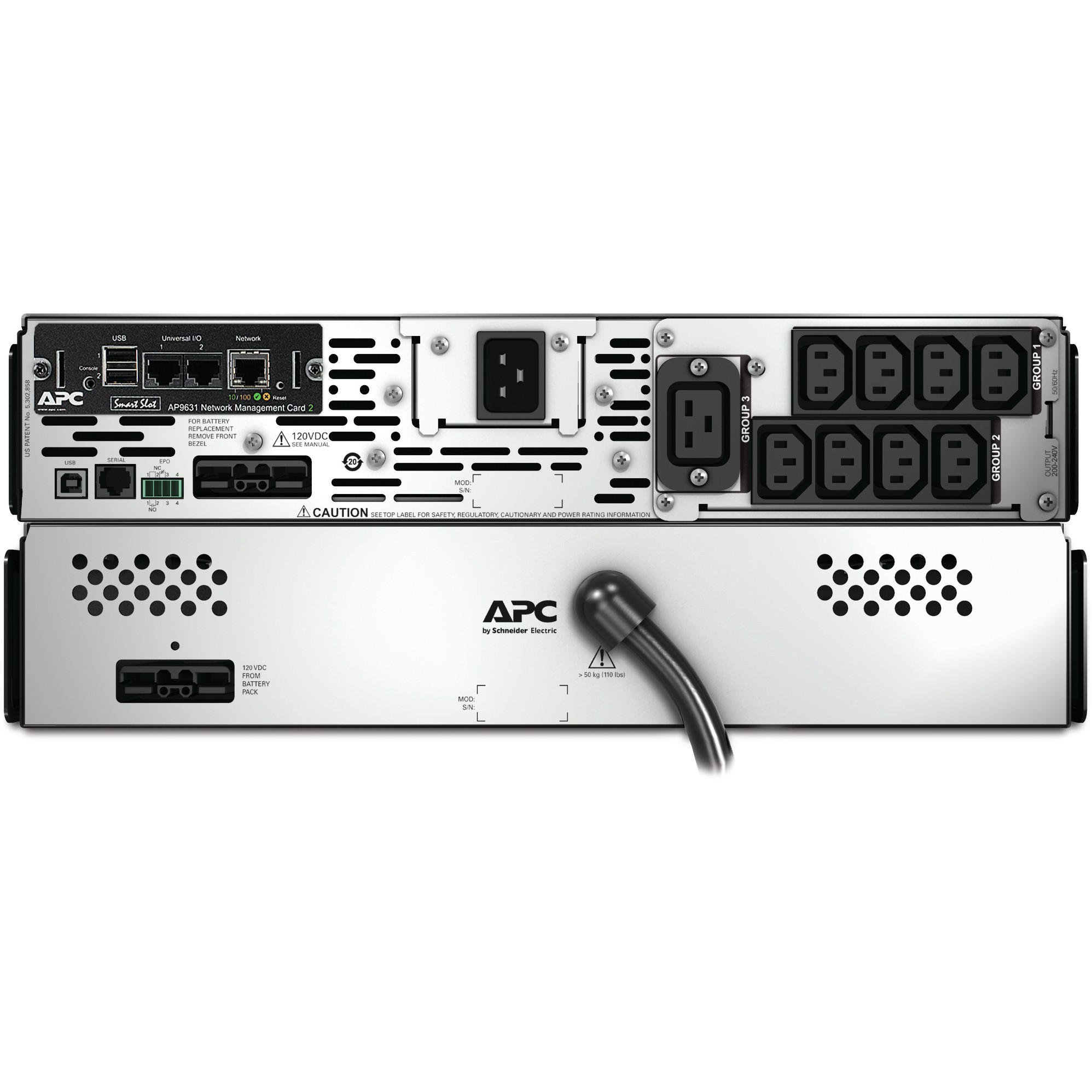

Switched socket groups: remote restart and step-by-step start
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed switch-on per UPS outlet group. This reduces the UPS peak load and brings it closer to the constant load, thus limiting UPS oversizing.

It is also possible to reset a group of several UPS outlets and the devices connected to them. This is even possible remotely when using a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI).

You also cannot eliminate critical loads; thereby extending the runtime of critical equipment.

Green Premium
This label represents Schneider Electric's commitment to delivering products with world-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, and circular and low-carbon products.

Green Premium:
– Represents an energy efficient product that helps our customers achieve their CO2 reduction targets while saving on energy costs. The energy efficiency of this product is at least 10% above the market average.

– Provides insight into the product's environmental impact. This data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/

– Committed to the minimal use of hazardous substances within the scope of and beyond compliance with legal regulations (RoHS-/REACh)

Included in delivery
1x SMX3000RMHV2UNC
1x USB cable
2x C13 to C14 power cable 2 meters
1x Schuko to C19 input power cable 2 meters
1x C19 to C20 power cable 2.5 meters
1x software CD with PowerChute Network Shutdown Edition
1x documentation CD
1x British BS1363A to C19 input power cable
2x 4-post rack mount brackets
1x temperature sensor
