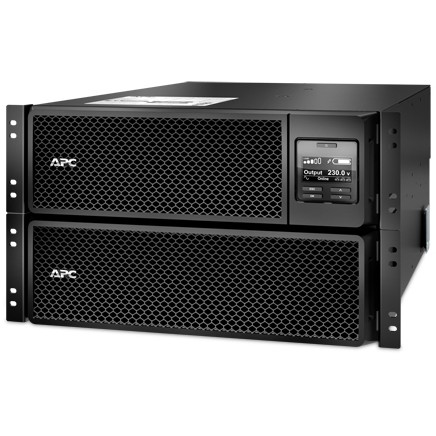

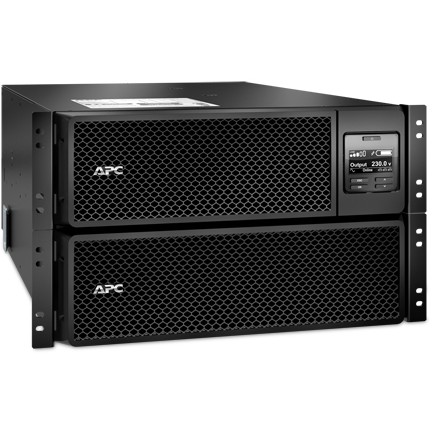

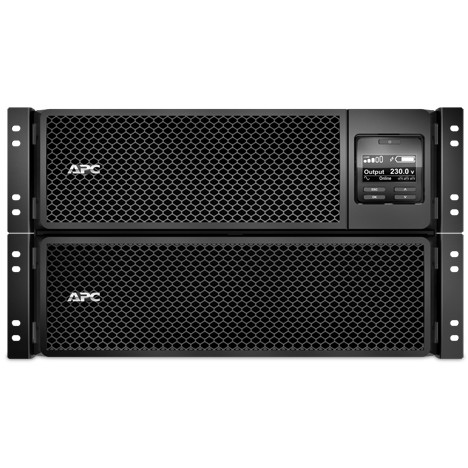

APC Smart-UPS SRT10KRMXLI 10000 VA RM

Description

APC Smart-UPS On-Line SRT10KRMXLI – 10kW/VA, 6x C13 + 4x C19 + hardwired 1-phase outlets, rack-mountable, embedded NMC. UPS topology: double conversion (online), output capacity: 10 kVA, output power: 10000 W. AC plug types: C13 coupler, C19 coupler, plug: hardwire, number of AC outlets: 10 AC outlets. Battery technology: Sealed Lead Acid (VRLA), battery capacity: 1805 VAh, typical backup time at full load: 3.8 min. Form factor: rackmount/tower, product color: black, rack capacity: 6U. Conformity certificates: RoHS, Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

Always stay online and prevent data loss
Thanks to double-conversion technology, an APC Smart-UPS On-Line always supplies all connected devices with perfectly clean power. Even power outages have no impact. The APC Smart-UPS On-Line then automatically provides emergency power without the need for switching. This prevents unwanted outages of a PC, server, storage device, or switch, for example. With the included Powershute Network Shutdown software, you can even perform an automated and controlled shutdown of critical IT hardware. This prevents data loss, downtime, and physical damage to the hardware.

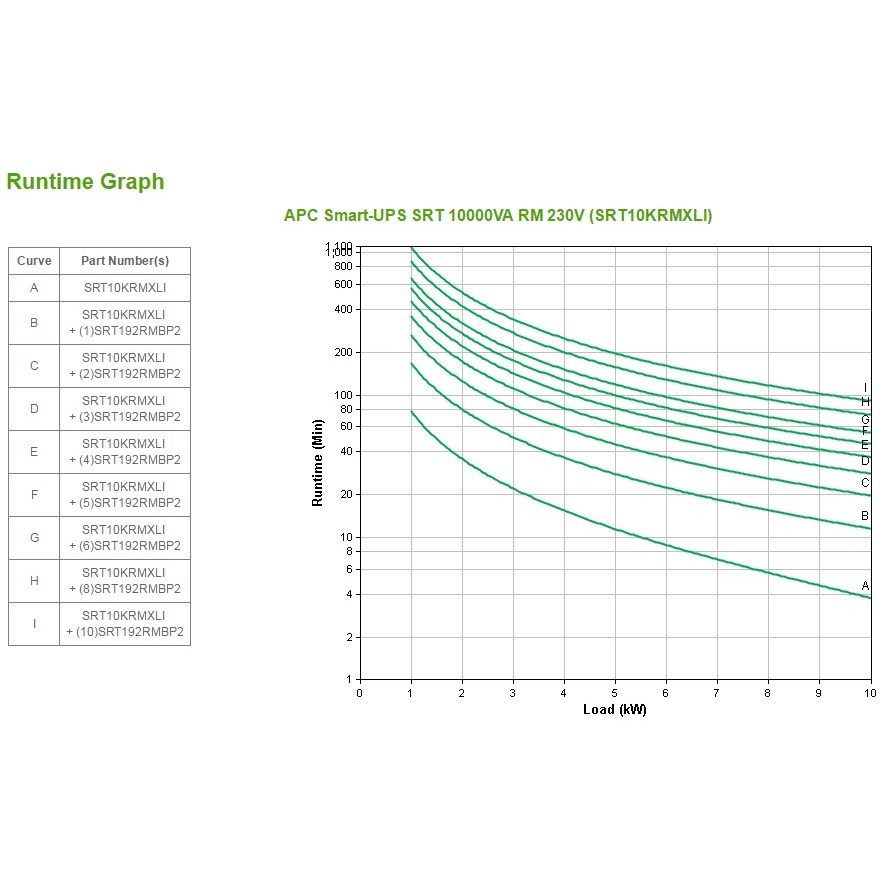

Extend the term
You can easily increase the number of minutes the APC SRT10KRMXLI can provide self-contained backup power by connecting external battery packs (SRT192RMBP2). Even several hours of runtime are possible.

Availability
The Smart-UPS Online has an internal bypass and uses double conversion, which increases the availability and service life of the connected hardware.

Security
In addition, a Smart-UPS Online protects connected devices from voltage spikes caused by lightning, among other things. This APC emergency power supply is ideal for business use.

Rack mounting

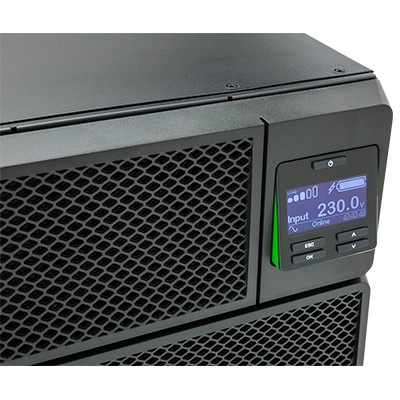

Thanks to the tilting graphic LCD screen, the APC Smart-UPS SRT is easy to operate in the rack. The included 4-post rail kit allows you to easily mount the UPS in a 6U rack.

Manage your Smart-UPS
Thanks to the integrated network card, you can easily connect the APC UPS to the network. This allows you to remotely monitor and manage the UPS (SNMP), and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

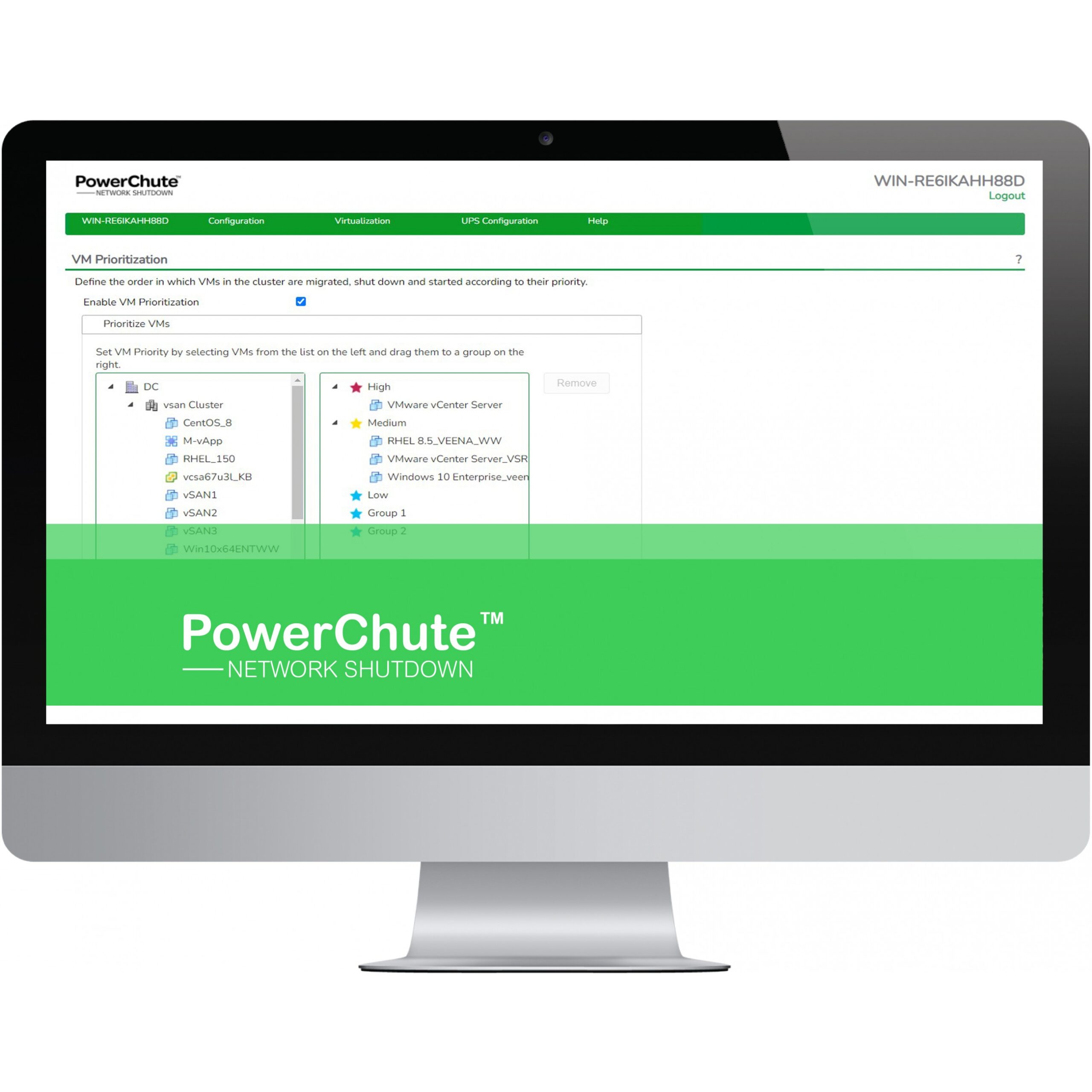

PowerChute network shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS network management card to protect Windows, Linux, and host ESXi, as well as hyperconverged and virtual infrastructure.* In the event of a power outage, PowerChute can gracefully shut down your virtual machines, and the preconfigured boot sequence ensures they are powered back on.

*An additional license is required to support HCI and virtual machines:
1 year: SWPCNS1Y-DIGI
3 years: SWPCNS3Y-DIGI
5 years: SWPCNS5Y-DIGI

Remote management and monitoring of your network
The network card can be remotely managed via the user-friendly web browser interface, the EcoStruxure™ IT remote management software (SFTWES1-DIGI), or any other SNMP-compatible system. Tip: EcoStruxure™ IT also includes the features of the support contract below.

Support contract
The optional Network Card Support Contract License* ensures you are always up to date and secure and includes additional benefits such as frequent updates with:
• New and improved features
• Security updates
• Extended Support
(Support contract functionality is included free of charge for the first year of the UPS.)

*The above license and available in the variants:
1 year: SWNMC3SU- 1 Y-DIGI
Up to (Replace the bold number in the item number for the desired variant)
6 years: SWNMC3SU- 6 Y-DIGI

Extend the lifespan

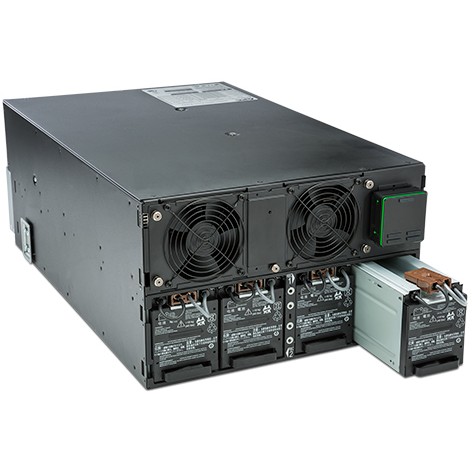

The SRT10KRMXLI contains two (APCRBC140) internal battery cartridges, which can be easily, safely, and independently replaced by the user without having to power down the APC UPS or connected devices. This allows you to easily and cost-effectively extend the lifespan of the APC Smart-UPS and keep your devices online.

Warranty extension
The SRT10KRMXLI comes with a 3-year manufacturer's warranty, except for the battery, which has a 2-year manufacturer's warranty. Both are extended by 3 years, to 6 and 5 years, respectively, with the APC Service Pack (WBEXTWAR3YR-SP-06).

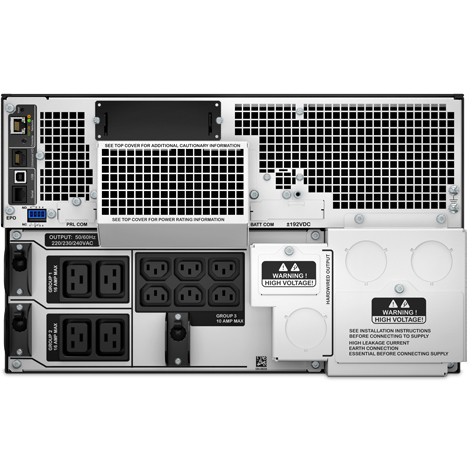

Switched socket groups: remote restart and step-by-step start
Thanks to Switched Outlet Groups, it is possible to configure phased/delayed startup for each UPS outlet group. This reduces the UPS's peak load and brings it closer to the constant load, thus limiting UPS oversizing.

It's also possible to reset a group of multiple UPS outlets and the devices connected to them. Using a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this is even possible remotely.

You also cannot eliminate critical loads; this extends the runtime of critical equipment.

APC Smart-UPS On-Line, 10 kW / 10 kVA, input 230V / output 230V, interface port contact closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, rack height 6 U

This product is part of the Smart-UPS On-Line range, which offers high-density online power protection with true double conversion. This 1000VA/1000W online pure sine wave UPS offers scalable runtime and minimizes maintenance. The convertible (rack/tower) 6U UPS features an embedded network management card for network-based UPS monitoring and management. It features an additional SmartSlot for connectivity and PowerChute Network Shutdown support for smooth, unattended shutdown. It features a hardwired 3-wire/5-wire input, 6x IEC 60320 C13, 4x IEC 60320 C19 outputs, and 3x IEC jumper cables. The Smart-UPS comes with a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Dimensions: 432 mm (depth) x 715 mm (height) x 263 mm (width), 111.83 kg. Ideal for servers, voice/data networks, medical laboratories, and light industrial applications. It complies with CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE standards. Designed for IT professionals or network administrators, it offers a wide input voltage window, tight output voltage regulation, frequency control, internal bypass, and input power factor correction. Not suitable for consumers in the EU.

Included: CD with software, documentation CD, installation guide, rack mounting bracket, rack mounting hardware, rack-mounted support rails, temperature sensor, USB cable, warranty card
