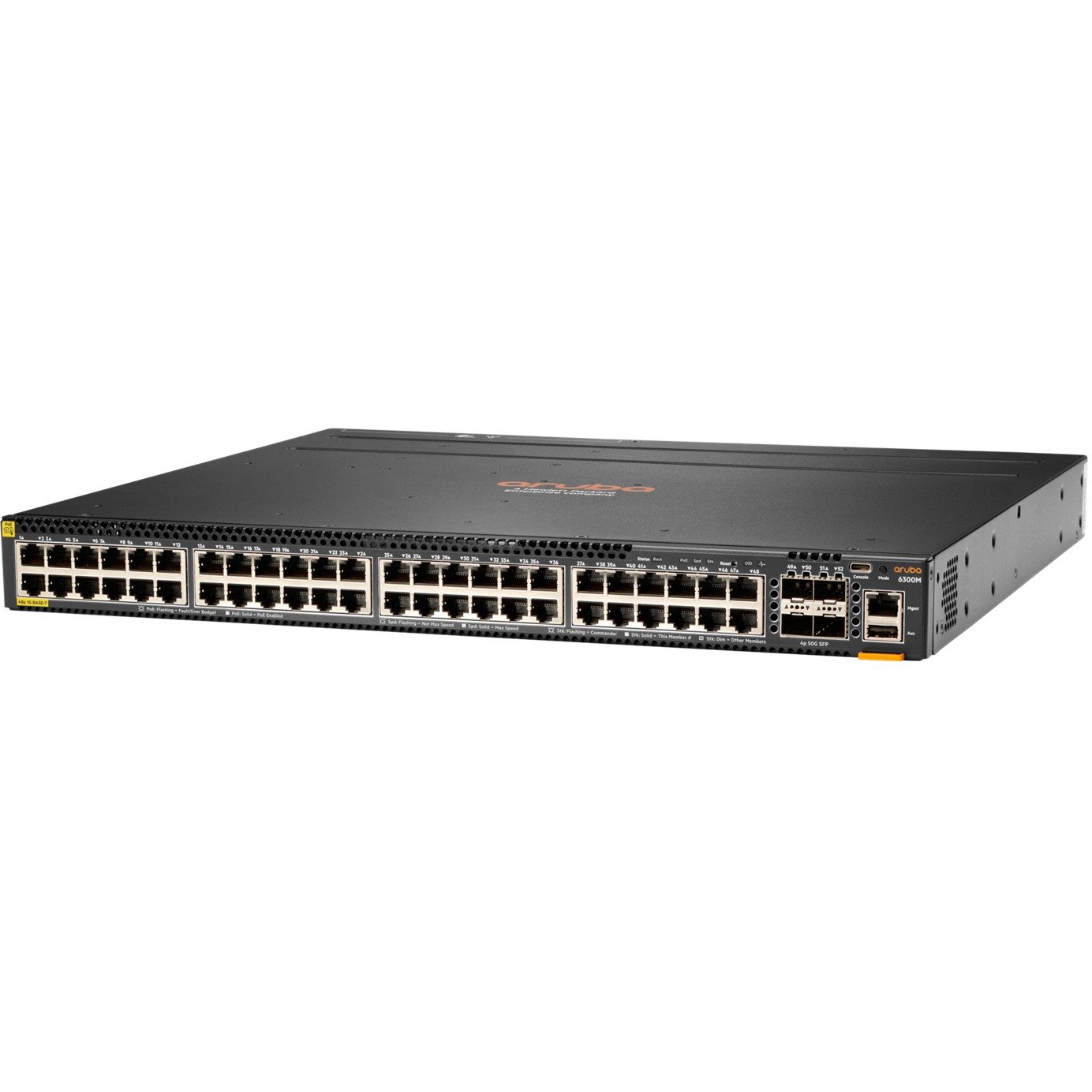

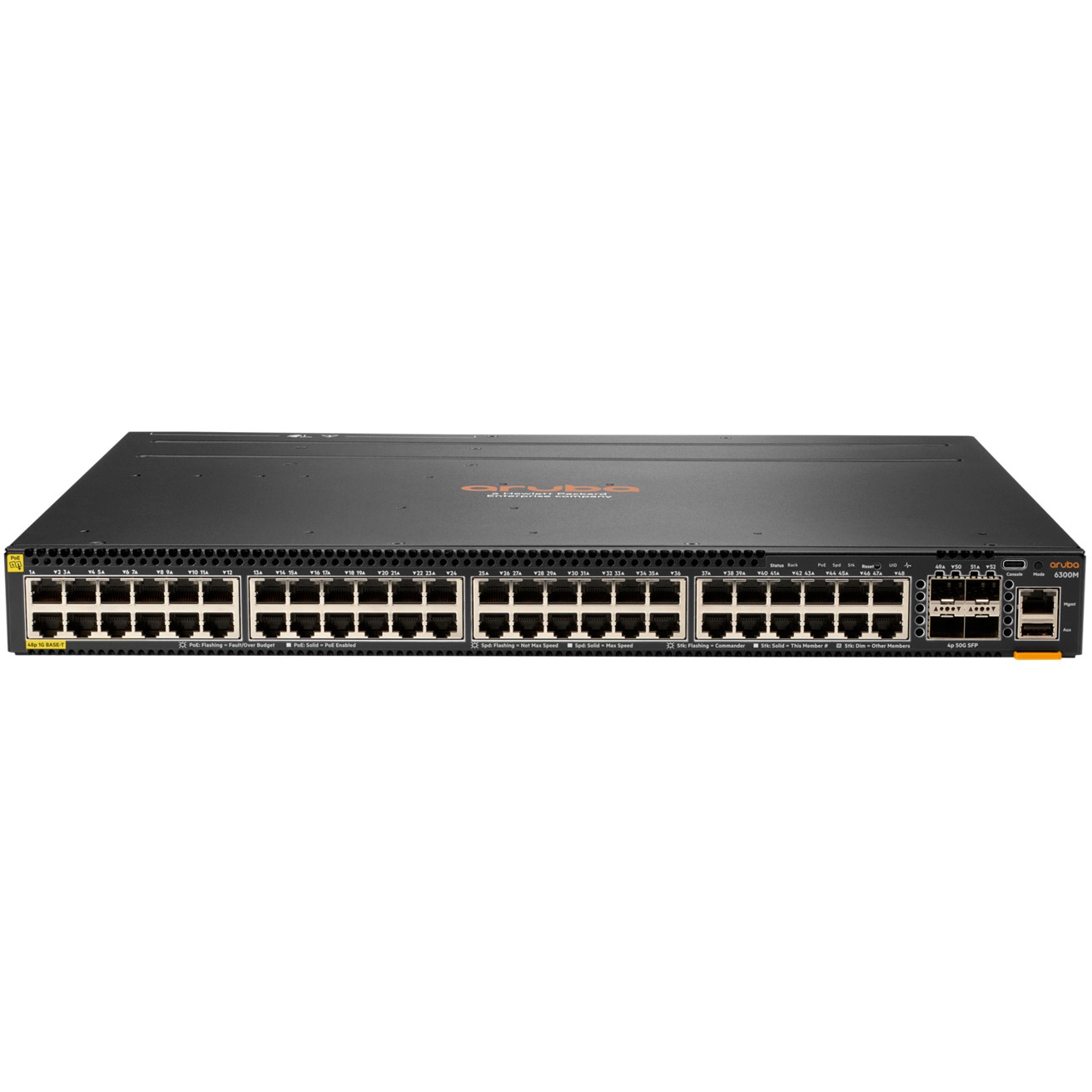

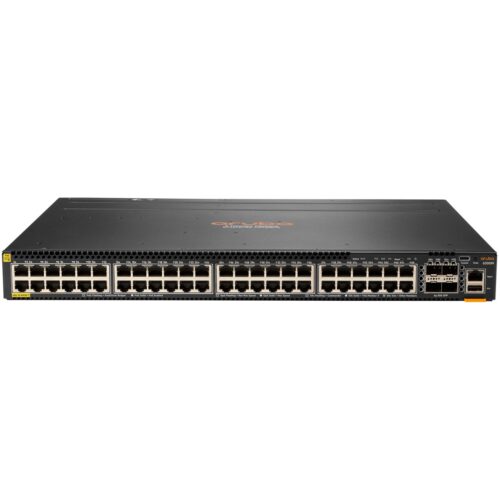

ARUBA 6300M 48G CL4 POE 4 FLOOR

Description

HPE Aruba Networking Aruba 6300M. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic switching RJ-45 Ethernet ports: 48. MAC address table: 29490 entries, Routing/switching capacity: 496 Gbps. Network standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE…. Power over Ethernet (PoE). Rack-mountable, form factor: 1U

The Aruba CX 6300 Switch Series is a modern, flexible, and intelligent line of modular (stackable) AOS-CX switches ideal for enterprise access and aggregation. With its cloud-centric design combining a fully programmable operating system with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support for Aruba NetEdit and the Aruba CX Mobile App ensures error-free configurations and easy deployment. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance to help your network meet tomorrow's unpredictable demands. The Aruba Virtual Stacking Framework (VSF) enables stacking of up to 10 switches for scale and easier management. This flexible series features integrated wire-speed 1/10/25/50 GbE uplinks and supports high-density IEEE 802.3bt PoE with HPE Smart Rate Multi-Gigabit Ethernet for high-speed APs and IoT devices using existing cabling.

Functions

Automation and analytics
– The Aruba CX 6300 Switch Series offers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to resolve issues faster. The Aruba Network Analytics Engine (NAE) automatically queries and analyzes events that may impact network health.
– Advanced telemetry and automation make it easy to identify and resolve network, system, application, and security issues using Python agents and REST APIs.
– The Time Series Database (TSDB) stores configuration and operational status data so that network errors can be quickly resolved.

Power and performance
– The Aruba CX 6300 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs, providing very low latency, increased packet buffering, and adaptive power consumption. All switching and routing tasks occur at wire-speed to meet the demands of bandwidth-intensive applications.
– The Aruba Virtual Switching Framework (VSF) allows you to quickly expand your network using high-performance front-plane stacking. Four integrated QSFP28 ports support speeds of 1 GbE, 10 GbE, 25 GbE, and 50 GbE for a total stack throughput of up to 200 Gbps per switch.
– Deploy wireless access points and IoT devices with Aruba CX 6300 models, which offer HPE Smart Rate high-density Multi-Gigabit Ethernet and 60W PoE on each port for a total of 2880W PoE.

Smarter segmentation
– The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation, which automatically applies and enforces user-, device-, and application-consistent policies across wired and wireless infrastructures on Aruba.
– Automatic device profiling, role-based access control, and Layer 7 firewall capabilities provide improved visibility and performance for a better overall experience for both IT and end users.
– Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN-to-VRF mapping and allow policies to be applied via user roles.
