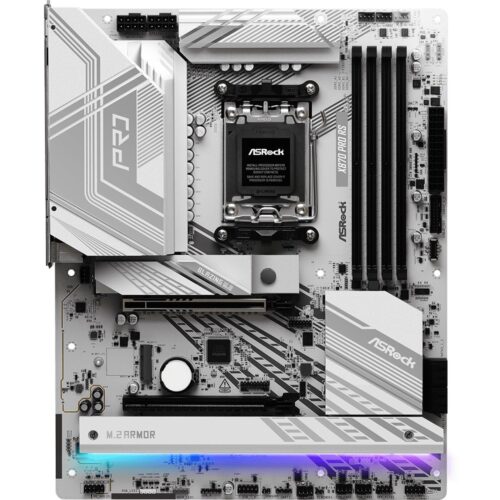

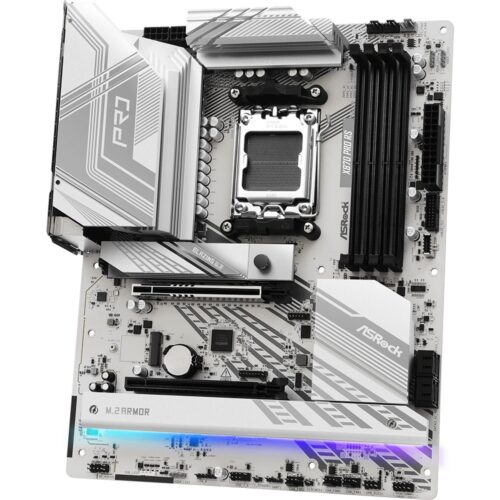

ASRock X870 Pro RS AM5 ATX HDMI/USB-C DDR5 retail

Name: ASRock X870 Pro RS AM5 ATX HDMI/USB-C DDR5 retail
SKU: 165226
Price: 192.52 EUR
Availability: InStock

€236.80

Asrock

36 in stock

Categories: Mainboards & accessories, Motherboards - AMD

Description
Additional information

Description

Asrock X870 PRO RS. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory: DDR5-SDRAM, Maximum RAM: 256 GB, Memory type: DIMM. Supported storage drive interfaces: PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III. Supported storage drives: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology: CrossFire, Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG

Additional information

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processors	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported RAM	DDR5 SDRAM
Number of memory slots	4
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	ECC & Non-ECC
Supported memory clock speed (max.)	8000 MHz
RAM memory maximum	256 GB
Characteristic	ATX power connector (24-pin), CPU fan connector, EPS power connector (8-pin), Ethernet/LAN, Front panel audio connector, HDCP, Microphone input, RAID support, RGB LED header, S/PDIF output, Unbuffered memory
Supported storage drives	HDD & SSD
Supported storage drive interfaces	PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III
Maximum number of HDDs supported	4
Number of storage drives supported	7
RAID level	1, 10
Parallel processing technology	CrossFire
Maximum resolution	7680 x 4320 pixels
Number of USB 2.0 interfaces	2
USB 3.2 Gen 1 (3.1 Gen 1) ports	1
USB 3.2 Gen 2x2 ports	1
SATA III connectors	4
Number of CPU fan connectors	2
Number of chassis fan plugs	4
Number of EPS power connections (4-pin)	2
Number of water pump connections	1
Number of temperature sensor headers	1
Number of RGB LED pin headers	5
Number of USB 2.0 ports	6
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	4
Number of USB4 Gen 2×2 ports	2
Number of Ethernet LAN connections (RJ-45)	1
Number of HDMI connections	1
HDMI version	2.1
Headphone outputs	1
Optical audio digital output	1
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Dragon RTL8125BG
Motherboard chipset	AMD X870
Audio chip	Realtek ALC1220
Audio channels	7.1 channels
Product color	White
Component for	Pc
Motherboard form factor	ATX
Motherboard chipset family	AMD
Energy source	ATX
Supports Windows operating systems	Windows 10 x64, Windows 11 x64
Certification	CEErP/EuP ready (ErP/EuP ready power supply is required), FCC
PCI Express x16 slots (Gen 4.x)	1
PCI Express x16 slots (Gen 5.x)	1
Number of M.2 (M) slots	3
1. M.2 largest key size	2280
1. M.2 highest PCI Express generation	5.0
2. M.2 largest key size	2280
2. M.2 highest PCI Express generation	4.0
3. M.2 largest key size	2280
3. M.2 highest PCI Express generation	3.0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Broad	305 mm
Depth	244 mm
Number of M.2 (E) slots	1
Manufacturer	ASRock
