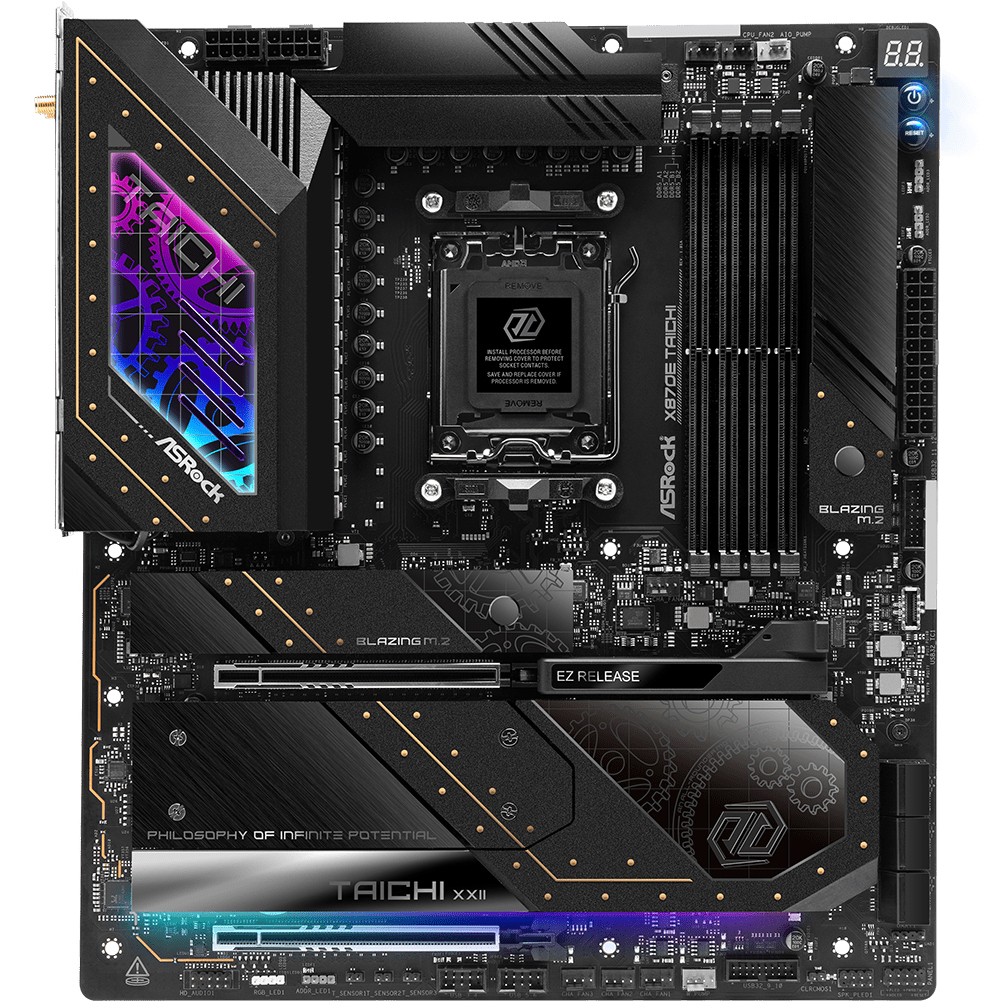

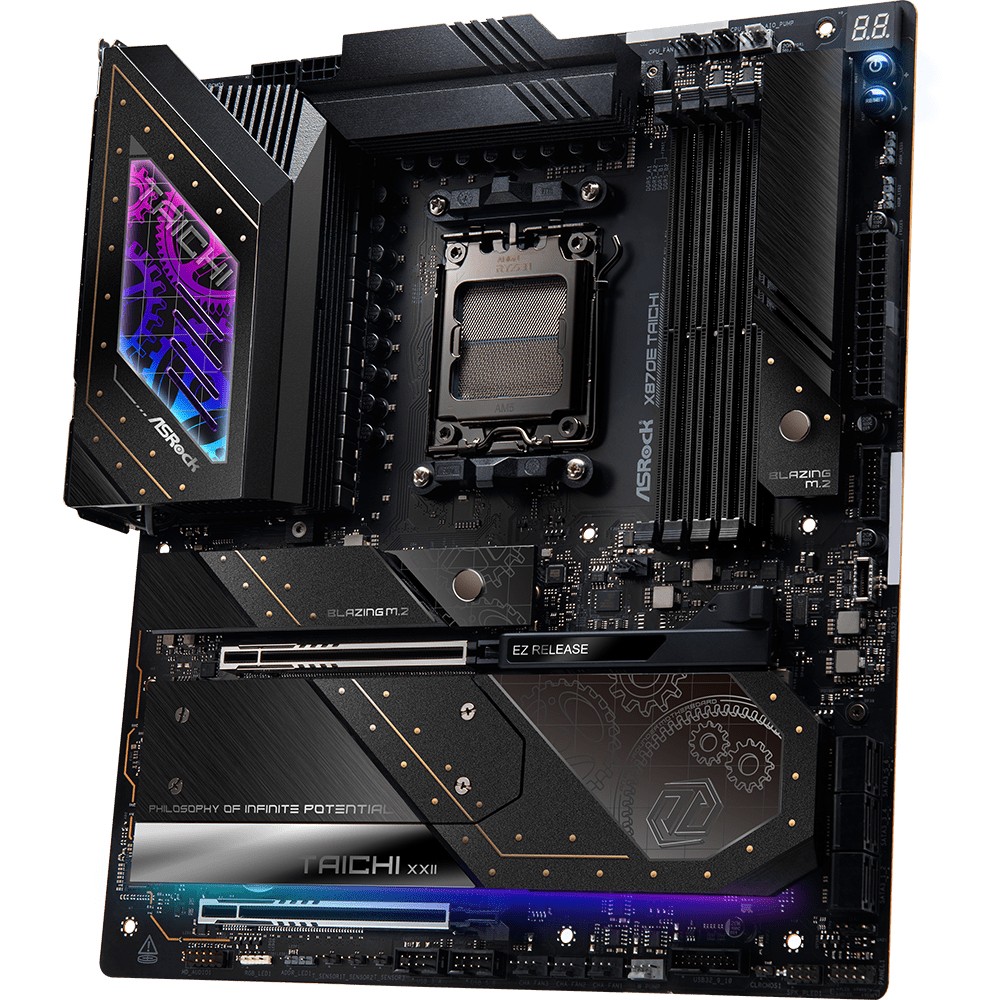

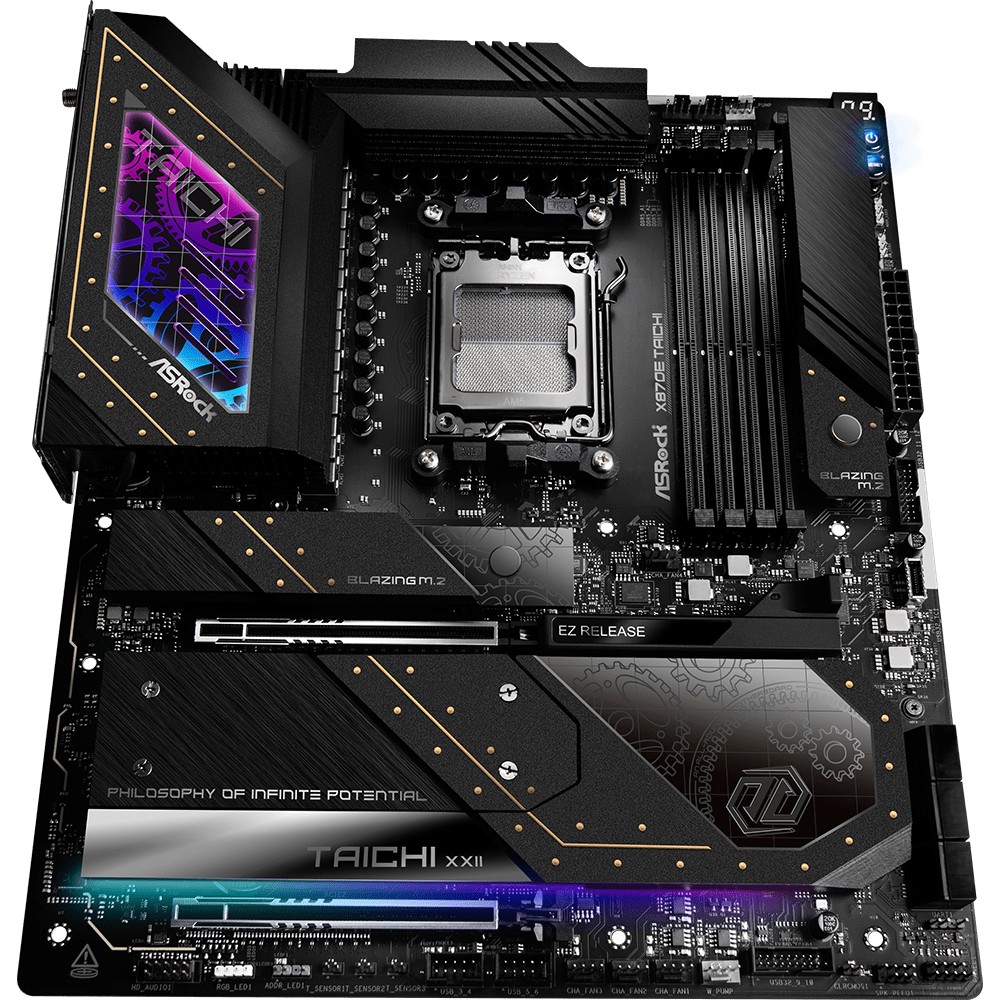

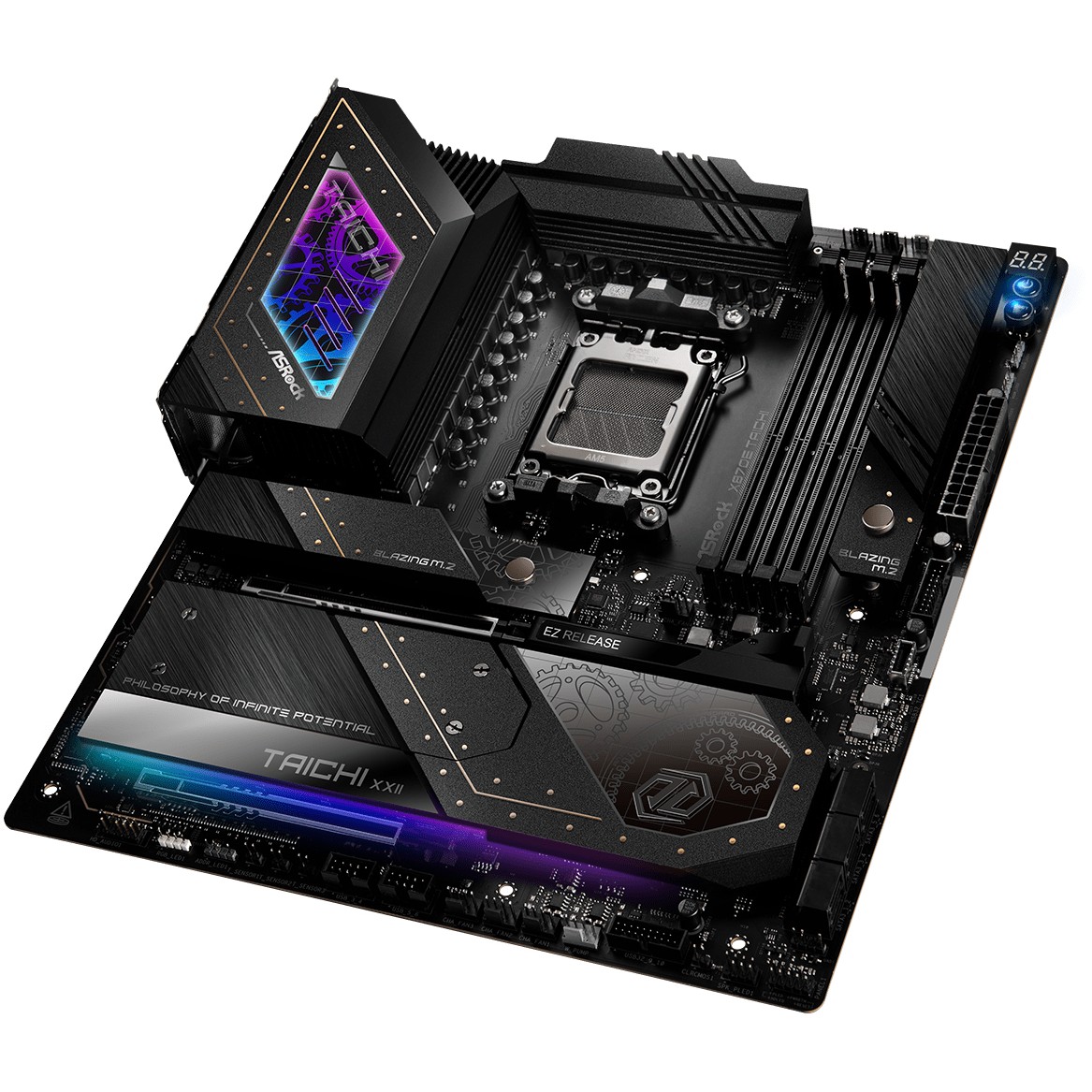

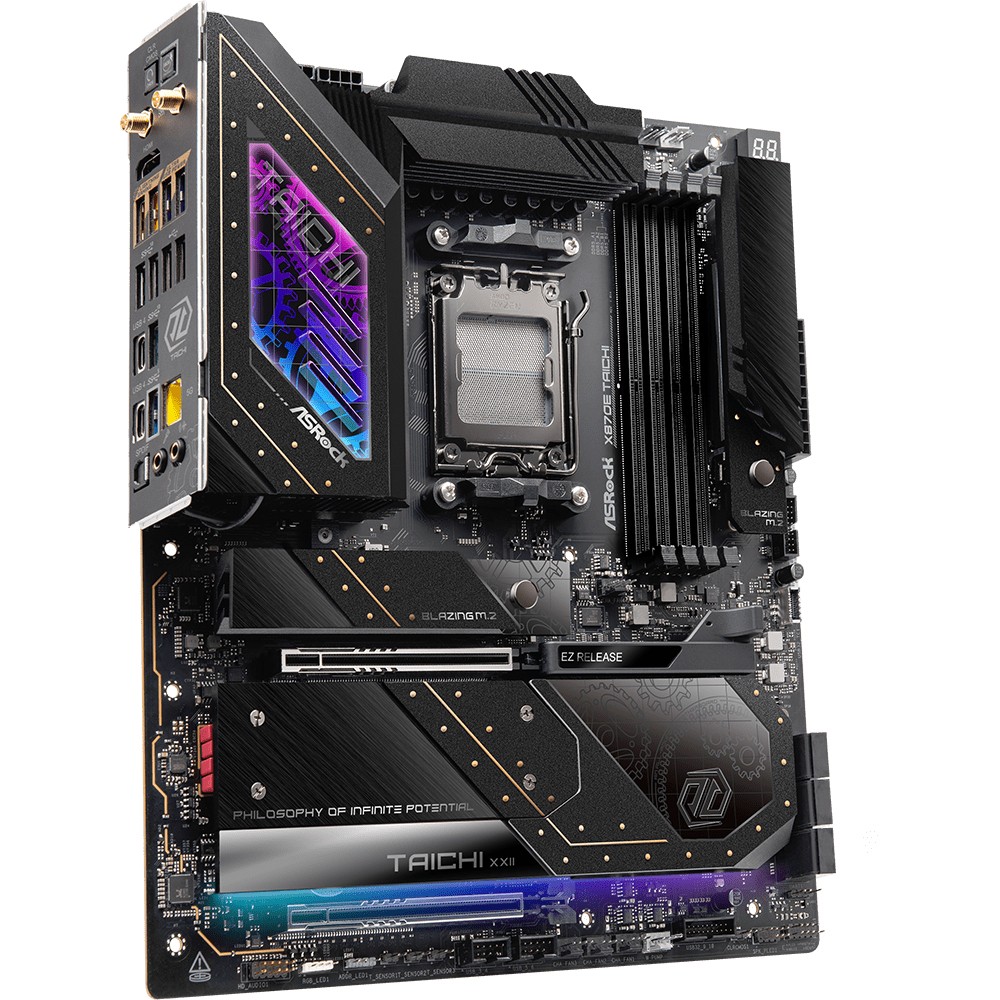

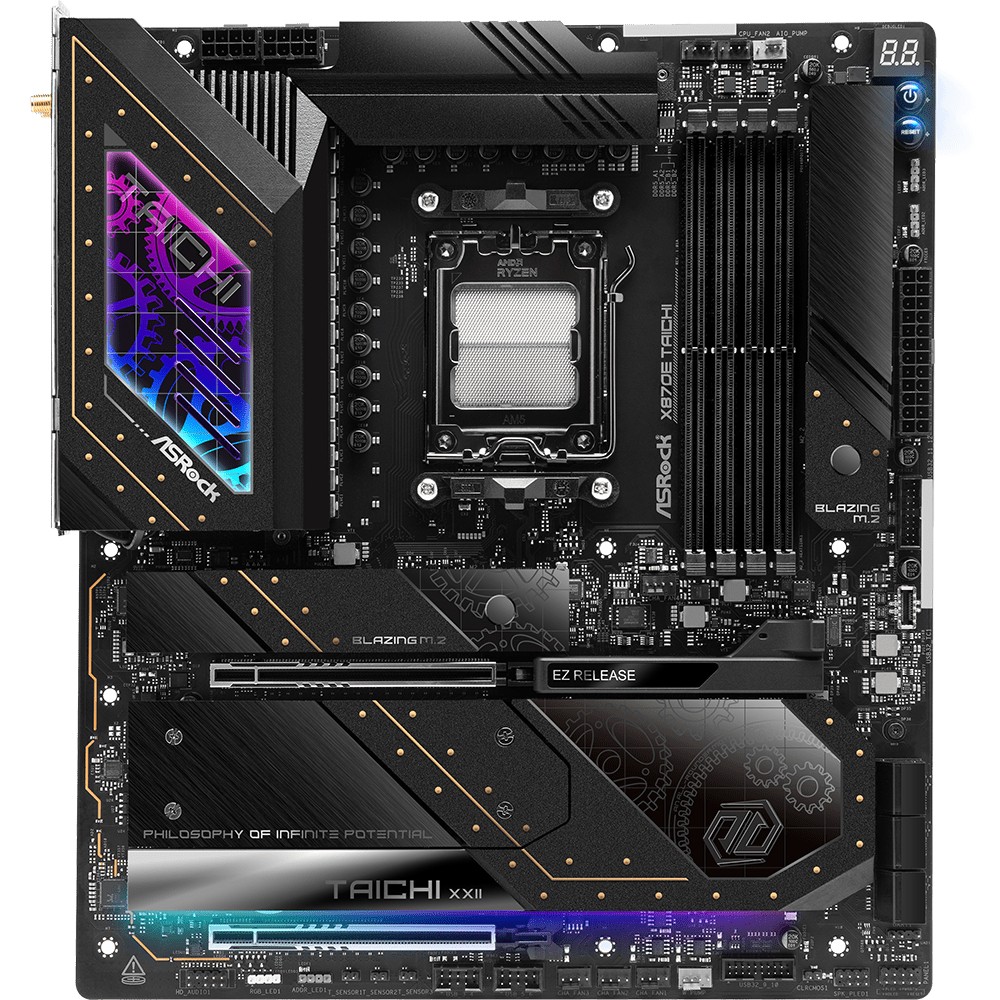

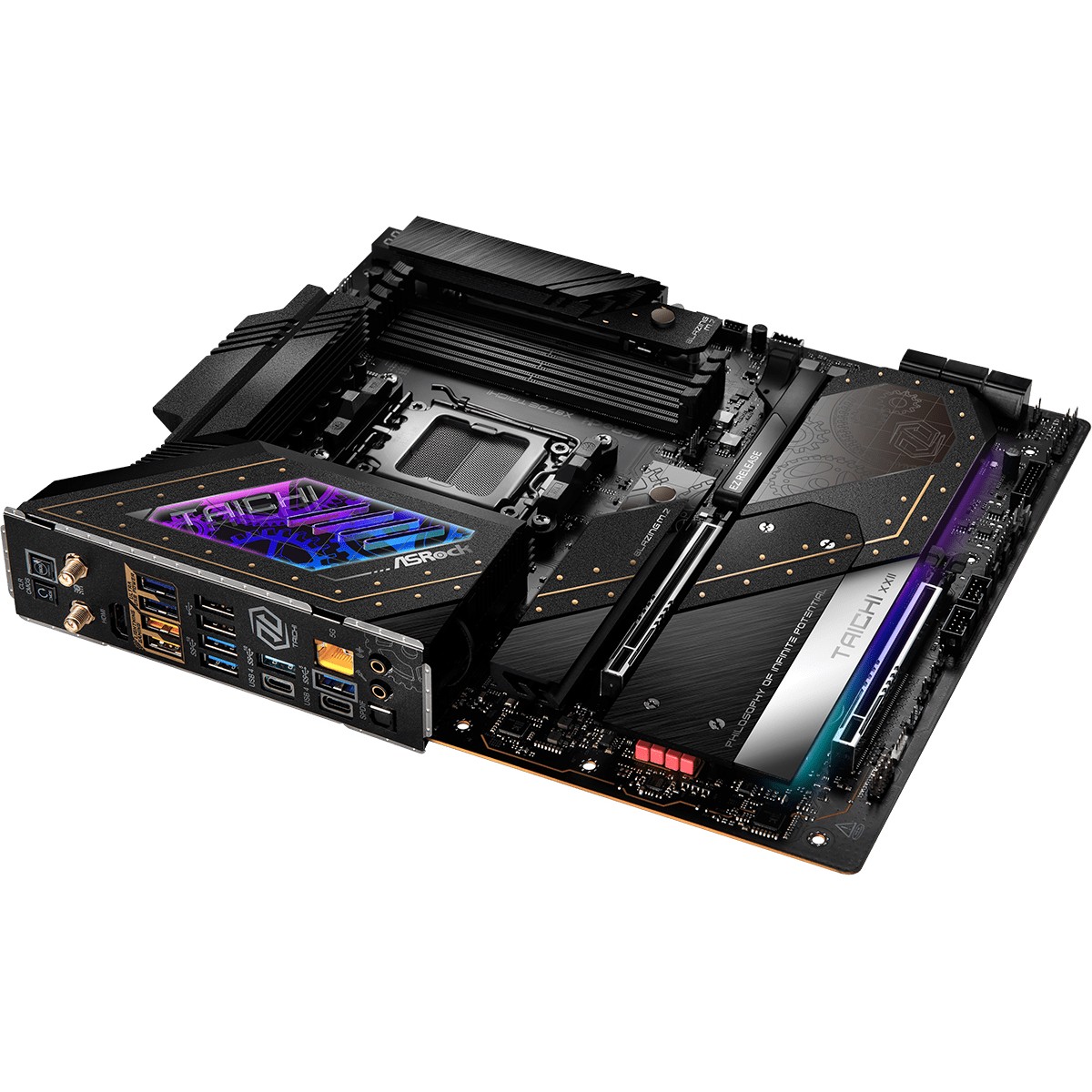

ASRock X870E Taichi AM5 ATX HDMI/USB-C DDR5 retail

Name: ASRock X870E Taichi AM5 ATX HDMI/USB-C DDR5 retail
SKU: 165209
Price: 449.81 EUR
Availability: InStock

€553.27

Asrock X870E Taichi, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, DDR5 SDRAM, 256 GB, DIMM

25 in stock

Categories: Mainboards & accessories, Motherboards - AMD

Description
Additional information

Description

Asrock X870E Taichi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory: DDR5-SDRAM, Maximum RAM: 256 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface types: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top WLAN standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Advanced ATX, Motherboard chipset family: AMD

Additional information

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processors	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported RAM	DDR5 SDRAM
Number of memory slots	4
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	ECC & Non-ECC
Supported memory clock speed (max.)	8200 MHz
RAM memory maximum	256 GB
Characteristic	12V power connection, Antenna included, ATX power connector (24-pin), Bluetooth, Clear CMOS button, CPU fan connector, EPS power connector (8-pin), Ethernet/LAN, Front panel audio connector, HDCP, Microphone input, RAID support, RGB LED header, S/PDIF output, Unbuffered memory, WIRELESS INTERNET ACCESS
Supported storage drives	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID level	1, 10

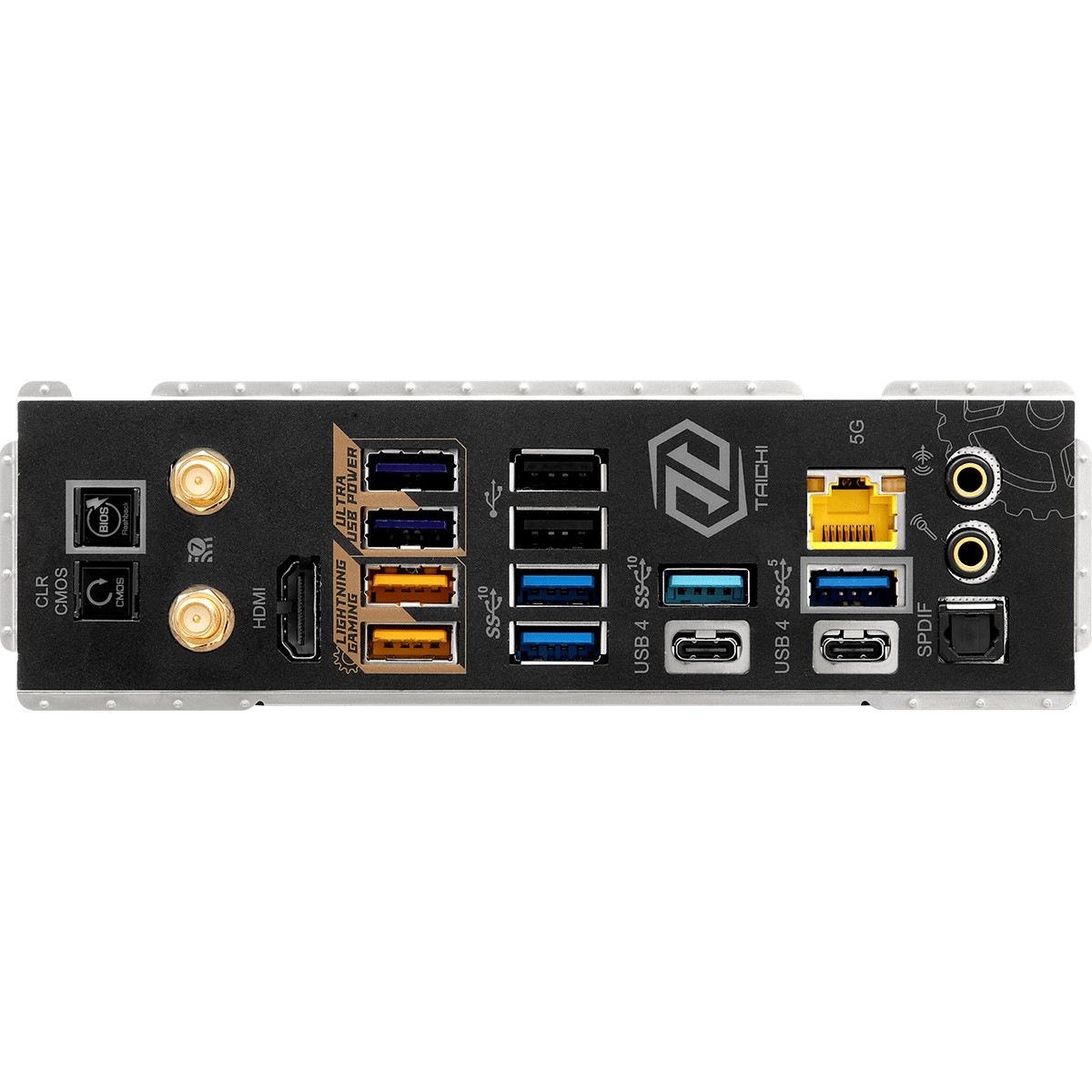

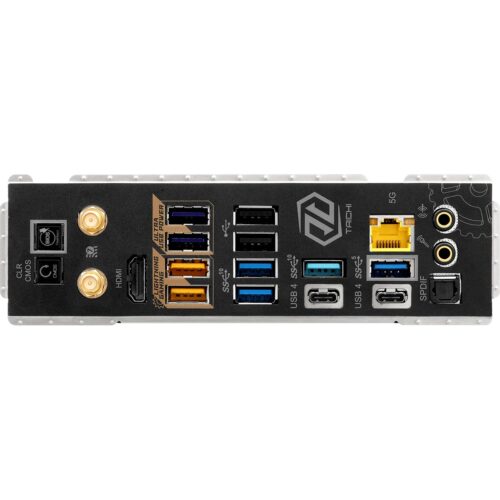

Number of USB 2.0 interfaces	2
USB 3.2 Gen 1 (3.1 Gen 1) ports	2
USB 3.2 Gen 2x2 ports	1
SATA III connectors	6
Number of CPU fan connectors	2
Number of chassis fan plugs	4
Number of USB 2.0 ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	3
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	5
Number of USB4 Gen 3 × 2 ports	2
Number of Ethernet LAN connections (RJ-45)	1
Number of HDMI connections	1
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast ethernet, Gigabit Ethernet
LAN controller	Realtek RTL8126
Top WiFi standard	Wi-Fi 7 (802.11be)
WLAN standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Motherboard chipset	AMD X870E
Audio chip	Realtek ALC4082
Audio channels	5.1 channels
Product color	Multicolored
Component for	Pc
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
Supports Windows operating systems	Windows 10 x64, Windows 11 x64
Certification	CE-ErP/EuP ready, FCC
PCI Express x16 slots (Gen 5.x)	2
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Broad	305 mm
Depth	267 mm
Manufacturer	ASRock
