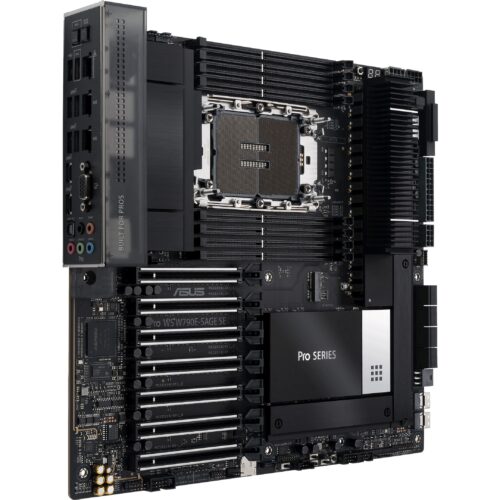

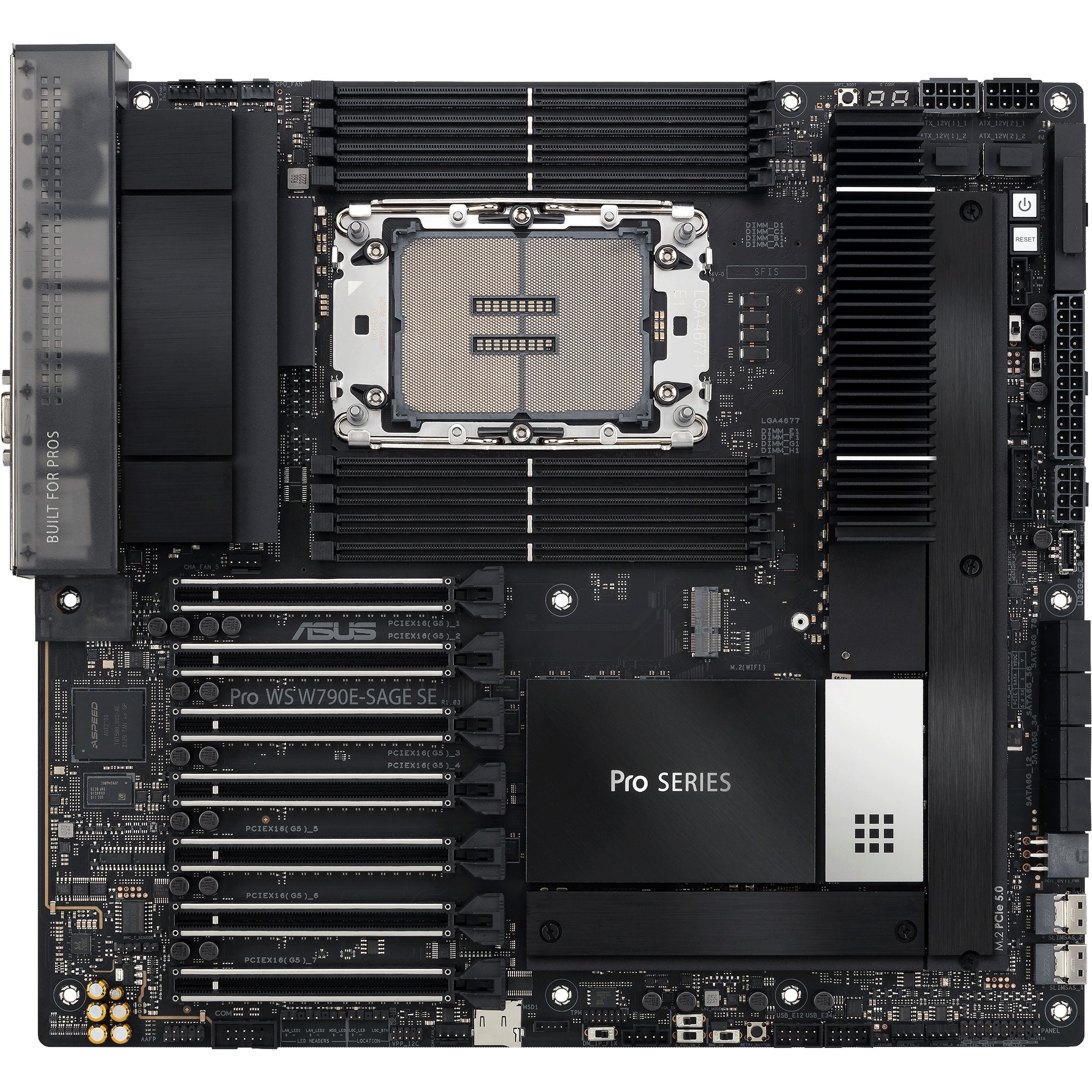

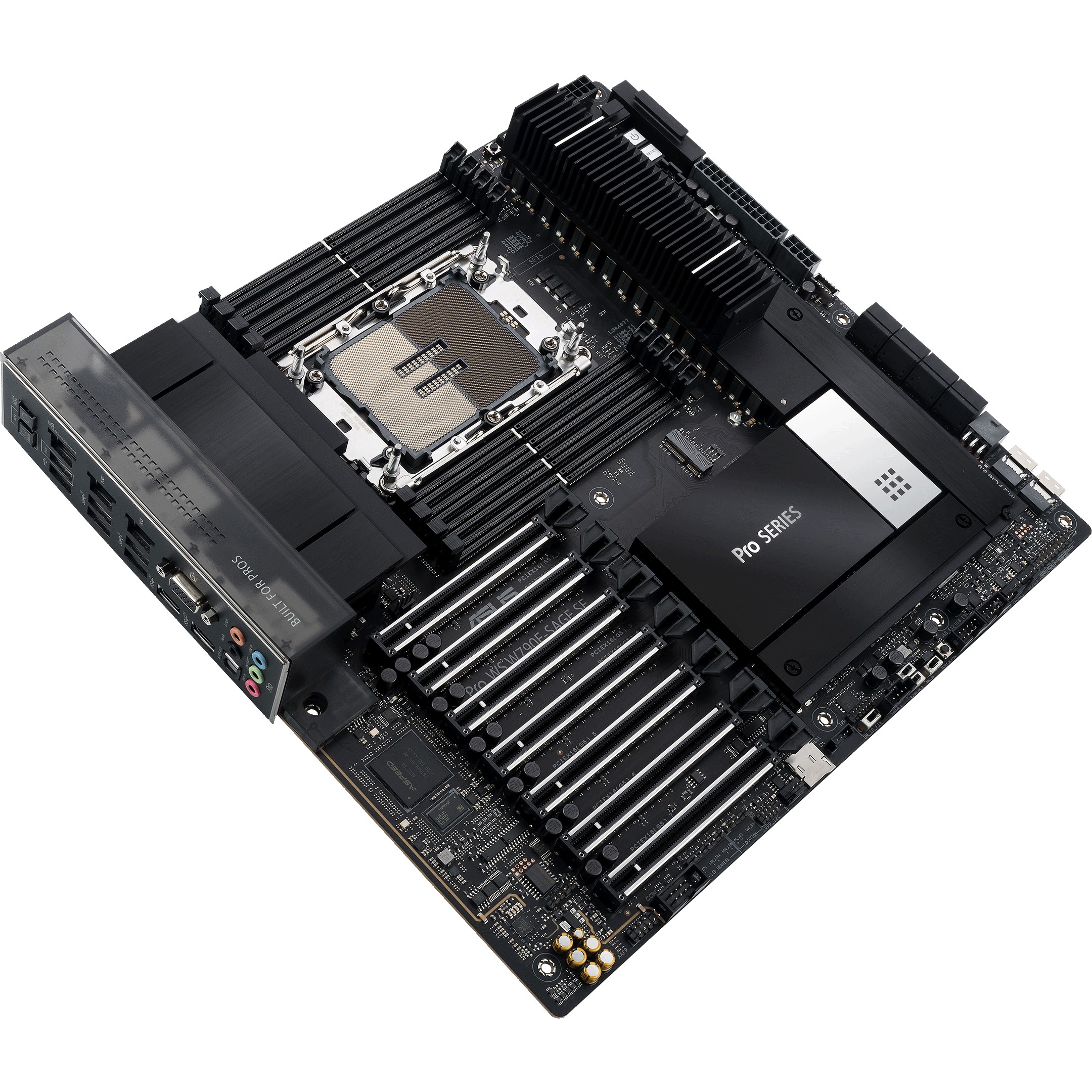

Asus LGA4677 Pro WS W790E-Sage SE

Description

ASUS PRO WS W790E-SAGE SE. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processors: Intel® Xeon® W. Supported memory: DDR5-SDRAM, Maximum RAM: 2.05 TB, Memory type: DIMM. Supported storage drive interfaces: SlimSAS, M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet. Component for: Workstation, Motherboard form factor: EEB, Motherboard chipset family: Intel

Performance, productivity, proven
The Pro WS W790 Series workstation motherboard is specifically tailored for creative professionals, developers, and engineers, unleashing the superior performance of the latest Intel® Xeon processors with CPU and memory overclocking capabilities. Featuring an optimized memory layout, advanced power amplifier design, server-grade IPMI remote management, and ultrafast PCIe® 5.0 and networking ports, the Pro WS W790 Series combines uncompromising engineering with incredible aesthetics.

ASUS W790 motherboards go beyond the ordinary and feature a carefully curated collection of hardware validations that ensure your workstation build supports a variety of memory, coolers, chassis, power supplies, and other devices

FUNCTION COMES BEFORE AESTHETICS

Unobtrusive professionalism
Featuring black aluminum extrusions, black stainless steel mesh with highlighted details, and a transparent smoke gray I/O cover, the Pro WS W790 series offers a professional, understated look for content creators.

Multi-GPU support

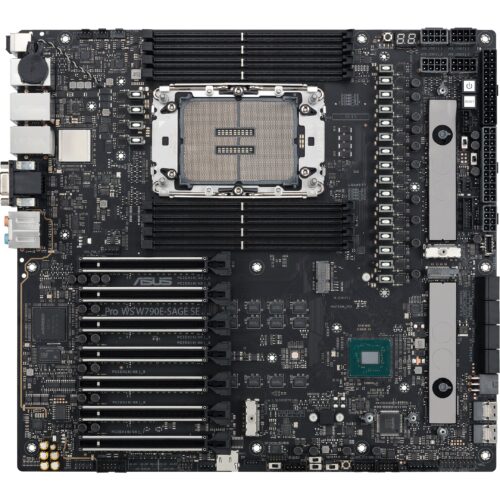

The Pro WS W790E-SAGE SE features seven PCIe® 5.0 x16 slots for high-performance graphics cards, enabling higher performance for professional design, modeling, simulation, and rendering applications.

ROBUST POWER SUPPLY

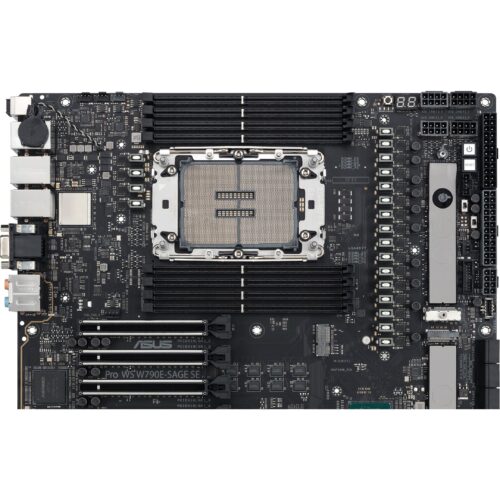

14+1+1 Power Stages
The VRM of the Pro WS W790E-SAGE SE consists of 14+1+1 power stages and delivers the performance and efficiency required by the latest Intel® processors.

8-pin and 6-pin power connectors
Additional 8- and 6-pin PCIe® power connectors provide more stability in power delivery when creatives and developers use many graphics cards onboard.

Reliability with highest memory overclocking
The Pro WS W790E-SAGE SE supports 8-channel 1DPC DDR5 RDIMM ECC memory, which automatically detects and corrects data errors, reducing the risk of system crashes. Thanks to its sophisticated memory layout, this motherboard allows for DDR5 memory overclocking to maximum speeds, delivering improved memory performance for a wide range of workloads.

ULTRAFAST CONNECTIVITY FOR MORE CREATIVITY

Intel® X710-AT2 Dual 10G Ethernet
The Pro WS W790E-SAGE SE is equipped with two integrated 10G LAN ports and enables the transfer of multiple terabytes with low latency.

USB 3.2 Gen 2×2 Type-C®
The latest USB standard doubles the transfer bandwidth by opening an additional USB 3.2 lane to achieve maximum throughput of up to 20 Gbps. In addition to blazing-fast data transfer speeds, USB 3.2 offers easy connectivity and ultimate flexibility via USB-C ports.

3 M.2
The Pro WS W790E-SAGE SE's three integrated M.2 22110 slots, two of which are connected via PCIe® 5.0 and one via PCIe® 4.0, simplify drive installation. Creators working with large video files can group multiple NVMe devices into a RAID array for massive I/O bandwidth and seamless playback in their editing suites. All three M.2 drives are housed under dedicated heatsinks to prevent SSD throttling under heavy load and feature ASUS Q-Latch.

More storage space
To connect even more high-speed storage, you can use SlimSAS slots for industrial SSDs as well as server and network devices via the fast PCIe® 4.0 interface.

Front panel connector
The front USB 3.2 Gen 2 port is ready for next-generation PC cases and devices.

SERVER-GRADE REMOTE MANAGEMENT

BMC remote management
An integrated BMC (Baseboard Management Controller) is an important feature for workstations. It utilizes a 1G Realtek controller, with one 1G port dedicated exclusively to the BMC to provide the intelligent IPMI architecture. The BMC manages the interface between the system management software and the platform hardware. Administrators can remotely communicate with the BMC to perform certain corrective actions, such as resetting or powering down a system.

REMOTE MANAGEMENT AT SERVER LEVEL

ASUS Control Center Express
The Pro WS W790E-SAGE SE comes with ASUS Control Center Express – real-time IT monitoring and management software for businesses that improves productivity and enhances security to prevent unauthorized access and data leaks.

SOLID COOLING DESIGN

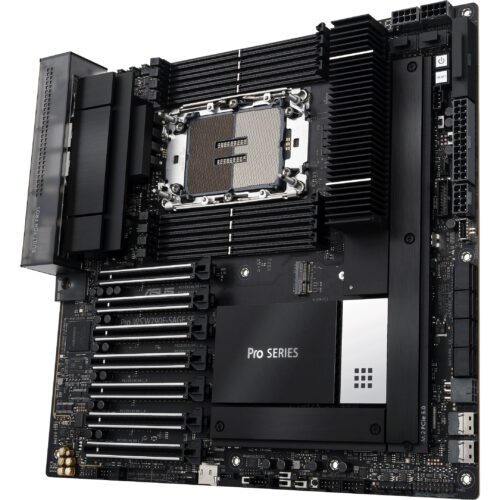

Massive VRM heatsinks
Because mass and airflow are critical, the VRM heatsinks are manufactured with tall, densely packed fins and positioned over the MOSFETs and inductors to improve thermal efficiency. The additional fan mount allows for the installation of up to three high-speed fans* to dissipate heat from the VRM areas, fully leveraging the performance of the latest Intel® processors.
* Fan size: 40mm x 40mm x 28mm. Fans are sold separately.

Chipset heatsink
A special and powerful chipset heatsink dissipates the heat and ensures optimal operating temperatures.

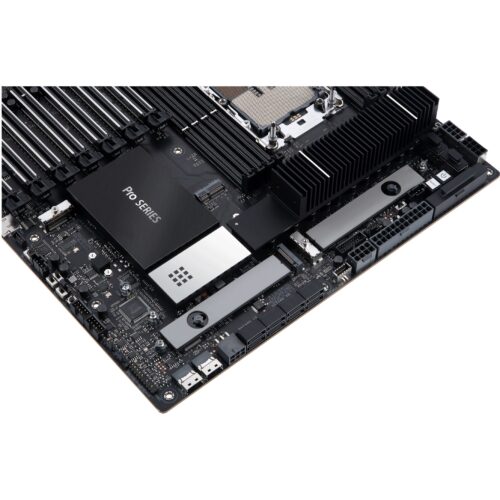

M.2 heatsink

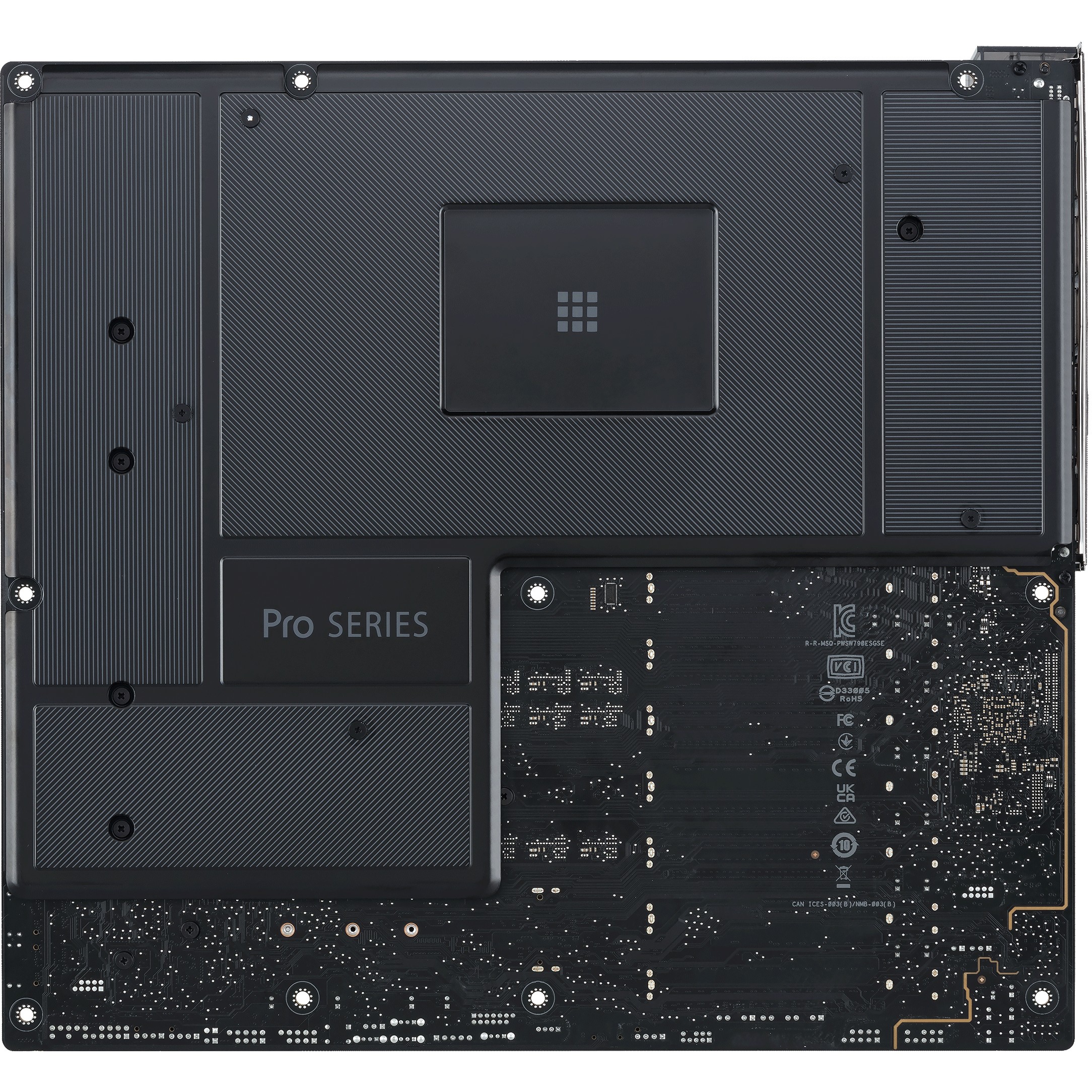

Three M.2 slots are covered by heatsinks to prevent thermal throttling, which can affect performance under heavy, sustained storage loads. M.2 backplate blocks on select slots ensure your next-gen drives deliver even more performance.

DIY-FRIENDLY

Pre-assembled connection panel
The patented I/O shield features a sleek matte black finish and comes pre-mounted on the motherboard for easy installation. It's designed to allow airflow to keep heat away from the board.

BIOS FlashBack™
Users can place a BIOS file on a FAT32-formatted USB drive, simply plug it into the USB BIOS FlashBack™ port, and press a button to update the (UEFI) BIOS. Updates can be performed even when no memory or CPU is present.

WORK WITH FUN

Immersive audio experience
The Realtek S1220A 7.1 audio codec features a high-quality 120 dB SNR stereo playback output and a 113 dB SNR recording input to deliver pristine audio quality. It is supported by EMI shielding and separate PCB layers for the left and right channels to ensure signal integrity.

Power pre-regulator
Reduces input noise to ensure consistent performance.

Audio shielding
Separates analog/digital signal ranges and thus significantly reduces mutual interference.

Integrated amplifier
It can drive high impedance headphones without dropping high or low frequencies.

Separate layer for left and right lane
Ensures minimal crosstalk between the audio signal paths.

De-pop circuit
Reduces power-on crackling noises on all audio outputs.

Premium audio capacitors
High-quality components ensure an impressive sound signature with exceptional fidelity.

TRUSTED STABILITY FOR RELIABILITY

Comprehensive compatibility validation
The ASUS Pro WS W790 series has been extensively tested and validated under various environments and applications and supports the latest technologies with solid QVL lists for compatibility and reliability.

1000
Compatible devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.

8000
Validation hours
Extensive testing with the latest components for greater reliability, compatibility and security.

Protect your graphics cards
SafeSlot is a newly designed PCIe® slot from ASUS that offers optimized retention and shear strength. The SafeSlot is manufactured in a single step using a new insert-molding process that reinforces the slot with metal for increased strength and durability.

24/7 reliability
The ASUS Pro WS W790 series is optimized for 24/7 operation and has been tested in temperatures up to 45°C and humidity up to 80% to ensure it performs well in a variety of environments.
