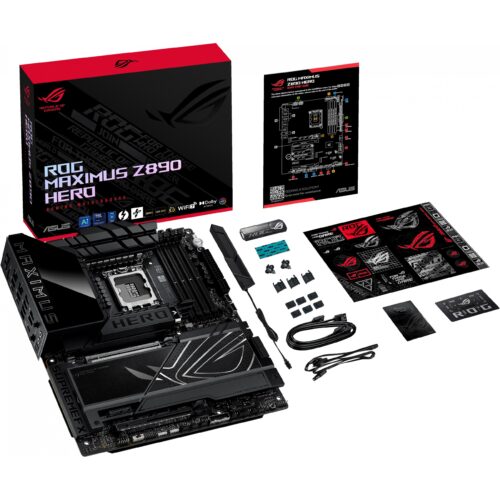

ASUS ROG MAXIMUS Z890 HERO (Intel.1851.DDR5.ATX)

Description

ASUS ROG MAXIMUS Z890 HERO. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processors: Intel Core Ultra (Series 2). Supported memory: DDR5-SDRAM, Maximum RAM: 192 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 5. USB connectors: USB Type-A, USB Type-C. Ethernet interface types: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 7 (802.11be)

Intel® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 22+1+2+2 Power Stages, NPU Boost, DDR5 slots with NitroPath DRAM technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, SlimSAS connector, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II

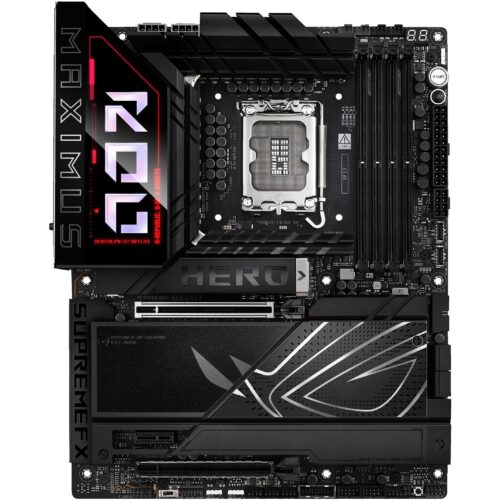

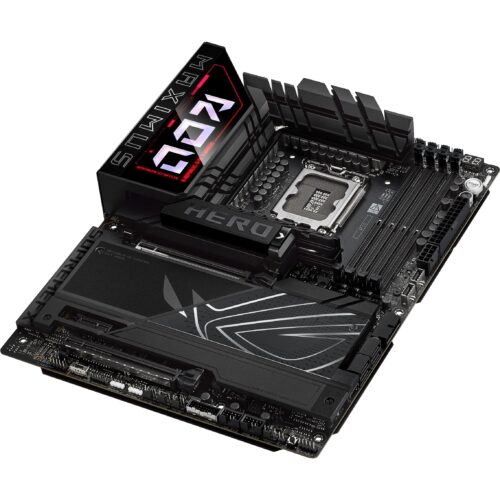

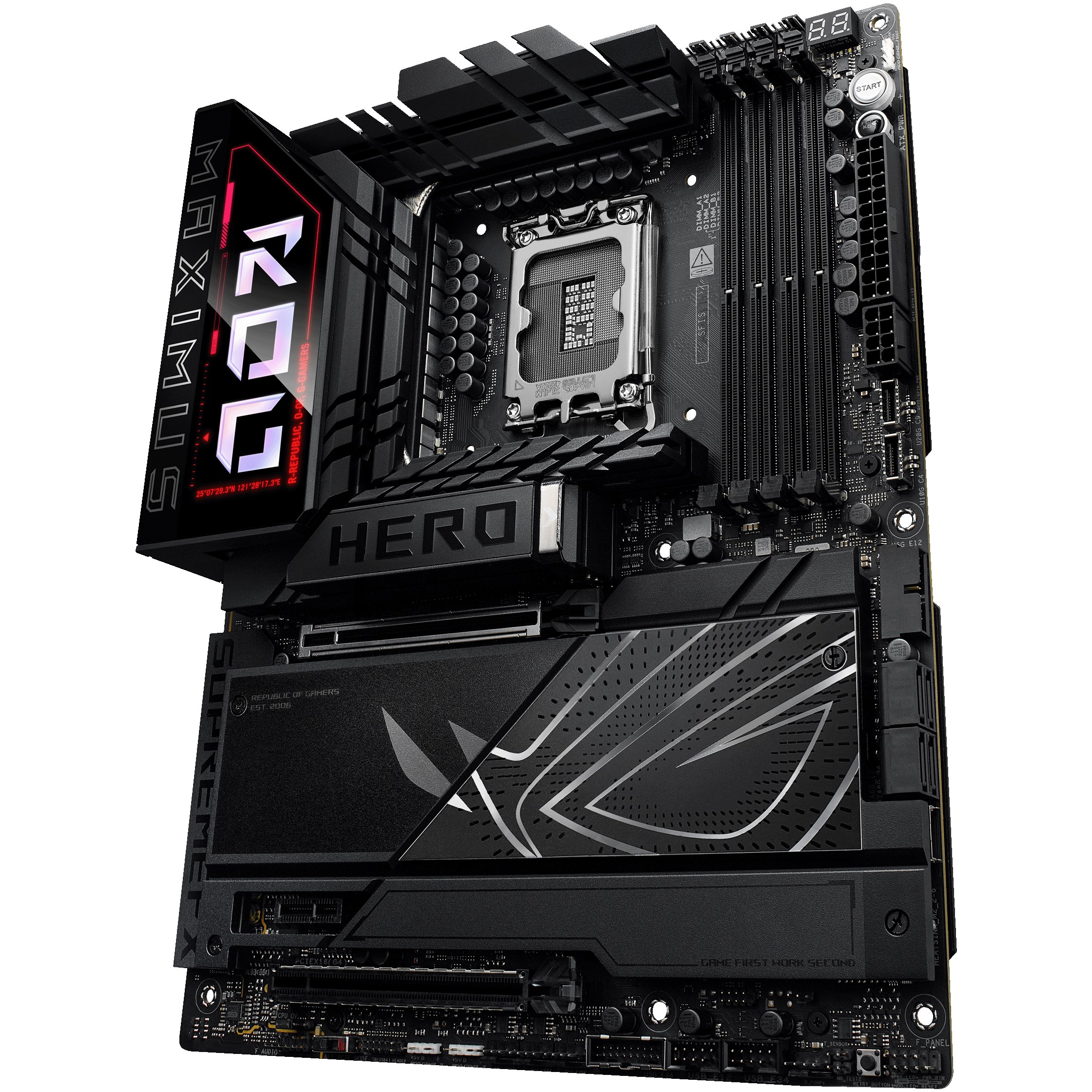

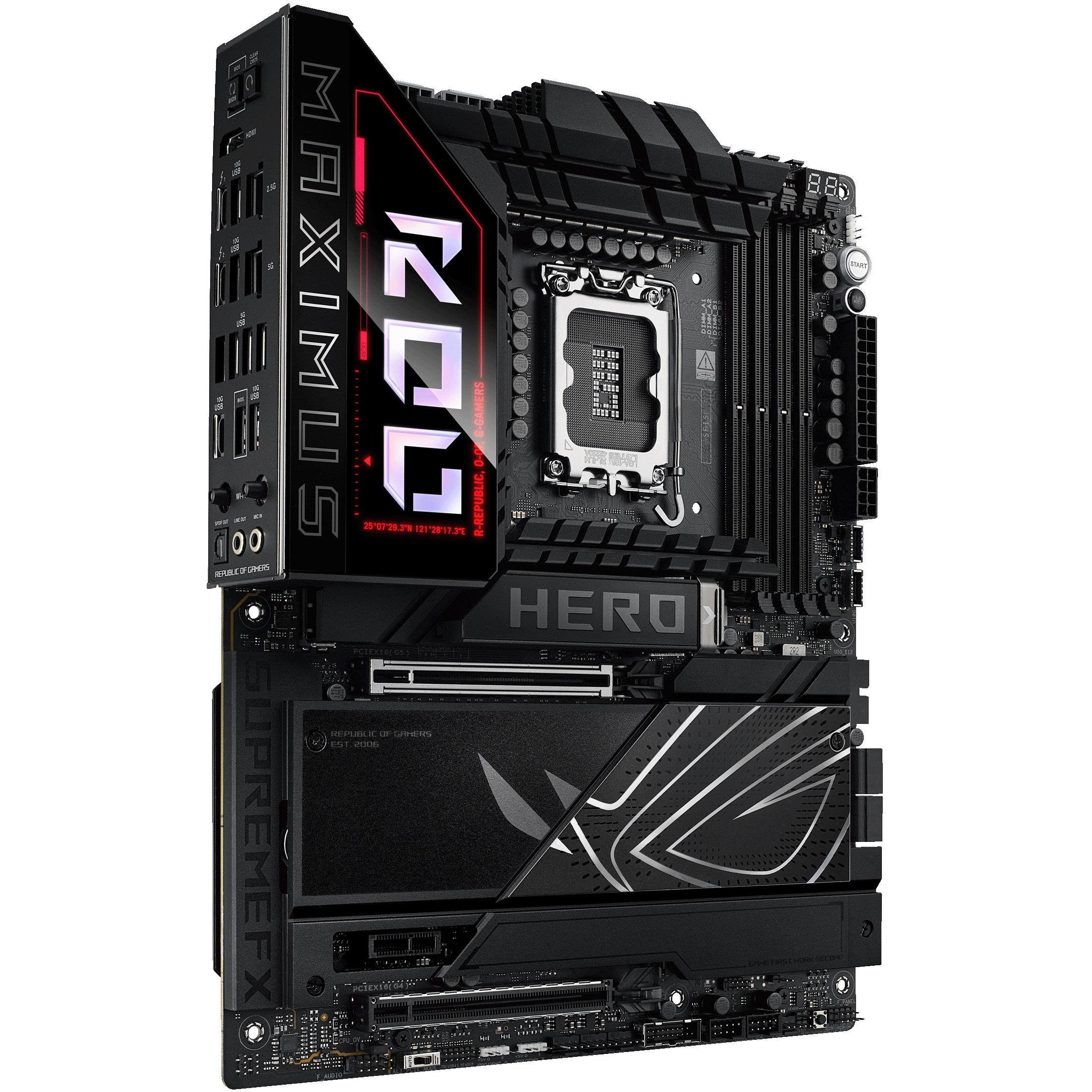

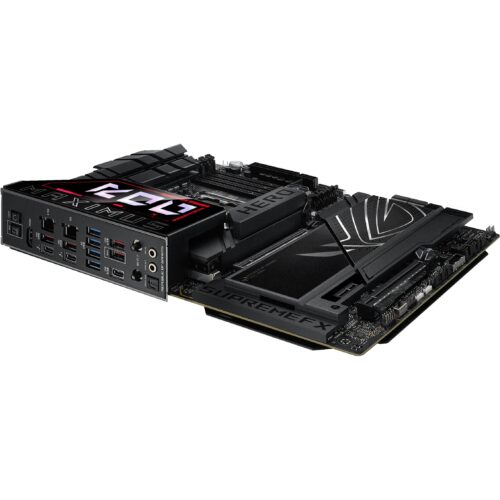

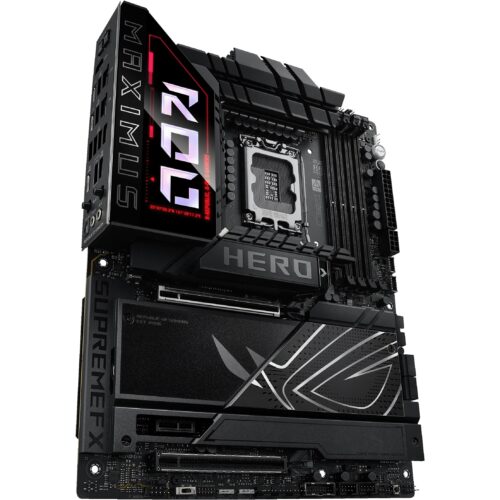

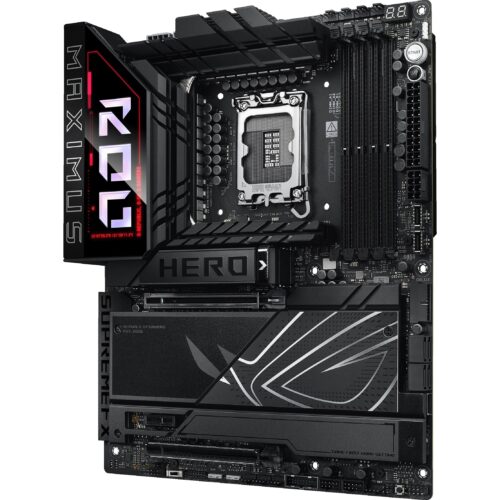

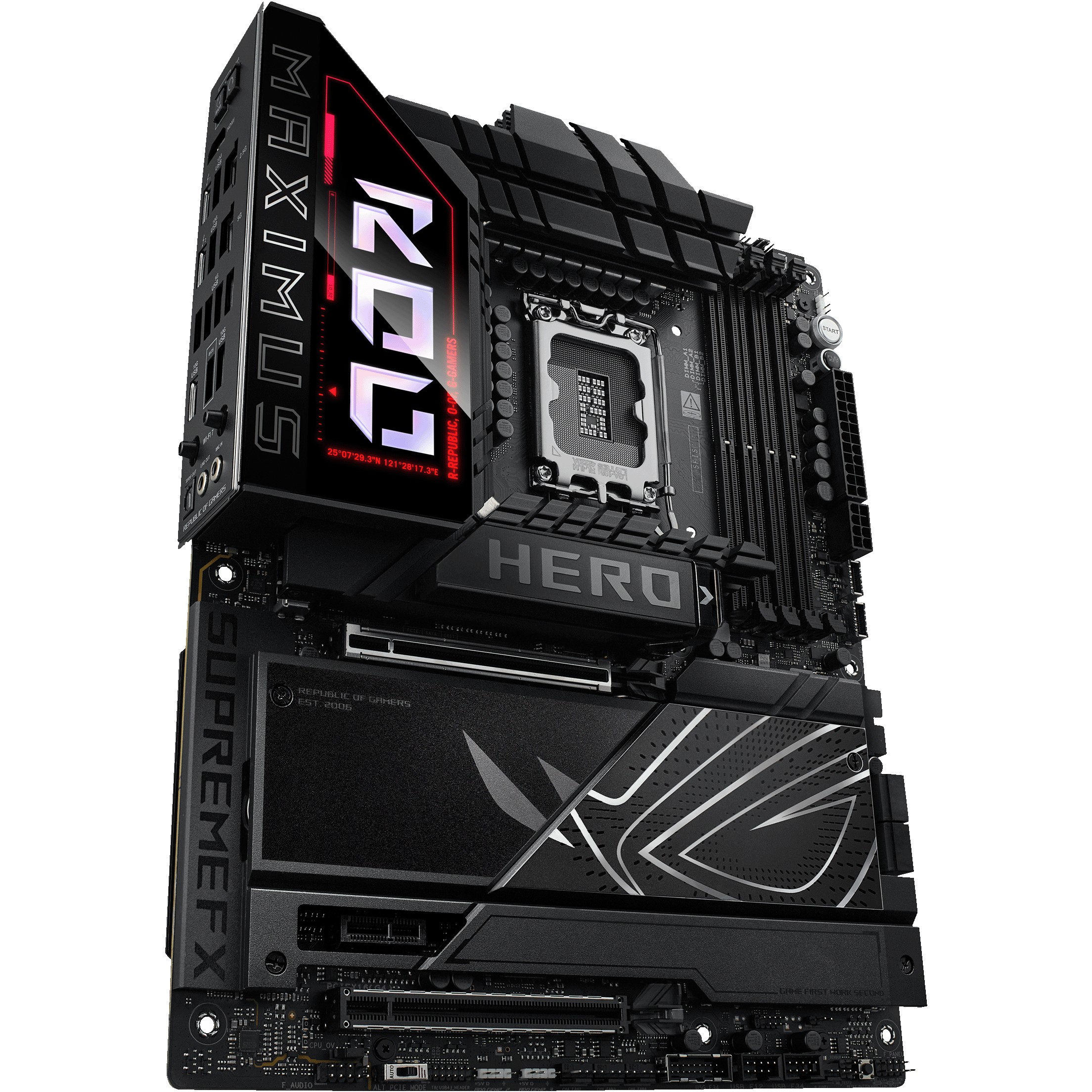

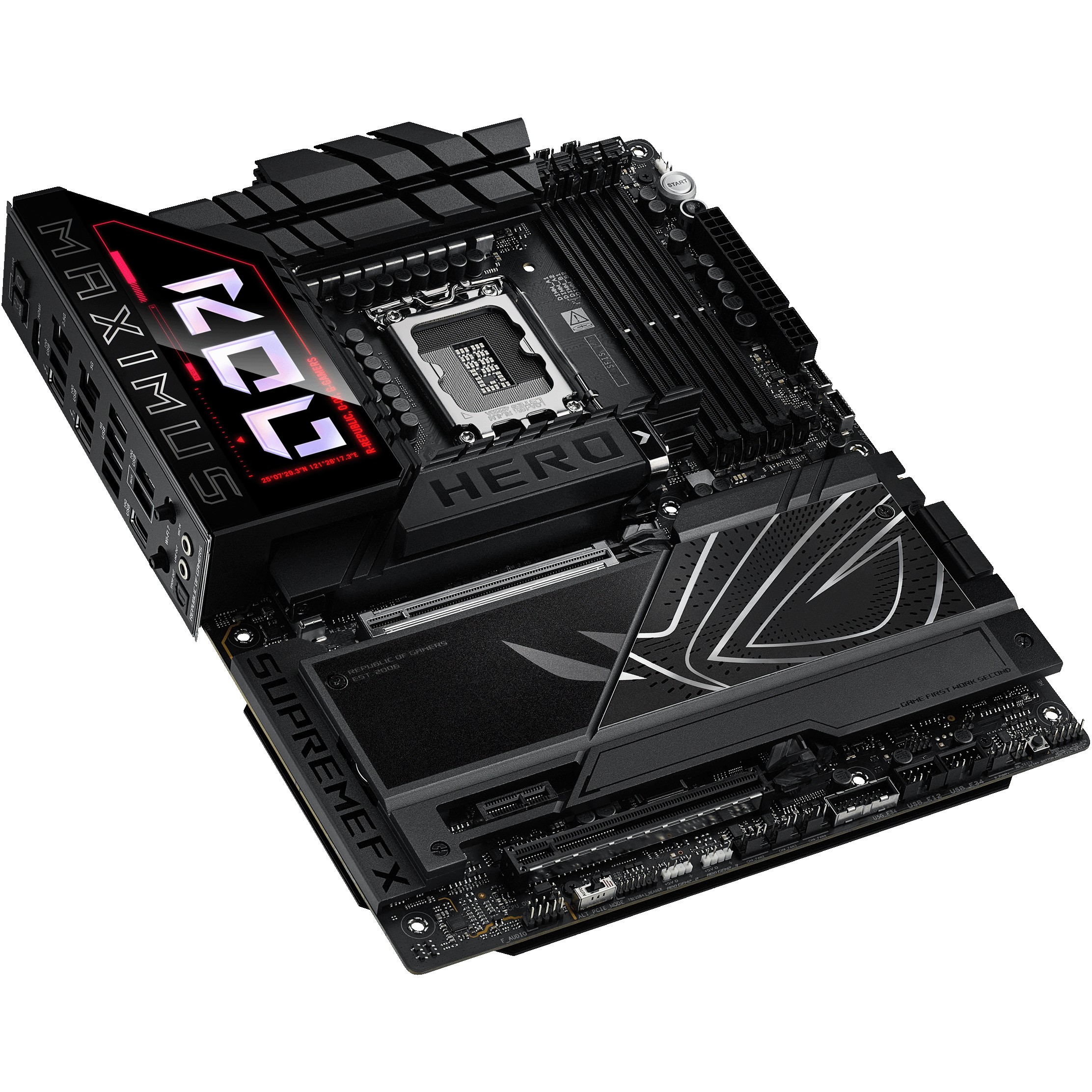

ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the power of Intel® Core™ Ultra (Series 2) processors through exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots, and WiFi 7. The angular design elements and Polymo II Lighting accents around the ROG logo provide a distinctive aesthetic that enhances the system design.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, deliver trusted and seamless connectivity, and unleash the full speed of WiFi 7*.

AI OVERCLOCKING
Tuning is now faster and smarter than ever before.

AI COOLING II
Tune the temperatures and noise levels of any build with a single click.

ASUS AI ADVISOR
Using AI technology that understands natural language questions or scenario descriptions, ASUS AI Advisor allows users to learn about the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

DDR5 supremacy
Thanks to improved signal routing, enthusiast kits can now run well beyond the 8 GT/s mark on the ROG Maximus Z890 Hero*.

NitroPath DRAM technology
– Frequency up to 400 MT/s higher
– Slot holding force increased by 57%

DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that accurately analyzes individual memory modules to optimize performance and detect potential problems.

DIMM FLEX
DIMM Flex has special circuits that can increase performance or fix potential stability issues depending on temperature measurements.

COOLING MANAGEMENT
The ROG Maximus Z890 Hero is equipped with a variety of headers that allow precise control and monitoring of the cooling.

Multiple temperature sources

Each header can be configured to monitor and respond to user-configurable thermal sensors to ensure load-dependent cooling. All settings can be easily managed via Fan Xpert 4 or UEFI.

4-pin fan connectors

In addition to the two CPU fan headers, the ROG Maximus Z890 Hero features four case headers, each supporting automatic detection of PWM or DC fans.

AIO pump connection

An additional PWM/DC fan header provides dedicated control for independent water cooling systems.

COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, eye-catching aesthetics, and customizable features for the new Z890 motherboards, allowing you to build your dream gaming rig.

M.2 slots with ROG M.2 Powerboost
SIX ONBOARD M.2 SLOTS

The ROG Maximus Z890 Hero features six integrated M.2 slots, three of which are PCIe 5.0-capable and offer a blazing 16 GB/s, while the others still offer an impressive 8 GB/s via PCIe 4.0 interfaces. It also features a SlimSAS connector that supports PCIe 4.0 x4 mode or up to four SATA devices via a transfer cable. The cable is sold separately.

ROG M.2 POWERBOOST

ROG M.2 PowerBoost is an ASUS-exclusive motherboard feature that delivers higher-than-industry currents to enable all six M.2 slots to operate simultaneously at optimal performance. This advanced power delivery system helps ensure stability and data integrity even under heavy loads, ensuring the longevity of an M.2 SSD.

PCIE 5.0 expansion slot
The primary x16 expansion slot offers PCIe 5.0 with incredible speeds of up to 64 GB/s for compatible devices, fully supporting next-generation graphics cards. To support the weight of massive graphics cards, it's also protected by a SafeSlot retention bracket, which is easily released thanks to PCIe Slot Q-Release Slim.

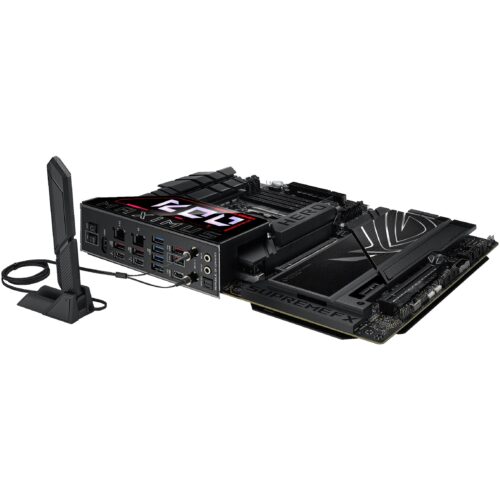

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5, and 6 GHz bands to enable faster data throughput, with directional sensitivity to improve signal quality and bridge longer distances.

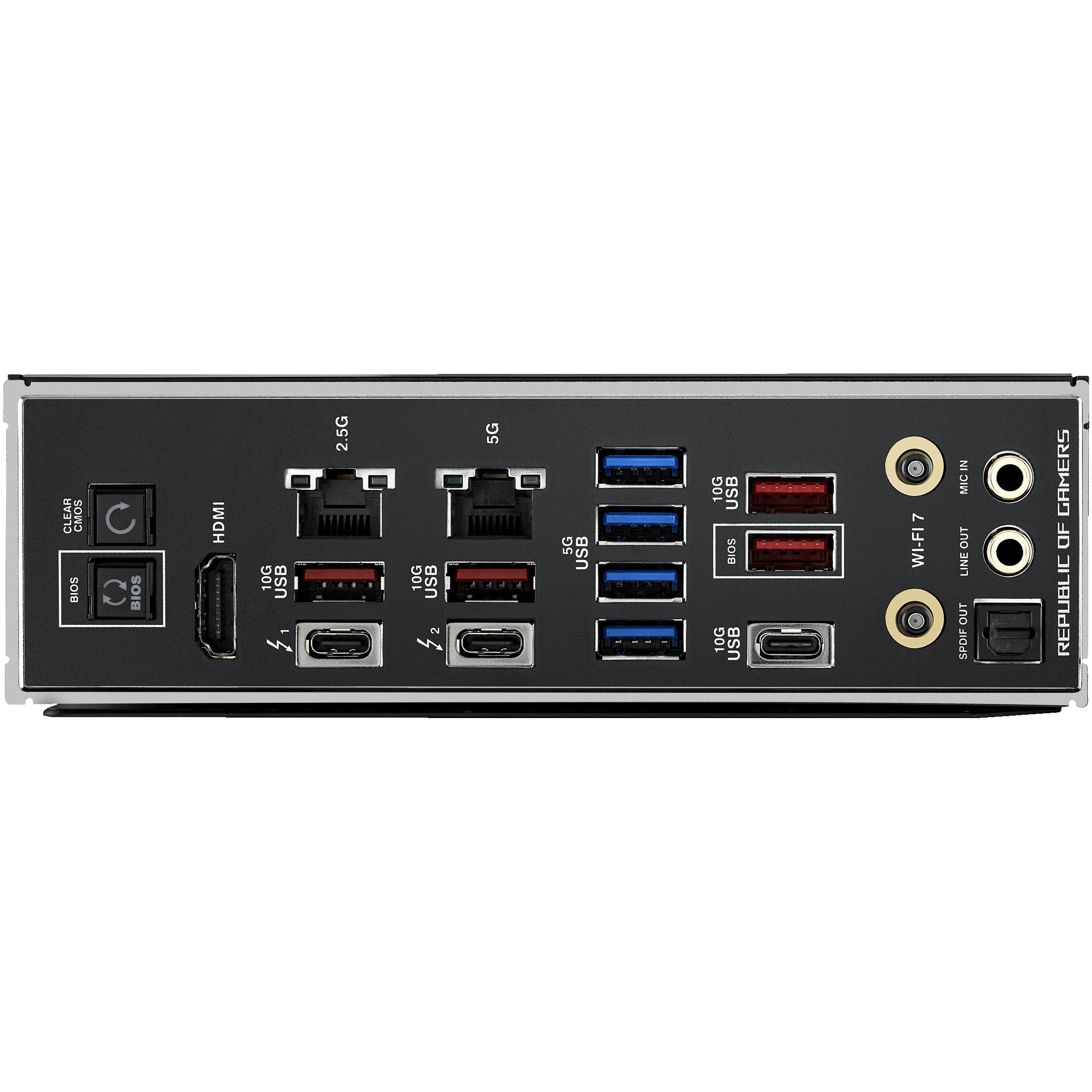

TWO THUNDERBOLT 4 TYPE-C® PORTS
Each port offers bidirectional bandwidth of up to 40 Gbps for the latest super-speed devices and drives. Thunderbolt Display supports up to 8K with DSC. See the specifications for more details.

ONE USB 20Gbps & ONE USB 10Gbps TYPE-C FRONT PANEL PORT
The USB 20Gbps front panel port is equipped with Quick Charge 4+ technology, which can charge devices at up to 60W.

SUPREMEFX
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio at the line-in jack, ensuring pristine recording quality. There's also a low-dropout control for clean power to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 quad DAC that achieves -114 dB THD+N for superior front-panel output. This combined solution enables consistent 32-bit playback at 384 kHz resolution, capturing all the subtleties and nuances of each audio track.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, optimize, and tune your system. It offers intelligently simplified options for PC builders and more comprehensive features for seasoned veterans.

Light up your gaming world with Aura Sync
Enhance your gaming experience with Aura Sync. Preset lighting effects easily synchronize with compatible ROG graphics cards, monitors, keyboards, and mice, giving your setup a consistent look.
