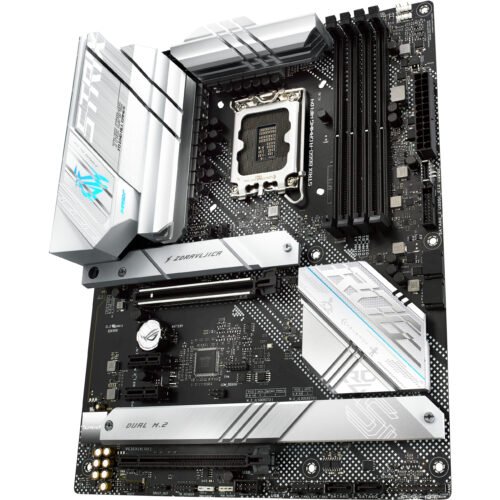

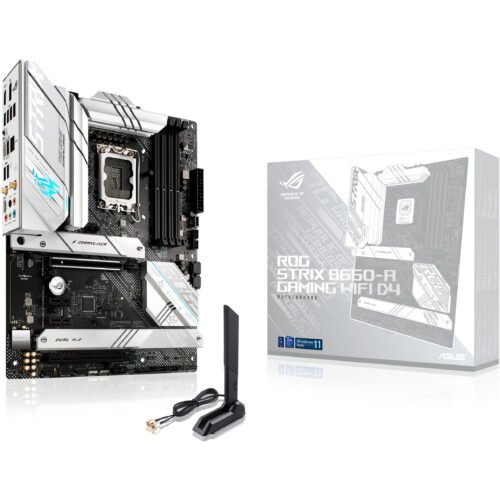

ASUS ROG STRIX B660-A GAMING WIFI D4(Intel,1700,DDR4,ATX)

Description

ASUS ROG STRIX B660-A GAMING WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,… Supported memory: DDR4-SDRAM, Maximum RAM: 128 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III; Supported storage drives: HDD & SSD; RAID levels: 0, 1, 5, 10; Ethernet interface type: 2.5 Gigabit Ethernet; Top WLAN standard: Wi-Fi 6 (802.11ax); WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax); Component for: PC; Motherboard form factor: ATX; Motherboard chipset family: Intel

The ROG Strix B660-A Gaming WiFi D4 delivers premium power and optimized cooling to unleash the full power of the latest 12th Gen Intel® Core™ processors. Onboard PCIe® 5.0, WiFi 6, and three PCIe 4.0 M.2 slots provide lightning-fast data transfers for a wide variety of scenarios, while ASUS-exclusive smart controls help you fine-tune your PC settings. Furthermore, DIY-friendly innovations simplify PC building, so you can get started quickly and easily.

Teamed Power Stages
12+1 power stages combine high-side and low-side MOSFETs and drivers in a single package, delivering the performance and efficiency to fully exploit the potential of the latest Intel processors.

Alloy coils and long-life capacitors
High-end chokes and long-life capacitors are designed to withstand extreme temperatures and deliver performance exceeding industry standards.

ProCool power connection
The ASUS ProCool socket was built to strict specifications to ensure flush contact with the power supply's power lines, resulting in lower impedance and better heat dissipation.

Digi+ Power Control
The Digi+ voltage regulator module (VRM) is one of the best in the industry and ensures an extremely smooth and clean power supply to the CPU.

Six-layer printed circuit board (PCB)
A multi-layered circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and give the CPU more overclocking headroom.

CPU
CPU fan header
A special pair of PWM/DC fan connectors for CPU coolers.

AIO pump fan fan connector
A special PWM/DC connector for custom water cooling systems.

M.2 heatsink
Keeps an installed M.2 SSD at its optimal operating temperature for consistent performance and reliability.

4-pin PWM/DC fan connectors
Each header supports automatic detection of PWM or DC fans.

Two-Way AI Noise Cancellation
This powerful, ASUS-exclusive utility utilizes an extensive deep learning database to reduce background microphone noise* and incoming audio signals while preserving voice clarity. Distracting keyboard clatter, mouse clicks, and other ambient noise are filtered out, allowing you to hear and be heard with perfect clarity while gaming or on calls.

OptiMem II
OptiMem II technology offers higher clock speeds through optimized traces that significantly reduce signal-to-noise ratio and crosstalk while improving memory stability and compatibility. The ROG Strix B660-A Gaming WiFi D4 supports up to 128 GB of DDR4 memory across four slots.

network
WIFI 6 (802.11 AX )
The integrated WiFi 6 (802.11ax) supports ultrafast wireless network speeds, higher capacity, and improved performance in dense wireless environments, ensuring an exceptional online gaming experience. Pair your motherboard with ASUS WiFi 6 routers to fully unlock the network potential of WiFi 6.

Intel 2.5 Gb Ethernet
The integrated 2.5 Gbps Ethernet connection improves your wired connection by up to 2.5 times compared to standard Ethernet connections, resulting in faster file transfers, smoother gaming, and high-resolution video streaming.

Undeniably ROG Strix
The ROG Strix B660-A Gaming WiFi D4 boasts a striking silver-white finish, contrasted by a bold Aura RGB-illuminated glitch-effect logo. Parallel stripes and dotted text on the aluminum I/O shroud, M.2 heatsinks, and PCH heatsinks unify the overall aesthetic and underscore the ROG Strix principles: speed, versatility, and attitude.

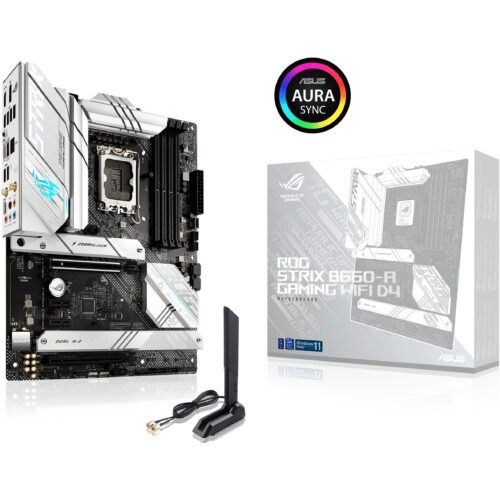

Aura Sync
The ROG Strix motherboards offer top-tier performance and stunning aesthetics to outshine the competition. They also feature integrated ASUS Aura technology, providing complete control over RGB lighting, along with a wide variety of presets for integrated RGB LEDs and third-party lighting strips. Furthermore, all lighting can be easily synchronized with other Aura-compatible ASUS hardware.

M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without special tools. The design uses a simple locking mechanism to secure the drive, eliminating the need for traditional screws.

BIOS FlashBack
BIOS FlashBack™ is the easiest and safest way to update your BIOS. Simply place the (UEFI) BIOS file on a FAT32-formatted USB drive, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without memory or a CPU installed.

Q-LED
Four onboard LEDs indicate the power status and any problems with the CPU, memory, graphics card or boot device, thus enabling quick diagnosis.

Pre-assembled connection panel
The patented ROG I/O Shield comes in elegant matte black and is supplied pre-assembled, further simplifying the installation of the motherboard.

Certified compatibility
ROG Strix motherboards undergo an extensive certification program to ensure compatibility with a wide range of components and devices. Our Qualified Vendor List (QVL) provides a reference for identifying guaranteed compatible components and memory.

Armoury Crate
Armoury Crate is a software program that gives you centralized control over supported gaming products, making it easy to optimize the look and feel of your system. Through an intuitive user interface, Armoury Crate lets you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your entire system. Additionally, Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

The ROG Strix ecosystem awaits you
Enhance your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choice than any other brand.
