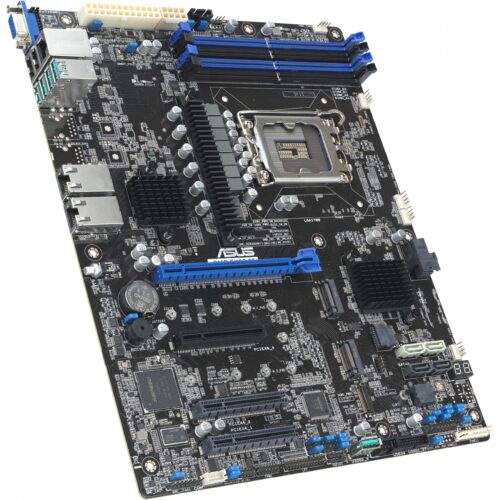

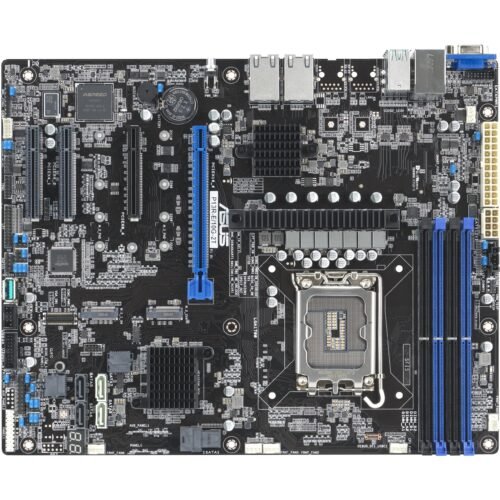

ASUS SERVER P13R-E/10G-2T S1700 C266/DDR5/VGA/2x10GBL/ATX (ASMB11-iKVM onboard)

Description

ASUS P13R-E/10G-2T. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Pentium®, Intel Xeon E. Supported memory: DDR5-SDRAM, Maximum RAM: 128 GB, Memory type: DIMM. Supported storage drive interfaces: PCI Express, SATA III, Supported storage drives: HDD & SSD. Ethernet interface type: 10 Gigabit Ethernet. Component for: Server, Motherboard form factor: ATX, Motherboard chipset family: Intel

ATX server motherboard with LGA 1700 for Intel® Xeon® E-2400 and Xeon® 6300 processors. It supports four DDR5 ECC UDIMM slots, two M.2 slots, dual 10 Gb LAN, eight SATA ports, two PCIe® 5.0 and two PCIe® 4.0 slots, four USB 10 Gbps ports, two USB 2.0 ports, and an integrated ASUS ASMB11 iKVM management module.

Ready for PCIe 5.0
PCI Express® (PCIe®) 5.0 offers 32 GT/s bandwidth. The ASUS P13R-E/10G-2T supports PCIe® 4.0 and 5.0 for greater network scalability and backward compatibility—ideal for the growing demands of modern data centers.

Intel Xeon E-2400 / Xeon 6300 processors
Designed for small and medium-sized businesses and cloud service providers, they offer up to 8 cores and 16 threads, a clock speed of up to 5.6 GHz, and a 95 W TDP. They support up to 128 GB of DDR5 memory with 4400 MT/s (E-2400) or 4800 MT/s (6300) and PCIe 5.0 – for reliable 24/7 operation and cost-effective cloud performance.

Four fast USB 3.2 Gen 2 ports

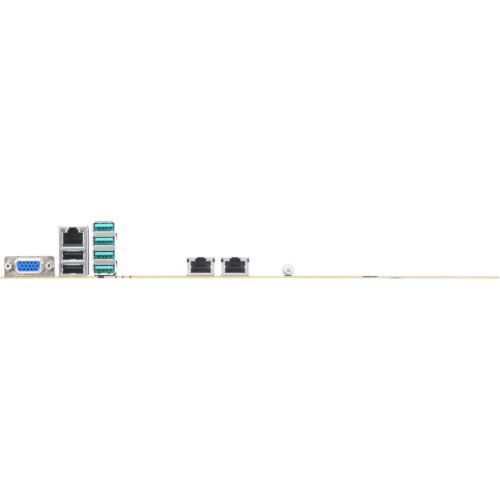

The ASUS P13R-E/10G-2T features four USB 3.2 Gen 2 ports on the rear panel, with speeds up to 10 Gbps, for fast, reliable data transfers. These ports are fully backward compatible.

Dual Ethernet bandwidth
With two integrated LAN ports based on the Intel X710-AT2 Ethernet controller, the board offers reliable, low-latency connections for high data volumes in compute-intensive applications.

Versatile storage and SSD integration
The P13R-E/10G-2T offers eight SATA ports, four DDR5 ECC UDIMM slots with up to 128 Gbps, and two M.2 22110 slots for fast boot. This feature accelerates virtualized workloads and increases productivity.

Comprehensive IT infrastructure management
The board features an integrated iKVM module and can be optionally equipped with the ASUS Control Center (ACC). It offers comprehensive out-of-band and in-band management features, ideal for small and medium-sized businesses. The ASMB11-iKVM module supports remote BIOS updates, fan control, independent KVMs, video recording, and BSOD detection—even when the operating system is not running. The web-based interface is compatible with all major browsers.

ASUS Control Center (ACC) further enhances management by centrally monitoring and managing ASUS servers, workstations, and digital signage. It supports remote BIOS updates, system monitoring via mobile device, and easy management through one-click updates and software distribution.
