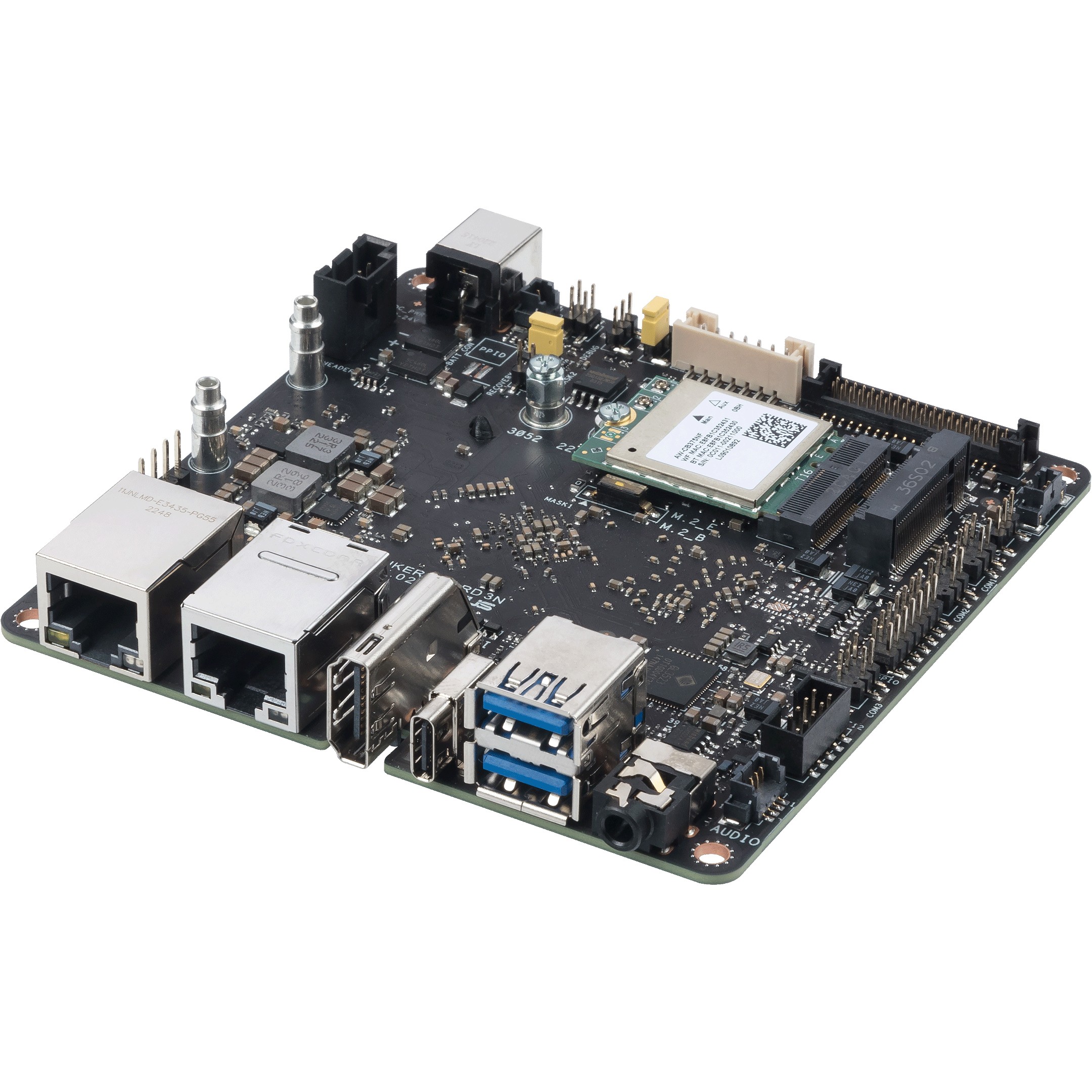

ASUS TINKER BOARD 3N LITE/2G/32G

Name: ASUS TINKER BOARD 3N LITE/2G/32G
SKU: 182461
Price: 165.76 EUR
Availability: InStock

€203.88

ASUS Tinker Board 3N LITE, Rockchip, Rockchip RK3568, Dual-channel, 2048 MB, eMMC, 32 GB

17 in stock

Categories: Mainboards & accessories, Motherboards - Intel

Description
Additional information

Description

ASUS Tinker Board 3N LITE. Processor manufacturer: Rockchip, Processor: Rockchip RK3568. Memory channels: Dual-channel, RAM capacity: 2048 MB, Flash memory type: eMMC. USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). DC input voltage: 12 – 24 V. Board dimensions: 100 x 100 mm, width: 100 mm, depth: 100 mm.

Additional information

Processor manufacturer	Rockchip
Processor	Rockchip RK3568
Number of CPU cores	4
Characteristic	64-bit computing, Built-in graphics adapters, Ethernet/LAN, GPIO interface, Headphone output, I2C interface, SPI interface
Memory channels	Dual channel
RAM capacity	2048 MB
Flash memory type	EMMC
EMMC capacity	32 GB
Compatible memory cards	MicroSD (TransFlash)
USB version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
Number of USB ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	2
Number of Ethernet LAN connections (RJ-45)	2
Number of HDMI connections	1
USB Type-C number of ports	1
DC input voltage	12 – 24 V.
Dimensions board	100 x 100 mm
Broad	100 mm
Depth	100 mm
Operating temperatur	0 – 60 ° C
Storage temperature range	0 – 60 ° C
Relative humidity in operation	10-85%
Manufacturer	ASUS
