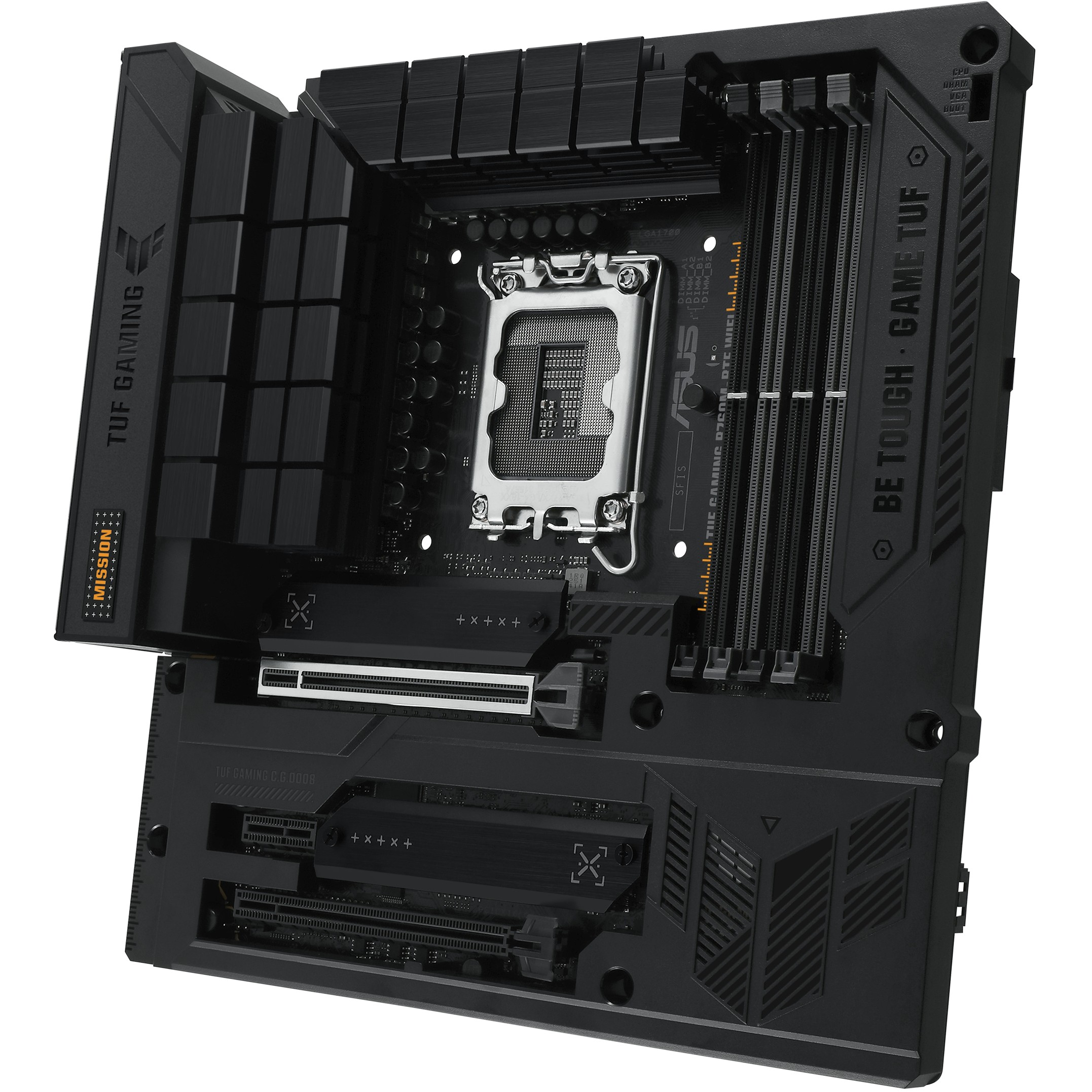

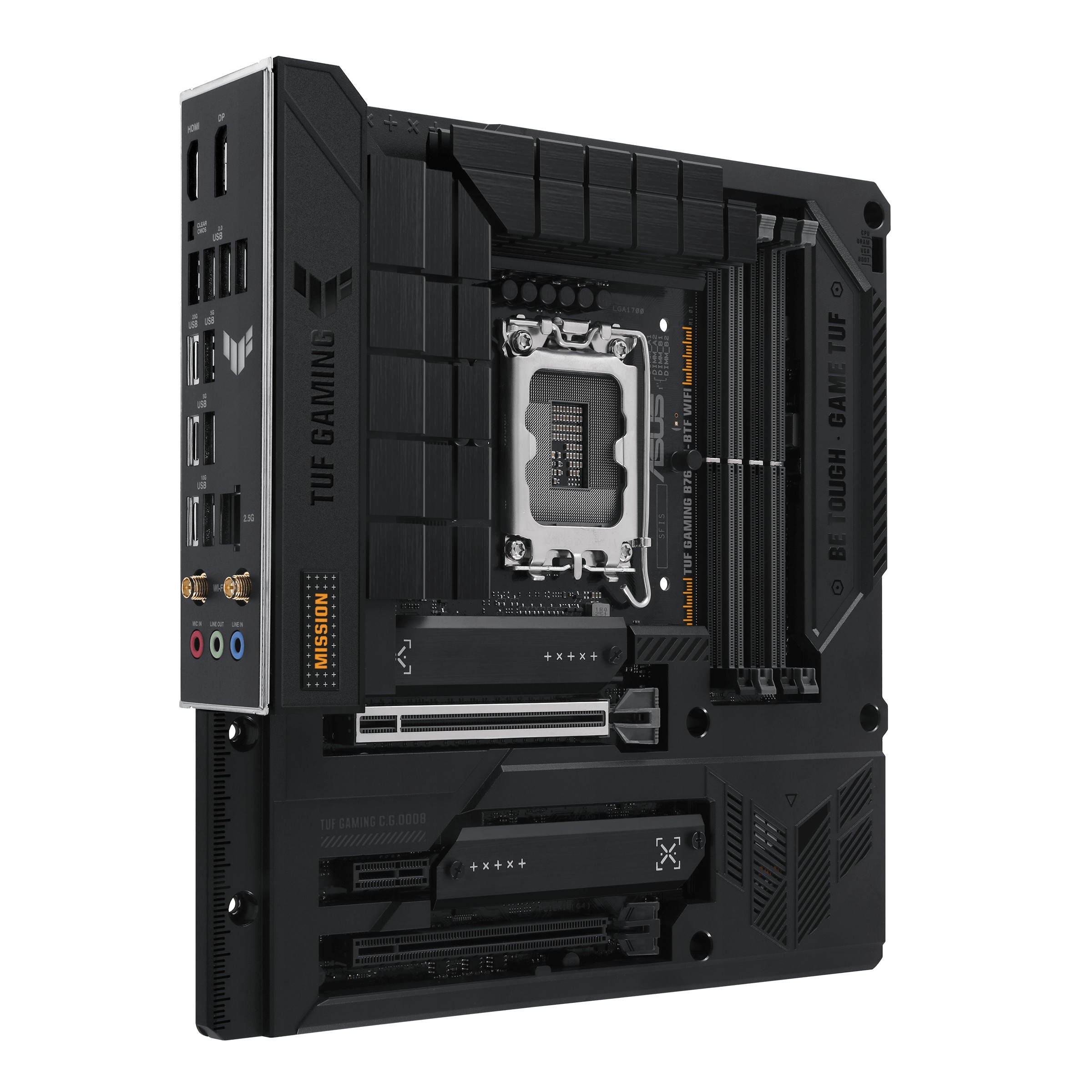

ASUS TUF GAMING B760M-BTF WIFI (Intel.1700.DDR5.mATX)

Name: ASUS TUF GAMING B760M-BTF WIFI (Intel.1700.DDR5.mATX)
SKU: 166017
Price: 212.90 EUR
Availability: InStock

€261.87

ASUS TUF GAMING B760M-BTF WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…, LGA 1700, DDR5-SDRAM, 192 GB

2 in stock

Categories: Mainboards & accessories, Motherboards - Intel

Description
Additional information

Description

ASUS TUF GAMING B760M-BTF WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory: DDR5-SDRAM, Maximum RAM memory: 192 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 6 (802.11ax), WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Additional information

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processors	Intel® Celeron®, Intel® Core ™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor slots	LGA 1700
Supported RAM	DDR5 SDRAM
Number of memory slots	4
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	Non-ECC
Supported memory speed	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200MHz
Supported memory clock speed (max.)	7200MHz
RAM memory maximum	192 GB
Characteristic	12V power connection, ATX power connector (24-pin), Bluetooth, Clear CMOS button, CPU fan connector, EPS power connector (8-pin), Ethernet/LAN, Front panel audio connector, Line in, Microphone input, RAID support, RGB LED header, Unbuffered memory, User Guide, WIRELESS INTERNET ACCESS
Supported storage drives	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Maximum number of HDDs supported	4
Number of storage drives supported	7
RAID level	1, 10, 5
Parallel processing technology	Unsupported
Number of USB 2.0 interfaces	2
USB 3.2 Gen 1 (3.1 Gen 1) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) ports	1
SATA III connectors	4
Number of chassis fan plugs	3
Number of Molex connections 4pin	1
Number of COM plugs	1
Thunderbolt headers	1
Number of USB 2.0 ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports	1
USB 3.2 Gen 2x2 Type-C number of ports	1
Number of Ethernet LAN connections (RJ-45)	1
Number of HDMI connections	1
HDMI version	2.1
Number of DisplayPort connections	1
DisplayPorts version	1.4
Headphone outputs	1
WiFi AP antenna socket	1
Ethernet interface type	2.5 Gigabit Ethernet
Top WiFi standard	Wi-Fi 6 (802.11ax)
WLAN standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Motherboard chipset	Intel B760
Audio channels	7.1 channels
Component for	Pc
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Cooling	Passive
Energy source	ATX
Supports Windows operating systems	Windows 10, Windows 11
PCI Express x1 slots (Gen 4.x)	1
PCI Express x16 slots (Gen 4.x)	1
PCI Express x16 slots (Gen 5.x)	1
Number of M.2 (M) slots	3
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Broad	244 mm
Depth	244 mm
Supplied cables	SATA
Manufacturer	ASUS
