Axis Industrial PoE Switch T8504-R
€1,010.25
Axis 01633-001, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
- Description
- Additional information
Description
Axis 01633-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 4. Console port: RJ-45. MAC address table: 8000 entries. Routing/switching capacity: 16 Gbps. Network standard: IEEE 802.1Q, IEEE 802.1x. DC input voltage: 54-57 V. Power connector: DC connector. Power over Ethernet (PoE)

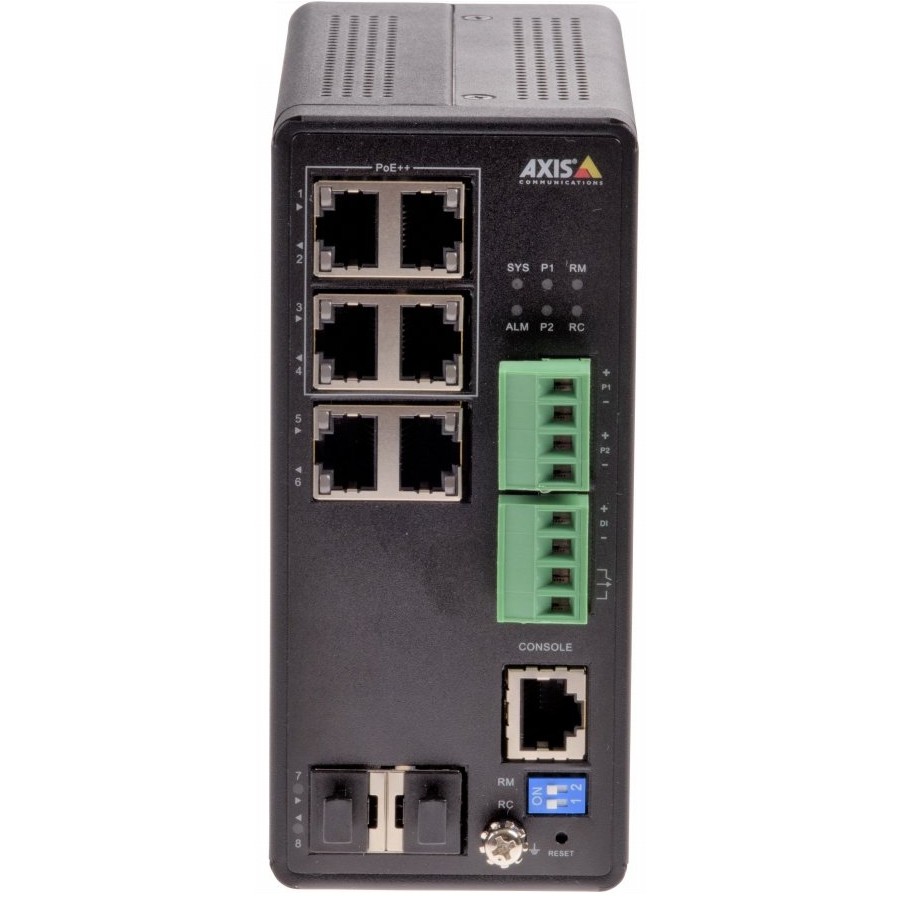

AXIS T8504-R Industrial PoE Switch is a manageable, four-port industrial PoE Gigabit switch. The switch also features two RJ-45 and two SFP data ports for connecting additional devices. The switch uses the same intuitive management interface as the AXIS T85 PoE Network Switch Series. The rugged switch is ideal for challenging environments when installed in a surveillance cabinet. It is designed to withstand shock, vibration, and temperatures from -40°C to 75°C, making it ideal for demanding installations such as alongside highways and in tunnels.
Additional information
| Switch type | |
|---|---|
| Number of basic switching RJ-45 Ethernet ports | |
| Basic switching RJ-45 Ethernet ports type | |
| Optical cable connector | |
| Console port | |
| Power plug | |
| Network standard | |
| Characteristic | Jumbo frames support, Mounting blocks included, Password protection, Power over Ethernet (PoE), Pressure rise protection, Quick start overview, VLAN support |
| Routing / switching capacity | |
| Passage | |
| MAC address table | |
| Jumbo frames | |
| Supported security algorithms | |
| Authentication type | |
| Product color | |
| Housing material | |
| DC input voltage | |
| Number of Power over Ethernet (PoE) connections | |
| Power over Ethernet (PoE) power per connection | |
| Total power over Ethernet (PoE) | |
| Operating temperatur | 40 – 75 ° C |
| Storage temperature range | |
| Relative humidity in operation | |
| Broad | |
| Depth | |
| Height | |
| Weight | |
| Goods tariff number (HS) | 85176990 |
| Manufacturer |
