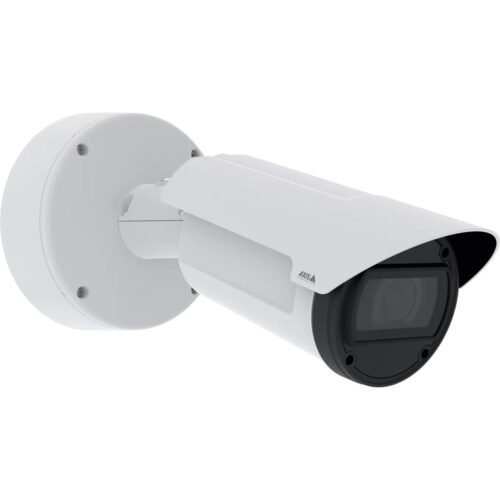

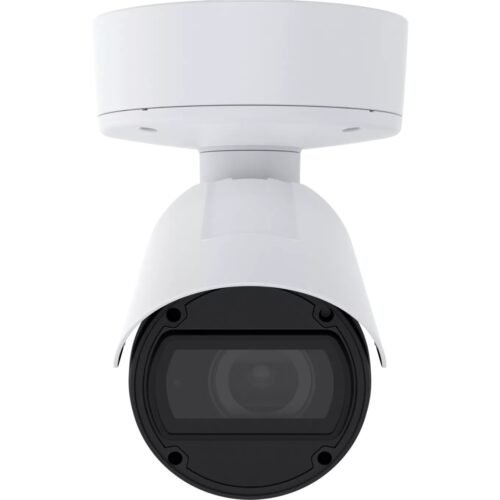

AXIS Network Camera Bullet Q1809-LE 150 mm 8K

Name: AXIS Network Camera Bullet Q1809-LE 150 mm 8K
SKU: 275278
Price: 5109.13 EUR
Availability: InStock

€6,284.23

Axis Q1809-LE 150mm, IP Security Camera, Outdoor, Wired, Digital PTZ, CSA, UL/cUL, CE, EAC, VCCI, RCM, Ceiling/Wall

4 in stock

Categories: network, Network cameras

Description
Additional information

Description

Axis Q1809-LE 150mm. Type: IP security camera, Supported positioning: Outdoor, Transmission technology: Wired, Mounting type: Ceiling/Wall, Product color: Black, White, Form factor: Cartridge. Minimum illumination: 0.04 lux, Rotation angle: 270°, Viewing angle (horizontal): 21-7°. Sensor type: CMOS, Image sensor size: 101.6 / 3 mm (4 / 3″). Focal length range: 50-150 mm, Focus: Motorized, Distance lock (wide): 853.8 m

Additional information

pa_type	6473
Assisted positioning	Outside
Transmission technology	Wired
Characteristic	Cloud managed, Day/night mode, Digest authentication, Direct current connection (DC), Ethernet/LAN, Image stabilizer, Infrared (IR) cut-off filter, Integrated card reader, Microphone input, Night vision, Noise cancellation, Password protection, Pixel counter, PTZ control, Quality of Service (QoS) Support, Remote control, Terminal block connection, Text overlay, Video streaming, Wide Dynamic Range (WDR), Zoom capability
PTZ modes	Digital PTZ
Certification	CE, CSA, EAC, RCM, UL / cUL, VCCI
Form factor	Cartridge (shape)
Fastening type	Ceiling / wall
Product color	Black, White
Housing material	Aluminum, Glass
Protective function	Impact resistant
International protection class (IP code)	IP66, IP67
IK Code	IK10
Minimum lighting	0.04 lux
Rotation angle	270°
Viewing angle (horizontal)	21 – 7°
Viewing angle (vertical)	12 – 4°
Tilt angle range	0 – 90 °
Swivel range	180 – 180 °
Pixel size camera	2.315 µm
Camera shutter speed	1/15500 – 2 s
Number of sensors	1
Image sensor size	101.6 / 3mm (4 / 3")
Sensor type	CMOS
Number of lenses	1
Focal length range	50 – 150mm
Focus	Motorized
Maximum f-number	4
Distance detection (wide)	170.8 m, 853.8 m
Distance detection (tele)	2551.6 m, 510.2 m
Distance observation (wide)	338.8 m
Distance observation (tele)	1012.6 m
Distance determination (wide)	85.4m
Distance determination (tele)	255.2 m
Close focus limit	5 m
LED type	IR
Infrared wavelength	900 nm
Maximum resolution	7680 x 4320 pixels
Total megapixels	41 MP
Supported video formats	AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Video compression formats	H.264, H.265
Supported graphic resolutions	1280 x 800, 160×120, 160×90, 3840 x 2160
Up to 30 frames per second	30 fps
Noise canceling technology	2D noise reduction, 3D noise reduction
Gain control type	Automobile
Image quality adjustment	Brightness, Contrast, Mirror, Sharpness
Bitrate control	Variable bit rate (VBR)
Supported audio formats	AAC-LC, ADPCM, G.711, G.726, LPCM, PCM
Sample rate	48 kHz
Noise Ratio (SNR)	55 dB
Network standard	IEEE 802.1x, IEEE802.1AE
Streaming process	Multicasting
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
ROM capacity	4096 MB
Supported security algorithms	EAP-TLS, HTTPS
Alert notification type	E-mail
Energy source	Direct current, PoE
Power consumption (standard operation)	17.6 W
Power consumption (max.)	35 W
Power Consumption (Power over Ethernet (PoE))	18.9W
Operating temperatur	40 – 55 ° C
Storage temperature range	40 – 65 ° C
Relative humidity in operation	10-100%
Storage humidity	5 – 95%
Depth	411 mm
Height	183 mm
Diameter	18.3 cm
Weight	3.2 kg
Certificates of conformity	REACH, RoHS
Number of cameras	1
Manufacturer	Axis
