Cisco CATALYST 1000 24 PORT GE

Name: Cisco CATALYST 1000 24 PORT GE
SKU: 230760
Price: 2200.88 EUR
Availability: InStock

€2,707.08

Cisco Catalyst C1000-24P-4X-L, Managed, L2, Gigabit Ethernet (10/100/1000), Full Duplex, Power over Ethernet (PoE)

6 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco Catalyst C1000-24P-4X-L. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 24. Number of USB 2.0 ports: 1. Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries. Routing/switching capacity: 128 Gbps. Network standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE…. Power over Ethernet (PoE)

Additional information

Switch type	Managed
Switch level	L2
Characteristic	10G support, Access control list, ARP inspection, Auto MDI/MDI-X, BPDU filtering/protection, Broadcast storm control, Built-in processor, Configuring Site Settings (CLI), Full duplex, IGMP snooping, Jumbo frames support, Link aggregation, Loop protection, MIB support, Multicast support, Power over Ethernet (PoE), Quality of Service (QoS) Support, SSH/SSL support, Static route, Traffic classification, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Quantity of SFP + module slots	4
Console port	RJ-45/Mini-USB
Number of USB 2.0 ports	1
Ethernet LAN data transfer rates	100,1000,10000 Mbit / s
Number of VLANs	4094
Routing / switching capacity	128 Gbit / s
Transfer rate	41.67 MPps
MAC address table	16,000 entries
Number of static routes	16
Jumbo frames	10240
DHCP functions	DHCP snooping
IGMP entries	1024
Authentication	Web based authentication
Authentication type	RADIUS
IPv4 multicast entries	1024
IPv6 multicast entries	1024
Product color	Gray
Market segment	Business
Processor	ARM7
Processor clock frequency	800 MHz
Storage type	DRAM
Storage capacity	512 MB
Flash memory	256 MB
Mean Time Between Failures (MTBF)	698220 hours
AC input voltage	110-220V
AC input frequency	50-60 Hz
Power plug type	Type c

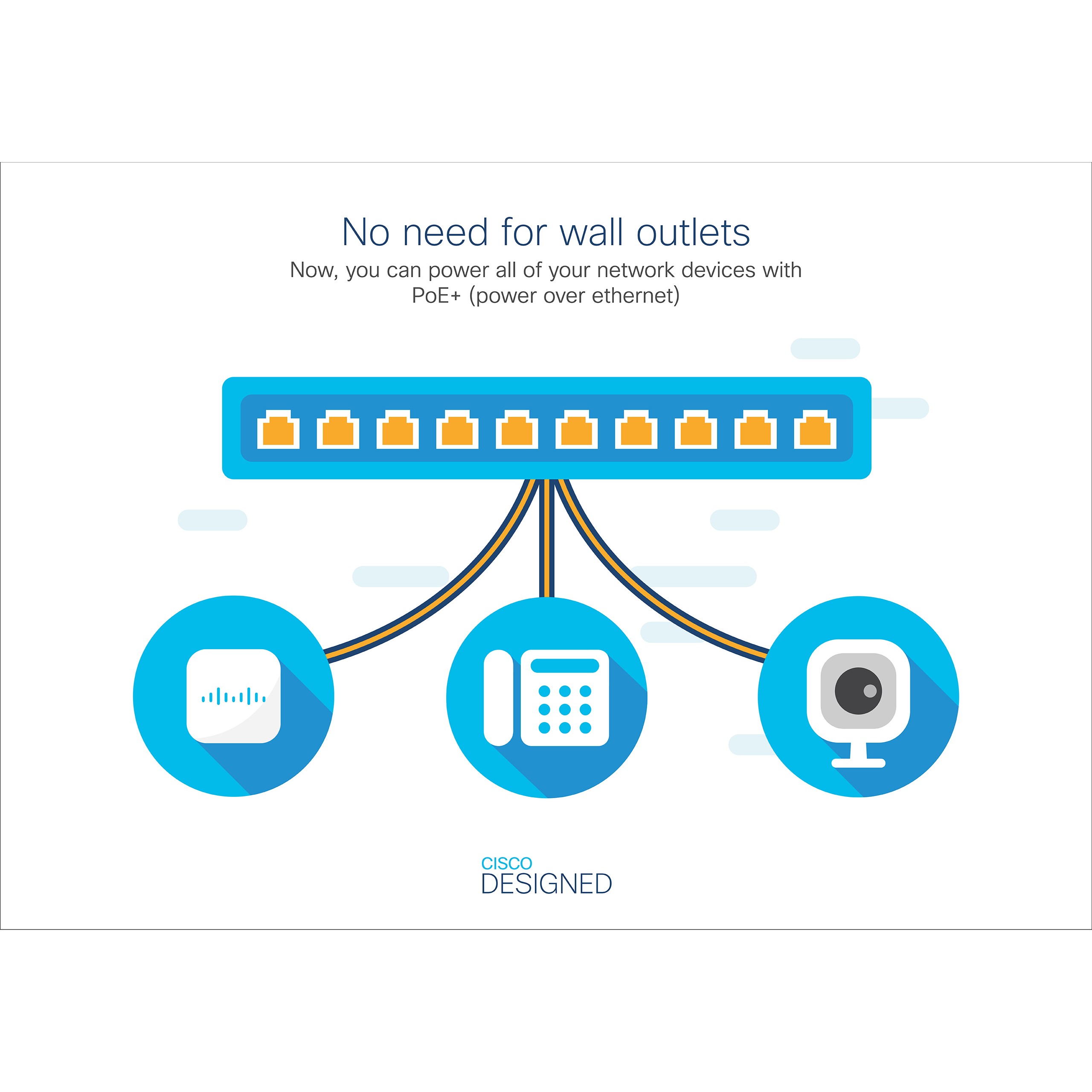

Power over Ethernet (PoE) type supported	PoE+
Number of Power over Ethernet plus (PoE +) connections	24
Total power over Ethernet (PoE)	195 W
Operating temperatur	5 – 50 ° C
Storage temperature range	25 – 70 ° C
Relative humidity in operation	5 – 90%
Storage humidity	5 – 95%
Height during operation	0 – 3000 m
Storage height	0 – 4500 m
Broad	444.5 mm
Depth	299 mm
Height	44 mm
Weight	3.68 kg
Packaging width	390.7 mm
Packaging depth	549.4 mm
Packing height	147.6mm
Package weight	5.7 kg
Quantity per shipping box	1 piece (s)
Quantity per pack	1 piece (s)
Country of origin	China
Goods tariff number (HS)	85176990
Number of products per shipping carton	1 piece (s)
Manufacturer	Cisco
