Cisco CATALYST 1000 8PORT GE

Name: Cisco CATALYST 1000 8PORT GE
SKU: 250670
Price: 855.41 EUR
Availability: InStock

€1,052.15

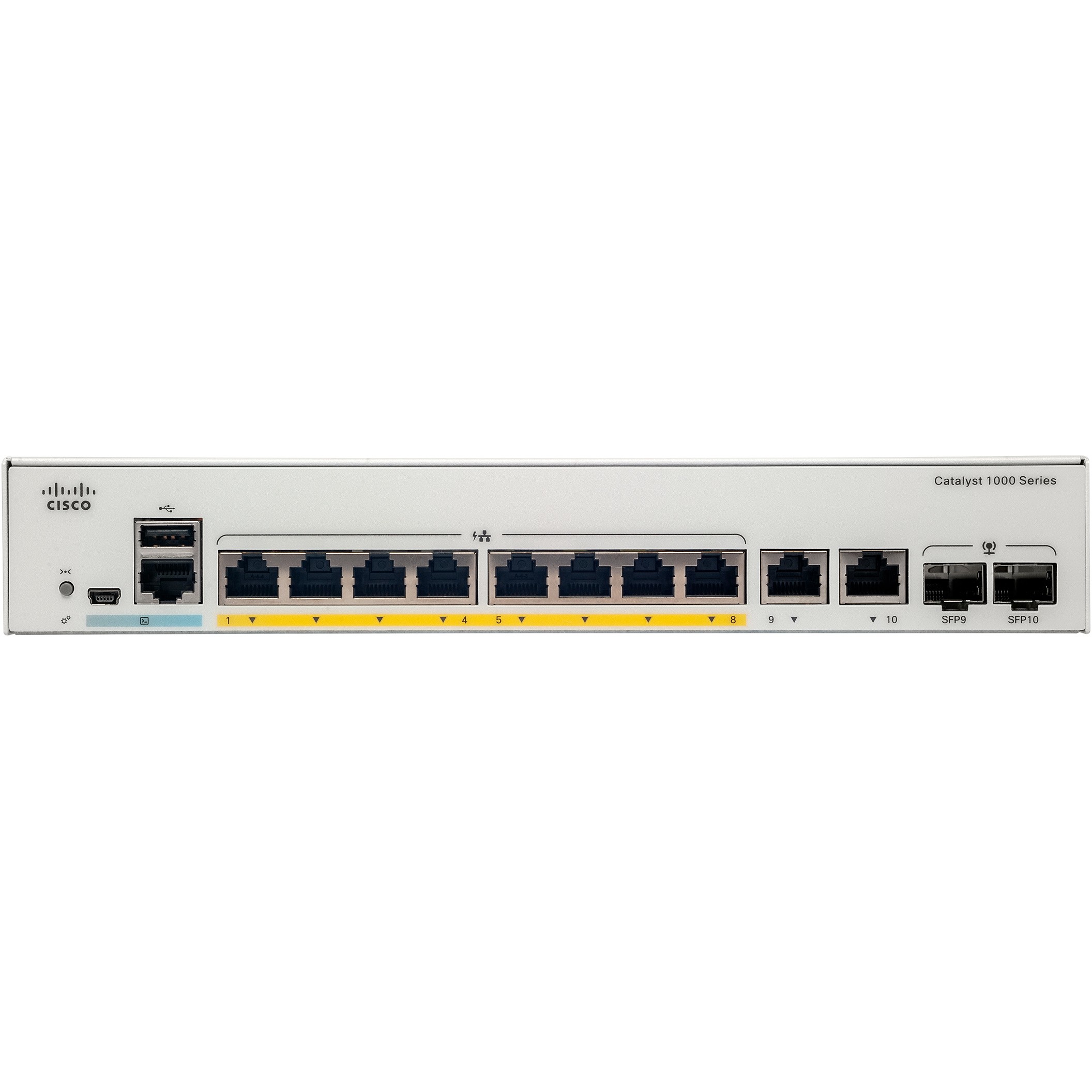

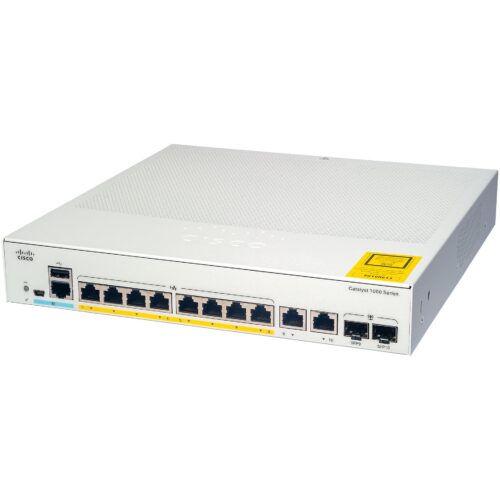

Cisco Catalyst C1000-8FP-E-2G-L, Managed, L2, Gigabit Ethernet (10/100/1000), Full Duplex, Power over Ethernet (PoE)

5 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco Catalyst C1000-8FP-E-2G-L. Switch type: Managed, Switch tier: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 8. Number of USB 2.0 ports: 1. Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries. Routing/switching capacity: 20 Gbps. Network standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE…. Power over Ethernet (PoE)

Additional information

Switch type	Managed
Switch level	L2
Characteristic	Access control list, ARP inspection, Auto MDI/MDI-X, Auto-negotiation function, BPDU filtering/protection, Broadcast storm control, Built-in processor, Configuring Site Settings (CLI), Full duplex, IGMP snooping, Jumbo frames support, LED indicators, Link aggregation, Loop protection, MIB support, Multicast support, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Spanning tree protocol, SSH/SSL support, Static route, Traffic classification, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Number of combo SPF ports	2
Console port	RJ-45/Mini-USB
Number of USB 2.0 ports	1
Ethernet LAN data transfer rates	10,100,1000 Mbit / s
Number of VLANs	256
Routing / switching capacity	20 Gbit / s
Transfer rate	14.88 Mpps
MAC address table	16,000 entries
Number of static routes	16
Jumbo frames	10240
DHCP functions	DHCP snooping
IGMP entries	1024
Authentication	Web based authentication
Authentication type	RADIUS
IPv4 multicast entries	1024
IPv6 multicast entries	1024
Management logs	SNMP
Product color	Gray
Market segment	Business
Processor	ARM7
Processor clock frequency	800 MHz
Storage type	DRAM
Storage capacity	512 MB
Flash memory	256 MB
Mean Time Between Failures (MTBF)	1706649 hours
AC input voltage	110-220V
AC input frequency	50-60 Hz
Input current	0.22 – 0.27 A
Power consumption (standard operation)	21.3W
Power consumption (max.)	22 W
Power plug type	Type c

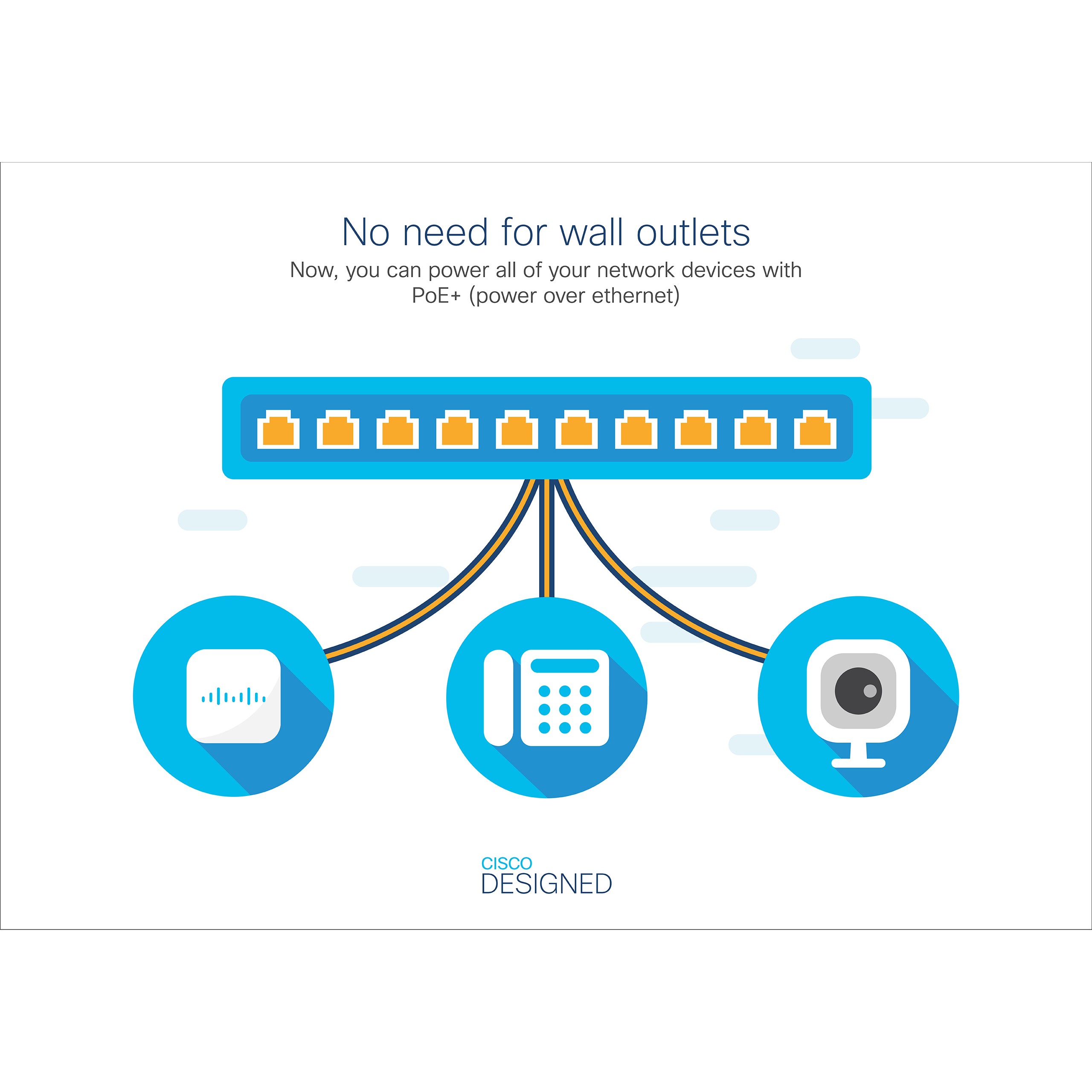

Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet (PoE) power per connection	15 W
Total power over Ethernet (PoE)	120 W
Operating temperatur	5 – 50 ° C
Storage temperature range	25 – 70 ° C
Relative humidity in operation	5 – 90%
Storage humidity	5 – 95%
Height during operation	0 – 3000 m
Storage height	0 – 4500 m
Broad	268.2 mm
Depth	184.9 mm
Height	43.9 mm
Packaging width	309.6 mm
Packaging depth	349.2 mm
Packing height	160.3 mm
Package weight	3.52 kg
Quantity per shipping box	1 piece (s)
Quantity per pack	1 piece (s)
Country of origin	China
Goods tariff number (HS)	85176990
Number of products per shipping carton	1 piece (s)
Manufacturer	Cisco
