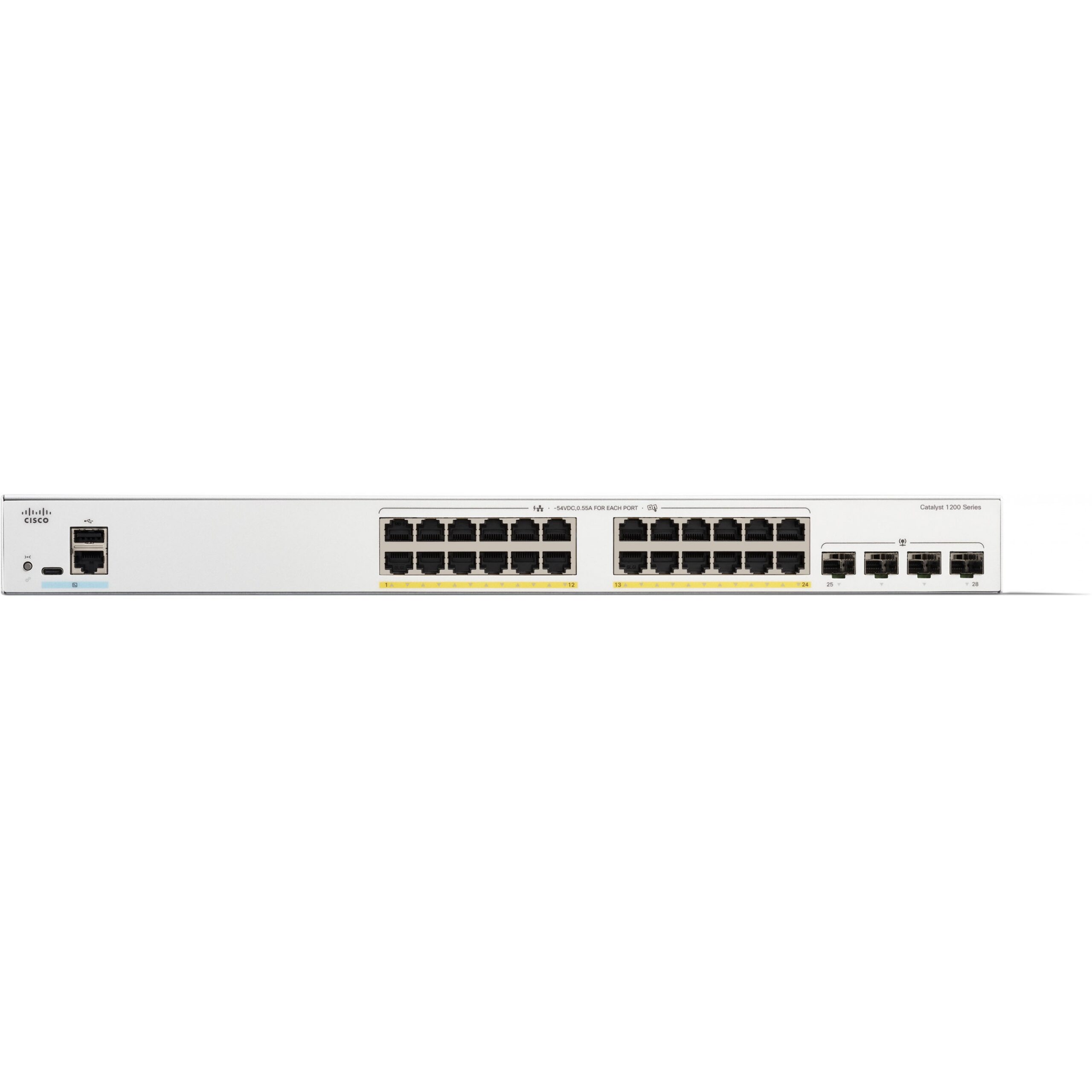

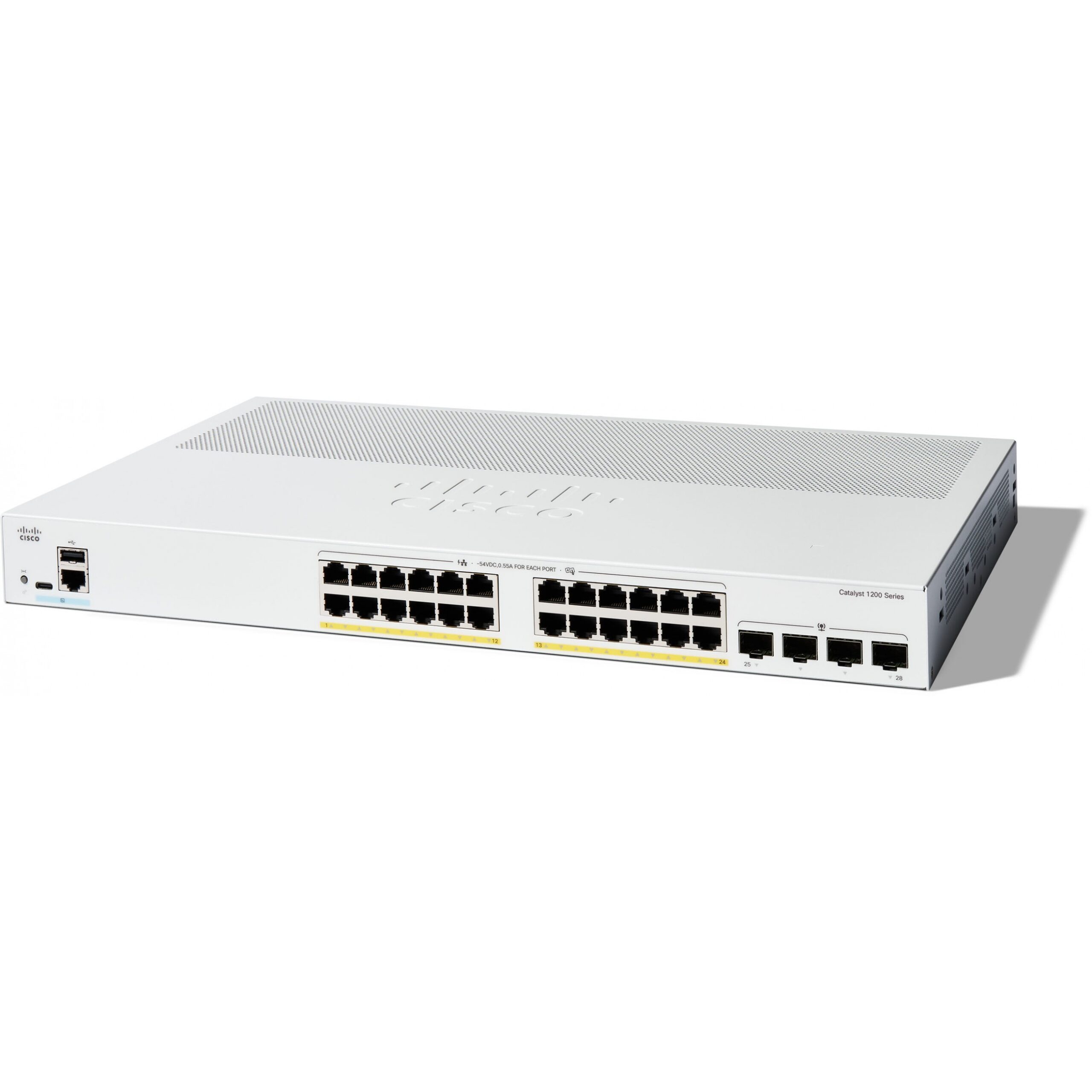

Cisco CATALYST 1200 24-PORT GE POE

Name: Cisco CATALYST 1200 24-PORT GE POE
SKU: 254627
Price: 325.69 EUR
Availability: InStock

€400.60

Cisco Catalyst 1200, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), rack-mount, 1U

74 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco Catalyst 1200. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 28. Console port: RJ-45/USB Type-C. MAC address table: 8000 entries. Routing/switching capacity: 56 Gbps. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE…. Power over Ethernet (PoE). Rack-mountable, form factor: 1U.

Additional information

Weight	5.66 kg
Switch type	Managed
Switch level	L2
Characteristic	Broadcast storm control, Built-in processor, Configuring Site Settings (CLI), DoS attack prevention, GARP VLAN Registration Protocol (GVRP), Head-of-Line (HOL) blocking, Jumbo frames support, LED indicators, Link aggregation, Loop protection, MIB support, Multicast support, Port mirroring, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Rack installation, Reset button, Spanning tree protocol, Upgradeable firmware, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	28
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Quantity of SFP module slots	4
Console port	RJ-45/USB Type-C
Network standard	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
Number of VLANs	255
Routing / switching capacity	56 Gbit / s
Transfer rate	41.66 Mpps
MAC address table	8000 entries
Number of queues	8
Jumbo frames	9000
Data packet buffer memory	1.5 MB
Access Control List (ACL) rules	512
Supported security algorithms	802.1x RADIUS
Queue planning algorithms	Weighted Round Robin (WRR)
Form factor	1U
Product color	White
Processor clock frequency	1.4MHz
Storage type	DDR4 SDRAM
Storage capacity	1000 MB
Flash memory	512 MB
Mean Time Between Failures (MTBF)	698220 hours
Energy source	AC
AC input voltage	100-240V
AC input frequency	50/60 Hz
Power consumption (standard operation)	10.65 W
Power plug type	Type c
Total power over Ethernet (PoE)	195 W
Operating temperatur	5 – 50 ° C
Storage temperature range	25 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	10 – 90%
Broad	298.7 mm
Depth	444.5 mm
Height	43.9 mm
Weight	3.53 kg
Packaging width	430 mm
Packaging depth	575.1 mm
Packing height	105.9 mm
Package weight	5.82 kg
Certification	CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 62368)
Country of origin	China
Manufacturer	Cisco
