Cisco CATALYST 1300 12-PORT 10GE

Name: Cisco CATALYST 1300 12-PORT 10GE
SKU: 250416
Price: 1008.53 EUR
Availability: InStock

€1,240.49

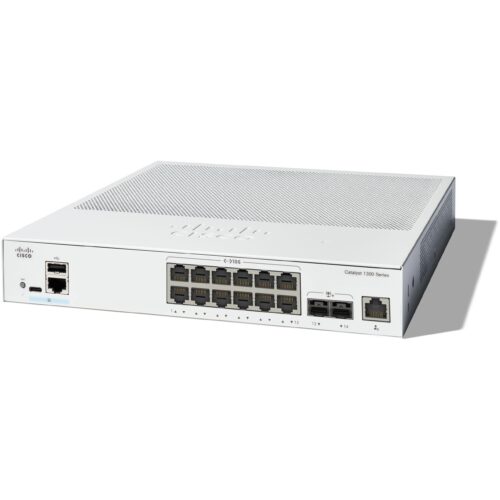

Cisco Catalyst C1300-12XT-2X, Managed, L2/L3, Rack Mount

85 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco Catalyst C1300-12XT-2X. Switch type: Managed, Switch layer: L2/L3. MAC address table: 16,000 entries, Routing/switching capacity: 280 Gbps. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Rack-mountable

Additional information

Weight	3.72 kg
Switch type	Managed
Switch level	L2 / L3
Characteristic	Access control list, Broadcast storm control, Built-in processor, Configuring Site Settings (CLI), DoS attack prevention, GARP VLAN Registration Protocol (GVRP), Head-of-Line (HOL) blocking, IGMP proxy, IGMP snooping, Jumbo frames support, Link aggregation, MIB support, Multicast support, Plug & Play, Policy-based routing, Port mirroring, Quality of Service (QoS) Support, Rack installation, Rate Limiting, Reset button, Spanning tree protocol, SSH/SSL support, Static route, VLAN support, Web-based management
Number of 10G Ethernet (copper) ports	12
Quantity of SFP + module slots	2
Supported cable types	Cat5e
QinQ implementation	Selective QinQ
Virtual LAN functions	Private VLAN, Voice VLAN
Routing / switching capacity	280 Gbit/s
MAC address table	16,000 entries
Number of queues	8
Number of static routes	990
Jumbo frames	9000
Data packet buffer memory	3 MB
DHCP functions	DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) rules	1024
Supported security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Authentication	MAC based authentication, Web based authentication
Authentication type	RADIUS, TACACS +
Queue planning algorithms	Weighted Round Robin (WRR)
IPv4 & IPv6 functions	ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 Telnet, IPv6 TFTP
Product color	Gray
Processor clock frequency	1.4MHz
Storage type	DDR4 SDRAM
Storage capacity	1000 MB
Flash memory	512 MB
Energy source	AC
AC input voltage	100 – 220 V
AC input frequency	50/60 Hz
Power plug type	Type c
Operating temperatur	5 – 50 ° C
Storage temperature range	25 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	10 – 90%
Broad	300 mm
Depth	268 mm
Height	44 mm
Weight	2.64kg
Packaging width	355.9mm
Packaging depth	402.3 mm
Packing height	103.7 mm
Package weight	3.49 kg
Certification	CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 62368)
Country of origin	China
Manufacturer	Cisco
