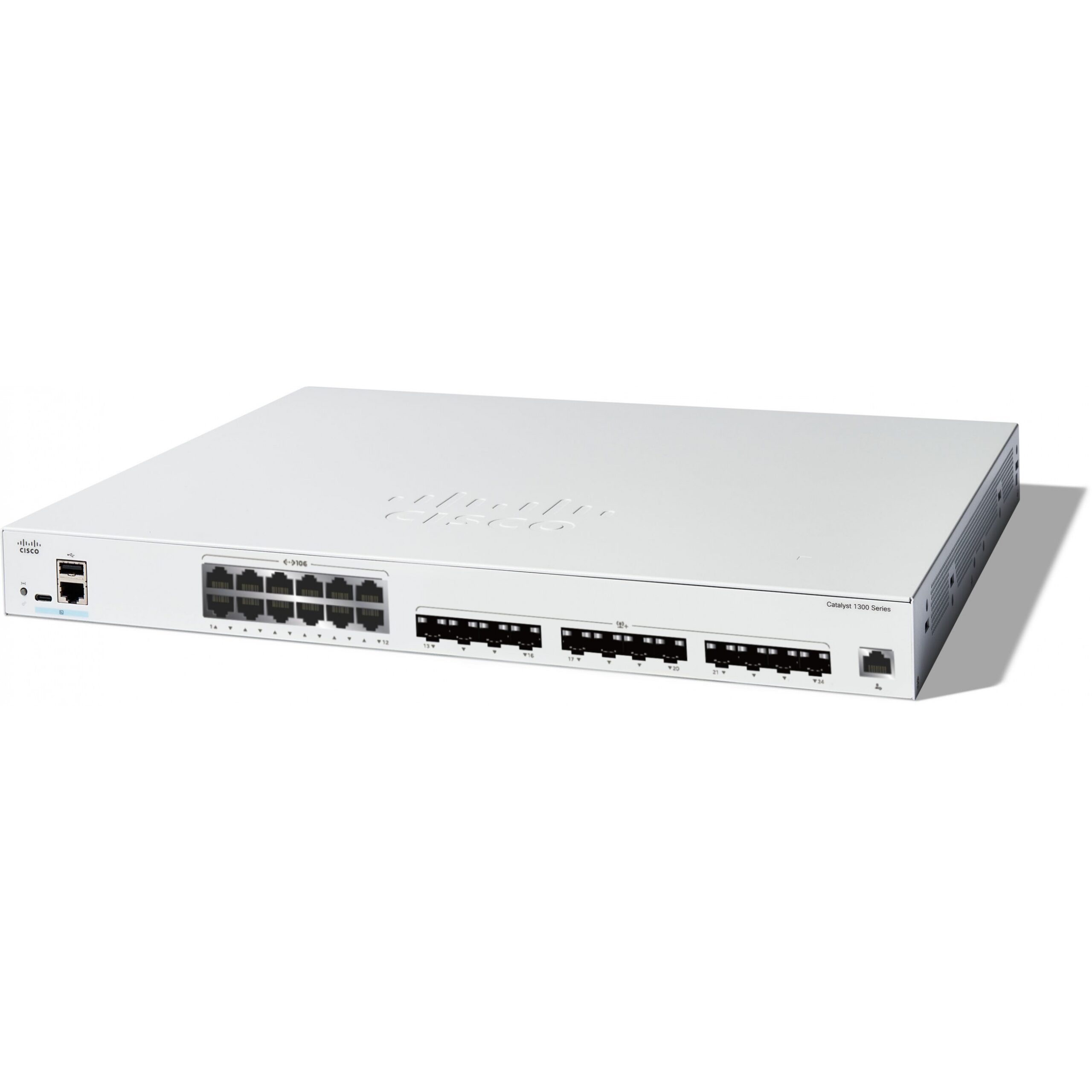

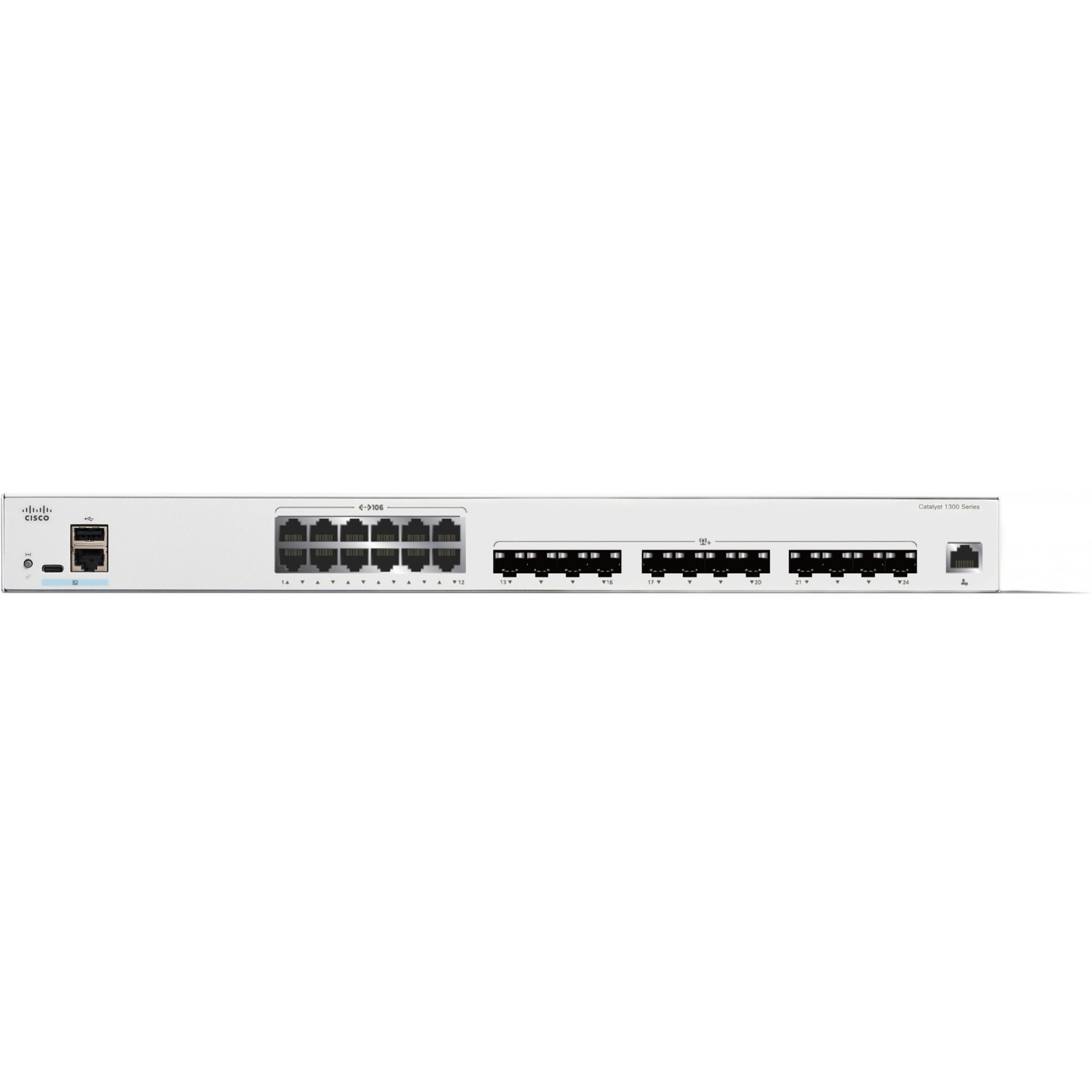

Cisco CATALYST 1300 12-PORT 10GE

Name: Cisco CATALYST 1300 12-PORT 10GE
SKU: 252620
Price: 2411.83 EUR
Availability: InStock

€2,966.55

Cisco Catalyst C1300-24XTS, Managed, L2/L3, 10G Ethernet (100/1000/10000), rack mountable

1 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco Catalyst C1300-24XTS. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Number of basic switching RJ-45 Ethernet ports: 12, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Routing/switching capacity: 480 Gbps. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Rack-mountable.

Additional information

Weight	6.14 kg
Switch type	Managed
Switch level	L2 / L3
Characteristic	Access control list, Broadcast storm control, Built-in processor, Configuring Site Settings (CLI), DoS attack prevention, GARP VLAN Registration Protocol (GVRP), Head-of-Line (HOL) blocking, IGMP proxy, IGMP snooping, Jumbo frames support, Link aggregation, MIB support, Multicast support, Plug & Play, Policy-based routing, Port mirroring, Quality of Service (QoS) Support, Rack installation, Rate Limiting, Reset button, Spanning tree protocol, SSH/SSL support, Static route, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	12
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Quantity of SFP + module slots	12
Console port	RJ-45/USB Type-C
Supported cable types	Cat5e
QinQ implementation	Selective QinQ
Virtual LAN functions	Private VLAN, Voice VLAN
Routing / switching capacity	480 Gbit/s
MAC address table	16,000 entries
Number of queues	8
Number of static routes	990
Jumbo frames	9000
Data packet buffer memory	8 MB
DHCP functions	DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) rules	1024
Supported security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Authentication	MAC based authentication, Web based authentication
Authentication type	RADIUS, TACACS +
Queue planning algorithms	Weighted Round Robin (WRR)
IPv4 & IPv6 functions	ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 Telnet, IPv6 TFTP
Product color	Gray
Processor clock frequency	1.4MHz
Storage type	DDR4 SDRAM
Storage capacity	1000 MB
Flash memory	512 MB
Noise level	39 dB
Mean Time Between Failures (MTBF)	427188 hours
Energy source	AC
AC input voltage	100 – 220 V
AC input frequency	50/60 Hz
Power consumption (standard operation)	88.2 W
Power plug type	Type c
Operating temperatur	5 – 50 ° C
Storage temperature range	25 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	10 – 90%
Heat dissipation	300.76 BTU/h
Broad	445 mm
Depth	350 mm
Height	44 mm
Weight	4.2 kg
Packaging width	430 mm
Packaging depth	574.7 mm
Packing height	105.9 mm
Package weight	5.6 kg
Certification	CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 62368)
Country of origin	China
Manufacturer	Cisco
