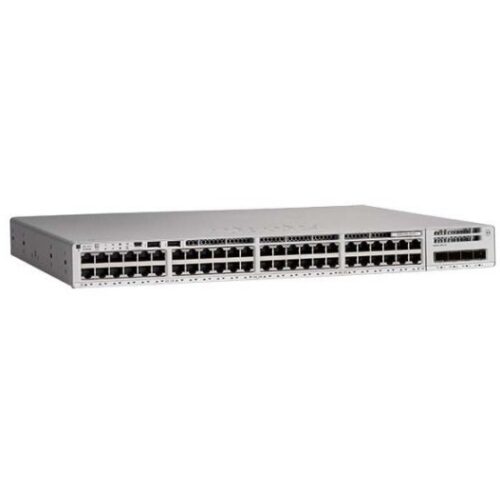

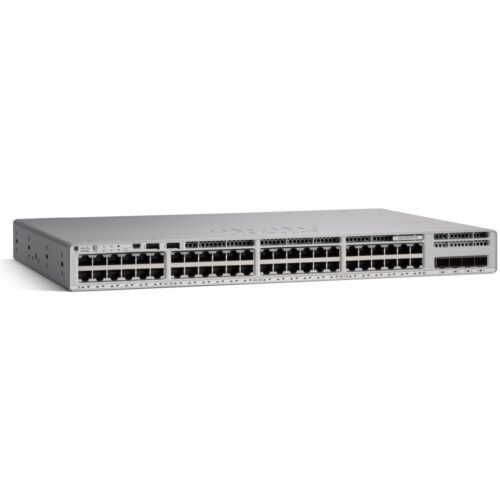

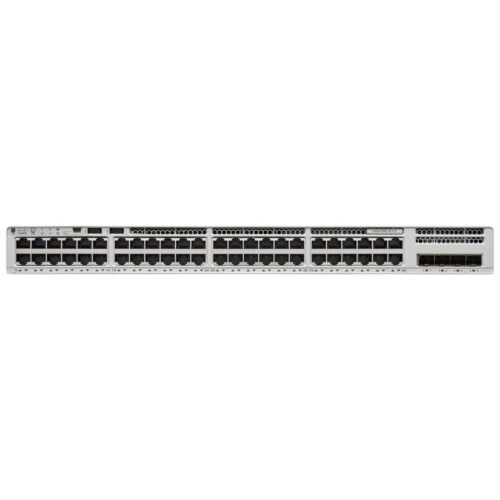

Cisco CATALYST 9200 48-PORT DATA ONLY

Name: Cisco CATALYST 9200 48-PORT DATA ONLY
SKU: 240126
Price: 3576.25 EUR
Availability: InStock

€4,398.79

Cisco Catalyst C9200, Managed, L3, Gigabit Ethernet (10/100/1000), full duplex

4 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco Catalyst C9200. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 48. Full duplex. Network standard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Power connector: AC input jack.

Additional information

Switch type	Managed
Switch level	L3
Characteristic	Access control list, ARP inspection, Configuring Site Settings (CLI), Full duplex, IP routing, Jumbo frames support, Multicast support, Power supply included, Quality of Service (QoS) Support, Spanning tree protocol, Support data flow control, Support for redundant power supply, Traffic classification, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) connections	48
Power plug	AC input socket
Routing inputs	4000
Virtual LAN functions	Multiple VXLAN (MUX VLAN)
Number of VLANs	4096
Transfer rate	130.95 Mpps
Jumbo frames	9198
Data packet buffer memory	6 MB
Supported security algorithms	128-bit AES
Multicast MAC address table	1000 entries
IPv4 multicast entries	4000
IPv6 multicast entries	2000
Management logs	SNMPv1 / v2c / v3
Router protocol	CDP, EIGRP, HSRP, IS-IS, OSPF, RIP, VRRP
Product color	Gray
Storage type	DRAM
Storage capacity	4000 MB
Flash memory	4000 MB
AC input voltage	100-240V
AC input frequency	50-60 Hz
Input current	12 – 6 A
Power consumption (standard operation)	125 W
Operating temperatur	5 – 45 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	5 – 90%
Height during operation	0 – 3000 m
Broad	445 mm
Depth	350 mm
Height	44 mm
Weight	5 kg
Packaging type	Box
Certification	AS/NZS 60950.1, CAN/CSA C22.2 No. 60950-1, Class I Equipment, EN 60950-1, IEC 60950-1, RoHS, UL 60950-1
Goods tariff number (HS)	85176990
Manufacturer	Cisco
