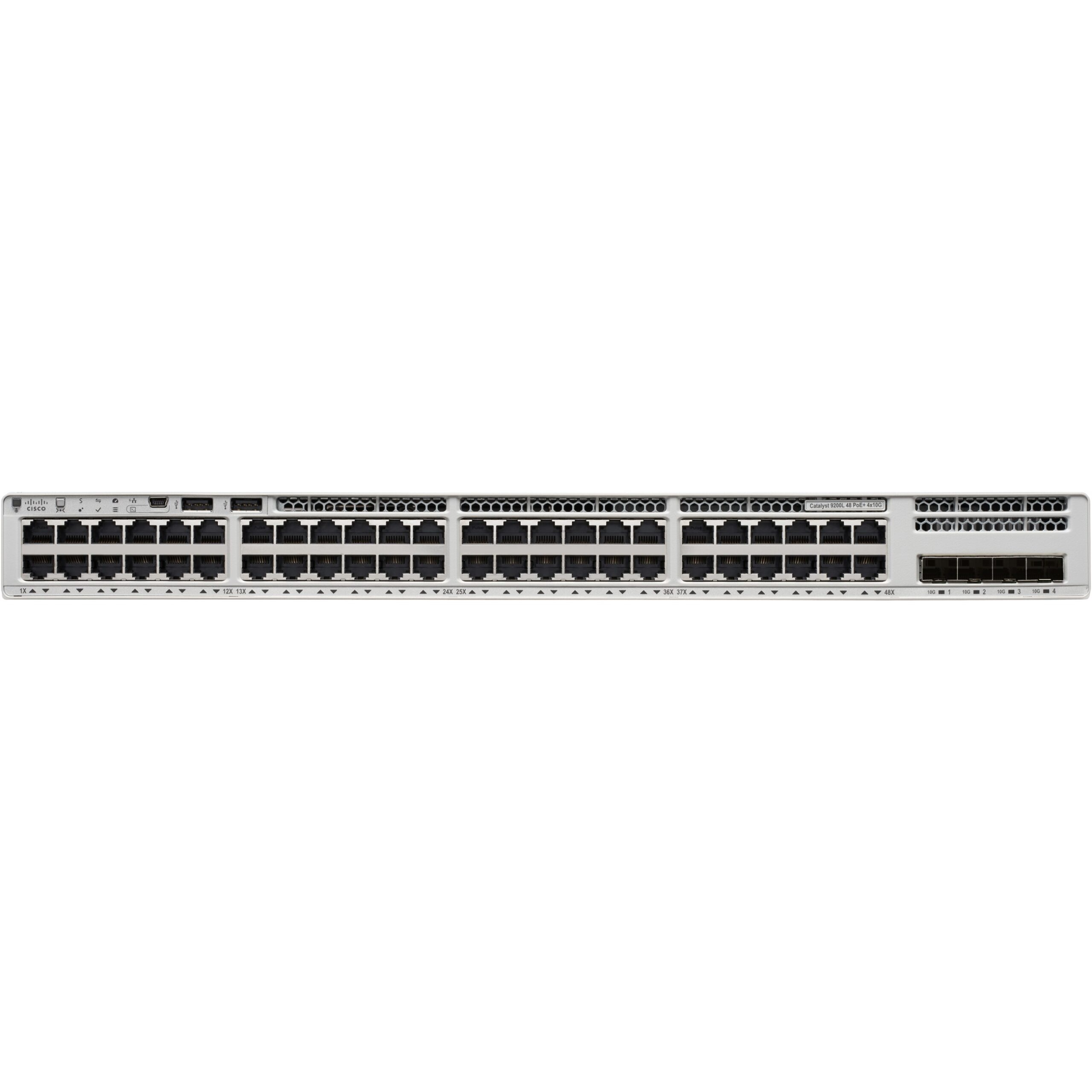

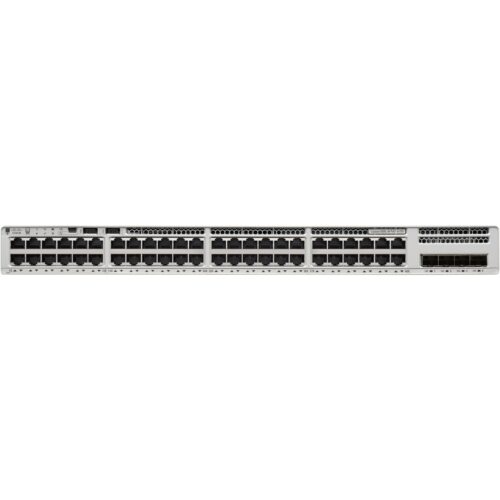

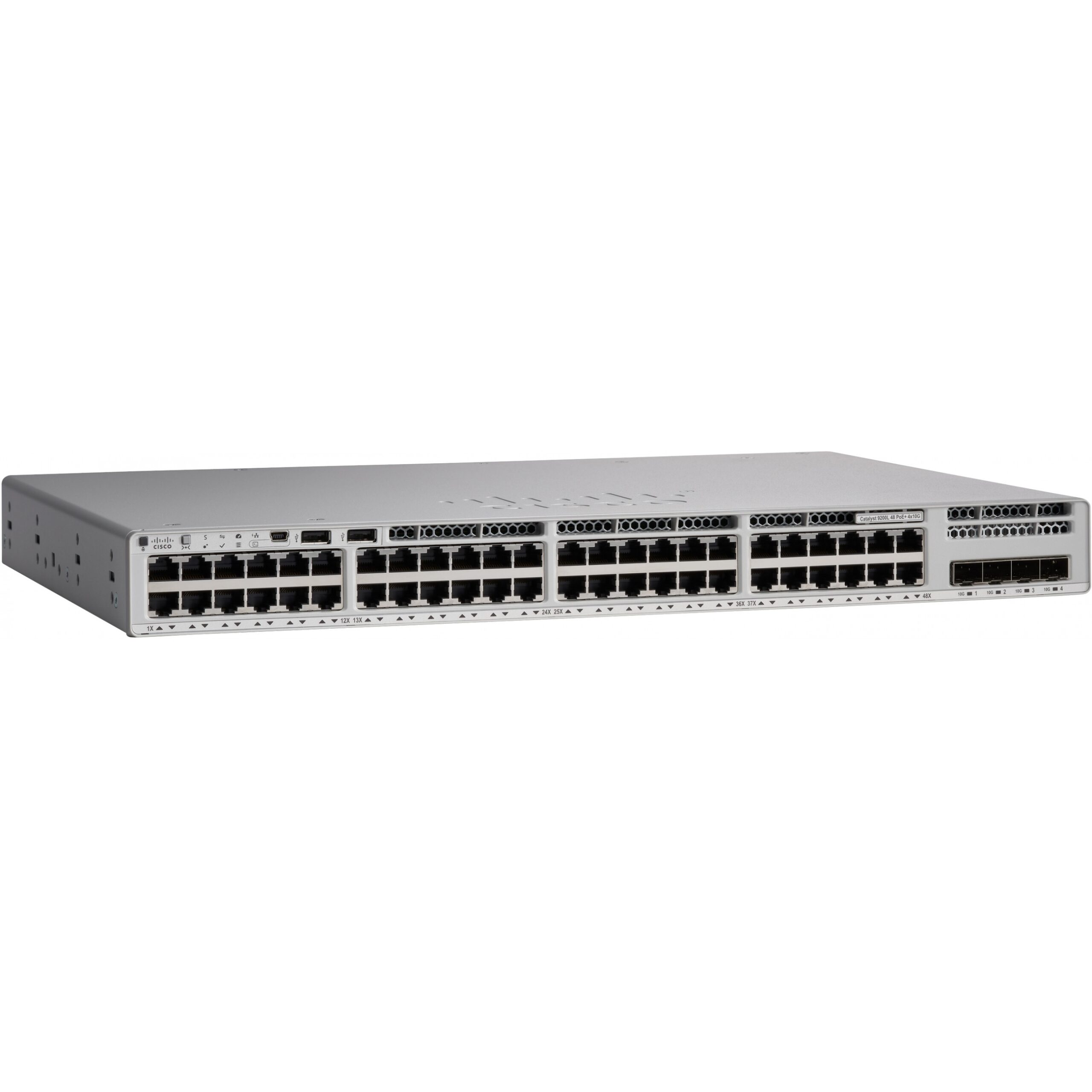

Cisco CATALYST 9200L 48-PORT POE+

Name: Cisco CATALYST 9200L 48-PORT POE+
SKU: 230673
Price: 5171.01 EUR
Availability: InStock

€6,360.34

Cisco Catalyst 9200L, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

26 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco Catalyst 9200L. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 48. Number of USB 2.0 ports: 3. MAC address table: 16,000 entries. Routing/switching capacity: 176 Gbps. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Power over Ethernet (PoE)

Additional information

Switch type	Managed
Switch level	L3
Characteristic	10G support, Access control list, IP routing, Jumbo frames support, Multicast support, Plug & Play, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Spanning tree protocol, Stackable, Support for redundant power supply, Web-based management
Number of basic switching RJ-45 Ethernet ports	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Quantity of SFP + module slots	4
Number of USB 2.0 ports	3
Copper ethernet cabling technology	1000Base LX, 1000BASE-SX, 1000BASE-T, 100Base-FX
Routing inputs	3000
Network virtualization technologies	Virtual Extensible LAN (VXLAN)
IPv4 routes	3000
IPv6 routes	1500
Number of VLANs	1024
Routing / switching capacity	176 Gbit / s
Transfer rate	130.95 Mpps
MAC address table	16,000 entries
Jumbo frames	9198
Data packet buffer memory	6 MB
Supported security algorithms	128-bit AES
Management logs	SNMPv1 / v2c / v3
Router protocol	CDP, EIGRP, OSPF, RIP, VRRP
Product color	Gray
Security	AS/NZS 60950.1, CAN/CSA C22.2 No. 60950-1, Class I Equipment, EN 60950-1, IEC 60950-1, UL 60950-1
Storage type	DRAM
Storage capacity	2048 MB
Flash memory	4096 MB
Noise level	42 dB
Mean Time Between Failures (MTBF)	346270 hours
AC input voltage	100-240V
AC input frequency	50-60 Hz
Input current	6 – 12 A
Number of Power over Ethernet plus (PoE +) connections	48
Power over Ethernet (PoE) power per connection	30 W
Total power over Ethernet (PoE)	740 W
Operating temperatur	5 – 45 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	5 – 90%
Height during operation	0 – 3000 m
Heat dissipation	3412 BTU/h
Broad	445 mm
Depth	329 mm
Height	44 mm
Weight	4.8 kg
Certification	RoHS
Goods tariff number (HS)	85176990
Manufacturer	Cisco
