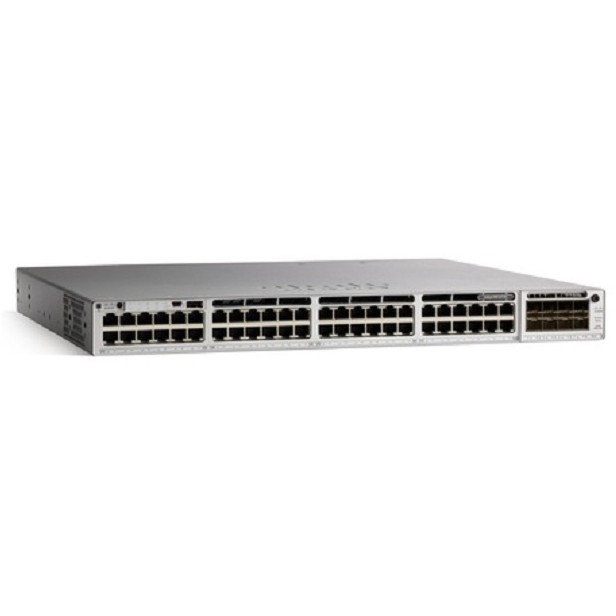

Cisco CATALYST 9300 48-PORT (12 MGIG

Name: Cisco CATALYST 9300 48-PORT (12 MGIG
SKU: 230649
Price: 9862.45 EUR
Availability: InStock

€12,130.81

Cisco Catalyst C9300-48UXM-A, Managed, L2/L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), rack-mount, 1U

24 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco Catalyst C9300-48UXM-A. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Number of basic switching RJ-45 Ethernet ports: 48, Number of USB 2.0 ports: 1, Full duplex. MAC address table: 32000 entries, Routing/switching capacity: 580 Gbps. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Power over Ethernet (PoE). Rack-mountable, form factor: 1U

Additional information

Switch type	Managed
Switch level	L2 / L3
Characteristic	10G support, Access control list, ARP inspection, Broadcast storm control, Built-in processor, Full duplex, Jumbo frames support, LED indicators, Multicast support, Multiprotocol Label Switching (MPLS), Plug & Play, Power over Ethernet (PoE), Quality of Service (QoS) Support, Rack installation, Spanning tree protocol, Stackable, Support data flow control, Upgradeable firmware, Virtual Router Redundancy Protocol (VRRP), VLAN support, Zero-touch provisioning (ZTP)
Number of basic switching RJ-45 Ethernet ports	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Number of USB 2.0 ports	1
Supported cable types	Cat5e, Cat6, Cat6a
Virtual LAN functions	Private VLAN
Number of VLANs	4094
Routing / switching capacity	580 Gbps
Transfer rate	431.54 MPps
MAC address table	32,000 entries
Jumbo frames	9198
Data packet buffer memory	32 MB
DHCP functions	DHCP snooping
Supported security algorithms	128-bit AES, 256-bit AES
IPv4 multicast entries	32000
IPv6 multicast entries	16000
Router protocol	BGP, EIGRP, HSRP, IS-IS, OSPF, RIP
Form factor	1U
Product color	Gray
Security	AS/NZS 60950.1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, IEEE 802.3, UL 60950-1
Flash memory	16000 MB
Mean Time Between Failures (MTBF)	202160 hours
Total power over Ethernet (PoE)	490W
Operating temperatur	5 – 40 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	5 – 90%
Storage humidity	5 – 90%
Height during operation	0 – 3000 m
Broad	445 mm
Depth	485 mm
Height	44 mm
Weight	9.34 kg
Goods tariff number (HS)	85176990
Manufacturer	Cisco
