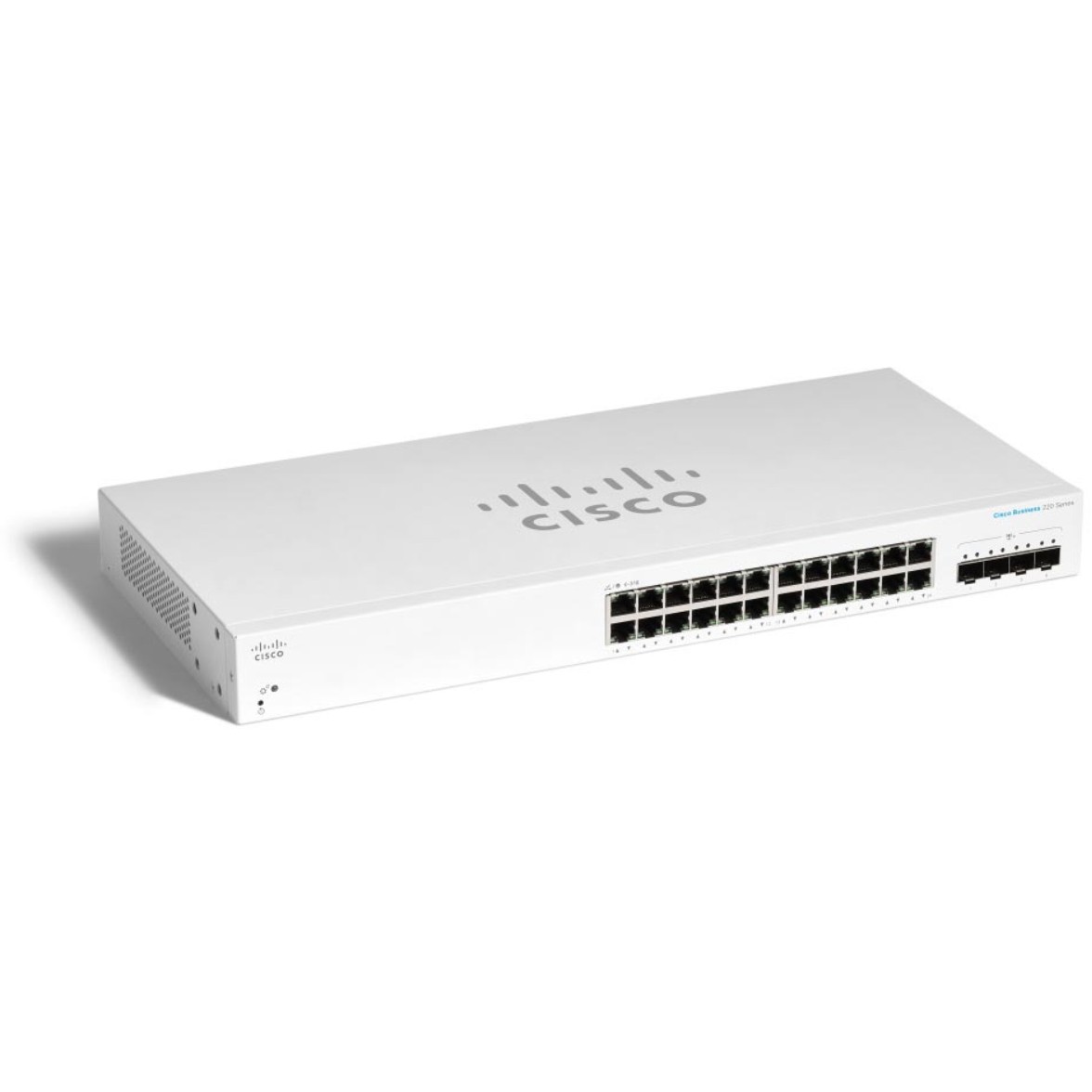

Cisco CBS220 SMART 24-PORT GE 4X10G

Name: Cisco CBS220 SMART 24-PORT GE 4X10G
SKU: 250460
Price: 377.22 EUR
Availability: InStock

€463.98

Cisco CBS220-24T-4X, Managed, L2, Gigabit Ethernet (10/100/1000), rack mountable

10 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Cisco CBS220-24T-4X. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 24. MAC address table: 8192 entries. Routing/switching capacity: 128 Gbps. Network standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, etc. Rack-mountable.

Additional information

Switch type	Managed
Switch level	L2
Characteristic	10G support, Access control list, Auto MDI/MDI-X, BPDU filtering/protection, Broadcast storm control, Configuring Site Settings (CLI), Filter MAC addresses, GARP VLAN Registration Protocol (GVRP), Head-of-Line (HOL) blocking, IGMP snooping, Jumbo frames support, LED indicators, Link aggregation, Loop protection, MIB support, Multicast support, Port mirroring, Quality of Service (QoS) Support, Rack installation, Reset button, Spanning tree protocol, SSH/SSL support, Support data flow control, System event log, Upgradeable firmware, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Quantity of SFP + module slots	4
Network standard	IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	256
Routing / switching capacity	128 Gbit / s
MAC address table	8192 entries
Jumbo frames	9216
DHCP functions	DHCP client
Access Control List (ACL) rules	512
IGMP entries	256
Supported security algorithms	SSL / TLS
Number of filtered multicast groups	256
Management logs	SNMP
Product color	White
Number of fans	1 fan
AC input frequency	50-60 Hz
Operating temperatur	0 – 50 ° C
Storage temperature range	20 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	10 – 90%
Broad	440 mm
Depth	203 mm
Height	44 mm
Weight	2.69 kg
Goods tariff number (HS)	85176990
Manufacturer	Cisco
