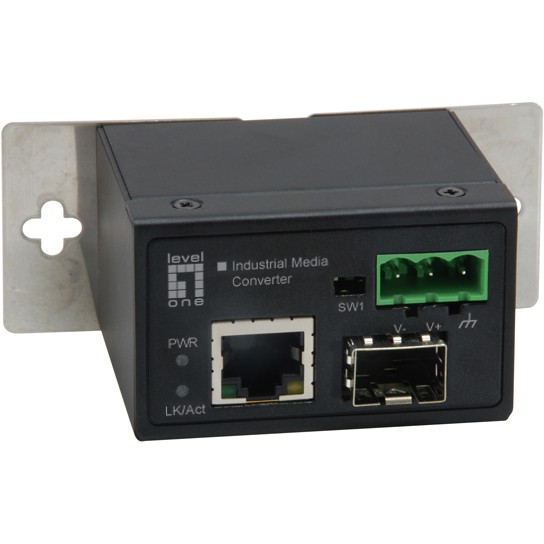

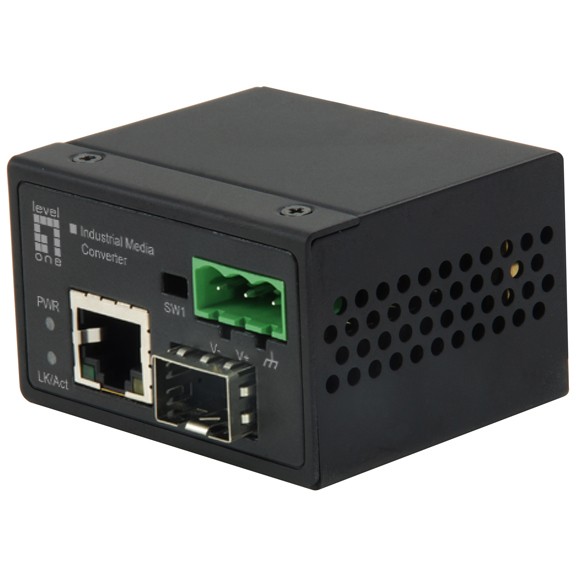

Converter IEC-4000 10/100TX>100FX SC MM 2km

Name: Converter IEC-4000 10/100TX&gt;100FX SC MM 2km
SKU: 166962
Price: 133.72 EUR
Availability: InStock

€164.48

LevelOne IEC-4000, 100 Mbps, 10Base-T, 100Base-TX, 100Base-X, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Full, Half, Activity, Link, Power

24 in stock

Categories: network, Network article

Description
Additional information

Description

LevelOne IEC-4000. Maximum data transfer rate: 100 Mbps. Converter input interface: 10Base-T, 100Base-TX. Converter output interface: 100Base-X. LED indicators: Activity, Link, Power. Product color: Black. Housing material: Aluminum. Optical cable connector: SFP. Transmission technology: Wired. Input voltage: 12-60 V. Power consumption (typical operation): 1.44 W. Width: 59 mm, Depth: 49 mm, Height: 36 mm.

Additional information

Maximum data transfer rate	100 Mbit / s
Converter input interface	100BASE-TX, 10BASE-T
Converter output interface	100Base-X
Network standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Characteristic	Auto MDI/MDI-X, Auto-negotiation function, Quick installation guide, Store and forward, Support data flow control
Duplex system	Fully, Half
LED indicators	Activity, Link, Perfomance
Product color	Black
Housing material	Aluminum
Transmission technology	Wired
Number of Ethernet LAN connections (RJ-45)	1
Number of fiber connections	1
Optical cable connector	SFP
Input voltage	12 – 60 V
Power consumption (standard operation)	1.44 W
Broad	59 mm
Depth	49 mm
Height	36 mm
Weight	90 g
Operating temperatur	40 – 75 ° C
Storage temperature range	40 – 75 ° C
Relative humidity in operation	5 – 95%
Packaging width	160 mm
Packaging depth	105 mm
Packing height	65 mm
Package weight	260 g
Packaging type	Box
Certificates of conformity	RoHS
Goods tariff number (HS)	85176990
Manufacturer	Level One
