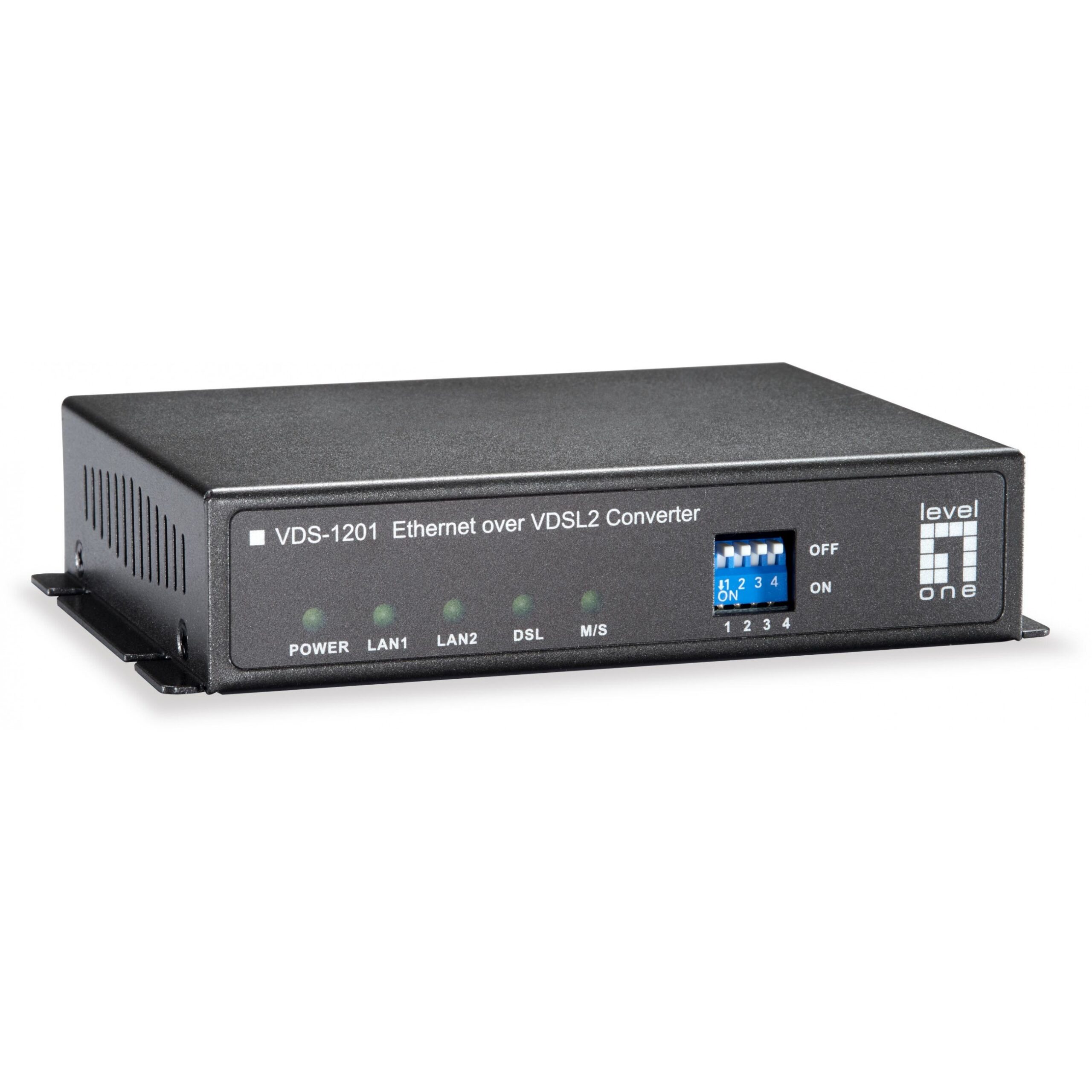

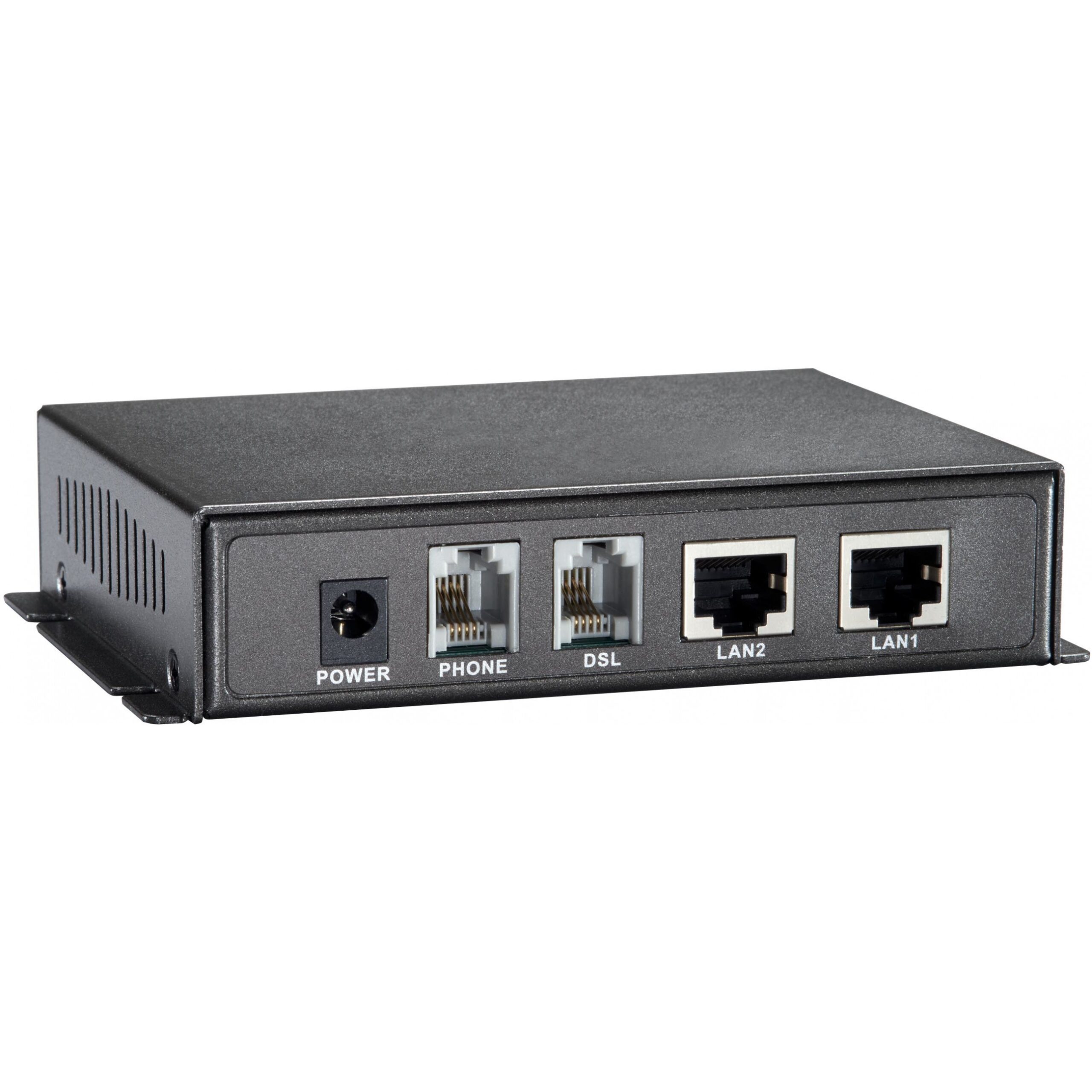

Converter VDS-1201 100/100Mbps>VDSL2 2km

Description

LevelOne VDS-1201. Maximum data transfer rate: 100 Mbps, Network standard: IEEE 802.3, IEEE 802.3u, Duplex system: Full, Half. Maximum possible transmission distance: 300 m. LED indicators: DSL, LAN, Power, Product color: Black. Transmission technology: Wired. Input voltage: 12 V, Input current: 1 A.

The LevelOne VDS-1201 converts data from Ethernet to VDSL, allowing large amounts of data to be transmitted over longer distances. This technology uses traditional twisted-pair telephone cables instead of expensive Cat.5 cables.

Why convert Ethernet to VDSL?
Using VDSL2 (Very High Speed Digital Subscriber Line) technology, users can transfer data at high speeds up to 250 meters without installing additional Ethernet switches or cables. With speeds of up to 100Mbps downstream and 100Mbps upstream, VDSL2 technology offers sufficient capacity for bandwidth-intensive applications.

Fast data transfer? Yes!
Easy installation? Yes!
Cost-effective? Yes!
The LevelOne VDS-1201 works optimally where traditional copper telephone lines are already installed: apartments, condominiums, hotels, university campuses, etc. No expensive Ethernet cables are required, and VDSL technology can be easily integrated into an existing network. The VDS-1201 is plug-and-play and requires minimal installation.

Custom settings
Each VDS-1201 can be operated with custom settings. Using the integrated DIP switches, users can configure the device to the desired network characteristics.

Annex A
Additionally offers you the possibility to transmit analog telephone signals in-band to the VDSL2 signal via the two-wire line.
