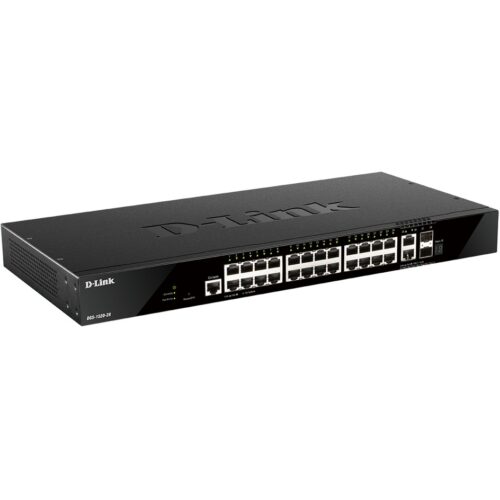

D-Link DGS-1520-28/E 28-Port Gigabit Smart Managed Switch

Name: D-Link DGS-1520-28/E 28-Port Gigabit Smart Managed Switch
SKU: 181994
Price: 767.52 EUR
Availability: InStock

€944.05

D-Link DGS-1520-28/E, Managed, L3, 10G Ethernet (100/1000/10000), Rack Mount, 1U

3 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

D-Link DGS-1520-28/E. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Number of basic switching RJ-45 Ethernet ports: 26. MAC address table: 16384 entries, Routing/switching capacity: 128 Gbps. Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz,…. Rack-mountable, form factor: 1U

Additional information

Switch type	Managed
Switch level	L3
Characteristic	10G support, Auto MDI/MDI-X, BPDU filtering/protection, GARP VLAN Registration Protocol (GVRP), Head-of-Line (HOL) blocking, IGMP snooping, Jumbo frames support, Link aggregation, Loop protection, Rack installation, Spanning tree protocol, Stackable, Static route, Store and forward, Support data flow control, Support for redundant power supply, Web-based management
Number of basic switching RJ-45 Ethernet ports	26
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Number of Gigabit Ethernet (copper) connections	24
Number of 10G Ethernet (copper) ports	2
Quantity of SFP + module slots	2
Number of fiber connections	2
Optical cable connector	SFP +
Network standard	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100Base-FX, 100BASE-TX, 10BASE-T
Routing / switching capacity	128 Gbit / s
Transfer rate	1000BASE-ZX
MAC address table	16384 entries
Jumbo frames	12288
DHCP functions	DHCP snooping
MAC address entries	Static MAC address entries
Multicast Listener Discovery (MLD) Snooping	V1/v2
Router protocol	OSPF, RIP, RIPng, VRRP
Form factor	1U
Product color	Black
LED indicators	Activity, Link, Perfomance, Speed
Physical stacking (units)	8
Virtual stacking (units)	32
Noise level	51.8dB
Mean Time Between Failures (MTBF)	468252 h
Power consumption (max.)	30.4 W
Operating temperatur	5 – 50 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	10 – 95%
Storage humidity	5 – 95%
Heat dissipation	103.7 BTU/hr
Broad	207.4 mm
Depth	441 mm
Height	44 mm
Weight	2.33 kg
Certification	BSMI Class A, CE Class A, FCC Class A., IC Class A, RCM Class A, VCCI Class A
Goods tariff number (HS)	85176990
Manufacturer	D-Link
