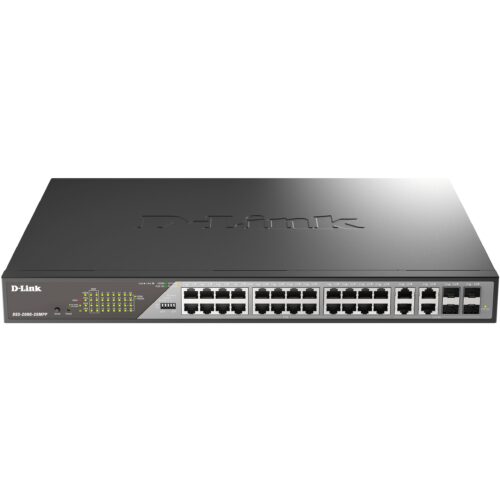

D-Link DSS-200G-28MP/E 28-Port Desktop Gigabit PoE Switch

Name: D-Link DSS-200G-28MP/E 28-Port Desktop Gigabit PoE Switch
SKU: 182036
Price: 477.13 EUR
Availability: InStock

€586.87

D-Link DSS-200G-28MP, Managed, L2, Gigabit Ethernet (10/100/1000), Full Duplex, Power over Ethernet (PoE), 1U

1 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

D-Link DSS-200G-28MP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 24. Full duplex. MAC address table: 8000 entries. Routing/switching capacity: 56 Gbps. Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, etc. Power over Ethernet (PoE). Form factor: 1U

Additional information

Switch type	Managed
Switch level	L2
Characteristic	Auto MDI/MDI-X, Auto-negotiation function, Broadcast storm control, Full duplex, Half duplex, Head-of-Line (HOL) blocking, IGMP snooping, Jumbo frames support, Link aggregation, Multicast support, Password protection, Port mirroring, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Rate Limiting, Reset button, Spanning tree protocol, SSH/SSL support, Support data flow control, Sustainability compliance, Traffic classification, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Number of combo SPF ports	4
Network standard	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data transfer rates	1000 Mbit / s
Virtual LAN functions	Voice VLAN
Number of VLANs	4094
Routing / switching capacity	56 Gbit / s
Transfer rate	41.67 MPps
MAC address table	8000 entries
Number of queues	4
Jumbo frames	10240
Data packet buffer memory	4.1 MB
Queue planning algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Multicast capabilities	168 Gbps
Form factor	1U
Product color	Gray
LED indicators	Activity, Alarm, Link, Perfomance, Speed
Number of fans	2 fans
Storage type	DDR3 SDRAM
Storage capacity	128 MB
Flash memory	32 MB
Noise level	53 dB
Mean Time Between Failures (MTBF)	331732 hours
Energy source	AC
AC input voltage	100-240V
AC input frequency	50/60 Hz
Input current	6.4 A
Input voltage	100-240V
Power consumption (max.)	425.9 W
Number of Power over Ethernet (PoE) connections	24
Power over Ethernet (PoE) power per connection	30 W
Total power over Ethernet (PoE)	370 W
Operating temperatur	5 – 50 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	0 – 95%
Storage humidity	0 – 95%
Heat dissipation	190.74 BTU/h
Broad	440 mm
Depth	208 mm
Height	44 mm
Weight	2.86 kg
Manufacturer	D-Link
