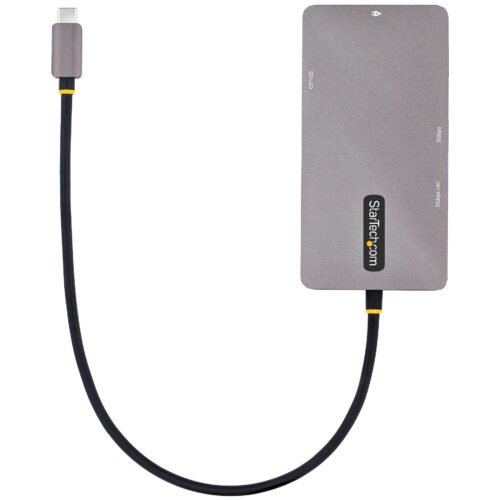

D StarTech USB C MULTIPORT ADAPTER 2 HDMI

Description

StarTech.com USB-C Multiport Adapter, USB-C to Dual HDMI Video, 4K 60Hz, 5Gbps USB-A Hub, 100W PD Pass-through/GbE/SD/MicroSD Card Reader, Travel Adapter/Laptop Docking Station, Thunderbolt 3 & 4 Compatible. Transmission Technology: Wired, Host Interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN Data Transfer Rates: 10, 100, 1000 Mbps. Product Color: Gray, Compatible Memory Cards: MicroSD (TransFlash), SD, SDHC, SDXC, Data Transfer Rate: 5 Gbps. Power Source: USB, Power Consumption (Standard Operation): 15W. Supports Windows Operating Systems: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Supports Other Operating Systems: ChromeOS

Portable docking station | Up to two 4K 60Hz monitors | Gigabit Ethernet | SD & MicroSD card reader | Thunderbolt™ 3 & 4 compatible

This USB Type-C multiport adapter with DP 1.4 Alternative Mode, DSC, and MST supports dual HDMI® (HDR) video outputs with resolutions up to 4K 60Hz uncompressed video. The portable mini dock transforms your Dell XPS, Lenovo X1 Carbon, HP Elite/ProBook, or other USB-C laptop into a workstation, wherever you go. The USB-C docking station offers two HDMI outputs, a dual-port USB 3.2 Gen 1 Type-A (5Gbps) hub including a BC 1.2 port for power delivery and charging USB peripherals, an SD and microSD card reader, and a Gigabit Ethernet port, all via a single connection to your notebook's USB-C or Thunderbolt 3/4™ port. It also features advanced charging via USB Power Delivery (PD) 3.0 pass-through over an integrated 12-inch USB-C host cable for greater setup flexibility.

High-performance dual HDMI video over MST

This compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST for uncompressed video output of up to two 4K (3840 x 2160p) displays at 60 Hz, depending on your host computer. The dock also supports the use of ultrawide monitors.

Video performance, such as resolution and refresh rate for both monitors, depends on your host computer and its video controller. A source device supporting DisplayPort 1.4, paired with HDMI displays that support both DSC and DP 1.4, is required to achieve dual 4K 60Hz. Please check your computer and monitor specifications to determine the expected video performance. StarTech.com conducts rigorous performance benchmarks on all major computer models. The results of our video performance tests are listed below:

Two screens

Host Computer

Model

Screen #1

Maximum resolution

Screen #2

Maximum resolution

Lenovo X1 Carbon G9

3840×2160@60Hz

3840×2160@60Hz

HP EliteBook 850 G8

3840×2160@60Hz

3840×2160@30Hz

Dell XPS 9310

2560×1600@60Hz

2560×1600@60Hz

Single screen

Host Computer

Model

Screen

Maximum resolution

Dell XPS 9310

3840×2160@60Hz

Lenovo X1C G9

3840×2160@60Hz

HP EliteBook 850

3840×2160@60Hz

HP ProBook 450 G8

3840×2160@60Hz

Surface Laptop 3

3840×2160@60Hz

Dell G5 SE (AMD)

3840×2160@60Hz

Connect your devices

The USB-C to USB 3.2 Gen 1 (5Gbit/s) hub offers two USB-A ports for connecting your USB devices.

Multiple use cases

A versatile docking solution for use at your desk in the office, home office, hotel, or meeting room. It's portable enough to fit in your bag or backpack for mobile use. The USB-C docking station can be powered by bus power alone or with a USB-C power adapter connected to the pass-through port for fully charging laptops and peripherals. The lightweight docking station features an integrated 30 cm USB-C host cable.

Integrated SD card reader

Access your multimedia content effortlessly. The multiport adapter provides direct access to your SD / SDHC™ / SDXC™ or microSD (uSD) memory cards.

Charge your laptop and peripherals

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter allows you to power and charge your laptop and a USB peripheral when a USB-C power adapter is connected to the pass-through port. PD 3.0 offers Fast Role Swap (FRS), which prevents interruptions to USB data when switching between power sources (e.g., USB-C power adapter to bus power).

Reliable network connection

The Gigabit Ethernet port ensures reliable wired network access. Thanks to Wake-on-LAN (WoL) support, you can boot the host computer from a remote location.

Improve productivity and device management with the StarTech.com Connectivity Tools application.

StarTech.com Connectivity Tools are designed to improve performance and security and are the only software suite on the market that works with a comprehensive range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility: For setting up and saving custom window layouts.

•

MAC Address Pass-Through Utility: For improving network security.

•

USB Event Monitoring Utility: For tracking and logging connected USB devices.

•

Wi-Fi Auto Switch Utility: Allows users to quickly access faster network speeds over a wired LAN.

Further information and the StarTech.com Connectivity Tools program for download can be found here: www.startech.com/connectivity-tools
