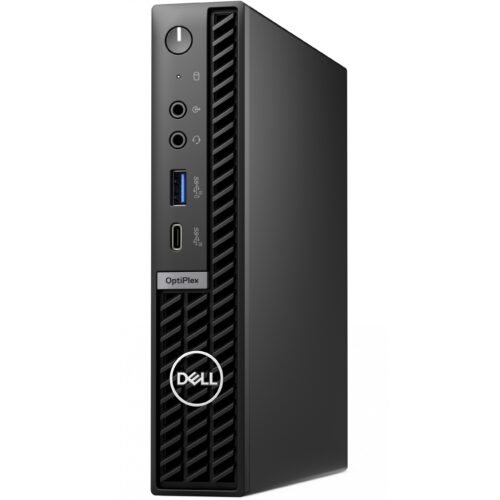

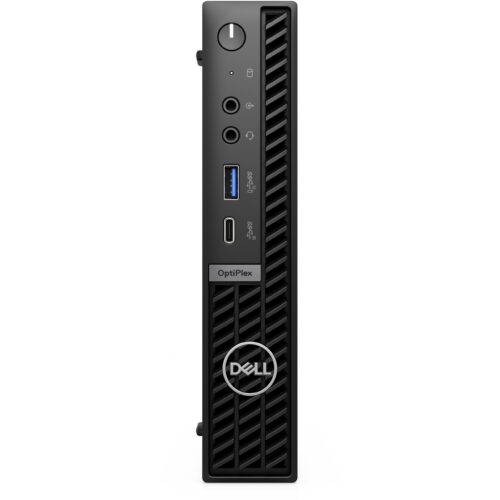

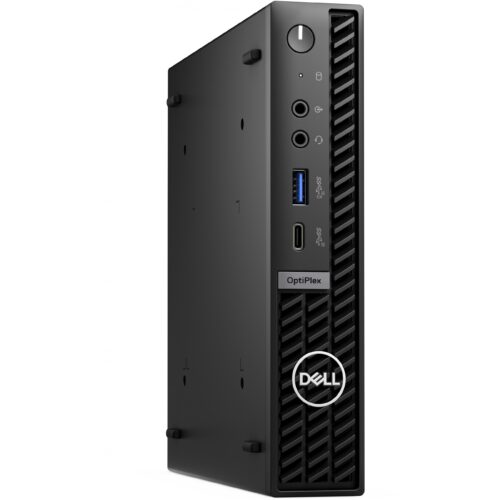

Dell Optiplex 7020 MFF i5-14500 16GB 512GB UHD770 W11P

Name: Dell Optiplex 7020 MFF i5-14500 16GB 512GB UHD770 W11P
SKU: 189157
Price: 863.18 EUR
Availability: InStock

€1,061.71

DELL OptiPlex 7020 Plus, Intel® Core™ i5, i5-14500, 16GB, 512GB, Windows 11 Pro, 64-bit

8 in stock

Categories: Branded PCs, PC systems

Description
Additional information

Description

DELL OptiPlex 7020 Plus. Processor family: Intel® Core™ i5, Processor: i5-14500. Memory capacity: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. Built-in graphics card model: Intel UHD Graphics 770. Wi-Fi. Installed operating system: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: MFF. Product type: Mini PC. Product color: Black

Powerful desktop PC with DDR5 memory, 5 native USB ports including 1 USB-C port and 3 native DisplayPorts

Additional information

Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel Core i5-14xxx
Processor	I5-14500
Number of CPU cores	14
Processor threads	20
Processor boost frequency	5 GHz
Performance cores	6
Efficient Cores	8
Performance core maximum turbo frequency	5 GHz
Efficient core maximum turbo frequency	3.7 GHz
Power Fundamental frequency of the core	2.6 GHz
Efficient base frequency of the core	1.9GHz
Processor cache	24 MB
Processor cache type	Smart cache
Number of installed processors	1
Number of processors supported	1
Base performance of the processor	65 W
Maximum turbo performance	154 W
Storage capacity	16 GB
RAM memory maximum	64 GB
Internal storage type	DDR5 SDRAM
Storage layout	1 x 16 GB
Memory card slots	2x SO-DIMM
Memory channels	Single channel
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Total capacity of the SSDs	512 GB
Number of SSD installed	1
SSD storage capacity	512 GB
SSD interface	PCI Express 4.0
Characteristic	Bluetooth, Built-in graphics adapters, Cable lock slot, Combined headphone/microphone connection, Direct current connection (DC), Ethernet/LAN, Intel® vPro™ Platform Eligibility, Microphone input, NVMe, Password protection, PowerShare, Sustainability compliance, Trusted Platform Module (TPM), WIRELESS INTERNET ACCESS
SSD form factor	M.2
SSD performance class	35
M.2 SSD size	2230 (22x30mm)
Compatible memory cards	Unsupported
Separate graphics card model	Not available
Manufacturer of the built-in GPU	Intel
On-board graphics adapter family	Intel® UHD Graphics
Built-in graphics card model	Intel UHD Graphics 770
Maximum resolution of the built-in graphics card	7680 x 4320 pixels
Ethernet LAN data transfer rates	10,100,1000 Mbit / s
Top WiFi standard	Wi-Fi 6E (802.11ax)
WLAN standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Manufacturer of WLAN controllers	Intel
WLAN controller model	Intel WiFi 6E AX211
Antenna type	2×2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	3
USB 3.2 Gen 2x2 Type-C number of ports	1
Number of USB ports with PowerShare support	1
Number of DisplayPort connections	3
DisplayPorts version	1.4a
Number of Ethernet LAN connections (RJ-45)	1
Number of rear USB ports	3
Number of front USB ports	2
Number of front audio connectors	2
Housing type	MFF
Assisted positioning	Horizontal Vertical
Slot type cable lock	Kensington
Product color	Black
Market positioning	Business
Motherboard chipset	IntelQ670
Audio chip	Realtek ALC3246
Number of speakers	1
Trusted Platform Module (TPM) version	2.0
Product type	Mini pc
Installed operating system	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	Dutch, English, French, German, Italian
Test software	Activate Your Microsoft 365 For A 30 Day Trial
Power supply	180 W
Power supply - input voltage	100-240V
Power supply - input frequency	50/60 Hz
Operating temperatur	10 – 35 ° C
Storage temperature range	40 – 65 ° C
Relative humidity in operation	20-80%
Storage humidity	5 – 95%
Height during operation	15.2 – 3048 m
Storage height	15.2 – 10668 m
Vibrations in operation	0.26 G
Vibrations out of order	1.37 G
Shock resistance in operation	40 g
Shock resistance out of service	105 G
Sustainability certificates	ENERGY STAR, EPEAT Climate +, TCO
Does not contain	PVC / BFR
Broad	36 mm
Depth	178 mm
Height	182 mm
Supplied cables	AC
Power cable length	1.8 m
Total carbon footprint (kg of CO2e)	96
Carbon emissions, manufacturing (kg CO2e)	62
Carbon emissions, logistics (kg of CO2e)
Carbon emissions, energy consumption (kg of CO2e)	31
Carbon emissions, end of life (kg CO2e)	1
Total carbon emissions, with/without use phase (kg CO2e)	65
PAIA version	2024, GaBi version 1
Manufacturer	DELL
