DELOCK WLAN dual antenna 2 x MHF IV / HSC MXHP32 compatible connector 802.11 ac/a/h/b/g/n 5 dBi 250mm PCB internal adhesive mounting

Description

DeLOCK 89571. Antenna gain (max): 5 dBi, frequency band: 2.4 – 2.483 / 5.15 – 5.85 GHz, impedance: 50 ohms. Antenna connector type: MHF, connector gender: female/female, maximum input power: 1 W. Width: 7 mm, depth: 616 mm, height: 1.6 mm. Quantity per package: 1 piece(s)

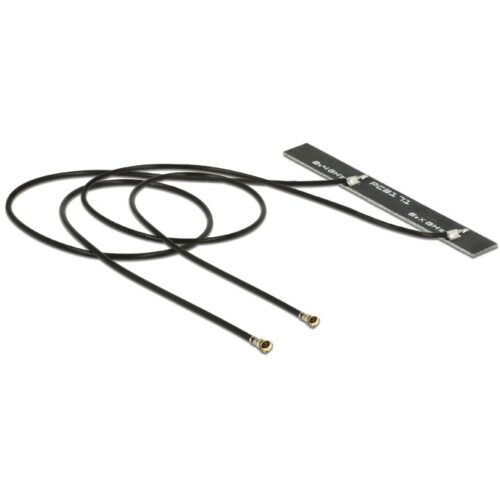

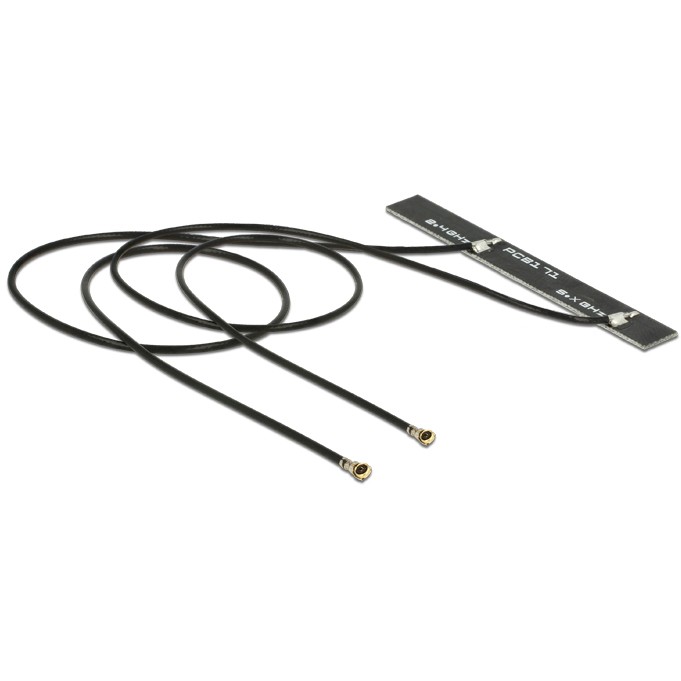

This dual Wi-Fi antenna allows integration into devices with an MHF IV connector. It consists of two separate antennas with a common ground point.

– Connectors: 2 x miniature RF coaxial connectors MHF IV (I-PEX), MXHP32 (HSC) compatible
– Frequency range:
– 2400 – 2500 MHz
– 5150 – 5850 MHz
– Antenna gain: 5 dBi
– Impedance: 50 ohms
– Cable type: coaxial
– Cable attenuation:
3.20 dB @ 2.4 GHz per meter
5.05 dB @ 5.0 GHz per meter
– Cable diameter: approx. 1.13 mm
– Cable length including connections: approx. 250 mm
– Operating temperature: -10 °C ~ 50 °C
– Dimensions (LxWxH): approx. 61.6 x 7.0 x 1.6 mm
